Product Details | DISPLACEMENT GYROSCOPE

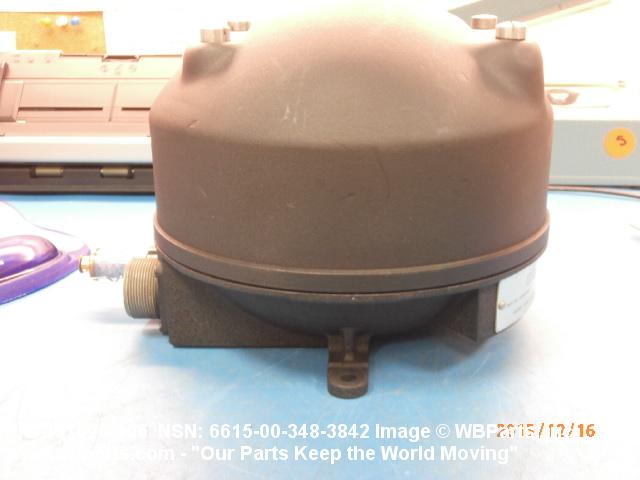

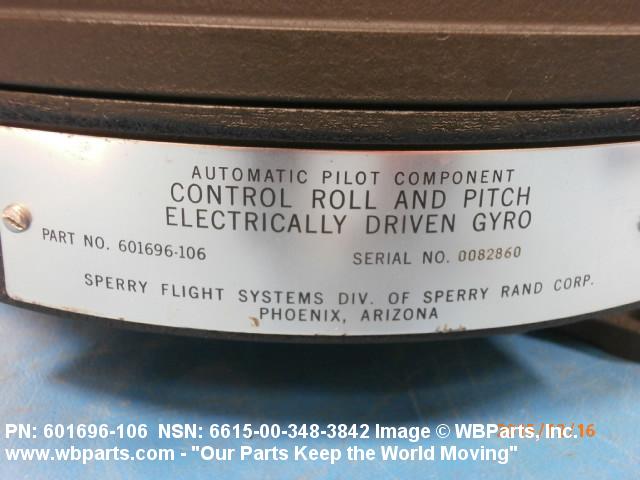

6615-00-348-3842 A gyroscope which senses, measures and transmits angular displacement data.
Part Alternates: 601696-106, 6615-00-348-3842, 00-348-3842, 6615003483842, 601696106, 003483842
Instruments and Laboratory Equipment | Automatic Pilot Mechanisms and Airborne Gyro Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-348-3842 | 20599 ( GYROSCOPE, DISPLACEMENT ) |

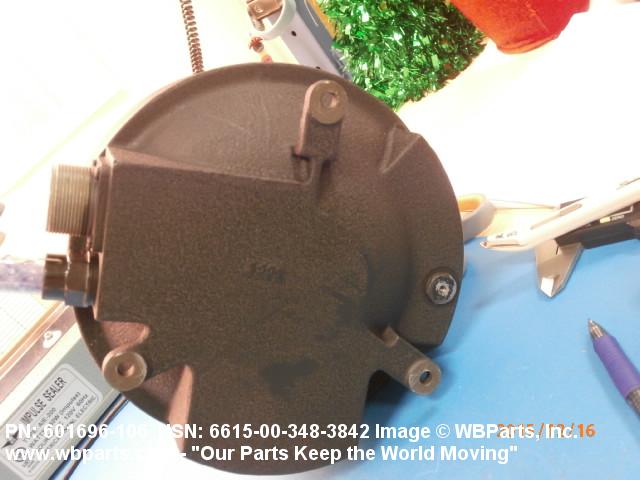

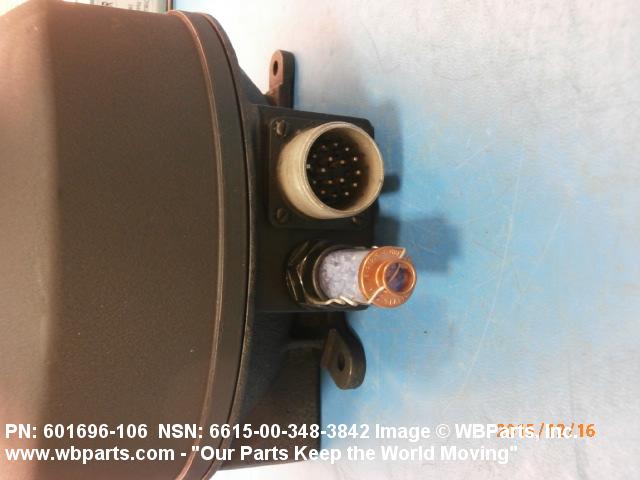

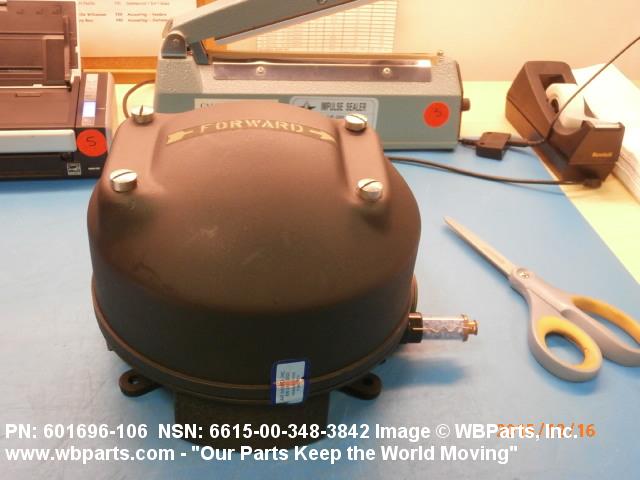

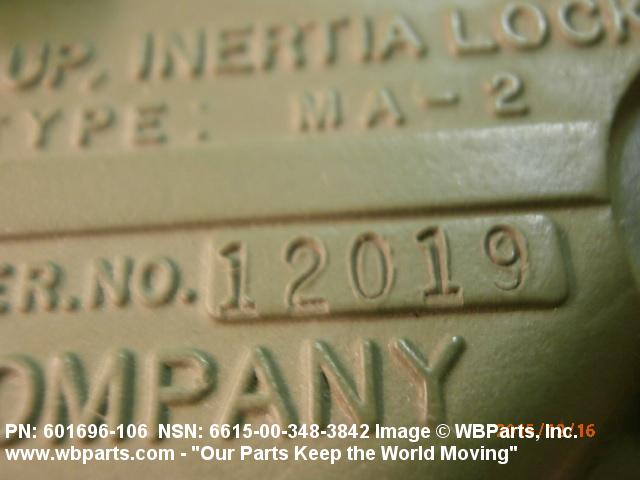

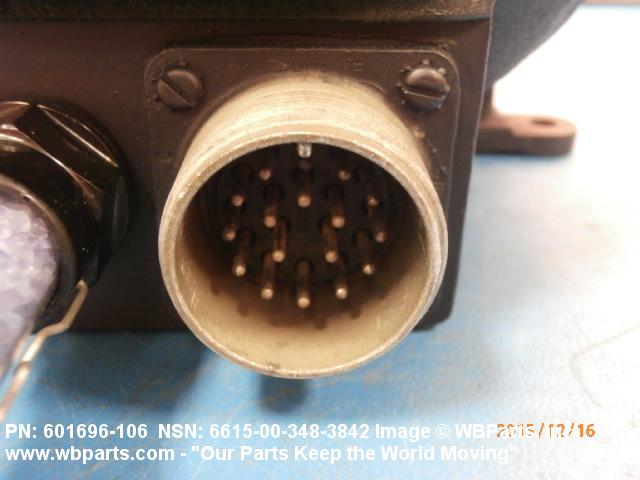

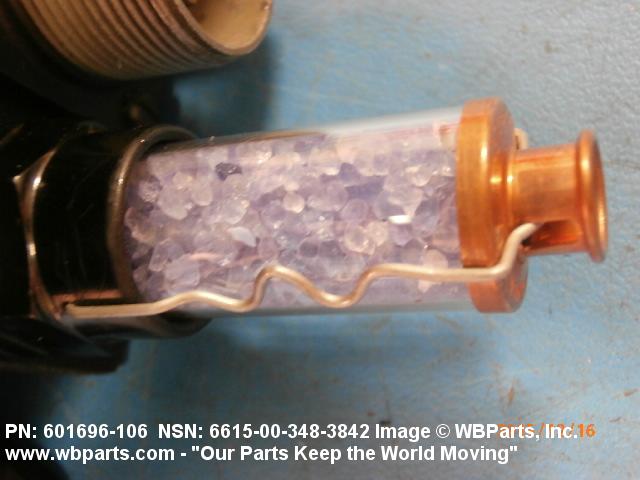

Drawings & Photos | NSN 6615-00-348-3842
Demand History | NSN 6615-00-348-3842
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6615-00-348-3842 | 2015-11-316 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6615-00-348-3842
Related Products | NSN 6615-00-348-3842
Technical Data | NSN 6615-00-348-3842
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | VERTICAL |
| WHEEL POWER METHOD | ELECTRIC |
| CURRENT TYPE | AC |
| VOLTAGE IN VOLTS | 115.0 |
| FREQUENCY IN HERTZ | 400.0 |
| PHASE | THREE |
| FREEDOM AXIS QUANTITY | 2 |
| GIMBAL QUANTITY | 2 |
| AXIS DISPLACEMENT LIMITATION IN DEG | 360 DEG DISPLACEMENT LIMITATION FOR ROLL AXIS PORM 84 DEG DISPLACEMENT LIMITATION FOR PITCH AXIS |
| DESIGN TYPE | NONCAGEABLE |
| GIMBAL TORQUE APPLICATION METHOD | TORQUE MOTOR |
| TORQUED GIMBAL QUANTITY | 2 |
| SENSING OUTPUT/SIGNAL LEVEL METHOD | SYNCHRO OUTPUT 35V INTERNALLY EXCITED 4.60 V AT 40 DEG DISPLACEMENT |
| INSTRUMENT TYPE | UNFLOATED |
| SHOCK MOUNT | NOT PROVIDED |

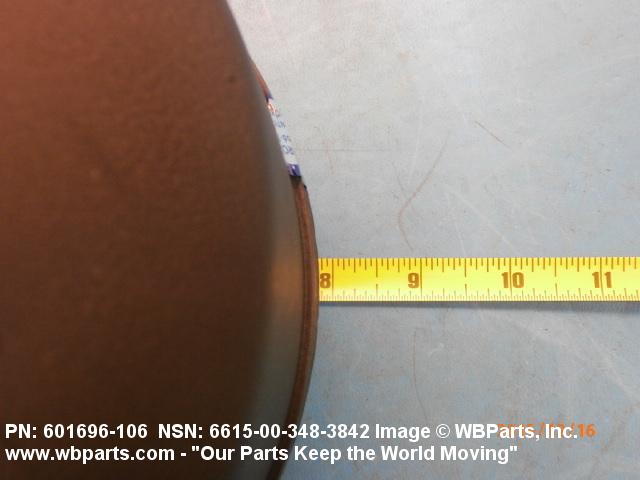

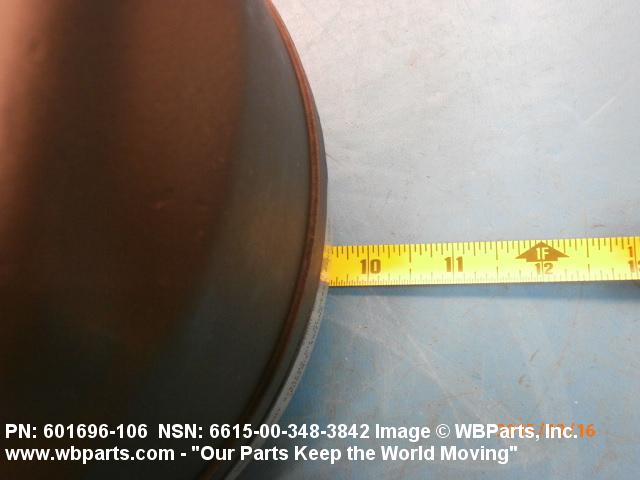

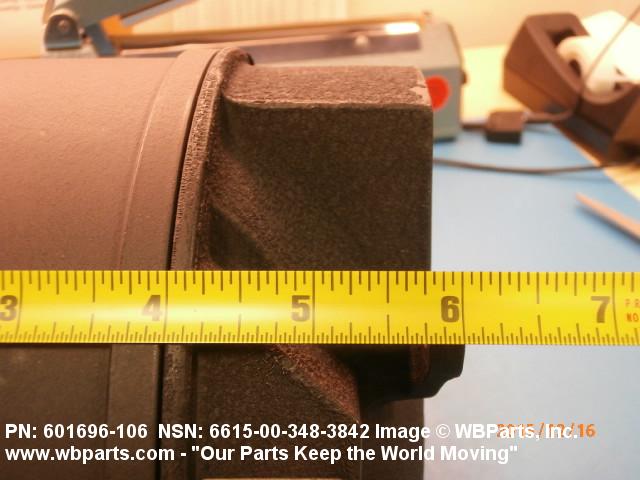

| OVERALL LENGTH | 9.375 INCHES NOMINAL |
| OVERALL WIDTH | 8.000 INCHES NOMINAL |
| OVERALL HEIGHT | 6.921 INCHES NOMINAL |
| SPECIAL FEATURES | PITCH SYNCHRO MOUNTED IN A 6 DEG CLIMB ATTITUDE |
