NSN 6220-00-212-9098 27J, 00-212-9098, 002129098
Product Details | LIGHT REFLECTOR
6220-00-212-9098 An opaque item for a light source with an inside surface of high polish or luster designed to confine, reflect and redirect light rays in a specific area or direction. Does not include lampholder. For combination guard and reflector, see GUARD, LAMP.20462100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures62300045Electric Portable and Hand Lighting Equipment62600031Nonelectrical Lighting Fixtures
Part Alternates: 27J, 6220-00-212-9098, 00-212-9098, 6220002129098, 002129098
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-212-9098 | 12790 ( REFLECTOR, LIGHT ) |
Drawings & Photos | NSN 6220-00-212-9098
Cross Reference | NSN 6220-00-212-9098
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 27J | 92953 | GENERAL LAMP MFG CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6220-00-212-9098
Technical Data | NSN 6220-00-212-9098
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | BRONZE |
| INSIDE SURFACE TREATMENT | POLISHED |
| CORRUGATED REFLECTING SURFACE | NOT INCLUDED |
| OVERALL DIAMETER | 6.500 INCHES NOMINAL |
| OVERALL HEIGHT | 3.000 INCHES NOMINAL |
| MOUNTING CONFIGURATION | 1 IN. DIA THREADED PORTION |

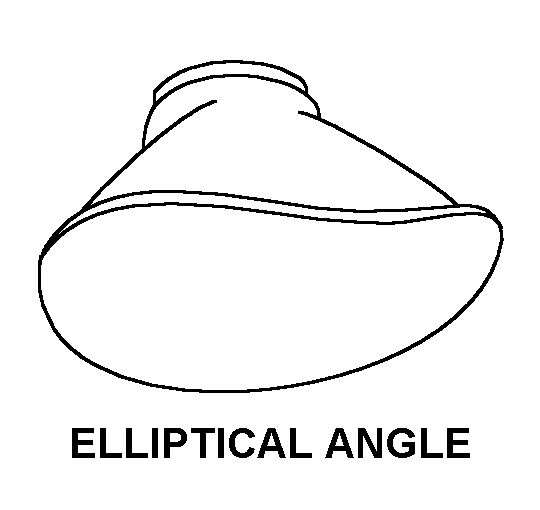

| STYLE DESIGNATOR | C3 ELLIPTICAL ANGLE |
| LAMPHOLDER OPENING LOCATION | OFFSET |
| LAMPHOLDER OPENING DIMENSION | 1-1/4 IN. DIA |
| MANUFACTURERS CODE | 92953 |
| DESIGN CONTROL REFERENCE | 27J |
Restrictions/Controls & Freight Information | NSN 6220-00-212-9098
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
