NSN 6230-01-102-7894 MXM15199, MXM151-99, MXM151PC99
Product Details | LIGHT REFLECTOR
6230-01-102-7894 An opaque item for a light source with an inside surface of high polish or luster designed to confine, reflect and redirect light rays in a specific area or direction. Does not include lampholder. For combination guard and reflector, see GUARD, LAMP.20462100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures62300045Electric Portable and Hand Lighting Equipment62600031Nonelectrical Lighting Fixtures
Part Alternates: MXM15199, MXM151-99, MXM151PC99, MILR2728, MIL-R-2728, 40103122, 40103-1-2-2, 40105122, 40105-1-2-2, 6230-01-102-7894, 01-102-7894, 6230011027894, 011027894
Lighting Fixtures and Lamps | Electric Portable and Hand Lighting Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 26 OCT 1980 | 01-102-7894 | 12790 ( REFLECTOR, LIGHT ) |

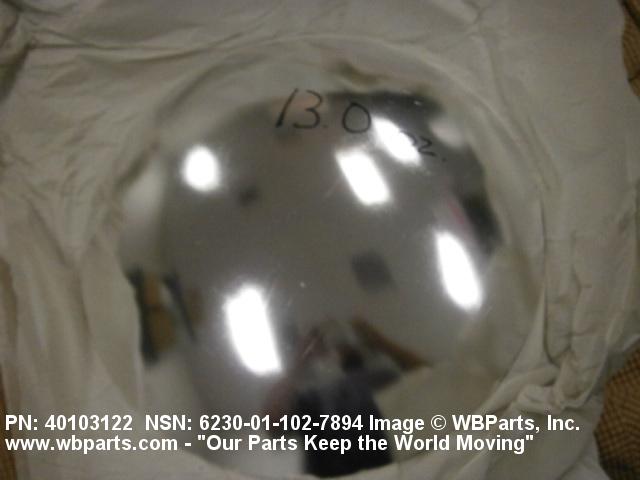

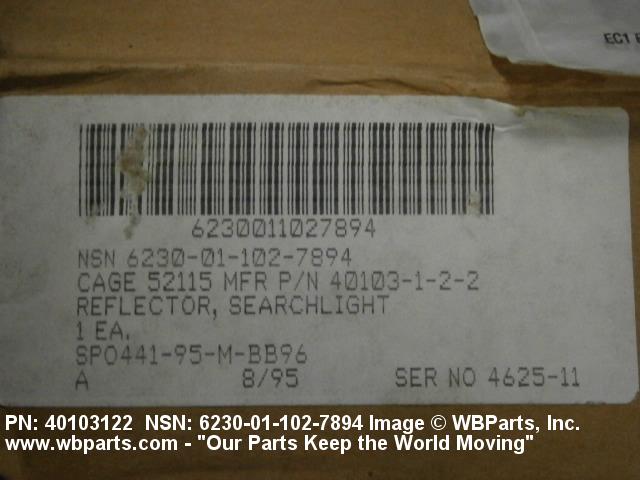

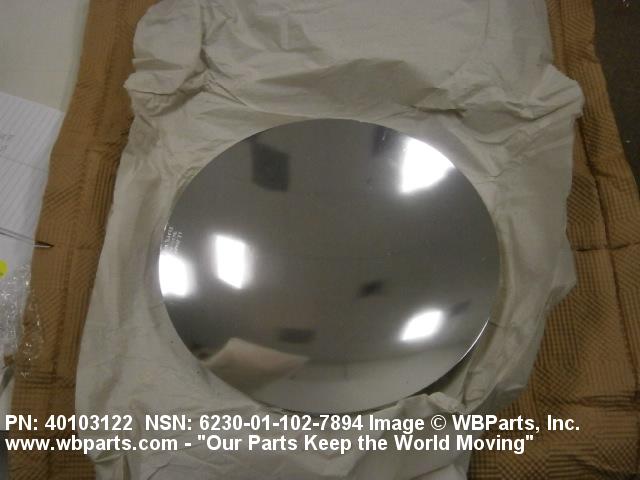

Drawings & Photos | NSN 6230-01-102-7894
Demand History | NSN 6230-01-102-7894
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6230-01-102-7894 | 2023-07-191 | 9 | DIBBS |
| 6230-01-102-7894 | 2023-01-30 | 9 | DIBBS |
| 6230-01-102-7894 | 2021-11-326 | 2 | US |
| 6230-01-102-7894 | 2013-12-355 | 17 | DIBBS |
| 6230-01-102-7894 | 2013-12-346 | 17 | DIBBS |
| 6230-01-102-7894 | 2013-10-303 | 1 | United States |
| 6230-01-102-7894 | 2013-10-301 | 1 | DIBBS |
| 6230-01-102-7894 | 2013-02-58 | 16 | DIBBS |
| 6230-01-102-7894 | 2013-02-50 | 16 | DIBBS |
| 6230-01-102-7894 | 2012-01-30 | 0 | United States |
| 6230-01-102-7894 | 2012-01-10 | 4 | DIBBS |
| 6230-01-102-7894 | 2011-01-07 | 3 | DIBBS |
Cross Reference | NSN 6230-01-102-7894
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6230-01-102-7894
Technical Data | NSN 6230-01-102-7894
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | ANY ACCEPTABLE |
| INSIDE SURFACE TREATMENT | ANY ACCEPTABLE |
| CORRUGATED REFLECTING SURFACE | NOT INCLUDED |
| OVERALL DIAMETER | 12.600 INCHES NOMINAL |
| OVERALL HEIGHT | 0.066 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |

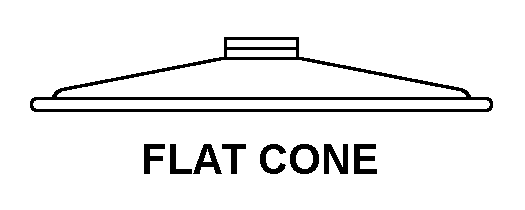

| STYLE DESIGNATOR | C10B FLAT CONE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-R-2728 |
Restrictions/Controls & Freight Information | NSN 6230-01-102-7894
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109895 | SHADES/REFLECTORS NOI LAMP/ |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 585 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6230-01-102-7894
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
