NSN 6230-01-510-2077 IR3024I, RB2024I, 01-510-2077
Product Details | LIGHT REFLECTOR
6230-01-510-2077 An opaque item for a light source with an inside surface of high polish or luster designed to confine, reflect and redirect light rays in a specific area or direction. Does not include lampholder. For combination guard and reflector, see GUARD, LAMP.20462100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures62300045Electric Portable and Hand Lighting Equipment62600031Nonelectrical Lighting Fixtures
Part Alternates: IR3024I, RB2024I, 6230-01-510-2077, 01-510-2077, 6230015102077, 015102077
Lighting Fixtures and Lamps | Electric Portable and Hand Lighting Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 15 JUL 2003 | 01-510-2077 | 12790 ( REFLECTOR, LIGHT ) |

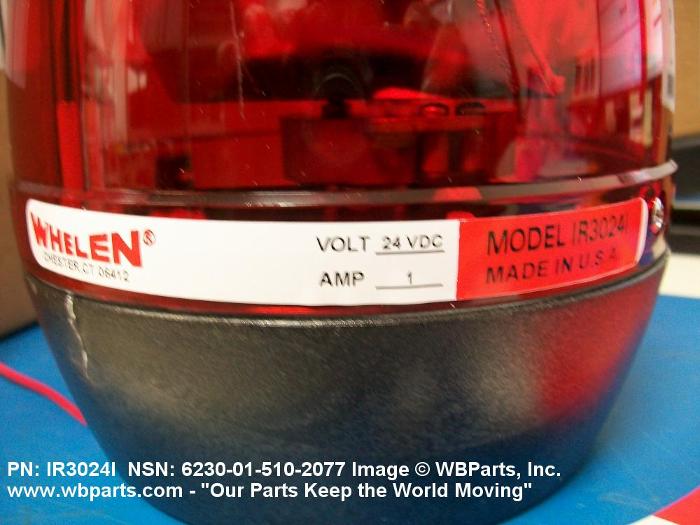

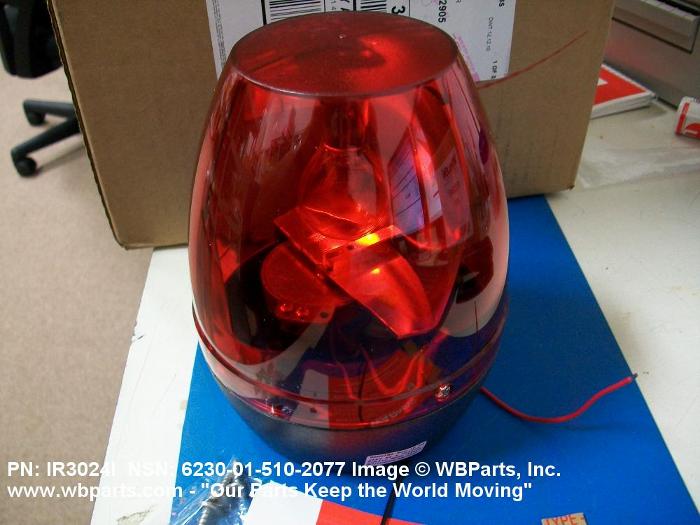

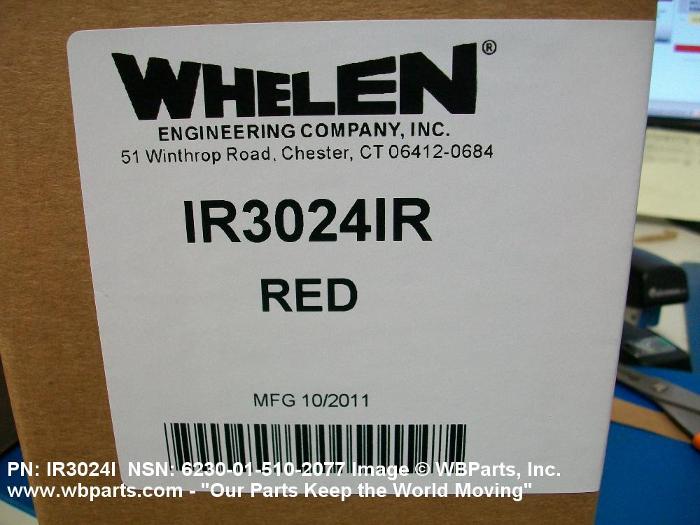

Drawings & Photos | NSN 6230-01-510-2077
Demand History | NSN 6230-01-510-2077
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| IR3024I | 2011-06-165 | 26 | Taiwan |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6230-01-510-2077
Technical Data | NSN 6230-01-510-2077
| Characteristic | Specifications |
|---|---|
| CORRUGATED REFLECTING SURFACE | NOT INCLUDED |

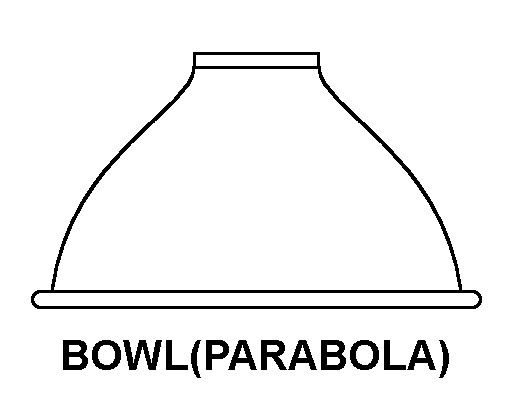

| STYLE DESIGNATOR | C7A BOWL |
| SPECIAL FEATURES | SINGLE REFLECTOR |
Restrictions/Controls & Freight Information | NSN 6230-01-510-2077
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
