NSN 6210-00-074-8787 1102, 00-074-8787, 000748787
Product Details | LIGHT REFLECTOR
6210-00-074-8787 An opaque item for a light source with an inside surface of high polish or luster designed to confine, reflect and redirect light rays in a specific area or direction. Does not include lampholder. For combination guard and reflector, see GUARD, LAMP.20462100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures62300045Electric Portable and Hand Lighting Equipment62600031Nonelectrical Lighting Fixtures
Part Alternates: 1102, 6210-00-074-8787, 00-074-8787, 6210000748787, 000748787
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-074-8787 | 12790 ( REFLECTOR, LIGHT ) |
Drawings & Photos | NSN 6210-00-074-8787
Demand History | NSN 6210-00-074-8787
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1102 | 2011-03-69 | 10 | Taiwan |
Cross Reference | NSN 6210-00-074-8787
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1102 | 06859 | THOMAS INDUSTRIES INC BENJAMIN ELECTRIC DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6210-00-074-8787
Technical Data | NSN 6210-00-074-8787
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | PAINTED |
| INSIDE SURFACE TREATMENT | PAINTED |
| CORRUGATED REFLECTING SURFACE | NOT INCLUDED |
| OVERALL DIAMETER | 16.000 INCHES NOMINAL |
| OVERALL HEIGHT | 5.250 INCHES NOMINAL |
| MOUNTING CONFIGURATION | MOUNTS ON LAMPHOLDER BY MEANS OF 1-1/4 IN. DIA THD PORTION |

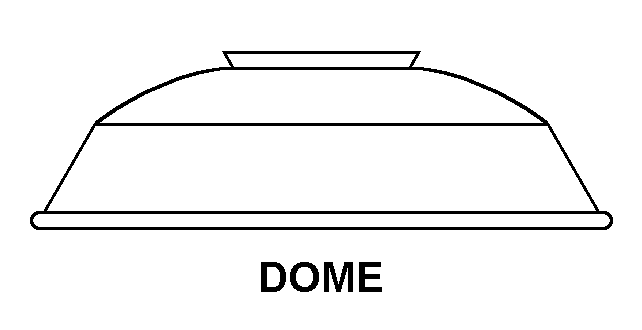

| STYLE DESIGNATOR | C1 DOME |
| LAMPHOLDER OPENING LOCATION | CENTER |
| LAMPHOLDER OPENING DIMENSION | 1-1/8 IN. DIA |
Restrictions/Controls & Freight Information | NSN 6210-00-074-8787
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
