NSN 6210-01-306-2936 60C0306, 01-306-2936, 013062936
Product Details | LIGHT REFLECTOR
6210-01-306-2936 An opaque item for a light source with an inside surface of high polish or luster designed to confine, reflect and redirect light rays in a specific area or direction. Does not include lampholder. For combination guard and reflector, see GUARD, LAMP.20462100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures62300045Electric Portable and Hand Lighting Equipment62600031Nonelectrical Lighting Fixtures
Part Alternates: 60C0306, 6210-01-306-2936, 01-306-2936, 6210013062936, 013062936
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 22-AUG-89 | 01-306-2936 | 12790 ( REFLECTOR, LIGHT ) |
Drawings & Photos | NSN 6210-01-306-2936
Cross Reference | NSN 6210-01-306-2936
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 60C0306 | 52025 | SIEMENS ENERGY & AUTOMATION, INC. DIV SIEMENS ENERGY & AUTOMATION DBA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6210-01-306-2936
Technical Data | NSN 6210-01-306-2936
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | FINISH, BRIGHT |
| INSIDE SURFACE TREATMENT | FINISH, BRIGHT |
| CORRUGATED REFLECTING SURFACE | NOT INCLUDED |
| OVERALL LENGTH | 4.000 INCHES NOMINAL |
| OVERALL WIDTH | 2.500 INCHES NOMINAL |
| OVERALL HEIGHT | 2.062 INCHES NOMINAL |
| MOUNTING CONFIGURATION | THREE 0.188 MTG HOLES;2 MOUNTING-HOLES ON FLAT SURFACE 1.406 IN.BETWEENMTG CENTER;ONE 0.188 MTG HOLE IN CENT-ER 0.750 IN. FROM EDGE OF TOP |

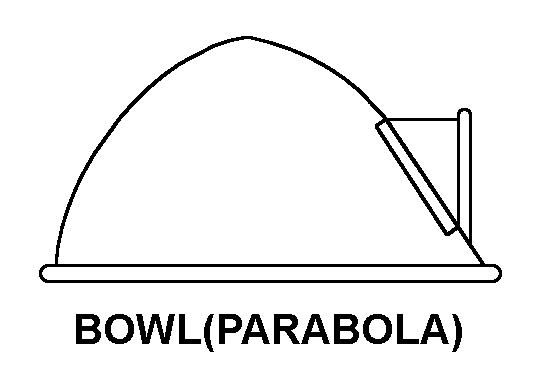

| STYLE DESIGNATOR | C7B BOWL |
| III END ITEM IDENTIFICATION | MEDIUM APPROACH LIGHTING SYSTEM,RUNWAY END IDENT.(MALSREIL) |
| MANUFACTURERS CODE | 52025 |
| DESIGN CONTROL REFERENCE | 60C0306 |
Restrictions/Controls & Freight Information | NSN 6210-01-306-2936
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
