NSN 5990-00-913-5159 M20708/19-001, M20708/19-01A, M2070819001
Product Details | RECEIVER SYNCHRO
5990-00-913-5159 A synchro consisting of a stator and rotor inductively coupled. The rotor is free to turn in accordance with the electrical input from a transmitter synchro or a differential synchro. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: M20708/19-001, M20708/19-01A, M2070819001, M207081901A, M2070819E001, M20708-19E001, AS20708/19, AS2070819, MIL-S-20708/19, MILS2070819, 033243, 15TR4A, 15TRX4, 15TRX4A, 302B033243, 7674777, 5990-00-913-5159, 00-913-5159, 5990009135159, 009135159
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-913-5159 | 02072 ( SYNCHRO, RECEIVER ) |

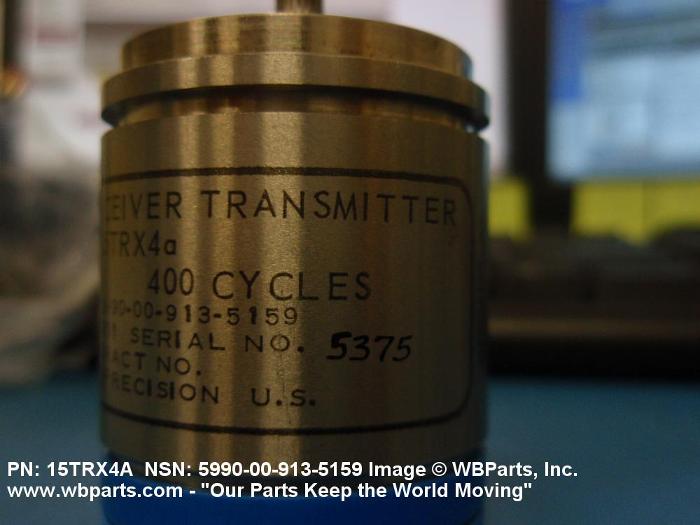

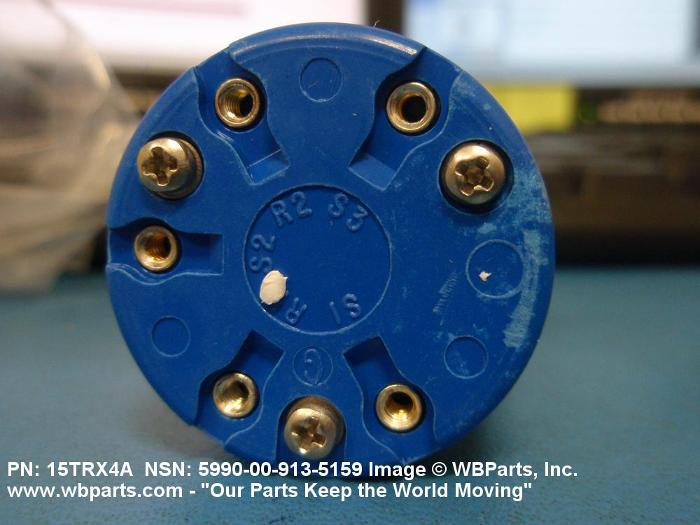

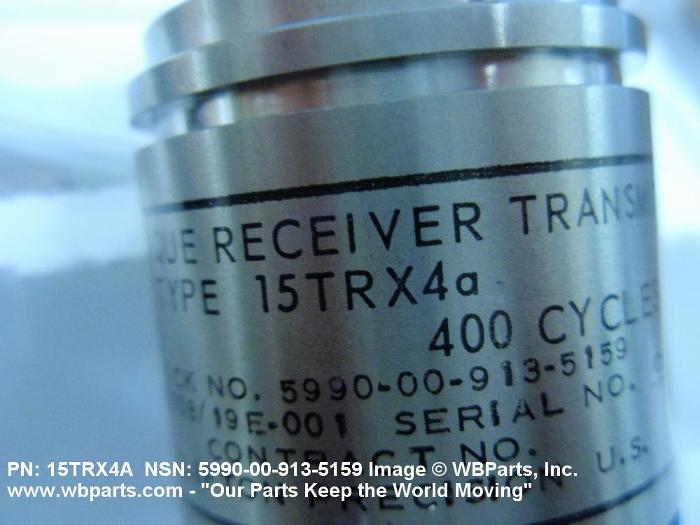

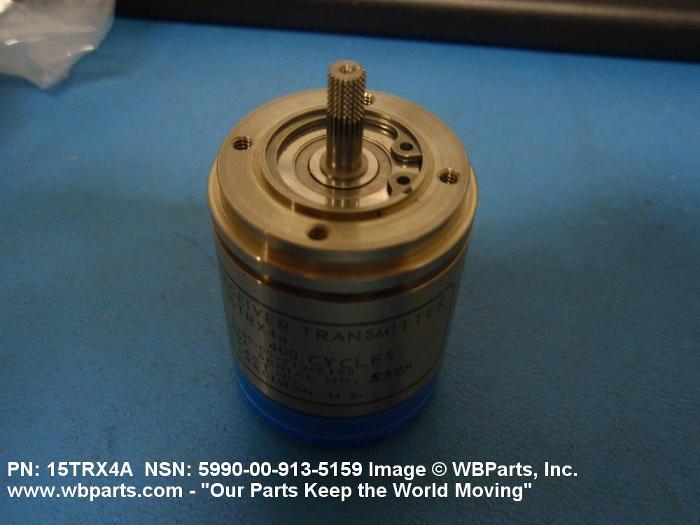

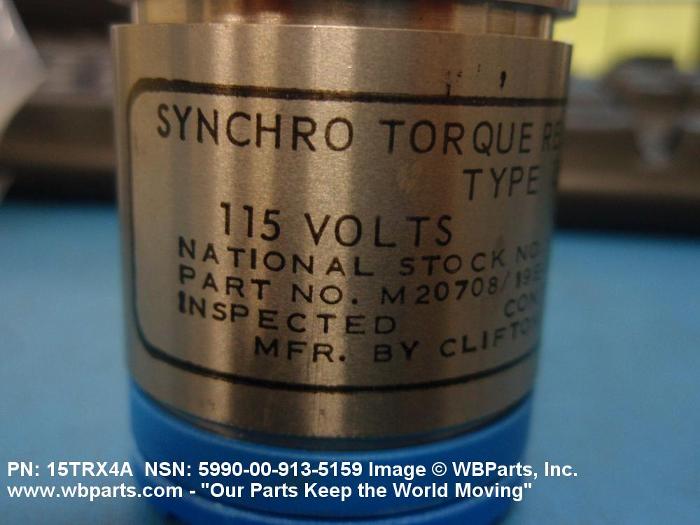

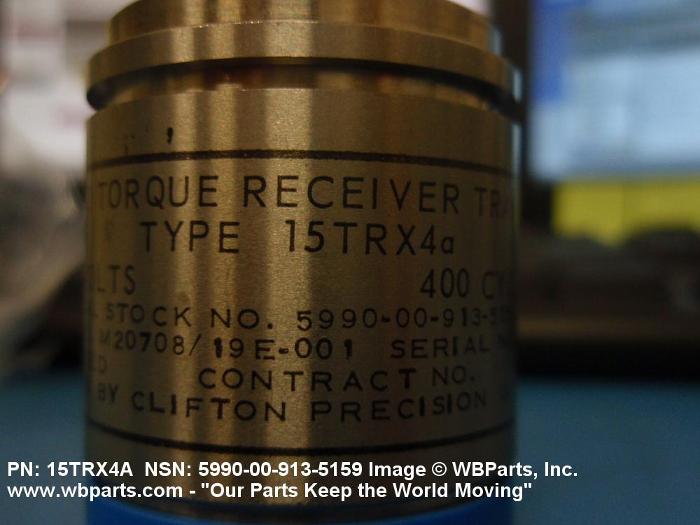

Drawings & Photos | NSN 5990-00-913-5159
Demand History | NSN 5990-00-913-5159
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-913-5159 | 2024-03-13 | 10 | US |
| 5990-00-913-5159 | 2024-02-12 | 16 | DIBBS |
| 5990-00-913-5159 | 2024-01-30 | 16 | DIBBS |
| 5990-00-913-5159 | 2023-11-16 | 5 | DIBBS |
| 5990-00-913-5159 | 2023-11-08 | 1 | US |
| 5990-00-913-5159 | 2023-06-15 | 5 | DIBBS |
| 5990-00-913-5159 | 2020-08-21 | 2 | US |
| 5990-00-913-5159 | 2019-12-15 | 20 | DIBBS |
| 5990-00-913-5159 | 2019-12-04 | 14 | DIBBS |
| 5990-00-913-5159 | 2019-12-02 | 20 | DIBBS |
| 5990-00-913-5159 | 2019-11-13 | 14 | DIBBS |
| 5990-00-913-5159 | 2019-04-25 | 11 | DIBBS |
| 5990-00-913-5159 | 2018-05-31 | 10 | DIBBS |
| 5990-00-913-5159 | 2017-08-23 | 10 | DIBBS |
| 5990-00-913-5159 | 2015-11-15 | 21 | DIBBS |
| 5990-00-913-5159 | 2015-06-16 | 12 | DIBBS |
| 5990-00-913-5159 | 2014-01-05 | 11 | DIBBS |
| 5990-00-913-5159 | 2013-08-13 | 10 | DIBBS |
| 5990-00-913-5159 | 2013-04-23 | 4 | United States |
| 5990-00-913-5159 | 2013-03-28 | 12 | DIBBS |
| 5990-00-913-5159 | 2013-03-04 | 9 | DIBBS |
| 5990-00-913-5159 | 2013-01-07 | 0 | DIBBS |
| 5990-00-913-5159 | 2013-01-07 | 21 | DIBBS |
| 5990-00-913-5159 | 2011-09-01 | 4 | DIBBS |
| 5990-00-913-5159 | 2011-06-29 | 1 | United States |
| 5990-00-913-5159 | 2011-05-16 | 20 | DIBBS |
| 5990-00-913-5159 | 2011-03-23 | 0 | Singapore |
| 5990-00-913-5159 | 2011-03-23 | 1 | Singapore |
| 5990-00-913-5159 | 2010-11-18 | 9 | DIBBS |
| 5990-00-913-5159 | 2010-09-20 | 6 | DIBBS |
| 5990-00-913-5159 | 2010-09-10 | 8 | DIBBS |
| 5990-00-913-5159 | 2008-11-25 | 1 | DIBBS |
| 5990-00-913-5159 | 2008-09-09 | 8 | DIBBS |
| 5990-00-913-5159 | 2007-08-14 | 11 | DIBBS |
| 5990-00-913-5159 | 2007-03-09 | 14 | DIBBS |
Cross Reference | NSN 5990-00-913-5159
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 033243 | 34228 | L-3 COMMUNICATIONS CORPORATION DBA L-3 KEO |
| 15TR4A | 99479 | BOWMAR, LLC |
| 15TRX4 | 28199 | L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL |
| 15TRX4A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 15TRX4A | 99932 | MOOG INC. DBA MOOG COMPONENTS GROUP |
| 302B033243 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 7674777 | 19200 | US ARMY ARDEC RDECOM |
| AS20708/19 | 05AY8 | SAE INC |
| AS20708/19 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M20708-19E001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M20708/19-001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M20708/19-01A | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M20708/19-01A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-20708/19 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-913-5159
Related Products | NSN 5990-00-913-5159
Technical Data | NSN 5990-00-913-5159
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 15 |
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 115.0 NOMINAL |
| ROTOR INPUT CURRENT RATING | 190.0 MILLIAMPERES MAXIMUM |
| ROTOR INPUT ELECTRICAL POWER RATING | 2.9 WATTS MAXIMUM |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZSS IMPEDANCE MAGNITUDE IN OHMS | 50.00 MINIMUM AND 82.00 MAXIMUM |
| ZSS IMPEDANCE ANGLE IN DEG | 33.00 MINIMUM AND 46.00 MAXIMUM |
| TRANSFORMATION RATIO | 0.783 STATOR TO ROTOR NOMINAL |
| PHASE SHIFT ANGLE IN DEG | 5.000 INPUT TO OUTPUT MAXIMUM |
| MAXIMUM TEMP RISE | 35.0 DEG CELSIUS |
| MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT | 50.00 OUTPUT |
| MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 100.00 |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -6.0 TO 6.0 |
| RECEIVER ERROR ANGULAR RANGE IN MINUTES | -45.0 TO 45.0 |
| TORQUE GRADIENT PER ANGULAR DEG | 0.030 INCH-OUNCES MINIMUM |
| BODY STYLE | A3 STANDARD ROUND C |
| SHOULDER DIAMETER | 1.3115 INCHES MINIMUM AND 1.3120 INCHES MAXIMUM |
| PILOT DIAMETER | 0.8745 INCHES MINIMUM AND 0.8750 INCHES MAXIMUM |
| OVERALL LENGTH | 2.3120 INCHES NOMINAL |
| FLANGE DIAMETER | 1.4320 INCHES MINIMUM AND 1.4370 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.0930 INCHES NOMINAL |
| UNDERCUT DIAMETER | 1.3120 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.0780 INCHES NOMINAL |
| PILOT LENGTH | 0.0400 INCHES NOMINAL |
| SHOULDER LENGTH | 0.1320 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.7720 INCHES NOMINAL |
| ALIGNMENT HOLE DEPTH | 0.1250 INCHES MINIMUM |
| ALIGNMENT HOLE BOLT CIRCLE DIAMETER | 1.1000 INCHES NOMINAL |
| ALIGNMENT HOLE QUANTITY | 4 |
| SHAFT TYPE | SPLINE W/THREADS SINGLE SHAFT |
| SHAFT DIAMETER | 0.1870 INCHES MINIMUM AND 0.1872 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.5400 INCHES NOMINAL SINGLE SHAFT |
| SHAFT THREAD LENGTH | 0.1850 INCHES NOMINAL SINGLE SHAFT |
| SPLINE TOOTH QUANTITY | 21 SINGLE SHAFT |
| SPLINE TOOTH DIAMETRAL PITCH | 120 SINGLE SHAFT |
| SHAFT THREAD SERIES DESIGNATOR | UNEF SINGLE SHAFT |
| SHAFT NOMINAL THREAD SIZE | 0.100 INCHES SINGLE SHAFT |
| SHAFT THREAD CLASS | 2A SINGLE SHAFT |
| SHAFT THREAD DIRECTION | RIGHT-HAND SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 5 WIRE LEAD |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | STEEL, STAINLESS |
| TEST DATA DOCUMENT | 81349-MIL-S-20708 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-20708/19 GOVERNMENT SPECIFICATION |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
Restrictions/Controls & Freight Information | NSN 5990-00-913-5159
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-00-913-5159
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | Q | Avionics |
| Weapons Systems/End Item or Homogeneous Group | QH | Fixed Wing Unique Av |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
