Product Details | RECEIVER SYNCHRO
5990-00-722-4719 A synchro consisting of a stator and rotor inductively coupled. The rotor is free to turn in accordance with the electrical input from a transmitter synchro or a differential synchro. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: 1505015R, 15-05-0-1-5R, 150501TY5R, 15-050-1TY5R, 150501TY5T, 15-050-1TY5T, 5R, 90130S6505658057ALT1TYPEA, 90130S6505-658057ALT1TYPEA, 5990-00-722-4719, 00-722-4719, 5990007224719, 007224719
Electrical and Electronic Equipment Components | Synchros and Resolvers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 01 JAN 1963 | 00-722-4719 | 02072 ( SYNCHRO, RECEIVER ) |
Demand History | NSN 5990-00-722-4719
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5990-00-722-4719 | 2023-06-162 | 1 | US |
5990-00-722-4719 | 2022-07-199 | 1 | GU |
5990-00-722-4719 | 2021-06-179 | 2 | United States |
5990-00-722-4719 | 2020-08-232 | 1 | US |
5990-00-722-4719 | 2020-07-211 | 1 | US |
5990-00-722-4719 | 2020-05-139 | 1 | United States |
5990-00-722-4719 | 2020-05-127 | 2 | United States |
5990-00-722-4719 | 2020-05-126 | 2 | US |
5990-00-722-4719 | 2017-06-157 | 1 | United States |
5990-00-722-4719 | 2013-12-357 | 4 | DIBBS |
5990-00-722-4719 | 2013-10-293 | 4 | DIBBS |
5990-00-722-4719 | 2013-10-274 | 2 | DIBBS |
5990-00-722-4719 | 2013-09-258 | 2 | DIBBS |
5990-00-722-4719 | 2006-08-242 | 5 | United States |
Cross Reference | NSN 5990-00-722-4719
Part Number | Cage Code | Manufacturer |
---|---|---|
15-05-0-1-5R | 28199 | L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL |
15-050-1TY5R | 28199 | L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL |
15-050-1TY5T | 28199 | L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL |
5R | 28199 | L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL |
90130S6505-658057ALT1TYPEA | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-722-4719
Related Products | NSN 5990-00-722-4719
Technical Data | NSN 5990-00-722-4719
Characteristic | Specifications |
---|---|
BODY SIZE | 37 |
ROTOR INPUT VOLTAGE RATING IN VOLTS | 115.0 NOMINAL |
ROTOR INPUT CURRENT RATING | 1.1 AMPERES NOMINAL |
ROTOR INPUT ELECTRICAL POWER RATING | 12.0 WATTS NOMINAL |
FREQUENCY IN HERTZ | 60.0 NOMINAL |
TRANSFORMATION RATIO | 1.277 STATOR TO ROTOR NOMINAL |
ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -1.0 TO 1.0 |
TORQUE GRADIENT PER ANGULAR DEG | 0.290 INCH-OUNCES NOMINAL |

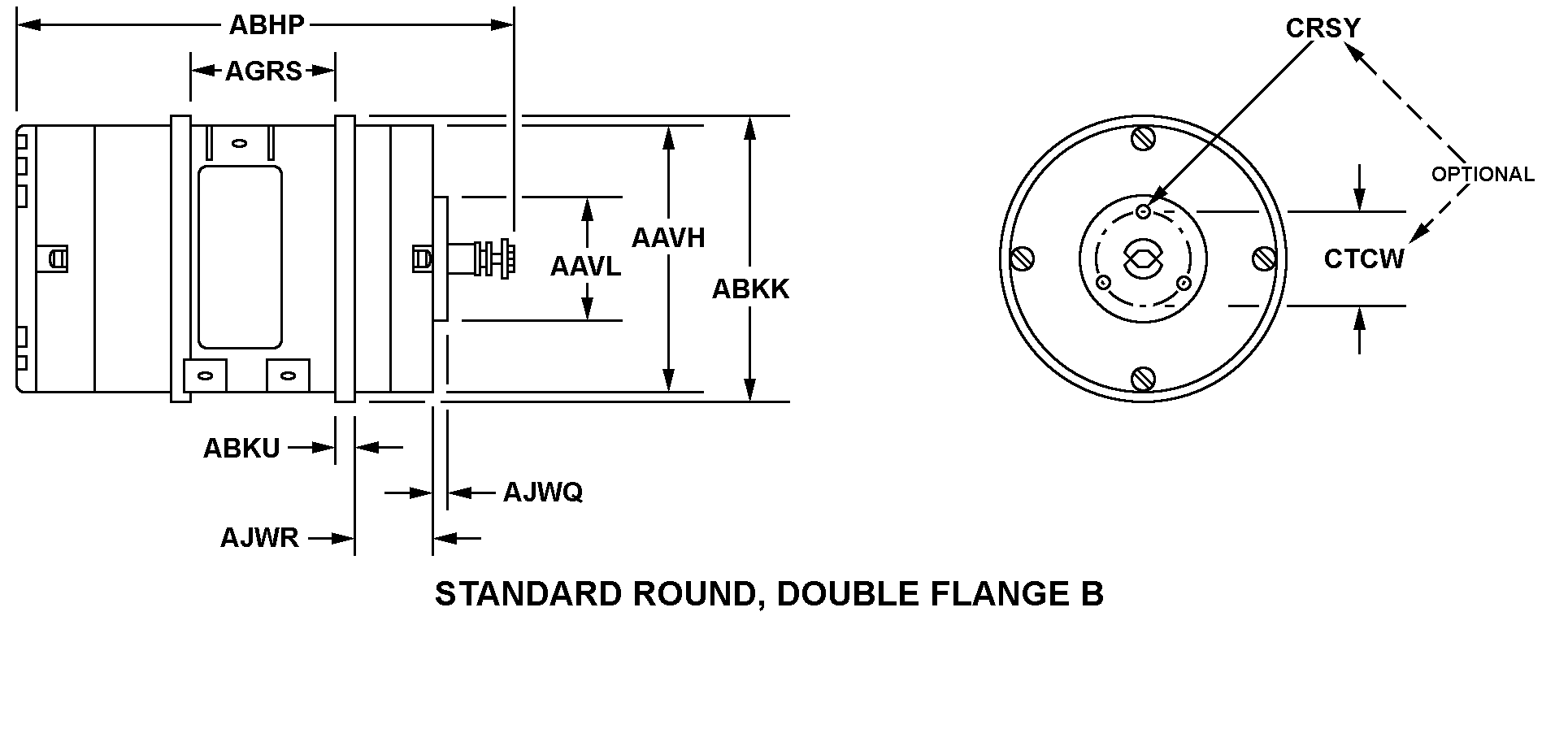

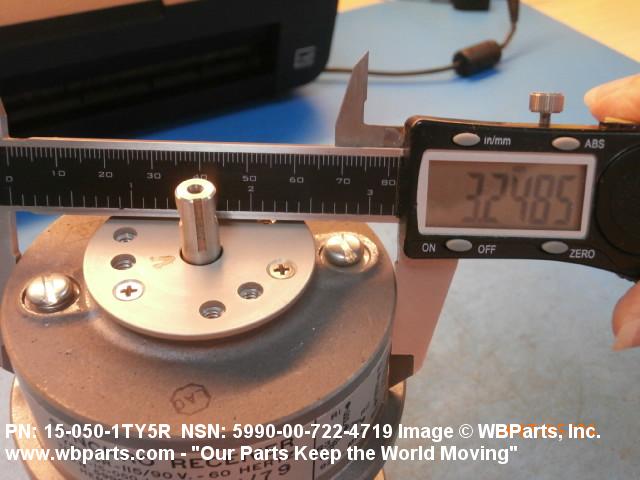

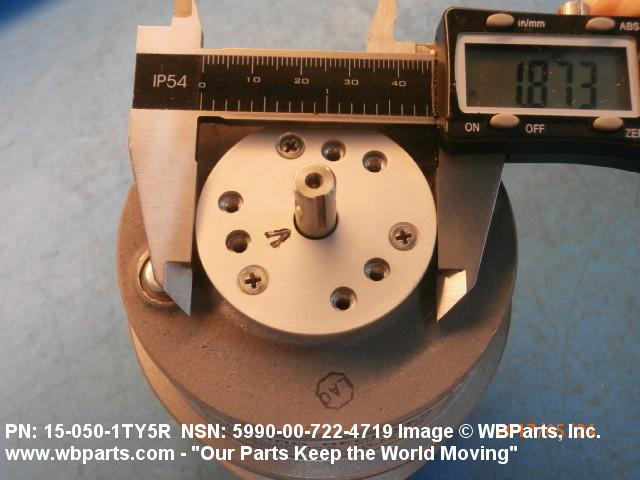

BODY STYLE | A6 STANDARD ROUND DOUBLE FLANGE B |
SHOULDER DIAMETER | 3.2500 INCHES MAXIMUM |
PILOT DIAMETER | 1.8710 INCHES MINIMUM AND 1.8750 INCHES MAXIMUM |
OVERALL LENGTH | 6.1560 INCHES MAXIMUM |
FLANGE DIAMETER | 3.6210 INCHES MINIMUM AND 3.6250 INCHES MAXIMUM |
FLANGE THICKNESS | 0.2500 INCHES NOMINAL |
DISTANCE BETWEEN FLANGES | 1.8100 INCHES NOMINAL |
PILOT LENGTH | 0.2500 INCHES NOMINAL |
SHOULDER LENGTH | 1.1450 INCHES NOMINAL |
ALIGNMENT HOLE DEPTH | 0.2500 INCHES NOMINAL |
ALIGNMENT HOLE BOLT CIRCLE DIAMETER | 1.2500 INCHES NOMINAL |
ALIGNMENT HOLE QUANTITY | 3 |
SHAFT TYPE | ROUND W/THROUGH HOLE SINGLE SHAFT |
SHAFT DIAMETER | 0.3115 INCHES MINIMUM AND 0.3125 INCHES MAXIMUM SINGLE SHAFT |
SHAFT LENGTH | 0.8750 INCHES NOMINAL SINGLE SHAFT |
SHAFT HOLE DIAMETER | 0.1380 INCHES NOMINAL SINGLE SHAFT |
DISTANCE FROM SHAFT HOLE CENTER TO END | 0.2500 INCHES NOMINAL SINGLE SHAFT |
TERMINAL TYPE AND QUANTITY | 7 SCREW |
TERMINAL LOCATION | REAR |
BODY MATERIAL | STEEL, STAINLESS |
III FRAGILITY FACTOR | MODERATELY RUGGED |
