NSN 5990-00-677-6473 MILS207081, MILS20708-1, 15TR4C
Product Details | RECEIVER SYNCHRO

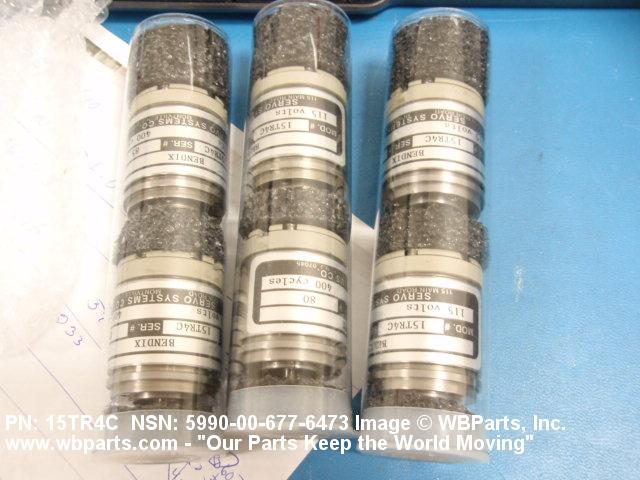

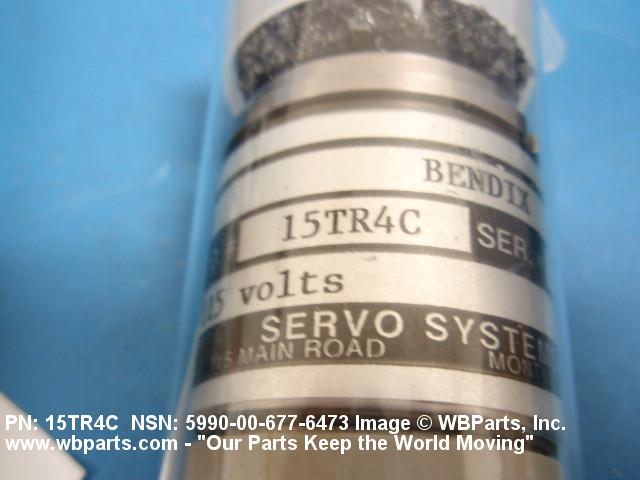

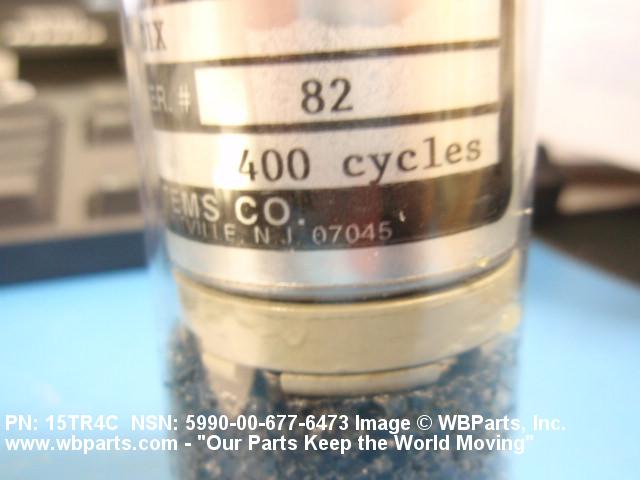

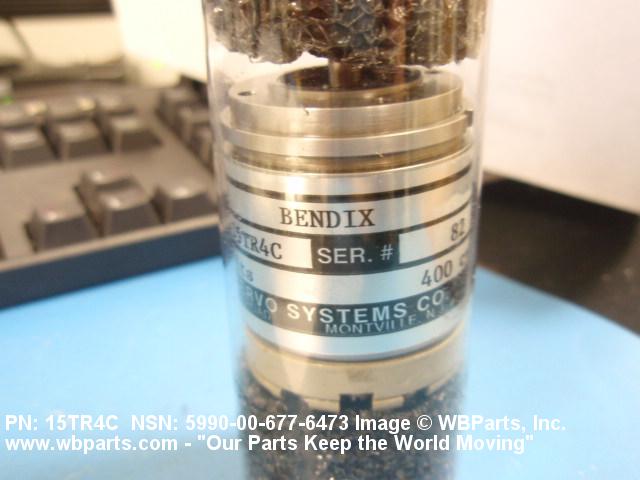

5990-00-677-6473 A synchro consisting of a stator and rotor inductively coupled. The rotor is free to turn in accordance with the electrical input from a transmitter synchro or a differential synchro. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: MILS207081, MILS20708-1, 15TR4C, 5990-00-677-6473, 00-677-6473, 5990006776473, 006776473
Electrical and Electronic Equipment Components | Synchros and Resolvers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 01 JAN 1963 | 00-677-6473 | 02072 ( SYNCHRO, RECEIVER ) |
Demand History | NSN 5990-00-677-6473
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5990-00-677-6473 | 2013-11-333 | 5 | BG |
5990-00-677-6473 | 2013-11-333 | 3 | AR |
5990-00-677-6473 | 2010-04-105 | 4 | Australia |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-677-6473
Related Products | NSN 5990-00-677-6473
Technical Data | NSN 5990-00-677-6473
Characteristic | Specifications |
---|---|
BODY SIZE | 15 |
ROTOR INPUT VOLTAGE RATING IN VOLTS | 115.0 NOMINAL |
ROTOR INPUT CURRENT RATING | 200.0 MILLIAMPERES NOMINAL |
ROTOR INPUT ELECTRICAL POWER RATING | 3.1 WATTS NOMINAL |
FREQUENCY IN HERTZ | 400.0 NOMINAL |
TRANSFORMATION RATIO | 0.783 ROTOR TO STATOR NOMINAL |
TORQUE GRADIENT PER ANGULAR DEG | 0.030 INCH-OUNCES NOMINAL |
OVERALL LENGTH | 1.6800 INCHES NOMINAL |
SHAFT TYPE | SPLINE W/THREADS SINGLE SHAFT |
SHAFT DIAMETER | 0.1872 INCHES NOMINAL SINGLE SHAFT |
SHAFT LENGTH | 0.5000 INCHES NOMINAL SINGLE SHAFT |
SHAFT THREAD LENGTH | 0.2000 INCHES NOMINAL SINGLE SHAFT |
SPLINE TOOTH QUANTITY | 21 SINGLE SHAFT |
SPLINE TOOTH DIAMETRAL PITCH | 120 SINGLE SHAFT |
SHAFT THREAD SERIES DESIGNATOR | UNF SINGLE SHAFT |
SHAFT NOMINAL THREAD SIZE | 0.1900 INCHES SINGLE SHAFT |
SHAFT THREAD CLASS | 2A SINGLE SHAFT |
SHAFT THREAD DIRECTION | RIGHT-HAND SINGLE SHAFT |
TERMINAL TYPE AND QUANTITY | 5 SCREW |
MANUFACTURERS CODE | 81349 |
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILS20708-1 |
MANUFACTURERS CODE | 81349 |
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | 15TR4C |
Restrictions/Controls & Freight Information | NSN 5990-00-677-6473
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
Less than car load rating | Q | 70 |
Less than truck load rating | W | Rating Variable |
Water commodity Code | 590 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
