NSN 5990-00-050-1673 CRC10AS1, CRC-10-AS-1, CRH10AS1
Product Details | RECEIVER SYNCHRO
5990-00-050-1673 A synchro consisting of a stator and rotor inductively coupled. The rotor is free to turn in accordance with the electrical input from a transmitter synchro or a differential synchro. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: CRC10AS1, CRC-10-AS-1, CRH10AS1, CRH-10-AS-1, 10TR02D5D, 10TR-02D5-D, 245143-901, 4385382, 438538-2, 5990-00-050-1673, 00-050-1673, 5990000501673, 000501673, 245143901
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-050-1673 | 02072 ( SYNCHRO, RECEIVER ) |

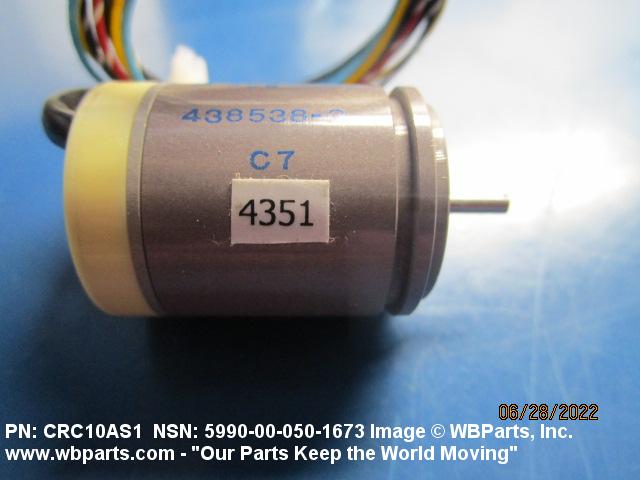

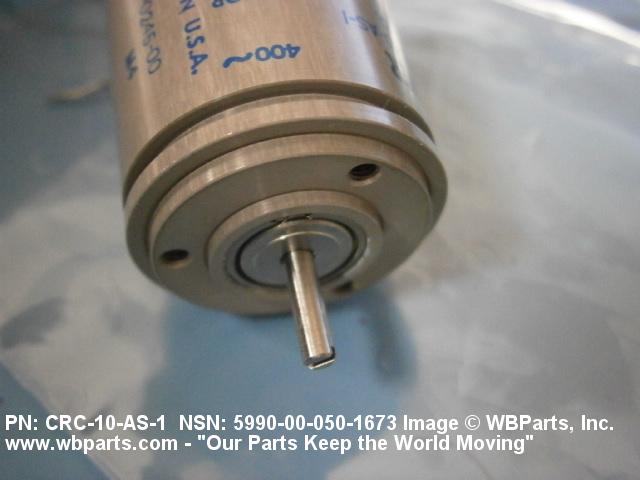

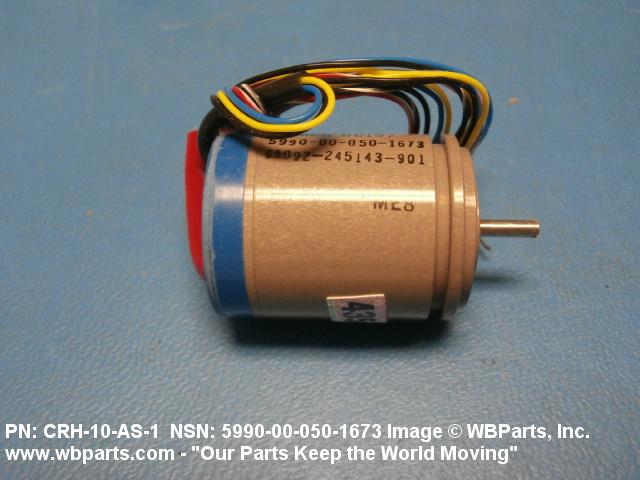

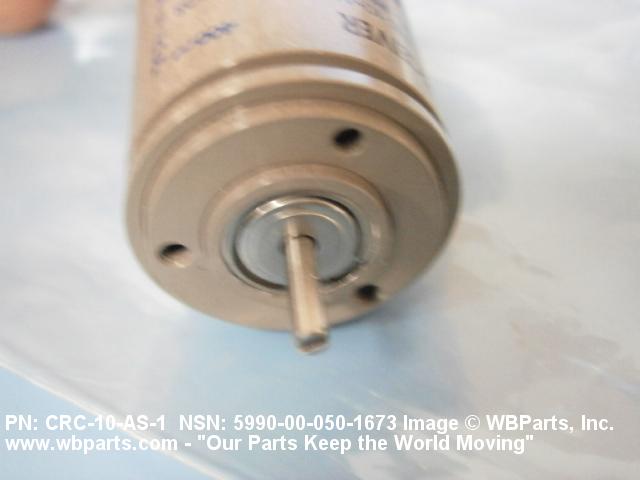

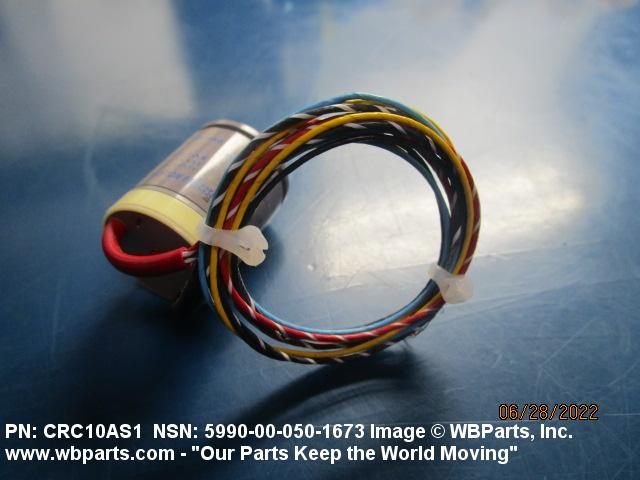

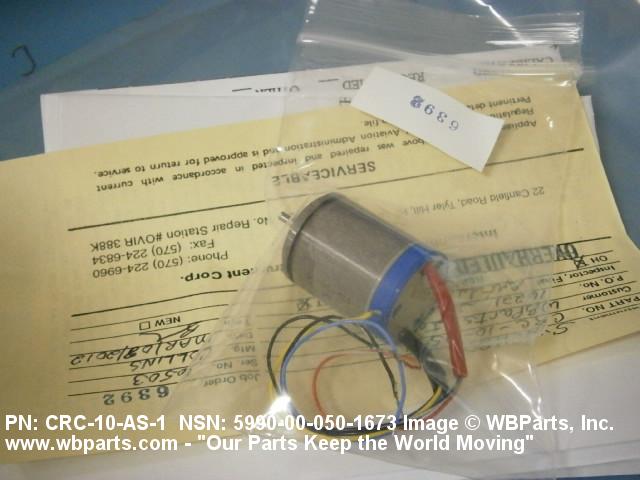

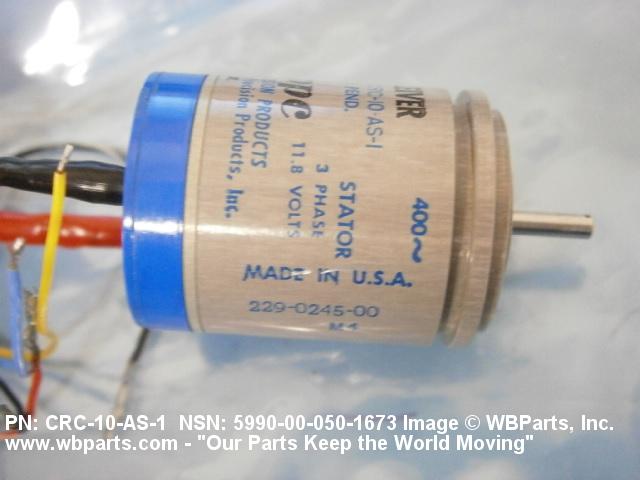

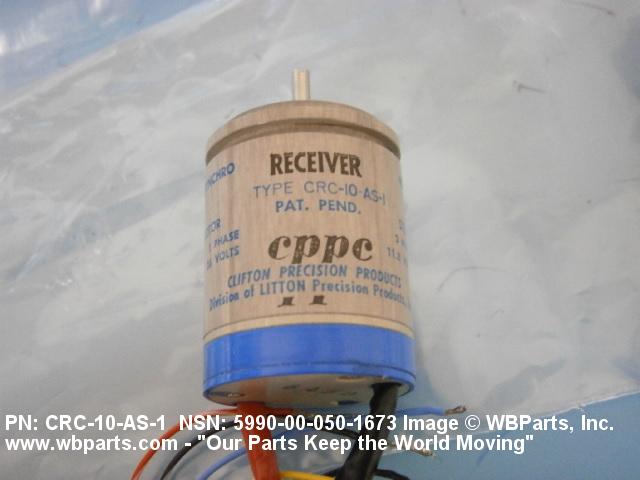

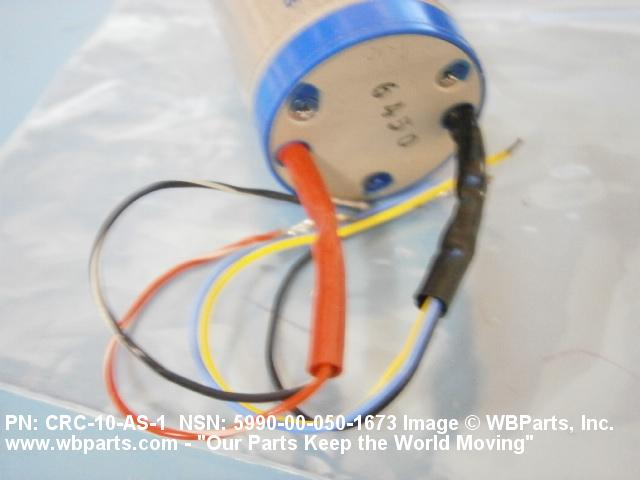

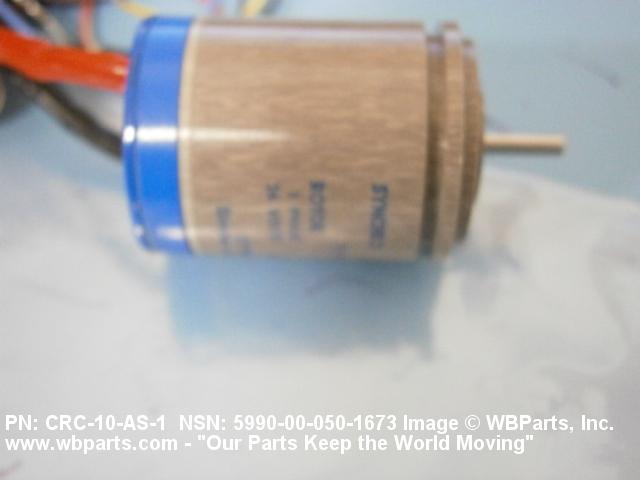

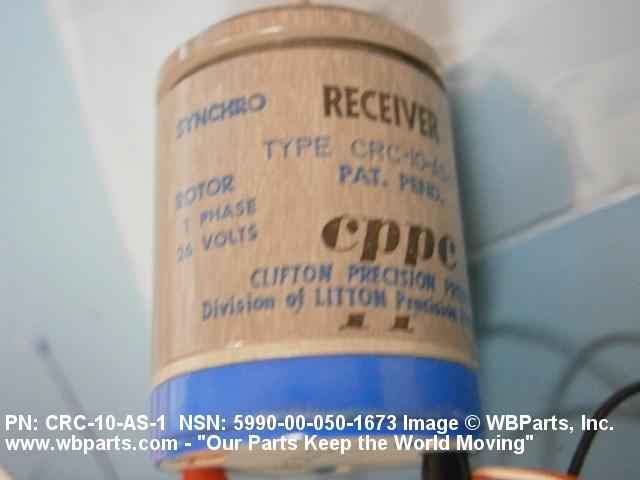

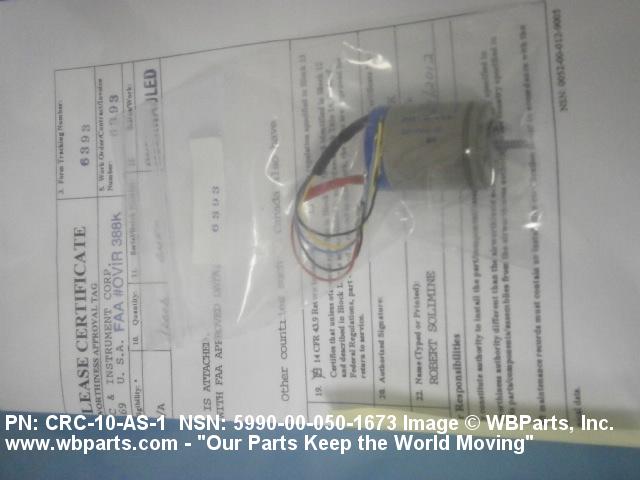

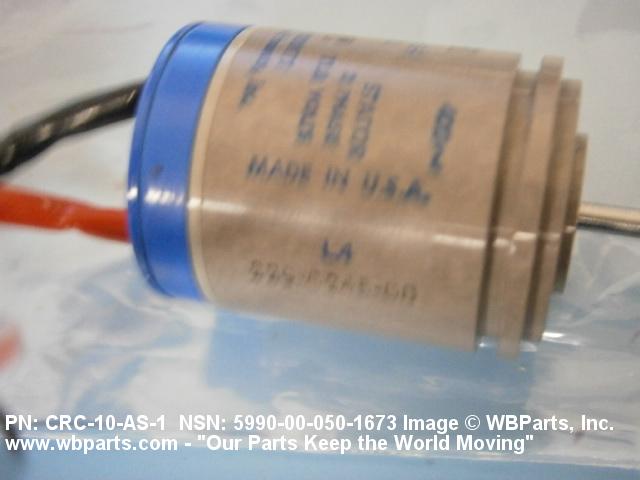

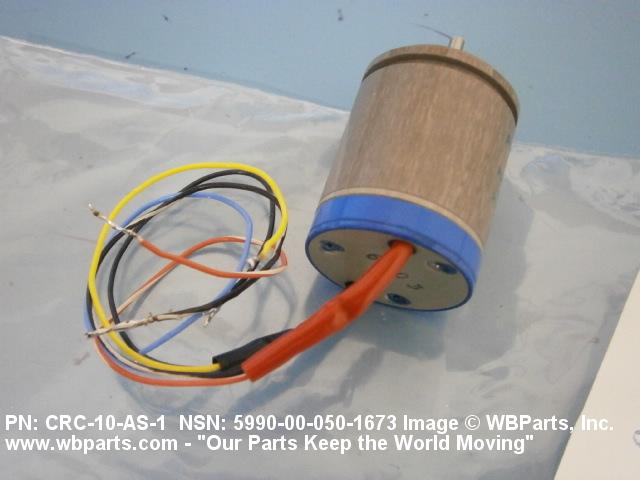

Drawings & Photos | NSN 5990-00-050-1673
Demand History | NSN 5990-00-050-1673
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-050-1673 | 2022-04-118 | 1 | Germany |
| 5990-00-050-1673 | 2015-11-324 | 2 | Germany |
| 5990-00-050-1673 | 2015-06-174 | 2 | Brazil |
| CRH10AS1 | 2015-06-160 | 2 | Brazil |
| 245143901 | 2011-11-314 | 2 | us |
| 5990-00-050-1673 | 2006-04-103 | 6 | DIBBS |
Cross Reference | NSN 5990-00-050-1673
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10TR-02D5-D | 51761 | CDA INTERCORP LLC |
| 245143-901 | 65092 | SOLARTRON ELECTRONICS INC WESTON INSTRUMENTS DIV |
| 438538-2 | 94580 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| CRC-10-AS-1 | 99932 | MOOG INC. DBA MOOG COMPONENTS GROUP |
| CRH-10-AS-1 | 4H618 | MOOG INC. DBA MOOG COMPONENTS GROUP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-050-1673
Related Products | NSN 5990-00-050-1673
Technical Data | NSN 5990-00-050-1673
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 10 |
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 26.0 NOMINAL |
| ROTOR INPUT CURRENT RATING | 90.0 MILLIAMPERES NOMINAL |
| ROTOR INPUT ELECTRICAL POWER RATING | 440.0 MILLIWATTS NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZRO RESISTANCE IN OHMS | 54.00 NOMINAL |
| PLUS J ZRO REACTANCE IN OHMS | 285.00 NOMINAL |
| ZSO RESISTANCE IN OHMS | 13.00 NOMINAL |
| PLUS J ZSO REACTANCE IN OHMS | 50.00 NOMINAL |
| ZRS RESISTANCE IN OHMS | 80.00 NOMINAL |
| PLUS J ZRS REACTANCE IN OHMS | 26.00 NOMINAL |
| ROTOR DC RESISTANCE IN OHMS | 33.00 NOMINAL |
| STATOR DC RESISTANCE IN OHMS | 11.60 NOMINAL |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -15.0 TO 15.0 |
| ACTUATOR FRICTION TORQUE AT MINUS 55 DEG CELSIUS | 16.0 CENTIMETER-GRAMS NOMINAL |
| ACTUATOR FRICTION TORQUE AT PLUS 25 DEG CELSIUS | 4.0 CENTIMETER-GRAMS NOMINAL |
| BODY STYLE | A3 STANDARD ROUND C |

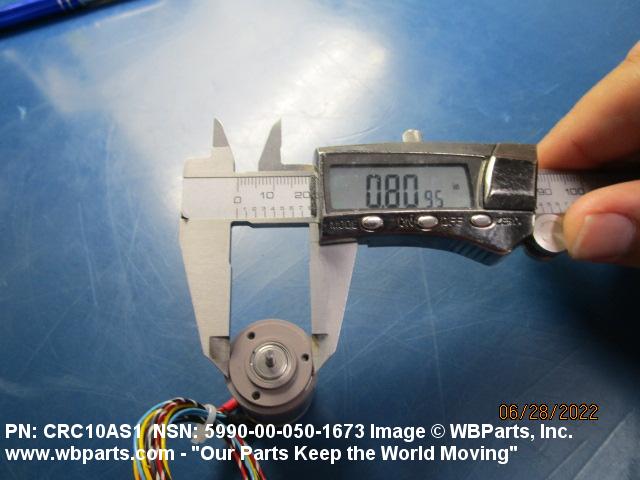

| SHOULDER DIAMETER | 0.8118 INCHES MINIMUM AND 0.8123 INCHES MAXIMUM |
| PILOT DIAMETER | 0.4995 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |
| OVERALL LENGTH | 1.6160 INCHES NOMINAL |

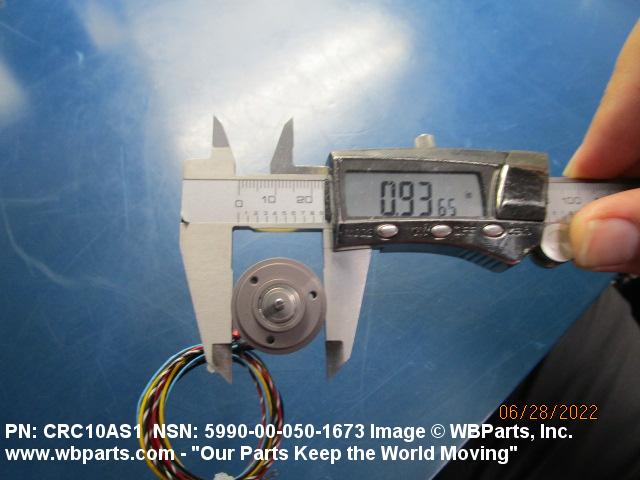

| FLANGE DIAMETER | 0.9360 INCHES MINIMUM AND 0.9370 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.0630 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.8400 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.0620 INCHES NOMINAL |
| PILOT LENGTH | 0.0620 INCHES NOMINAL |
| SHOULDER LENGTH | 0.0620 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.2410 INCHES MAXIMUM |
| ALIGNMENT HOLE DEPTH | 0.0500 INCHES NOMINAL |
| ALIGNMENT HOLE BOLT CIRCLE DIAMETER | 0.6780 INCHES NOMINAL |
| ALIGNMENT HOLE QUANTITY | 3 |
| SHAFT TYPE | ROUND, SLOTTED SINGLE SHAFT |
| SHAFT DIAMETER | 0.0895 INCHES MINIMUM AND 0.0900 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.3750 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT DEPTH | 0.0300 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT WIDTH | 0.0200 INCHES NOMINAL SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 5 WIRE LEAD |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | STEEL, CORROSION RESISTING |
Restrictions/Controls & Freight Information | NSN 5990-00-050-1673
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
