NSN 5990-00-660-8608 CM01024108, CRH-8-A-1/L411, CRH8A10
Product Details | RECEIVER SYNCHRO
5990-00-660-8608 A synchro consisting of a stator and rotor inductively coupled. The rotor is free to turn in accordance with the electrical input from a transmitter synchro or a differential synchro. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: CM01024108, CRH-8-A-1/L411, CRH8A10, CRH8A1L411, CRH-8-A-1-L411, 04052573036722 , 08TR5A05001, 08TR5-A05-001 , 229-0216-00, 55111, 5990-00-660-8608, 00-660-8608, 5990006608608, 006608608, 229021600
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-660-8608 | 02072 ( SYNCHRO, RECEIVER ) |

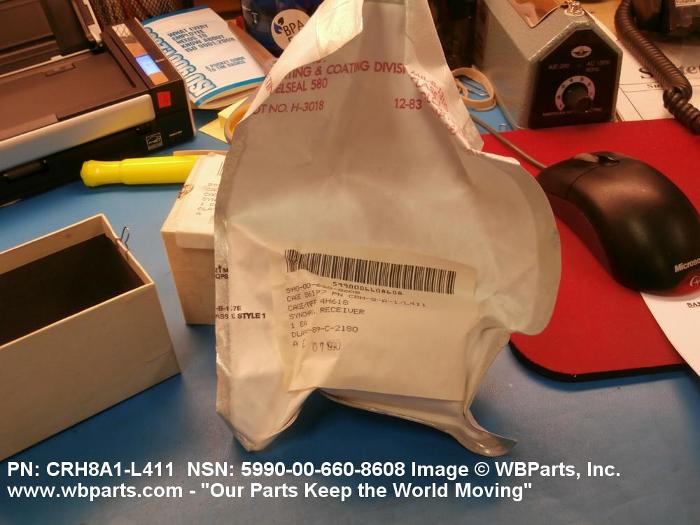

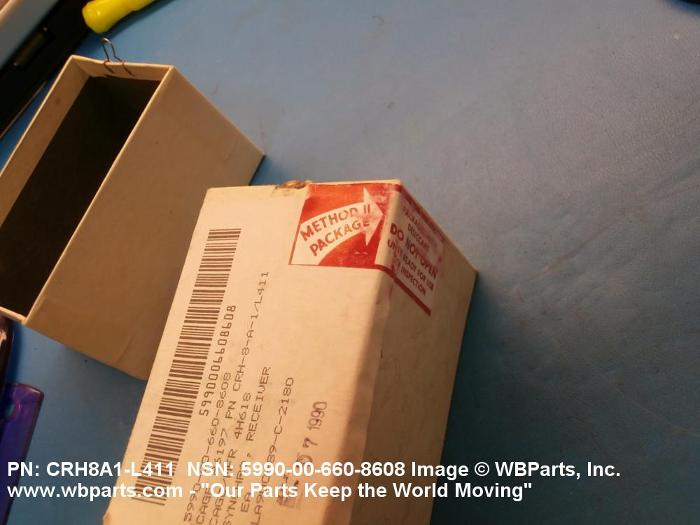

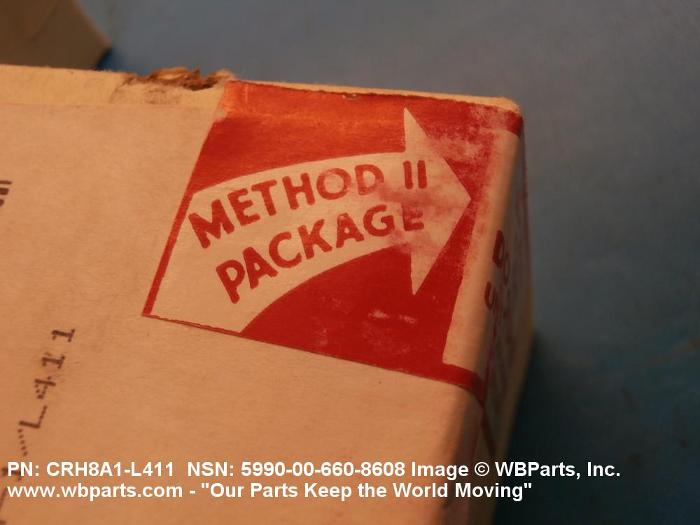

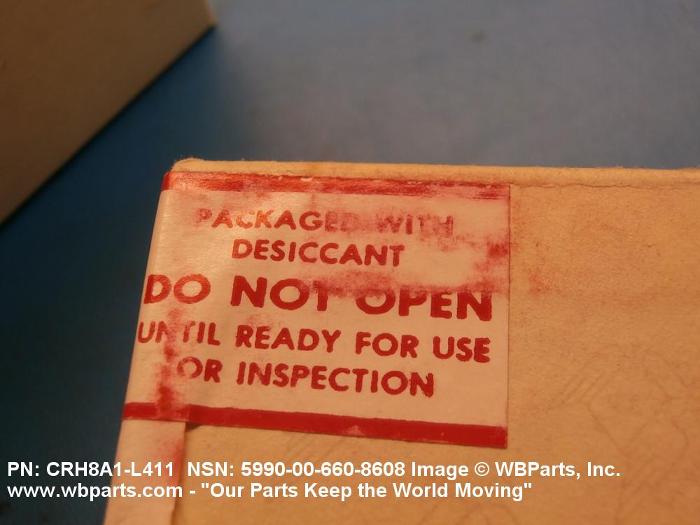

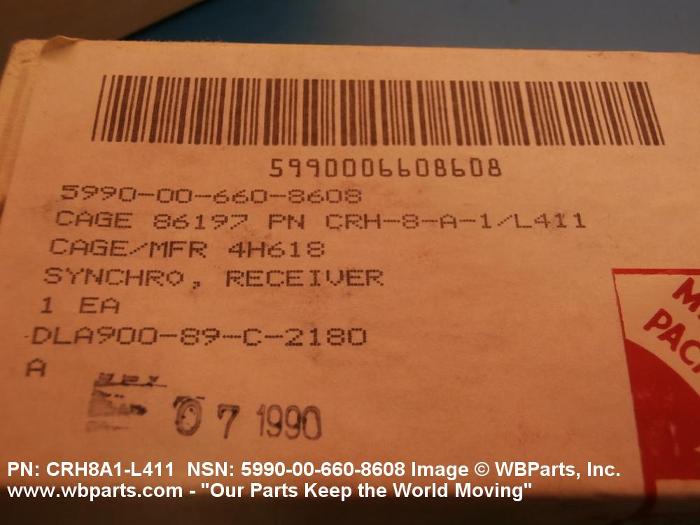

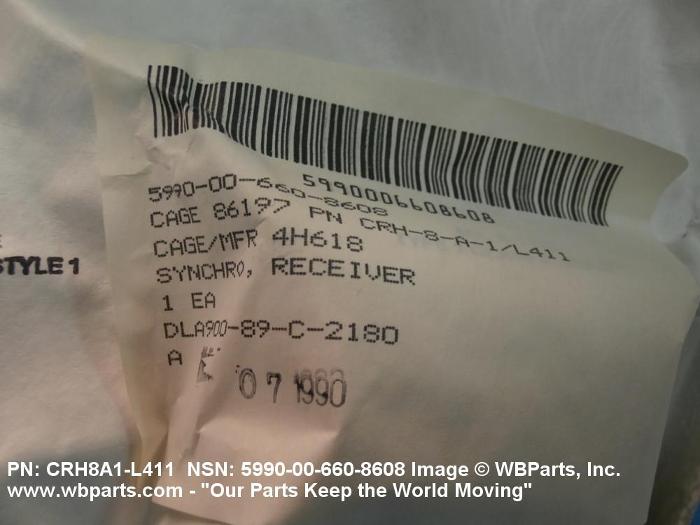

Drawings & Photos | NSN 5990-00-660-8608
Demand History | NSN 5990-00-660-8608
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 08TR5-A05-001 | 2023-11-24 | 66 | DIBBS |
| 55111 | 2023-11-24 | 66 | DIBBS |
| CM01024108 | 2023-11-24 | 66 | DIBBS |
| CRH-8-A-1-L411 | 2023-11-24 | 66 | DIBBS |
| 08TR5-A05-001 | 2023-11-12 | 66 | DIBBS |
| 55111 | 2023-11-12 | 66 | DIBBS |
| CM01024108 | 2023-11-12 | 66 | DIBBS |
| CRH-8-A-1-L411 | 2023-11-12 | 66 | DIBBS |
| 08TR5-A05-001 | 2023-09-18 | 57 | DIBBS |
| 55111 | 2023-09-18 | 57 | DIBBS |
| CM01024108 | 2023-09-18 | 57 | DIBBS |
| CRH-8-A-1-L411 | 2023-09-18 | 57 | DIBBS |
| 08TR5-A05-001 | 2023-09-07 | 57 | DIBBS |
| 55111 | 2023-09-07 | 57 | DIBBS |
| CM01024108 | 2023-09-07 | 57 | DIBBS |
| CRH-8-A-1-L411 | 2023-09-07 | 57 | DIBBS |
| 08TR5-A05-001 | 2023-08-14 | 127 | DIBBS |
| 55111 | 2023-08-14 | 127 | DIBBS |
| CM01024108 | 2023-08-14 | 127 | DIBBS |
| CRH-8-A-1-L411 | 2023-08-14 | 127 | DIBBS |
| 08TR5-A05-001 | 2023-08-03 | 127 | DIBBS |
| 55111 | 2023-08-03 | 127 | DIBBS |
| CM01024108 | 2023-08-03 | 127 | DIBBS |
| CRH-8-A-1-L411 | 2023-08-03 | 127 | DIBBS |
| 08TR5-A05-001 | 2023-06-21 | 57 | DIBBS |
| 55111 | 2023-06-21 | 57 | DIBBS |
| CM01024108 | 2023-06-21 | 57 | DIBBS |
| CRH-8-A-1-L411 | 2023-06-21 | 57 | DIBBS |
| 08TR5-A05-001 | 2023-06-08 | 57 | DIBBS |
| 55111 | 2023-06-08 | 57 | DIBBS |
| CM01024108 | 2023-06-08 | 57 | DIBBS |
| CRH-8-A-1-L411 | 2023-06-08 | 57 | DIBBS |
| 5990-00-660-8608 | 2023-02-20 | 44 | Taiwan |
| 08TR5-A05-001 | 2022-03-31 | 77 | DIBBS |
| 55111 | 2022-03-31 | 77 | DIBBS |
| CM01024108 | 2022-03-31 | 77 | DIBBS |
| CRH-8-A-1-L411 | 2022-03-31 | 77 | DIBBS |
| 5990-00-660-8608 | 2016-03-15 | 1 | DIBBS-RFPs |
| 5990-00-660-8608 | 2016-02-07 | 41 | DIBBS |
| 5990-00-660-8608 | 2015-12-06 | 62 | DIBBS |
| 5990-00-660-8608 | 2015-03-30 | 73 | DIBBS |
| 5990-00-660-8608 | 2014-04-09 | 46 | DIBBS |
| 5990-00-660-8608 | 2014-01-05 | 202 | DIBBS |
| 5990-00-660-8608 | 2013-12-18 | 38 | DIBBS |
| 5990-00-660-8608 | 2013-12-18 | 98 | DIBBS |
| 229021600 | 2013-03-07 | 6 | United States |
| 5990-00-660-8608 | 2010-04-05 | 29 | DIBBS |
| 5990-00-660-8608 | 2010-03-26 | 32 | DIBBS |
| 5990-00-660-8608 | 2009-11-10 | 54 | DIBBS |
| 5990-00-660-8608 | 2009-08-06 | 18 | DIBBS |
| 5990-00-660-8608 | 2008-09-03 | 186 | DIBBS |
| 5990-00-660-8608 | 2008-08-01 | 81 | DIBBS |
| 5990-00-660-8608 | 2008-05-02 | 50 | DIBBS |
| 5990-00-660-8608 | 2008-04-28 | 45 | DIBBS |
| 5990-00-660-8608 | 2008-01-18 | 44 | DIBBS |
Cross Reference | NSN 5990-00-660-8608
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 08TR5-A05-001 | 0NFF5 | WIN TECHNOLOGIES INCORPORATED DBA SCOT ELECTRICAL PRODUCTS |
| 229-0216-00 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 55111 | 99479 | BOWMAR, LLC |
| CM01024108 | 88818 | KEARFOTT CORPORATION DBA KEARFOTT |
| CRH-8-A-1-L411 | 99932 | MOOG INC. DBA MOOG COMPONENTS GROUP |
| CRH-8-A-1/L411 | 4H618 | MOOG INC. DBA MOOG COMPONENTS GROUP |
| CRH8A10 | 99932 | MOOG INC. DBA MOOG COMPONENTS GROUP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-660-8608
Related Products | NSN 5990-00-660-8608
Technical Data | NSN 5990-00-660-8608
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 8 |
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 26.0 NOMINAL |
| ROTOR INPUT CURRENT RATING | 110.0 MILLIAMPERES NOMINAL |
| ROTOR INPUT ELECTRICAL POWER RATING | 540.0 MILLIWATTS NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZRO RESISTANCE IN OHMS | 54.00 NOMINAL |
| PLUS J ZRO REACTANCE IN OHMS | 260.00 NOMINAL |
| ZSO RESISTANCE IN OHMS | 12.80 NOMINAL |
| PLUS J ZSO REACTANCE IN OHMS | 45.00 NOMINAL |
| ZRS RESISTANCE IN OHMS | 88.00 NOMINAL |
| PLUS J ZRS REACTANCE IN OHMS | 22.00 NOMINAL |
| ROTOR DC RESISTANCE IN OHMS | 37.00 NOMINAL |
| STATOR DC RESISTANCE IN OHMS | 12.00 NOMINAL |
| TRANSFORMATION RATIO | 0.454 ROTOR TO STATOR NOMINAL |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -7.0 TO 7.0 |
| TORQUE GRADIENT PER ANGULAR DEG | 2270.0 MILLIMETER-MILLIGRAMS NOMINAL |
| BODY STYLE | A1 STANDARD ROUND A |
| PILOT DIAMETER | 0.5000 INCHES NOMINAL |
| OVERALL LENGTH | 1.6120 INCHES NOMINAL |
| FLANGE DIAMETER | 0.7500 INCHES NOMINAL |
| FLANGE THICKNESS | 0.0620 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.7500 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.0620 INCHES NOMINAL |
| PILOT LENGTH | 0.0400 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.2410 INCHES MAXIMUM |
| SHAFT TYPE | ROUND SINGLE SHAFT |
| SHAFT DIAMETER | 0.0900 INCHES NOMINAL SINGLE SHAFT |
| SHAFT LENGTH | 0.3320 INCHES NOMINAL SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 5 WIRE LEAD |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | STEEL, CORROSION RESISTING |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
Restrictions/Controls & Freight Information | NSN 5990-00-660-8608
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-00-660-8608
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
