NSN 5990-00-636-4099 B408, 00-636-4099, 006364099
Product Details | RECEIVER SYNCHRO
5990-00-636-4099 A synchro consisting of a stator and rotor inductively coupled. The rotor is free to turn in accordance with the electrical input from a transmitter synchro or a differential synchro. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: B408, 5990-00-636-4099, 00-636-4099, 5990006364099, 006364099
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-636-4099 | 02072 ( SYNCHRO, RECEIVER ) |

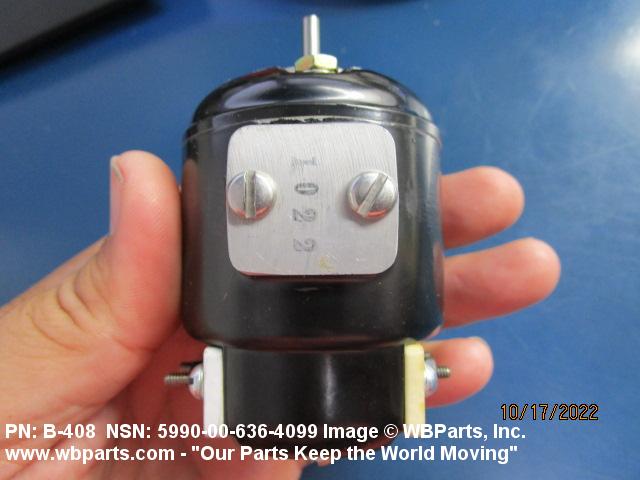

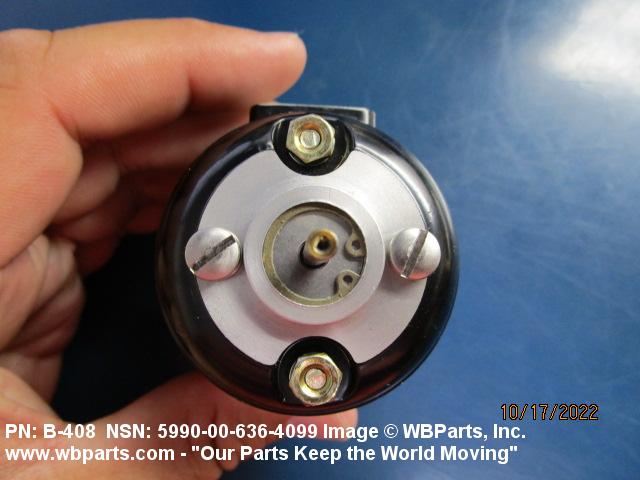

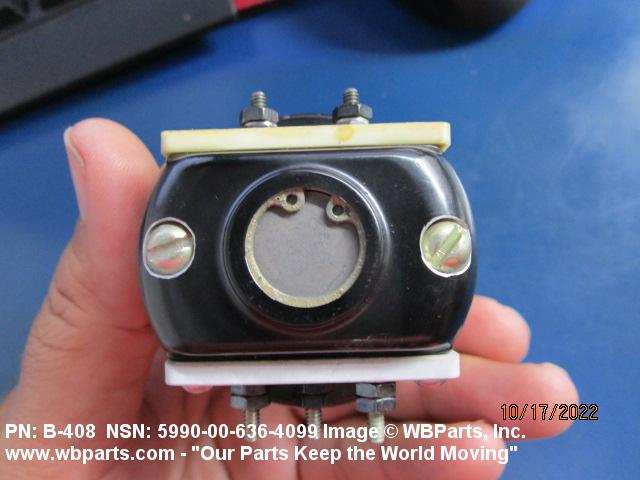

Drawings & Photos | NSN 5990-00-636-4099
Demand History | NSN 5990-00-636-4099
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-636-4099 | 2022-08-230 | 2 | United States |
| 5990-00-636-4099 | 2010-02-56 | 1 | DIBBS |
| 5990-00-636-4099 | 2007-09-246 | 1 | DIBBS |
Cross Reference | NSN 5990-00-636-4099
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B408 | 73693 | SCHULZE MFG. INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5990-00-636-4099
Technical Data | NSN 5990-00-636-4099
| Characteristic | Specifications |
|---|---|
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 115.0 NOMINAL |
| ROTOR INPUT CURRENT RATING | 170.0 MILLIAMPERES NOMINAL |
| ROTOR INPUT ELECTRICAL POWER RATING | 13.0 WATTS NOMINAL |
| FREQUENCY IN HERTZ | 60.0 NOMINAL |
| TRANSFORMATION RATIO | 1.210 ROTOR TO STATOR NOMINAL |
| TORQUE GRADIENT PER ANGULAR DEG | 0.030 INCH-OUNCES NOMINAL |
| OVERALL LENGTH | 3.7500 INCHES NOMINAL |
| SHAFT DIAMETER | 0.1562 INCHES NOMINAL SINGLE SHAFT |
| SHAFT LENGTH | 0.6250 INCHES NOMINAL SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 3 SCREW |
| SPECIAL FEATURES | BODY WIDTH2.250 IN.; BPDY HEIGHT 2.375 IN.; FIXED BASE MTG |
Restrictions/Controls & Freight Information | NSN 5990-00-636-4099
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-00-636-4099
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
