NSN 5990-00-177-2924 11CX200C2, 11CX-200-C-2, 26V11CX4CCPF370
Product Details | RECEIVER SYNCHRO

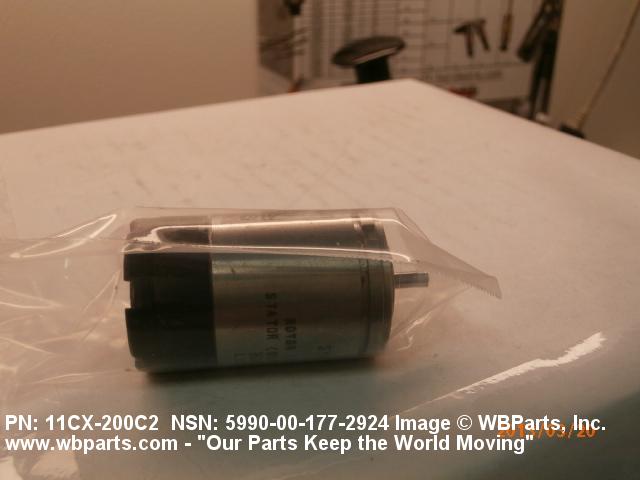

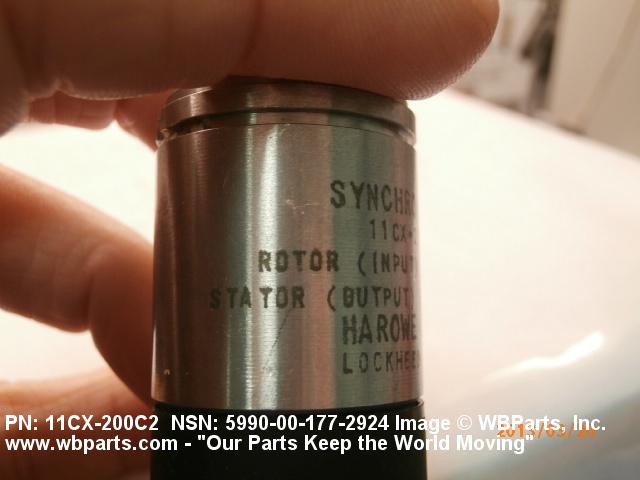

5990-00-177-2924 A synchro consisting of a stator and rotor inductively coupled. The rotor is free to turn in accordance with the electrical input from a transmitter synchro or a differential synchro. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: 11CX200C2, 11CX-200-C-2, 26V11CX4CCPF370, 740564-101, 5990-00-177-2924, 00-177-2924, 5990001772924, 001772924, 740564101
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 OCT 1969 | 00-177-2924 | 02072 ( SYNCHRO, RECEIVER ) |

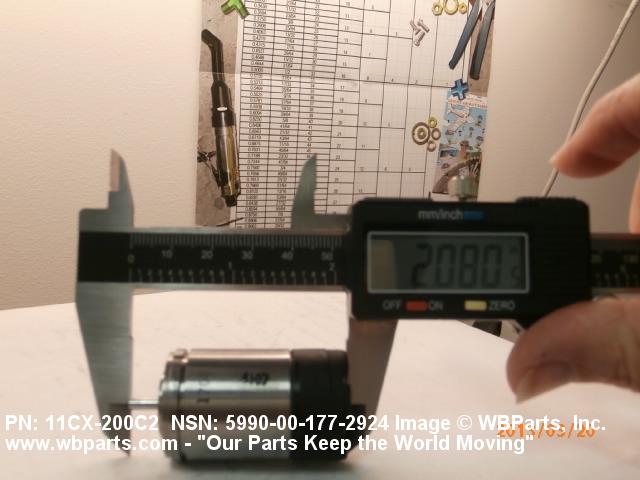

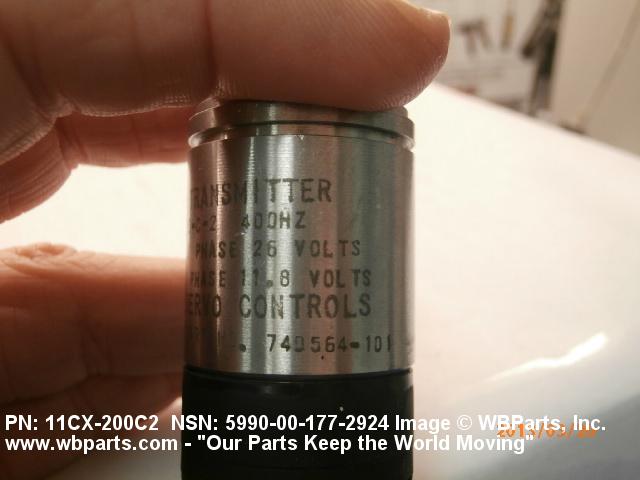

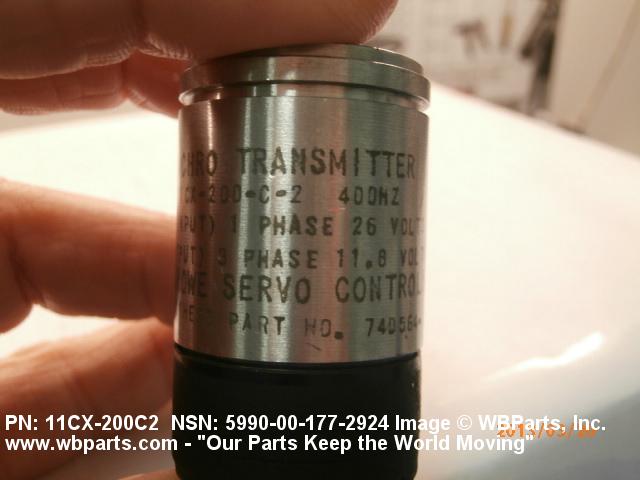

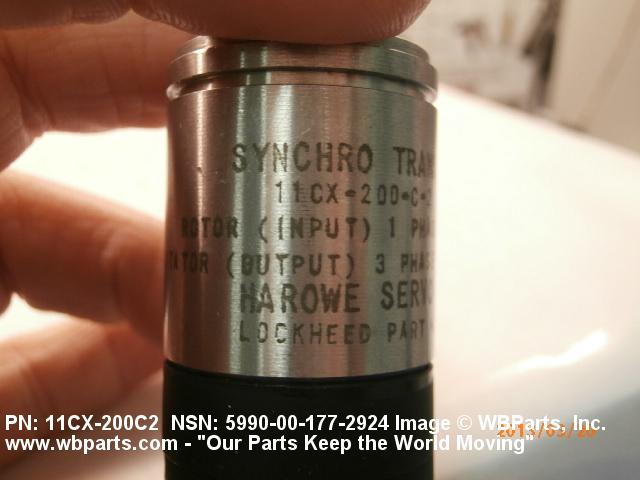

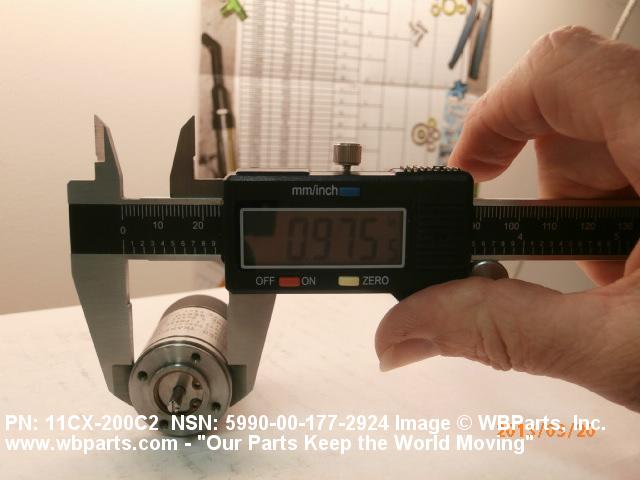

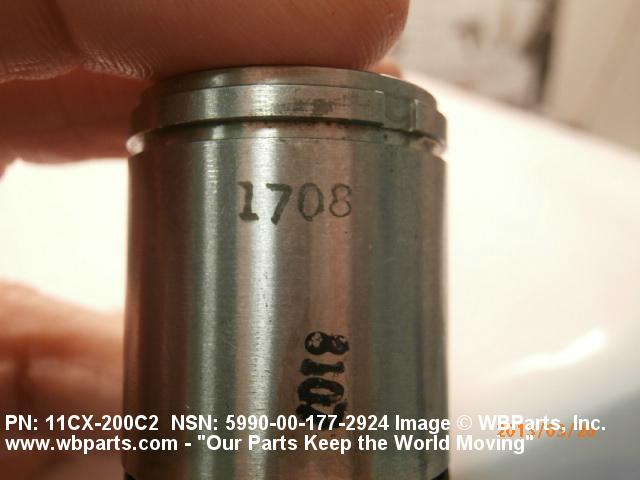

Drawings & Photos | NSN 5990-00-177-2924
Demand History | NSN 5990-00-177-2924
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 26V-11CX4C(CP/F370) | 2019-12-335 | 3 | DIBBS |
| 26V-11CX4C(CP/F370) | 2019-08-227 | 1 | DIBBS |
| 26V-11CX4C(CP/F370) | 2019-07-203 | 5 | DIBBS |
| 5990-00-177-2924 | 2013-01-31 | 2 | United States |
| 5990-00-177-2924 | 2012-07-199 | 1 | IL |
| 5990-00-177-2924 | 2012-04-115 | 2 | US |
| 5990-00-177-2924 | 2012-04-114 | 12 | US |
| 5990-00-177-2924 | 2012-04-114 | 12 | US |
| 11CX200C2 | 2011-06-153 | 1000 | US |
| 5990-00-177-2924 | 2005-12-339 | 18 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-177-2924
Related Products | NSN 5990-00-177-2924
Technical Data | NSN 5990-00-177-2924
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 11 |
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 26.0 NOMINAL |
| ROTOR INPUT CURRENT RATING | 140.0 MILLIAMPERES MAXIMUM |
| ROTOR INPUT ELECTRICAL POWER RATING | 600.0 MILLIWATTS MAXIMUM |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZRO IMPEDANCE MAGNITUDE IN OHMS | 359.00 NOMINAL |
| ZRO IMPEDANCE ANGLE IN DEG | 81.30 NOMINAL |
| ZSO IMPEDANCE MAGNITUDE IN OHMS | 60.00 NOMINAL |
| ZSO IMPEDANCE ANGLE IN DEG | 78.50 NOMINAL |
| TRANSFORMATION RATIO | 0.454 STATOR TO ROTOR NOMINAL |
| PHASE SHIFT ANGLE IN DEG | 5.500 INPUT TO OUTPUT NOMINAL |
| MAXIMUM TEMP RISE | 20.0 DEG CELSIUS |
| MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT | 12.00 OUTPUT |
| MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 19.00 |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -7.0 TO 7.0 |
| BODY STYLE | A3 STANDARD ROUND C |

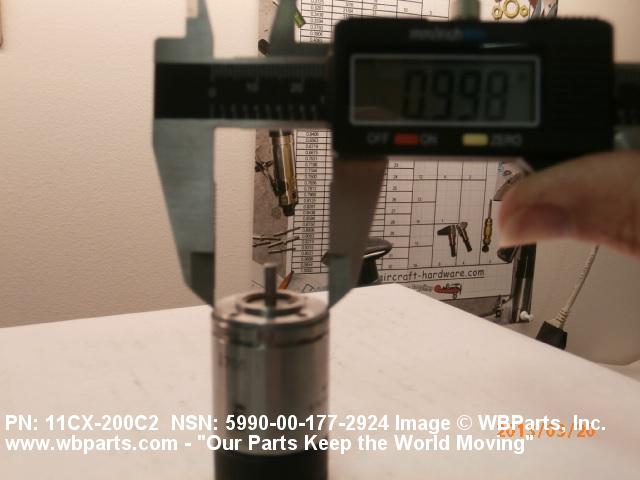

| SHOULDER DIAMETER | 1.0000 INCHES NOMINAL |

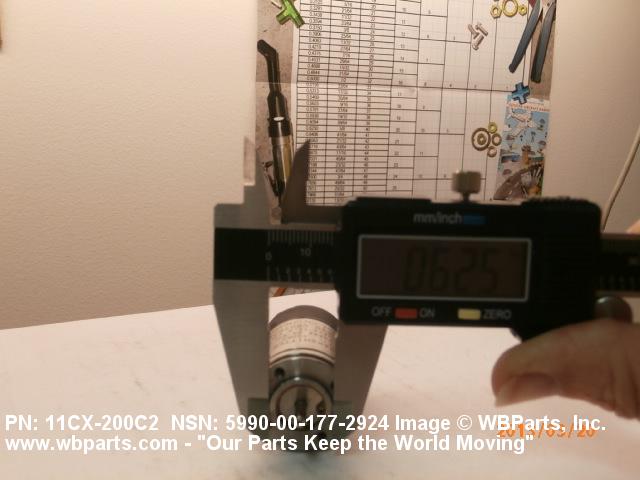

| PILOT DIAMETER | 0.6250 INCHES NOMINAL |
| OVERALL LENGTH | 2.2580 INCHES NOMINAL |

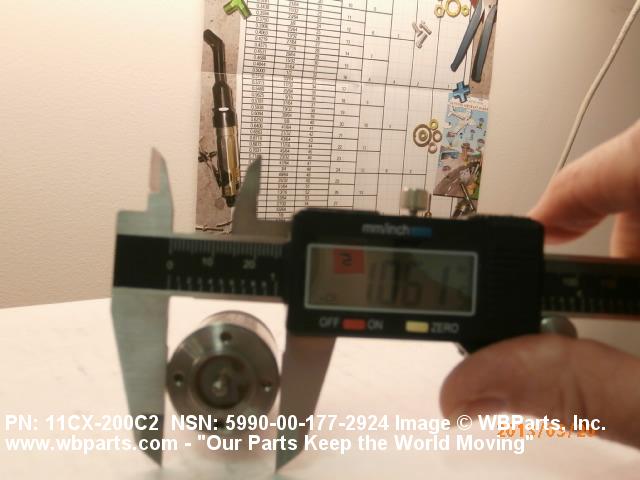

| FLANGE DIAMETER | 1.0620 INCHES NOMINAL |
| FLANGE THICKNESS | 0.0930 INCHES NOMINAL |
| UNDERCUT DIAMETER | 1.0000 INCHES NOMINAL |

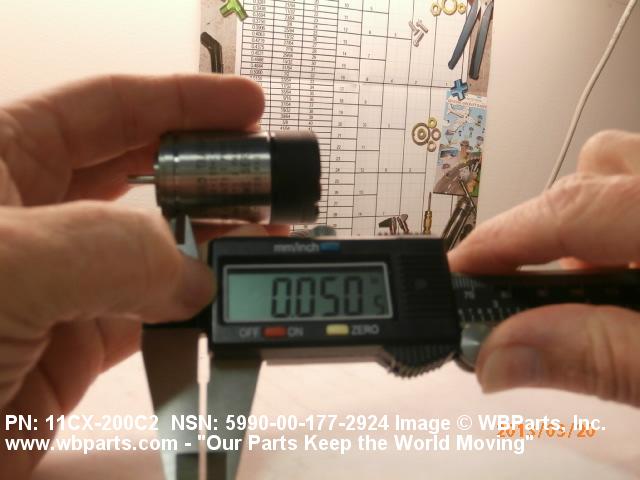

| UNDERCUT WIDTH | 0.0500 INCHES NOMINAL |
| PILOT LENGTH | 0.0620 INCHES NOMINAL |
| SHOULDER LENGTH | 0.0620 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.7330 INCHES MAXIMUM |

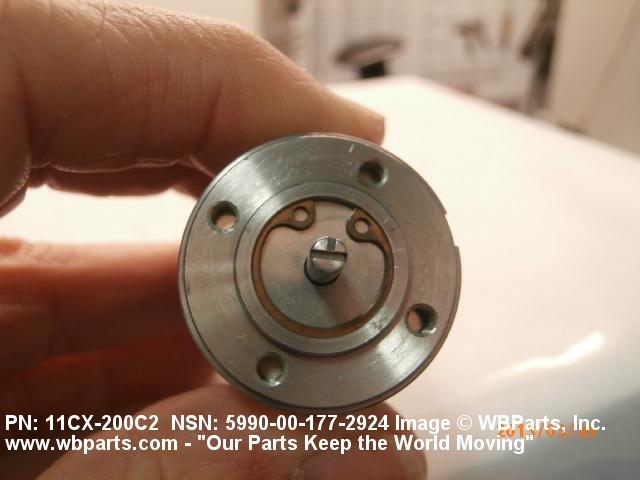

| ALIGNMENT HOLE DEPTH | 0.1250 INCHES NOMINAL |
| ALIGNMENT HOLE BOLT CIRCLE DIAMETER | 0.8120 INCHES NOMINAL |
| ALIGNMENT HOLE QUANTITY | 4 |

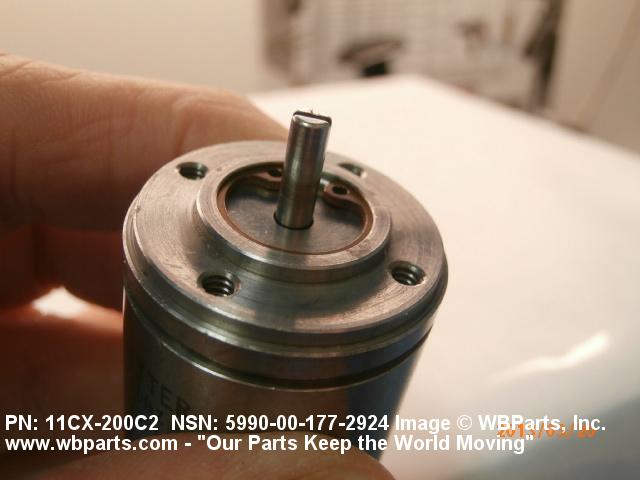

| SHAFT TYPE | ROUND, SLOTTED SINGLE SHAFT |
| SHAFT DIAMETER | 0.1200 INCHES NOMINAL SINGLE SHAFT |
| SHAFT LENGTH | 0.3130 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT DEPTH | 0.0250 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT WIDTH | 0.0200 INCHES NOMINAL SINGLE SHAFT |

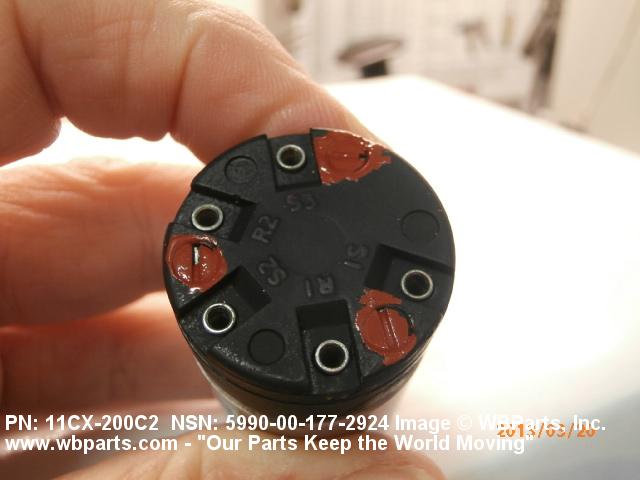

| TERMINAL TYPE AND QUANTITY | 5 SCREW |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | STEEL, CORROSION RESISTING |
| III SHAFT END PLAY | 0.0006 INCHES MAXIMUM |
| III SHAFT END PLAY DETERMINING WEIGHT | 16.0 OUNCES |
| III SHAFT MAXIMUM RUNOUT | 0.0008 INCHES |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
Restrictions/Controls & Freight Information | NSN 5990-00-177-2924
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-00-177-2924
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
