NSN 5975-00-989-5045 MS161654, MS16165-4, MS196222005
Product Details | STUFFING TUBE
5975-00-989-5045 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Part Alternates: MS161654, MS16165-4, MS196222005, MS19622-2-005, M196222005, M19622-2-005, H793320152, H793-3201-52, MILS196222, MILS19622-2, MILS19622C2, MIL-S-19622C-2, 02900152, 02-90-0152, 556706839152, 556-7068391-52, 800289PC7 , 5975-00-989-5045, 00-989-5045, 5975009895045, 009895045
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-989-5045 | 00882 ( STUFFING TUBE ) |
Drawings & Photos | NSN 5975-00-989-5045
Demand History | NSN 5975-00-989-5045
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-00-989-5045 | 2024-06-156 | 61 | DIBBS |
| 5975-00-989-5045 | 2024-05-148 | 61 | DIBBS |
| 5975-00-989-5045 | 2023-10-289 | 124 | DIBBS |
| 5975-00-989-5045 | 2023-08-221 | 1 | US |
| 5975-00-989-5045 | 2023-06-170 | 293 | DIBBS |
| 5975-00-989-5045 | 2023-03-75 | 241 | DIBBS |
| 5975-00-989-5045 | 2022-11-324 | 166 | DIBBS |
| 5975-00-989-5045 | 2022-08-227 | 131 | DIBBS |
| 5975-00-989-5045 | 2022-04-93 | 326 | DIBBS |
| 5975-00-989-5045 | 2021-12-364 | 89 | DIBBS |
| 5975-00-989-5045 | 2021-12-353 | 89 | DIBBS |
| 5975-00-989-5045 | 2021-11-322 | 2 | US |
| 5975-00-989-5045 | 2015-12-338 | 1 | DIBBS-RFPs |
| 5975-00-989-5045 | 2015-03-69 | 803 | DIBBS |
| 5975-00-989-5045 | 2012-09-258 | 1058 | DIBBS |
| 5975-00-989-5045 | 2012-07-198 | 1058 | DIBBS |
| 5975-00-989-5045 | 2011-07-193 | 1250 | DIBBS |
| 5975-00-989-5045 | 2011-03-73 | 360 | DIBBS |
Cross Reference | NSN 5975-00-989-5045
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 02-90-0152 | 96169 | ELECTRIC BOAT CORPORATION |
| 556-7068391-52 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| H793-3201-52 | 96169 | ELECTRIC BOAT CORPORATION |
| M19622-2-005 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-19622C-2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILS19622-2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS16165-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS19622-2-005 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-00-989-5045
Related Products | NSN 5975-00-989-5045
Technical Data | NSN 5975-00-989-5045
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYAMIDE OVERALL |
| SIZE | 0.825 INCHES NOMINAL |

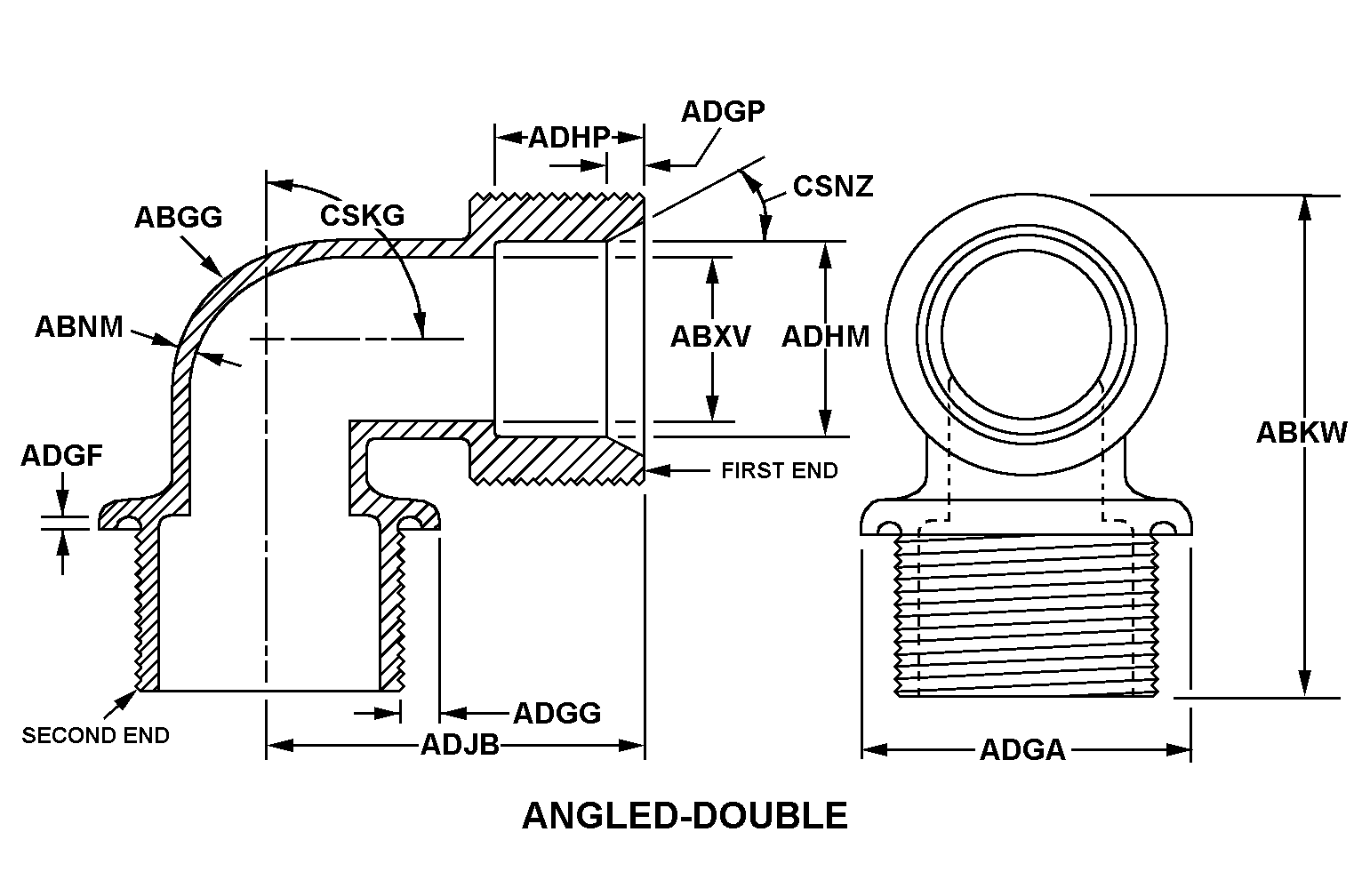

| STYLE DESIGNATOR | 42 ANGLED-DOUBLE |
| RADIUS | 0.825 INCHES NOMINAL |
| OVERALL HEIGHT | 2.684 INCHES NOMINAL |
| THICKNESS | 0.125 INCHES NOMINAL |
| BORE DIAMETER | 0.825 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.687 INCHES NOMINAL |
| OUTSIDE RECESS LENGTH | 0.099 INCHES NOMINAL |
| OUTSIDE RECESS WIDTH | 0.160 INCHES NOMINAL |
| FIRST END CHAMFER DEPTH | 0.313 INCHES NOMINAL |
| FIRST PACKING CHAMBER INSIDE DIAMETER | 0.906 INCHES NOMINAL |
| FIRST PACKING CHAMBER LENGTH | 0.750 INCHES NOMINAL |
| DISTANCE FROM CENTER OF MOUNTING END TO EDGE OF PACKING CHAMBER END | 2.000 INCHES NOMINAL |
| BEND ANGLE | 90.0 DEGREES NOMINAL |
| FIRST END CHAMFER ANGLE | 10.0 DEGREES NOMINAL |
| THREAD SERIES DESIGNATOR | UN BOTH ENDS |
| NOMINAL THREAD SIZE | 1.250 INCHES FIRST END 1.375 INCHES SECOND END |
| THREAD CLASS | 2A BOTH ENDS |
| THREAD QUANTITY PER INCH | 12 BOTH ENDS |
| THREAD LENGTH | 1.088 INCHES NOMINAL FIRST END 0.875 INCHES NOMINAL SECOND END |
| THREAD DIRECTION | RIGHT-HAND BOTH ENDS |
| ITEM ACCOMMODATED MAXIMUM THICKNESS | 0.750 INCHES |
| PACKING CHAMBER QUANTITY | 1 |
| FURNISHED ITEMS | CAP AND LOCKNUT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-19622C-2 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M19622-2-005 |
Restrictions/Controls & Freight Information | NSN 5975-00-989-5045
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-989-5045
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
