NSN 5975-00-989-7416 EL69, 00-989-7416, 009897416
Product Details | ELECTRICAL CONDUIT ELBOW
5975-00-989-7416 An item fabricated in the form of an elbow and having both ends threaded female, or with unthreaded connecting facilities on both ends, or connecting facilities on both ends, one of which is a male thread without boss or shoulder. If a locknut or bondnut is included, it shall not be considered as a thread boss or shoulder. It is primarily intended to connect conduit to conduit. It may have a removable cover to facilitate pulling wires, but does not include facilities for mounting wiring devices. For items having a removable cover to facilitate pulling wires and specifically designed for close installation in exposed outdoor locations and which may have facilities for an outside driven ground, see ENTRANCE ELBOW, ELECTRICAL. For items with one end having a male thread with a boss or shoulder, see BOX CONNECTOR, ELECTRICAL. For items having a removable screw cap for pulling wires, with the cap positioned 45 degrees from the connection facilities, see ENTRANCE ELBOW, ELECTRICAL. For items fabricated in the form of an elbow having both ends threaded male, see BEND, ELECTRICAL CONDUIT.
Part Alternates: EL69, 5975-00-989-7416, 00-989-7416, 5975009897416, 009897416
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-989-7416 | 06944 ( ELBOW, ELECTRICAL CONDUIT ) |
Drawings & Photos | NSN 5975-00-989-7416
Cross Reference | NSN 5975-00-989-7416
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| EL69 | 15235 | CROUSE-HINDS CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-989-7416
Technical Data | NSN 5975-00-989-7416
| Characteristic | Specifications |
|---|---|

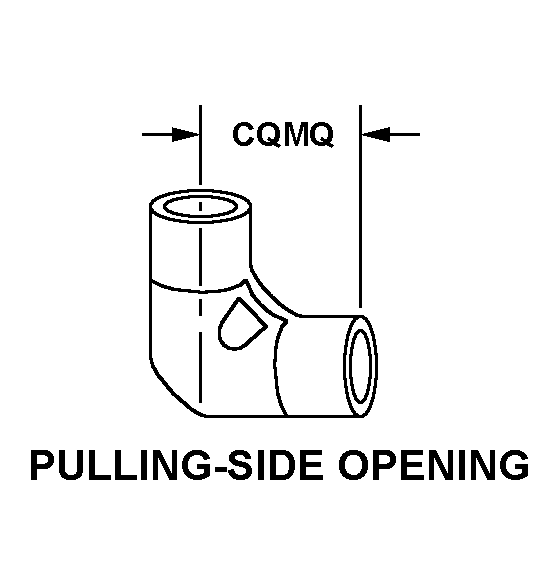

| STYLE DESIGNATOR | A37 PULLING-SIDE OPENING |
| LEG END TO PLANE OF BEND DISTANCE | 5.000 INCHES NOMINAL FIRST END 5.000 INCHES NOMINAL SECOND END |
| ITEM ACCOMMODATED TRADE SIZE | 2.000 INCHES FIRST END 2.000 INCHES SECOND END |
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |
| CONDUIT TYPE ACCOMMODATED | RIGID METALLIC THICKWALL FIRST END RIGID METALLIC THICKWALL SECOND END |
| END TYPE | INTERNAL THREAD FIRST END INTERNAL THREAD SECOND END |
| DEFLECTION ANGLE | 90.0 DEGREES |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | EXPLOSION PROOF NEC CL.I, GP.BCD;CL.II, GP.EFG;CL.III |
| MANUFACTURERS CODE | 15235 |
| DESIGN CONTROL REFERENCE | EL69 |
Restrictions/Controls & Freight Information | NSN 5975-00-989-7416
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062010 | FITTINGS CONDUIT NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-989-7416
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
