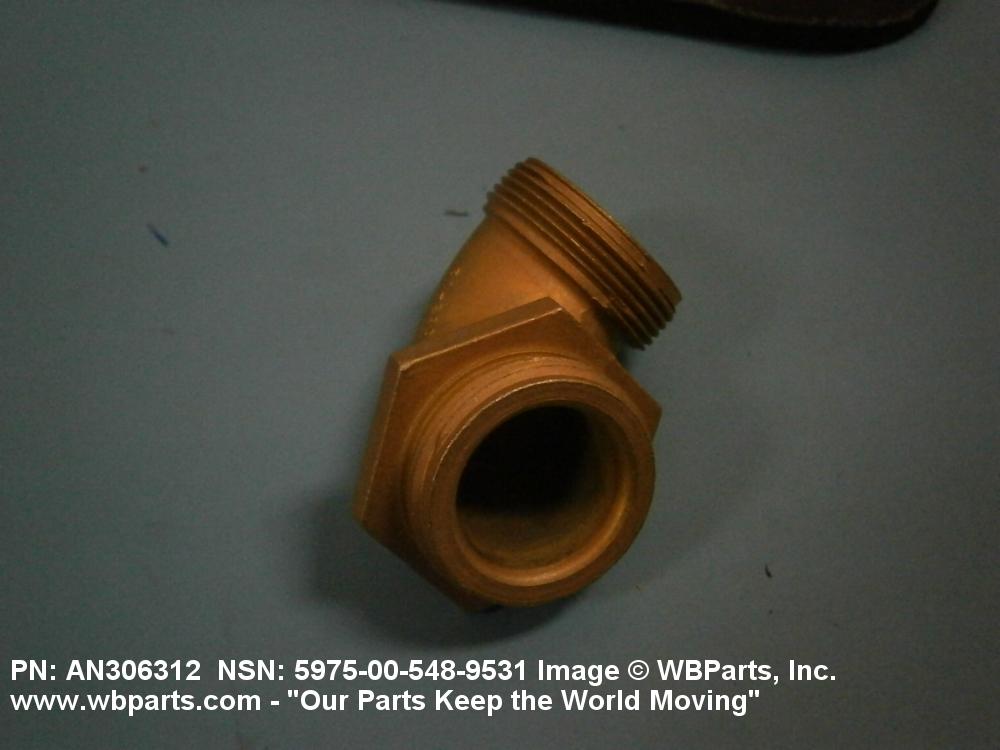

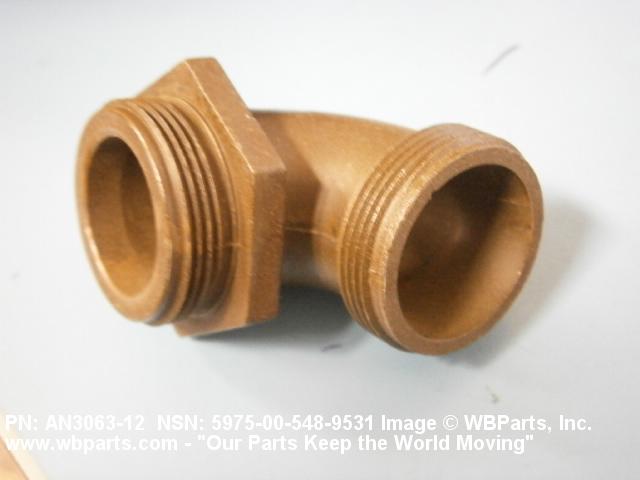

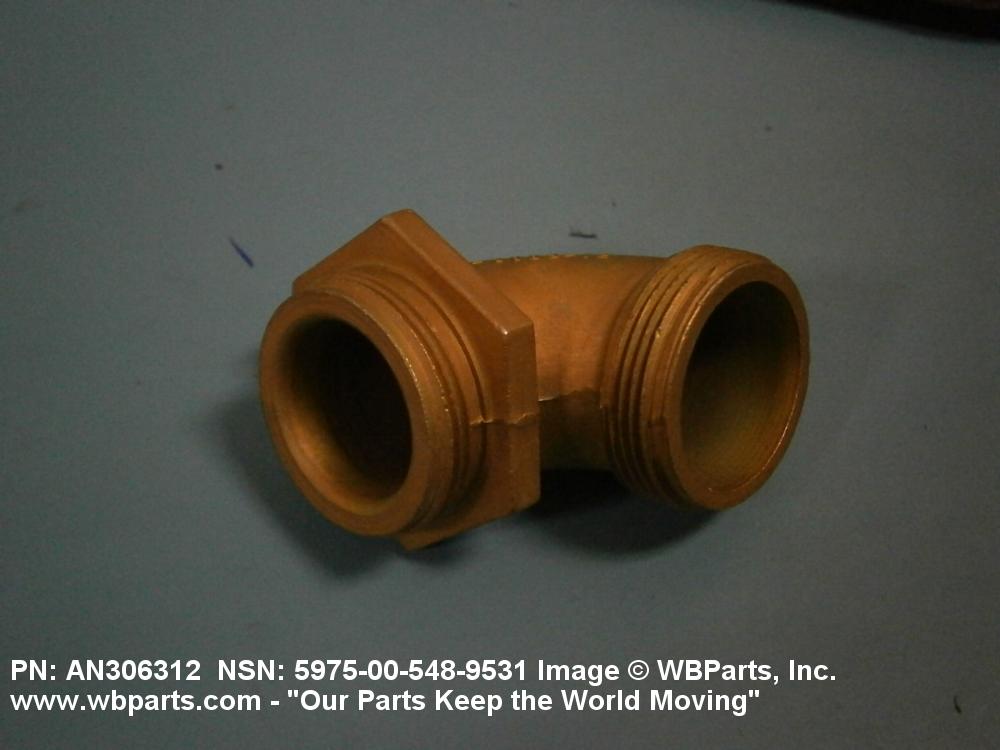

Product Details | ELECTRICAL CONDUIT ELBOW

5975-00-548-9531 An item fabricated in the form of an elbow and having both ends threaded female, or with unthreaded connecting facilities on both ends, or connecting facilities on both ends, one of which is a male thread without boss or shoulder. If a locknut or bondnut is included, it shall not be considered as a thread boss or shoulder. It is primarily intended to connect conduit to conduit. It may have a removable cover to facilitate pulling wires, but does not include facilities for mounting wiring devices. For items having a removable cover to facilitate pulling wires and specifically designed for close installation in exposed outdoor locations and which may have facilities for an outside driven ground, see ENTRANCE ELBOW, ELECTRICAL. For items with one end having a male thread with a boss or shoulder, see BOX CONNECTOR, ELECTRICAL. For items having a removable screw cap for pulling wires, with the cap positioned 45 degrees from the connection facilities, see ENTRANCE ELBOW, ELECTRICAL. For items fabricated in the form of an elbow having both ends threaded male, see BEND, ELECTRICAL CONDUIT.

Part Alternates: AN306312, AN3063-12, 5975-00-548-9531, 00-548-9531, 5975005489531, 005489531

Electrical and Electronic Equipment Components | Electrical Hardware and Supplies

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-548-9531	06944 ( ELBOW, ELECTRICAL CONDUIT )

Drawings & Photos | NSN 5975-00-548-9531

Part Number	Request Date	QTY	Origin
AN306312	2011-11-334	43	United States
5975-00-548-9531	2011-11-332	43	DIBBS
5975-00-548-9531	2010-09-272	43	DIBBS

Cross Reference | NSN 5975-00-548-9531

Part Number	Cage Code	Manufacturer
AN3063-12	81352	AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS
AN3063-12	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5975-00-548-9531

Compare

Related Products | NSN 5975-00-548-9531

5975-00-548-9532, 5975-00-548-9535, 5975-00-548-9538, 5975-00-548-9541, 5975-00-548-9547

Technical Data | NSN 5975-00-548-9531

Characteristic	Specifications

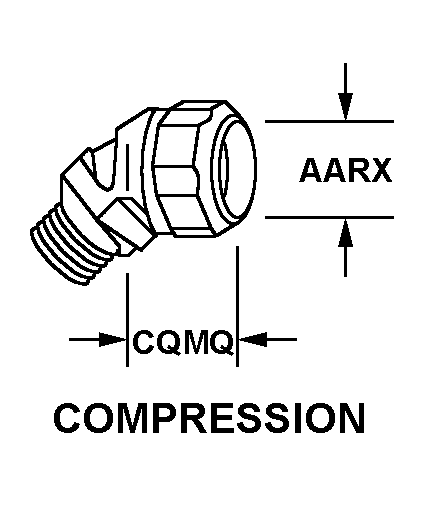

STYLE DESIGNATOR	A40 COMPRESSION
LEG END TO PLANE OF BEND DISTANCE	1.281 INCHES NOMINAL FIRST END 1.218 INCHES NOMINAL SECOND END
ITEM ACCOMMODATED TRADE SIZE	0.750 INCHES FIRST END 0.750 INCHES SECOND END
MATERIAL	ALUMINUM ALLOY
SURFACE TREATMENT	CADMIUM
CONDUIT TYPE ACCOMMODATED	RIGID METALLIC THINWALL FIRST END RIGID METALLIC THINWALL SECOND END
END TYPE	EXTERNAL THREAD FIRST END EXTERNAL THREAD SECOND END
DEFLECTION ANGLE	90.0 DEGREES
MANUFACTURERS CODE	88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN3063-12
