NSN 5975-00-989-5046 M19622/1-005, M196221005, NYST1005

Product Details | STUFFING TUBE

5975-00-989-5046 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).

Part Alternates: M19622/1-005, M196221005, NYST1005, NYST-1-005, F1836M/1-005 , F1836M1005, MILS196221, MILS19622-1, MILS19622C1, MIL-S-19622C-1, 5975-00-989-5046, 00-989-5046, 5975009895046, 009895046

Electrical and Electronic Equipment Components | Electrical Hardware and Supplies

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1962	00-989-5046	00882 ( STUFFING TUBE )

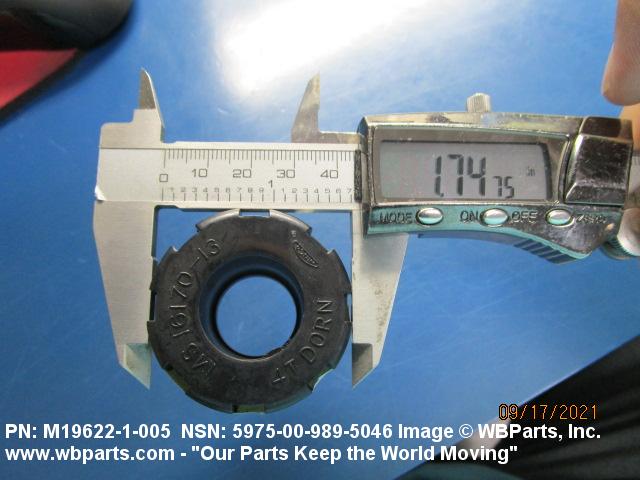

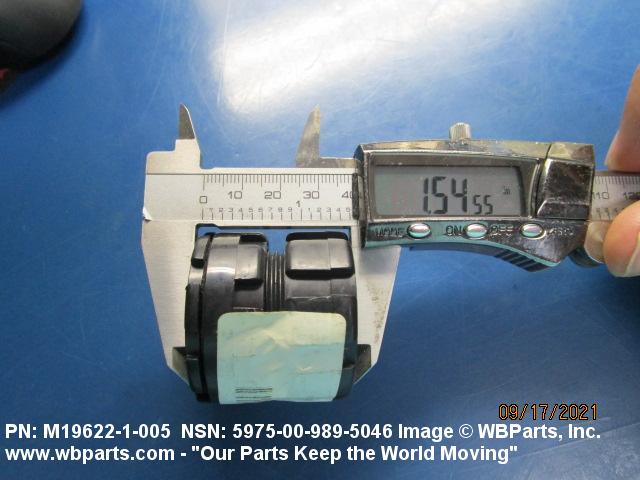

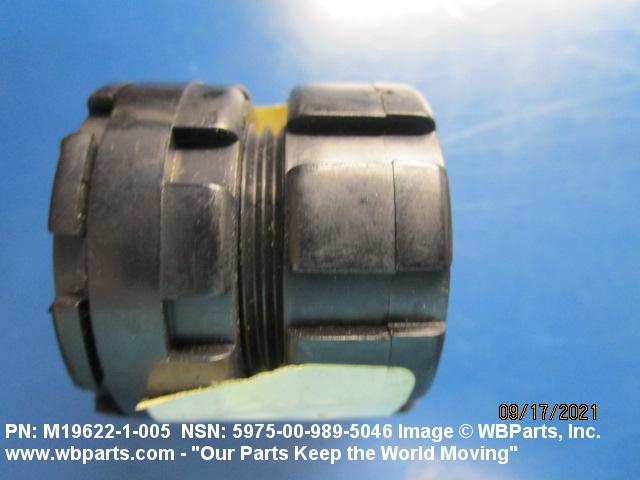

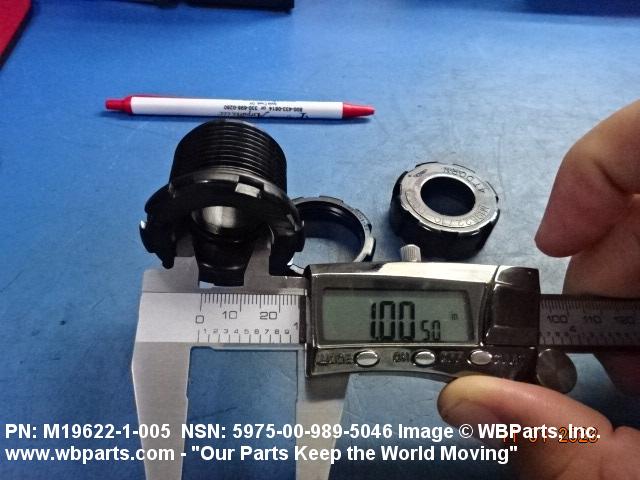

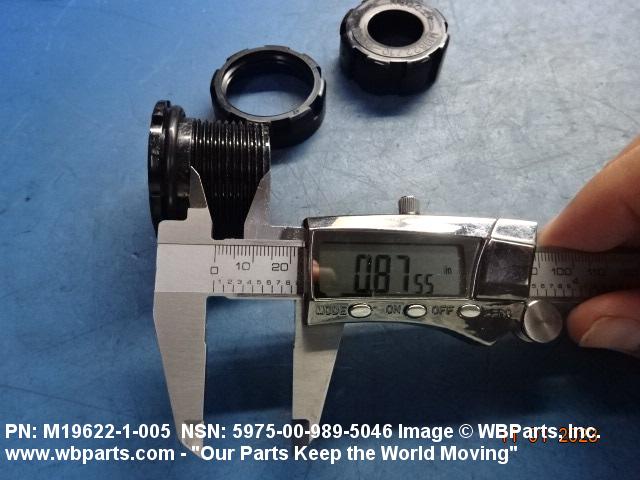

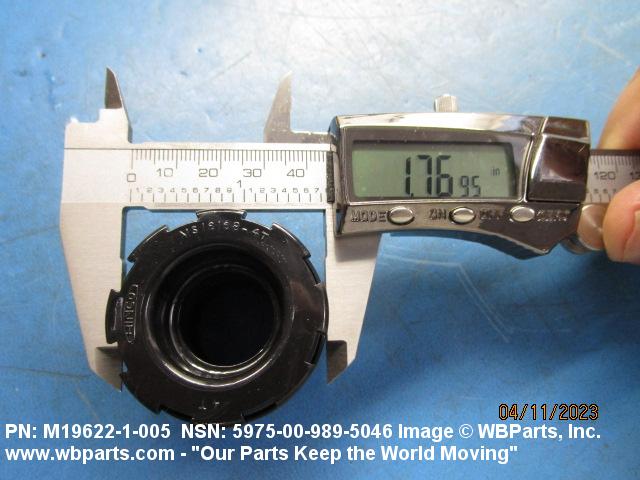

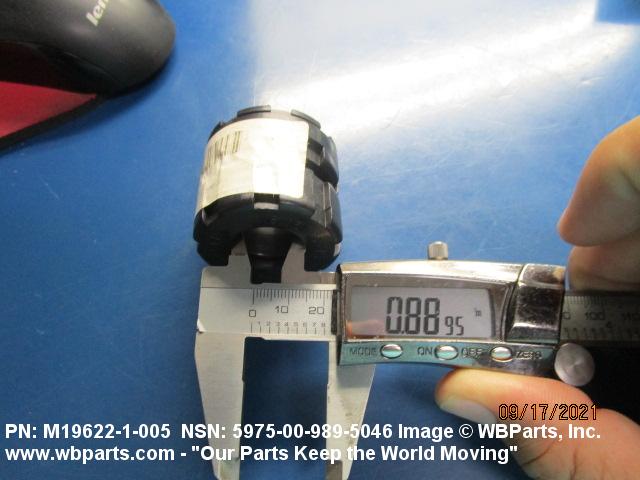

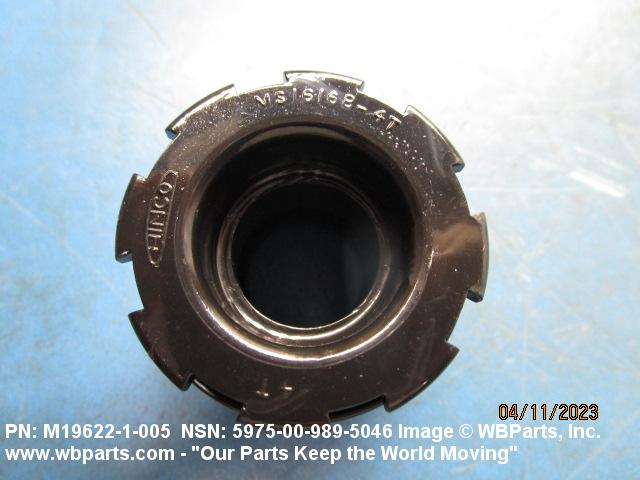

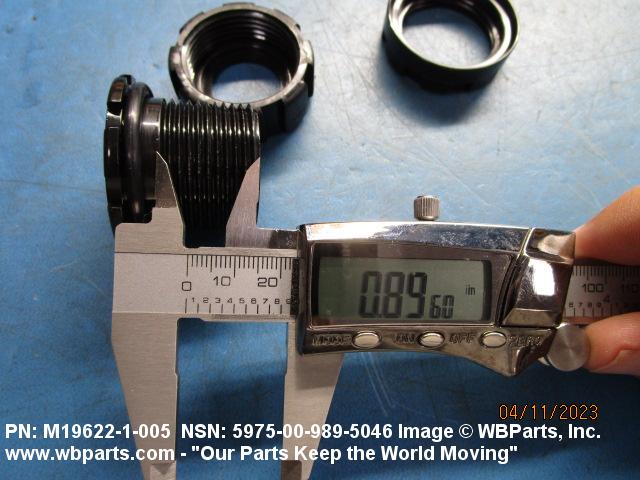

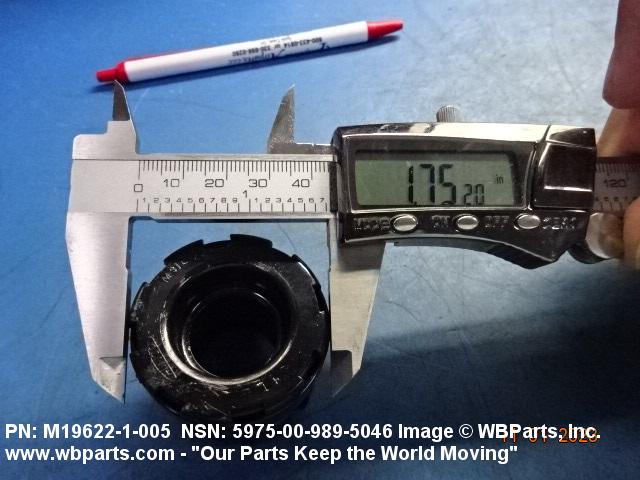

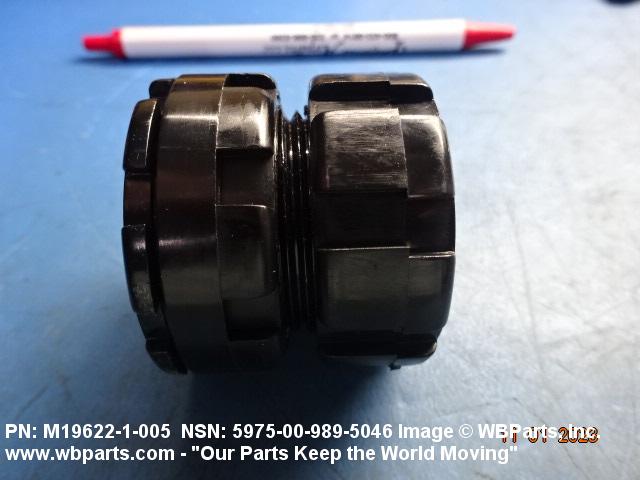

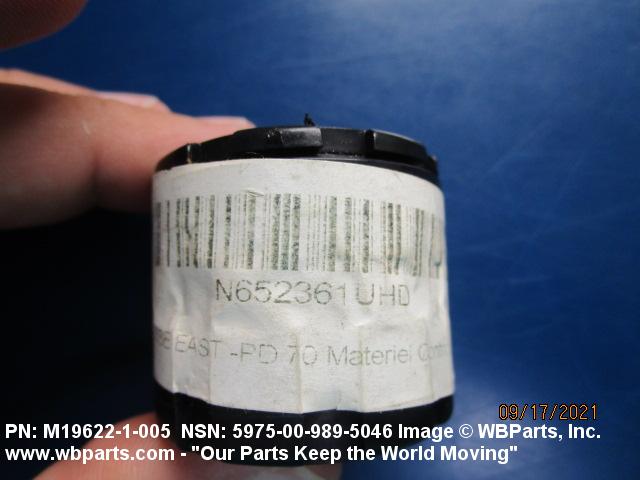

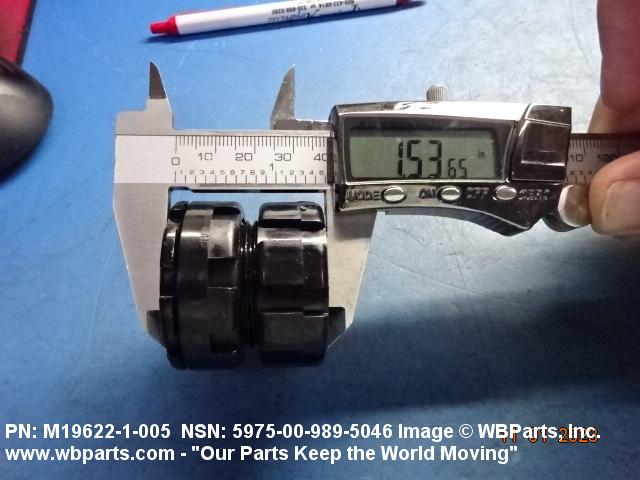

Drawings & Photos | NSN 5975-00-989-5046

Part Number	Request Date	QTY	Origin
NYST1005	2024-03-64	8	UK
M196221005	2023-10-290	30	us
M196221005	2023-03-76	2	United States
M196221005	2023-03-76	2	United States
5975-00-989-5046	2022-04-111	2	US
5975-00-989-5046	2022-03-80	2	US
5975-00-989-5046	2022-01-25	2	US
5975-00-989-5046	2022-01-25	2	US
M196221005	2021-11-319	1	US
5975-00-989-5046	2021-08-235	18	United States
5975-00-989-5046	2021-08-229	9	United States
M196221005	2021-05-132	8	United States
5975-00-989-5046	2021-05-125	2	US
5975-00-989-5046	2021-03-89	2	US
5975-00-989-5046	2021-02-53	10	US
5975-00-989-5046	2021-01-11	10	United States
5975-00-989-5046	2020-09-252	12	US
5975-00-989-5046	2020-02-49	1	DIBBS-RFPs
5975-00-989-5046	2019-08-218	2	Spain
NYST1005	2017-02-52	10	United States
5975-00-989-5046	2017-02-37	14	Netherlands
5975-00-989-5046	2015-02-37	20	US
5975-00-989-5046	2014-09-260	2200	DIBBS
M196221005	2014-03-79	2	United States
5975-00-989-5046	2014-03-72	2064	DIBBS
5975-00-989-5046	2014-03-64	2064	DIBBS
M196221005	2013-12-346	150	Netherlands
5975-00-989-5046	2013-02-56	8	United States
5975-00-989-5046	2012-12-349	75	United States
5975-00-989-5046	2012-11-321	8	US
5975-00-989-5046	2012-01-19	36	United States
5975-00-989-5046	2011-07-210	7618	DIBBS
M19622/1-005	2011-04-95	96	United States
M19622/1-005	2011-04-95	160	United States
M19622/1-005	2011-04-95	160	United States
5975-00-989-5046	2011-03-80	15	United States
5975-00-989-5046	2010-12-345	1	US
5975-00-989-5046	2010-07-187	4754	DIBBS
M196221005	2010-06-159	24	US
5975-00-989-5046	2010-05-125	4434	DIBBS

Cross Reference | NSN 5975-00-989-5046

Part Number	Cage Code	Manufacturer
F1836M/1-005	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M19622/1-005	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-S-19622C-1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILS19622-1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
NYST-1-005	99820	DORN EQUIPMENT CORP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5975-00-989-5046

Compare

Related Products | NSN 5975-00-989-5046

5975-00-989-6239, 5975-00-989-6938, 5975-00-989-6944, 5975-00-989-7416, 5975-00-989-9347

Technical Data | NSN 5975-00-989-5046

Characteristic	Specifications
MATERIAL	PLASTIC POLYAMIDE OVERALL
SIZE	0.825 INCHES NOMINAL
STYLE DESIGNATOR	40 SLOTTED-SINGLE
COUNTERBORE DIAMETER	1.000 INCHES NOMINAL
COUNTERBORE DEPTH	0.437 INCHES NOMINAL
SLOT DEPTH	0.093 INCHES NOMINAL
SLOT WIDTH	0.250 INCHES NOMINAL
SLOT LENGTH	0.125 INCHES NOMINAL
OVERALL LENGTH	1.328 INCHES NOMINAL
BORE DIAMETER	0.825 INCHES NOMINAL
BODY OUTSIDE DIAMETER	1.375 INCHES NOMINAL
OVERALL OUTSIDE DIAMETER	1.750 INCHES NOMINAL
BORE LENGTH	0.125 INCHES NOMINAL
FIRST END CHAMFER DEPTH	0.313 INCHES NOMINAL
FIRST PACKING CHAMBER INSIDE DIAMETER	0.906 INCHES NOMINAL
FIRST PACKING CHAMBER LENGTH	0.750 INCHES NOMINAL
DISTANCE FROM OUTSIDE EDGE OF FIRST PACKING CHAMBER TO EDGE OF MOUNTING FLANGE	1.203 INCHES NOMINAL
FIRST END CHAMFER ANGLE	10.0 DEGREES NOMINAL
SLOT ANGLE	45.0 DEGREES NOMINAL
THREAD SERIES DESIGNATOR	UN FIRST END
NOMINAL THREAD SIZE	1.375 INCHES FIRST END
THREAD CLASS	2A FIRST END
THREAD QUANTITY PER INCH	12 FIRST END
THREAD LENGTH	0.875 INCHES NOMINAL FIRST END
THREAD DIRECTION	RIGHT-HAND FIRST END
PACKING CHAMBER QUANTITY	1
MOUNTING METHOD	FLANGE AND LOCK NUTS
FURNISHED ITEMS	CAP AND LOCKNUT
SPECIAL MARKINGS	4T
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-S-19622C-1
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M19622/1-005

Restrictions/Controls & Freight Information | NSN 5975-00-989-5046

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5975-00-989-5046

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
