NSN 5975-00-296-4096 M19622/1-006, M196221006, MILS196221
Product Details | STUFFING TUBE
5975-00-296-4096 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Part Alternates: M19622/1-006, M196221006, MILS196221, MILS19622-1, 4185200002, 4185200-002, 5382536, 538253-6, 5975-00-296-4096, 00-296-4096, 5975002964096, 002964096
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-296-4096 | 00882 ( STUFFING TUBE ) |

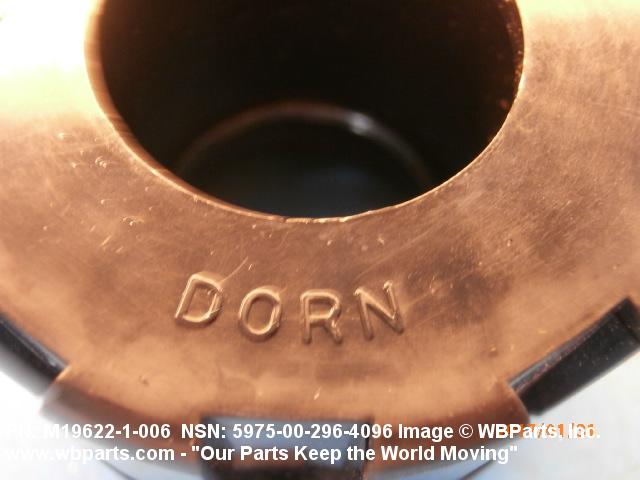

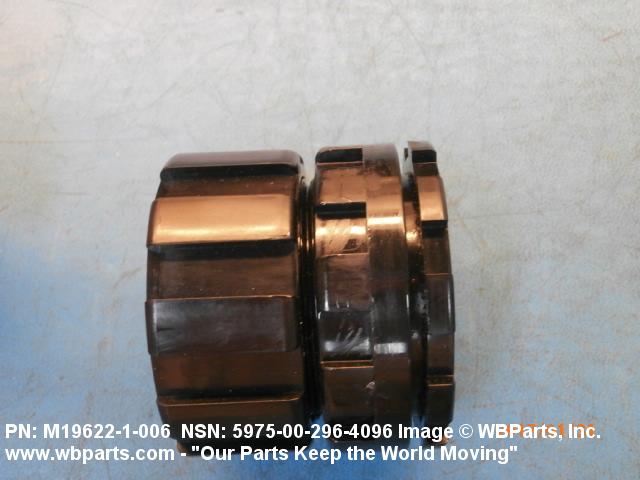

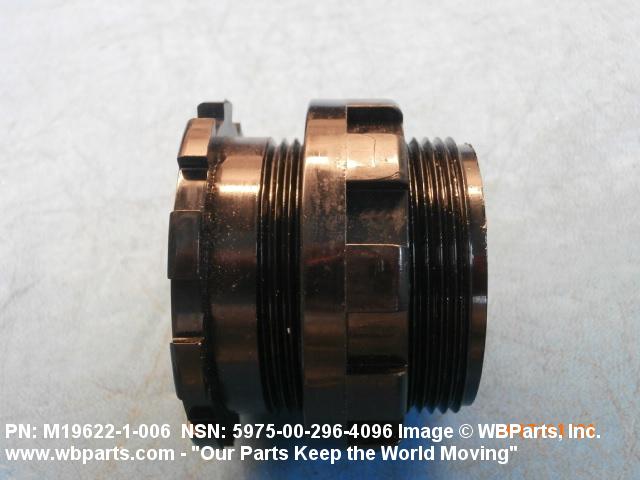

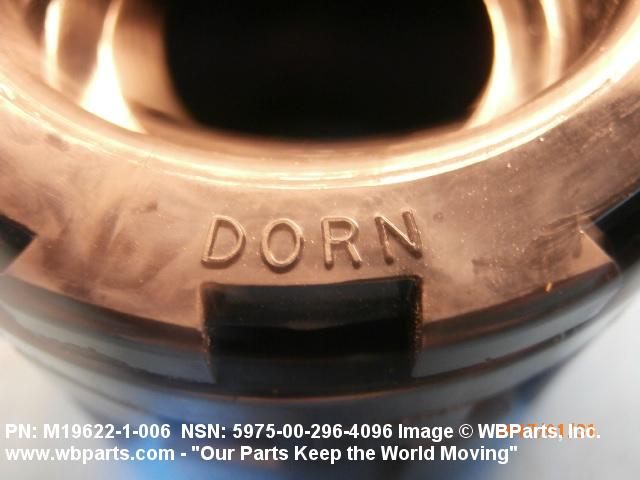

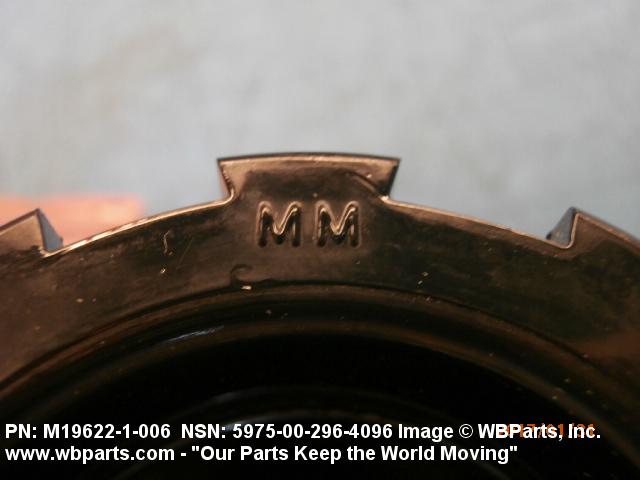

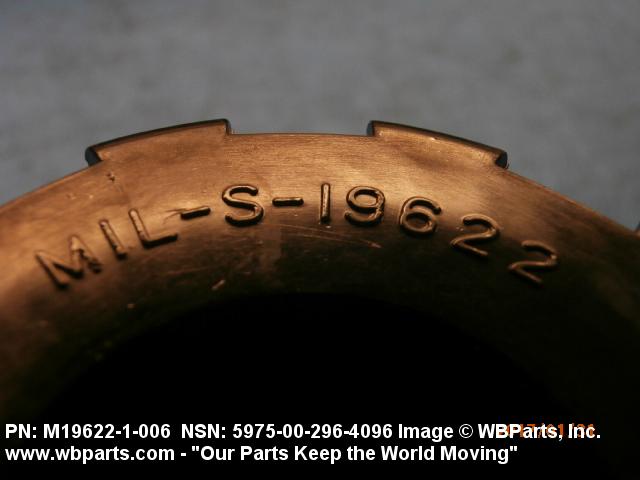

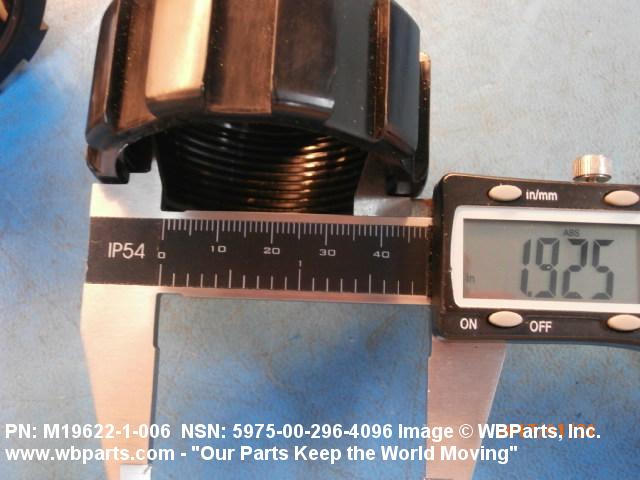

Drawings & Photos | NSN 5975-00-296-4096
Demand History | NSN 5975-00-296-4096
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M196221006 | 2021-05-132 | 1 | United States |
| 5975-00-296-4096 | 2019-10-283 | 30 | US |
| 5975-00-296-4096 | 2019-10-283 | 30 | US |
| 5975-00-296-4096 | 2018-02-39 | 181 | DIBBS |
| 5975-00-296-4096 | 2018-01-31 | 140 | DIBBS |
| 5975-00-296-4096 | 2017-12-361 | 88 | DIBBS |
| 5975-00-296-4096 | 2017-12-359 | 174 | DIBBS |
| 5975-00-296-4096 | 2017-03-65 | 268 | DIBBS |
| 5975-00-296-4096 | 2017-01-23 | 2 | United States |
| 5975-00-296-4096 | 2016-12-343 | 184 | DIBBS |
| 5975-00-296-4096 | 2016-05-132 | 1 | DIBBS-RFPs |
| M196221006 | 2016-02-47 | 2 | US |
| M196221006 | 2014-10-302 | 6 | United States |
| 5975-00-296-4096 | 2014-05-139 | 50 | PK |
| 5975-00-296-4096 | 2013-09-268 | 50 | Pakistan |
| 5975-00-296-4096 | 2012-12-349 | 75 | United States |
| 5975-00-296-4096 | 2012-02-58 | 59 | Pakistan |
Cross Reference | NSN 5975-00-296-4096
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4185200-002 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 4185200-002 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| 538253-6 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| M19622/1-006 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILS19622-1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-00-296-4096
Related Products | NSN 5975-00-296-4096
Technical Data | NSN 5975-00-296-4096

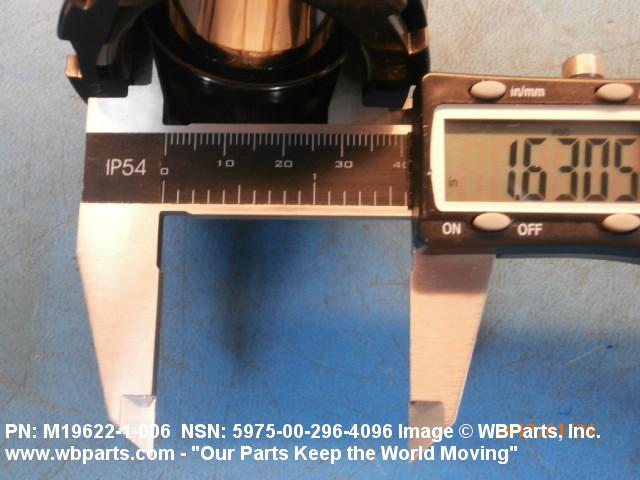

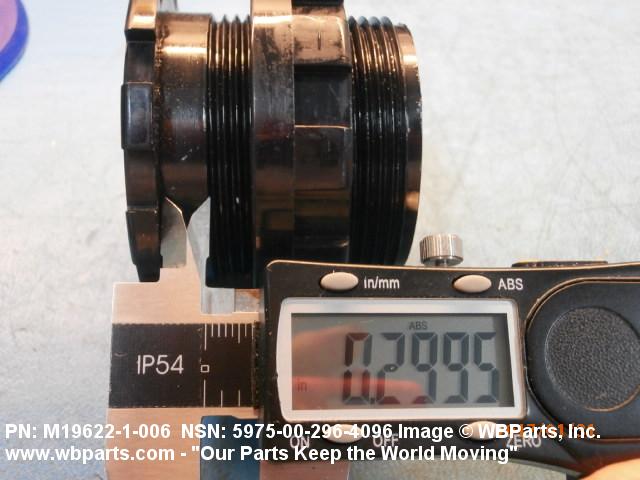

| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYAMIDE OVERALL |
| SIZE | 1.187 INCHES NOMINAL |
| STYLE DESIGNATOR | 40 SLOTTED-SINGLE |
| COUNTERBORE DIAMETER | 1.625 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.337 INCHES NOMINAL |

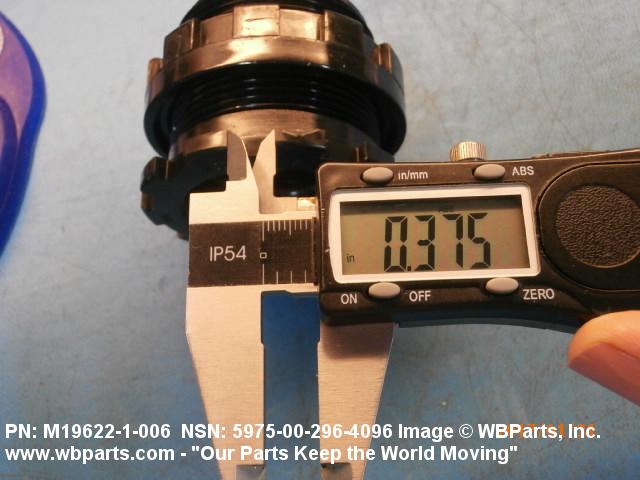

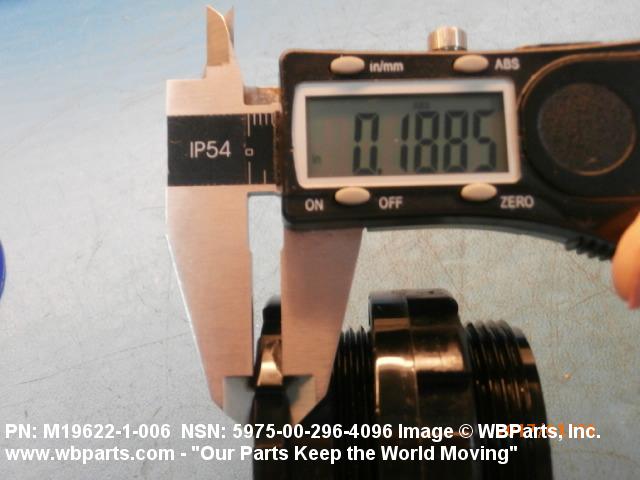

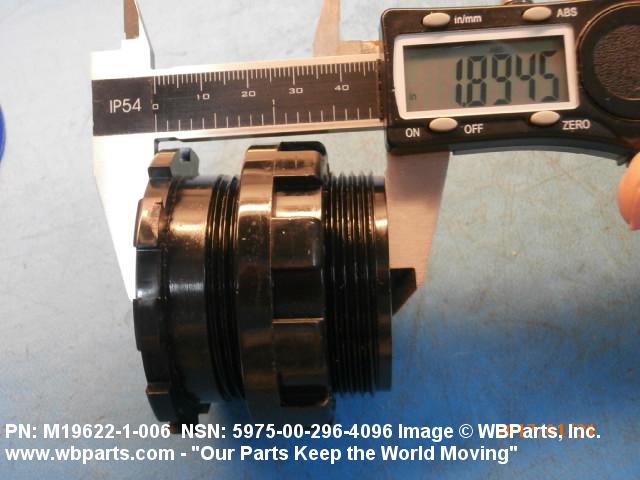

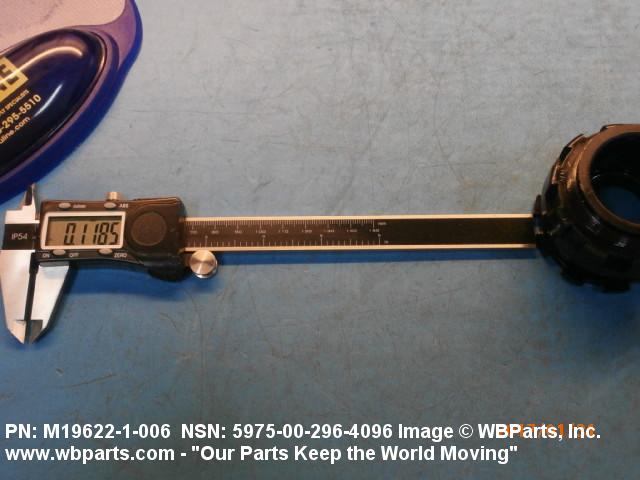

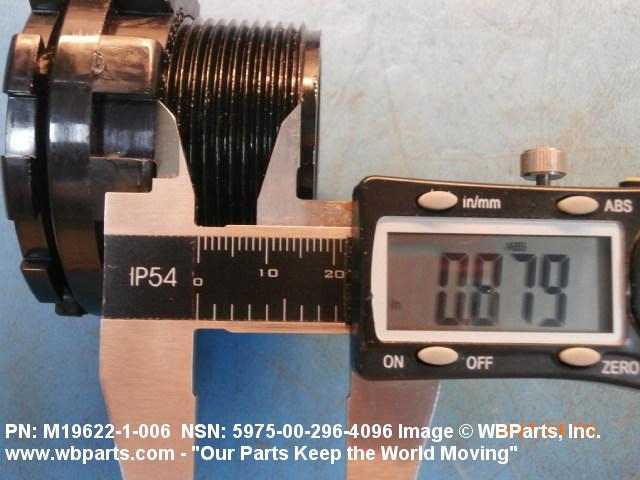

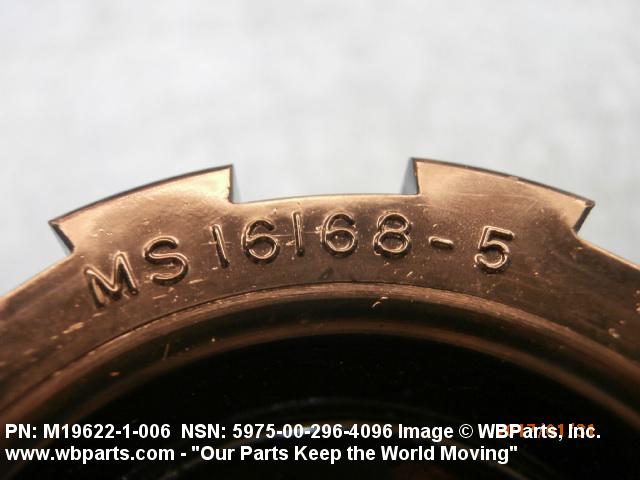

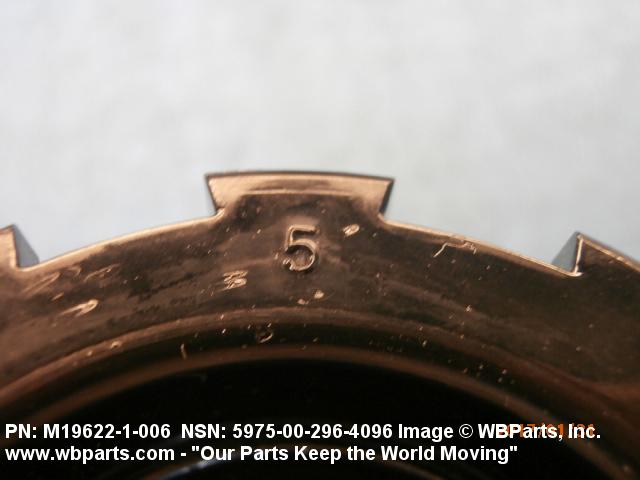

| SLOT DEPTH | 0.125 INCHES NOMINAL |
| SLOT WIDTH | 0.375 INCHES NOMINAL |
| SLOT LENGTH | 0.187 INCHES NOMINAL |
| OVERALL LENGTH | 1.890 INCHES NOMINAL |
| BORE DIAMETER | 1.187 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 2.000 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.500 INCHES NOMINAL |
| BORE LENGTH | 0.187 INCHES NOMINAL |
| FIRST END CHAMFER DEPTH | 0.375 INCHES NOMINAL |
| FIRST PACKING CHAMBER INSIDE DIAMETER | 1.343 INCHES NOMINAL |
| FIRST PACKING CHAMBER LENGTH | 1.125 INCHES NOMINAL |
| DISTANCE FROM OUTSIDE EDGE OF FIRST PACKING CHAMBER TO EDGE OF MOUNTING FLANGE | 1.703 INCHES NOMINAL |
| FIRST END CHAMFER ANGLE | 10.0 DEGREES NOMINAL |
| SLOT ANGLE | 36.0 DEGREES NOMINAL |
| THREAD SERIES DESIGNATOR | UN FIRST END |
| NOMINAL THREAD SIZE | 2.500 INCHES FIRST END |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 12 FIRST END |
| THREAD LENGTH | 0.875 INCHES NOMINAL FIRST END |
| THREAD DIRECTION | RIGHT-HAND FIRST END |
| PACKING CHAMBER QUANTITY | 1 |
| MOUNTING METHOD | SLOT |
| FURNISHED ITEMS | GLAND NUT AND GLAND RING |
| SPECIAL MARKINGS | 5 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILS19622-1 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M19622/1-006 |
