NSN 5975-00-881-6267 M242351005, M24235-1-005, MILS24235
Product Details | STUFFING TUBE
5975-00-881-6267 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Part Alternates: M242351005, M24235-1-005, MILS24235, MIL-S-24235/1, MILS242351, 5975-00-881-6267, 00-881-6267, 5975008816267, 008816267
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-881-6267 | 00882 ( STUFFING TUBE ) |

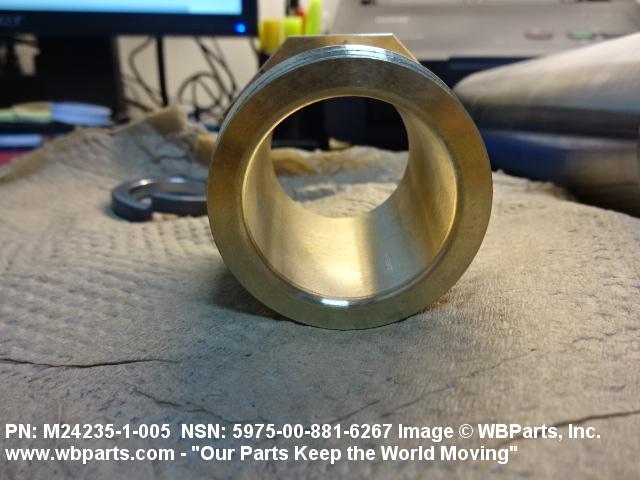

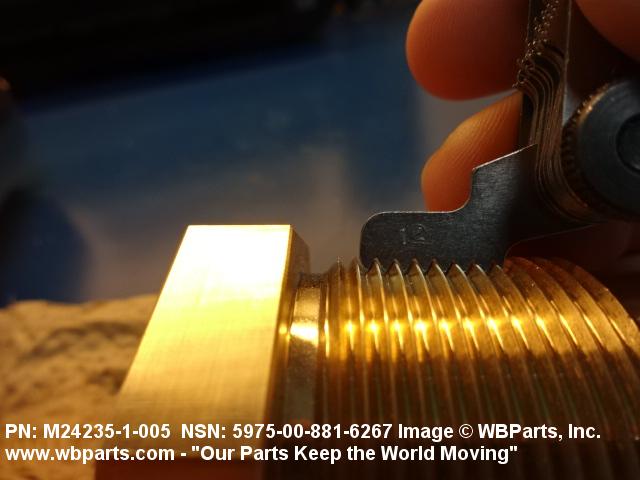

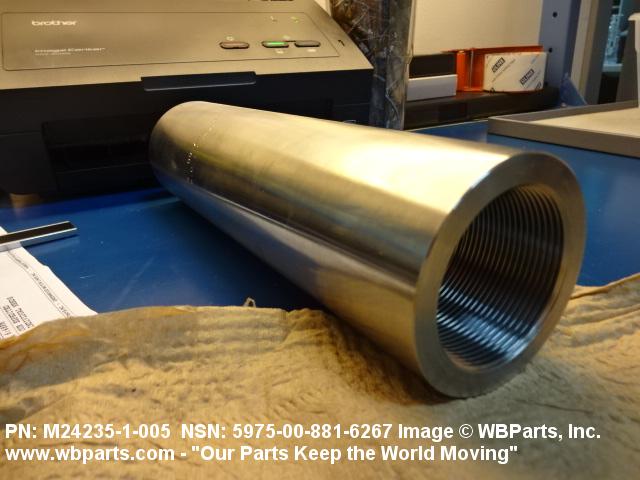

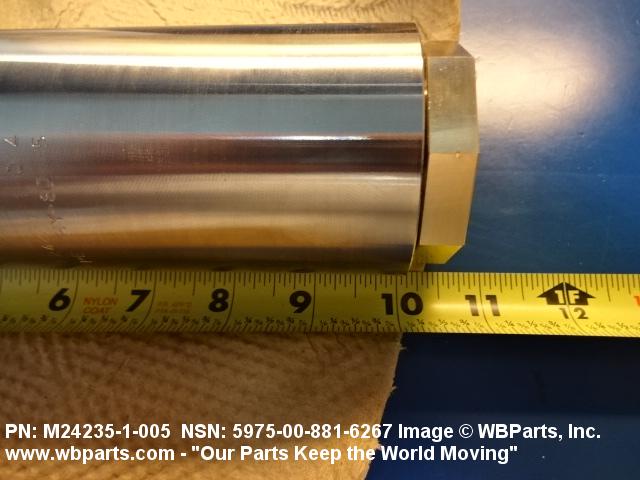

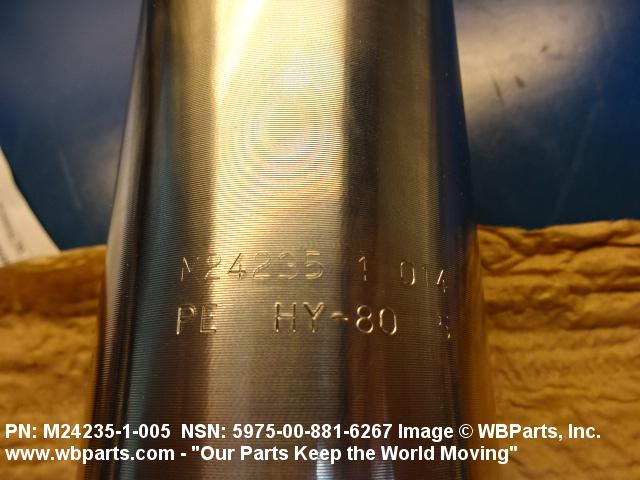

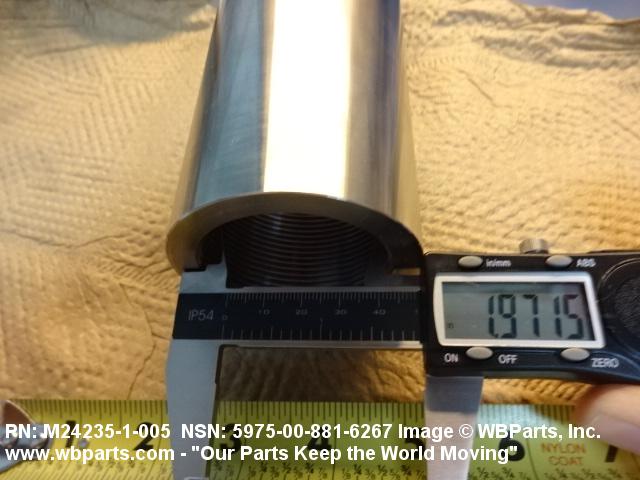

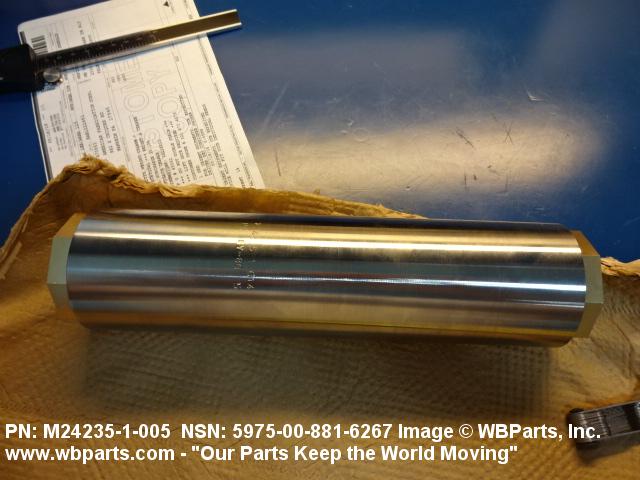

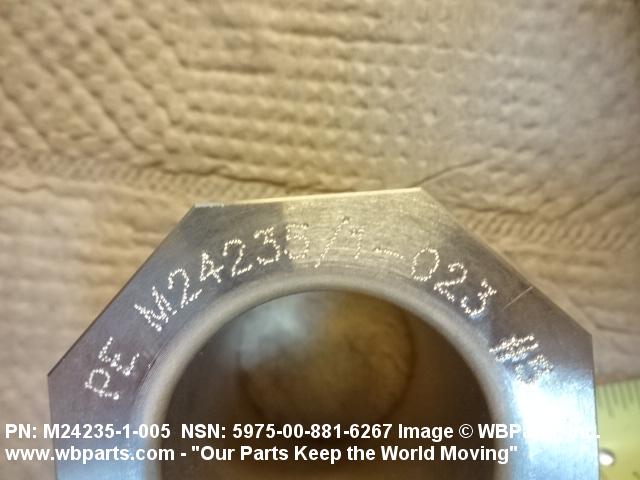

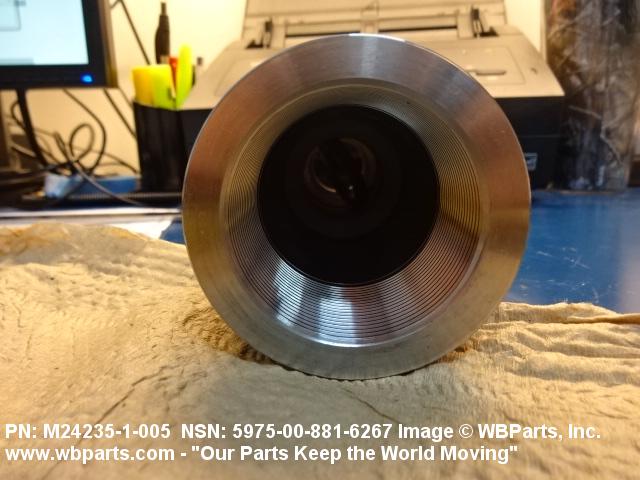

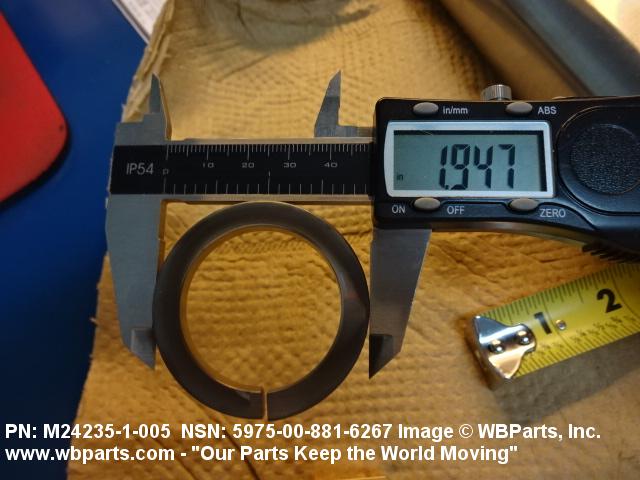

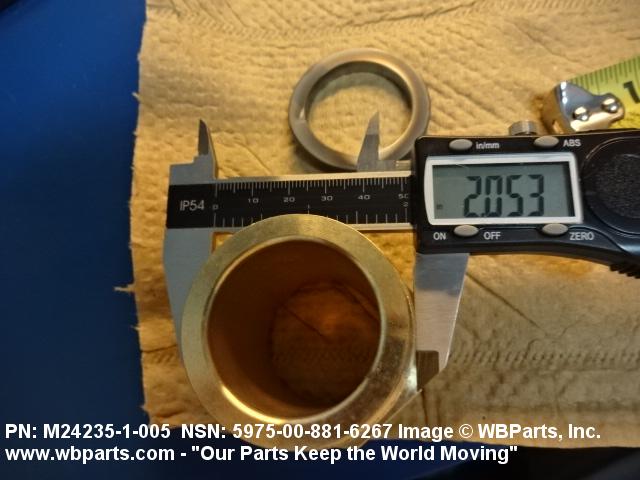

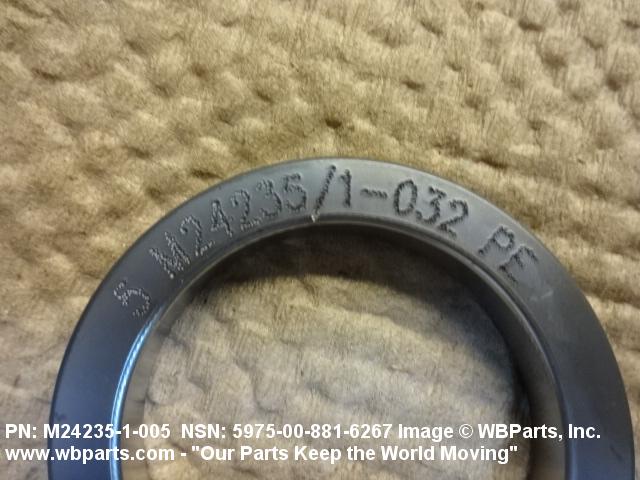

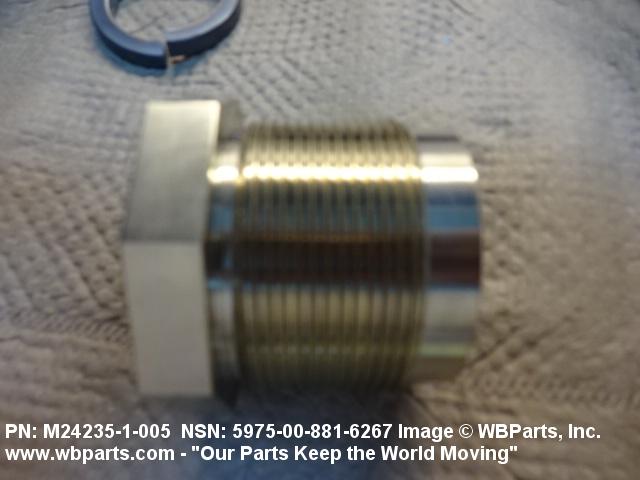

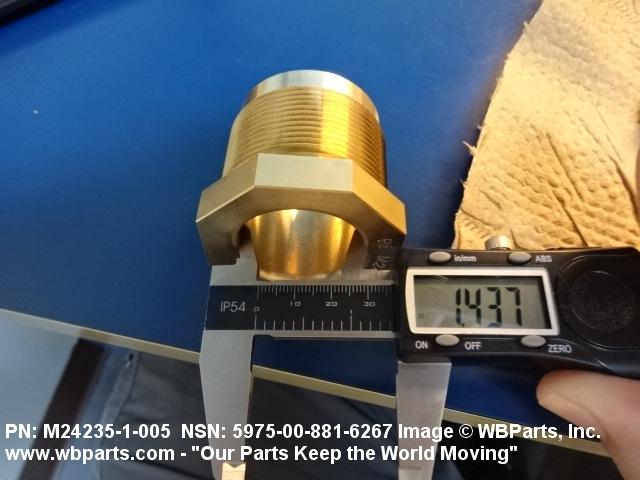

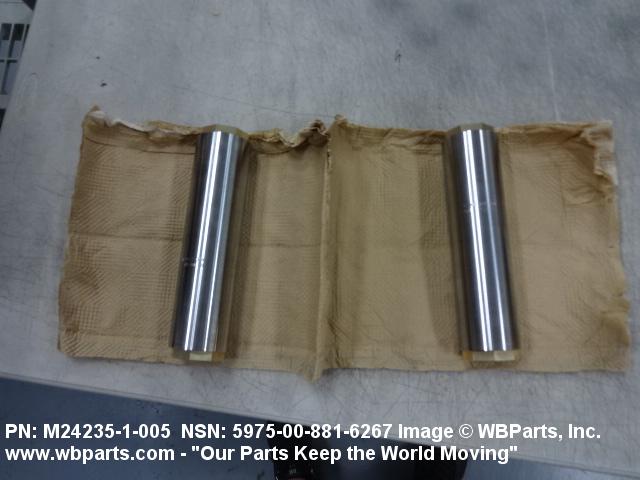

Drawings & Photos | NSN 5975-00-881-6267
Demand History | NSN 5975-00-881-6267
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-00-881-6267 | 2021-02-49 | 11 | DIBBS |
| 5975-00-881-6267 | 2020-12-339 | 8 | United States |
| 5975-00-881-6267 | 2020-10-281 | 3 | DIBBS |
| 5975-00-881-6267 | 2020-08-222 | 4 | DIBBS |
| MILS242351 | 2019-11-310 | 2 | us |
| M242351005 | 2018-03-79 | 8 | us |
| M242351005 | 2018-03-78 | 8 | us |
| M242351005 | 2018-03-78 | 8 | us |
| M242351005 | 2018-03-78 | 8 | us |
| M242351005 | 2018-03-78 | 8 | us |
| M242351005 | 2018-03-74 | 8 | us |
| M242351005 | 2018-03-74 | 8 | us |
| M242351005 | 2018-03-74 | 8 | us |
| M242351005 | 2018-03-74 | 8 | us |
| M242351005 | 2018-03-73 | 1 | us |
| M242351005 | 2018-03-72 | 8 | us |
| M242351005 | 2018-02-58 | 80 | us |
| 5975-00-881-6267 | 2012-05-129 | 80 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-00-881-6267
Related Products | NSN 5975-00-881-6267
Technical Data | NSN 5975-00-881-6267
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SIZE | 1.187 INCHES NOMINAL |
| STYLE DESIGNATOR | 59 PLAIN-DOUBLE |
| OVERALL LENGTH | 10.000 INCHES NOMINAL |
| BORE DIAMETER | 1.432 INCHES MINIMUM AND 1.442 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 2.688 INCHES NOMINAL |
| BORE LENGTH | 0.875 INCHES NOMINAL |
| FIRST END CHAMFER DEPTH | 0.259 INCHES NOMINAL |
| SECOND END CHAMFER DEPTH | 0.259 INCHES NOMINAL |
| FIRST PACKING CHAMBER INSIDE DIAMETER | 1.949 INCHES MINIMUM AND 1.959 INCHES MAXIMUM |
| SECOND PACKING CHAMBER INSIDE DIAMETER | 1.949 INCHES MINIMUM AND 1.959 INCHES MAXIMUM |
| FIRST PACKING CHAMBER LENGTH | 4.303 INCHES NOMINAL |
| SECOND PACKING CHAMBER LENGTH | 4.303 INCHES NOMINAL |
| FIRST END CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| THREAD SERIES DESIGNATOR | UN BOTH ENDS |
| NOMINAL THREAD SIZE | 2.062 INCHES BOTH ENDS |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 12 BOTH ENDS |
| THREAD LENGTH | 1.312 INCHES NOMINAL |
| THREAD DIRECTION | RIGHT-HAND BOTH ENDS |
| ITEM ACCOMMODATED MAXIMUM THICKNESS | 0.500 INCHES |
| PACKING CHAMBER QUANTITY | 2 |
| MOUNTING METHOD | WELDED |
| SPECIAL FEATURES | MATERIAL IS HY-80 STEEL FOR SUBMARINE APPLICATION |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY MATERIAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILS24235 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24235-1-005 |
Restrictions/Controls & Freight Information | NSN 5975-00-881-6267
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-881-6267
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
