NSN 5945-01-420-4415 256PATULSBXPQC6EA, 256-PATU-LSBX-PQ-C6-EA, 01-420-4415
Product Details | HYBRID RELAY
5945-01-420-4415 A self-contained device that performs the function of opening or closing an electrical circuit in response to electrical changes in an external circuit. It consists of a combination of semiconductor and passive circuit devices, which in turn control an integral electro-magnetic relay. Excludes relays which employ diodes, rectifiers or other passive devices to achieve contact protection or coil modification. Excludes RELAY, SOLID STATE.
Part Alternates: 256PATULSBXPQC6EA, 256-PATU-LSBX-PQ-C6-EA, 5945-01-420-4415, 01-420-4415, 5945014204415, 014204415
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 OCT 1995 | 01-420-4415 | 31445 ( RELAY, HYBRID ) |

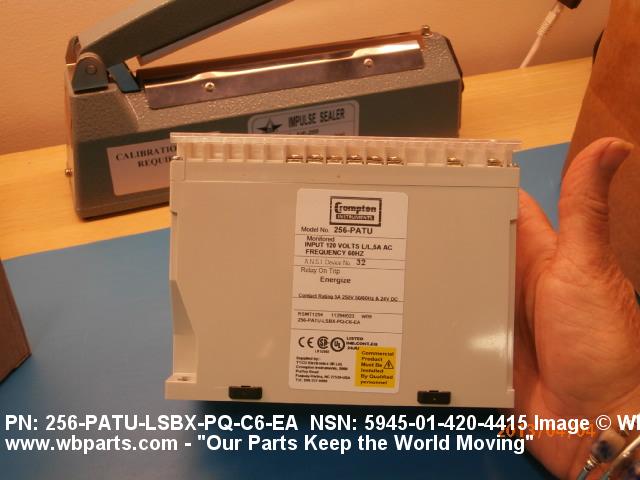

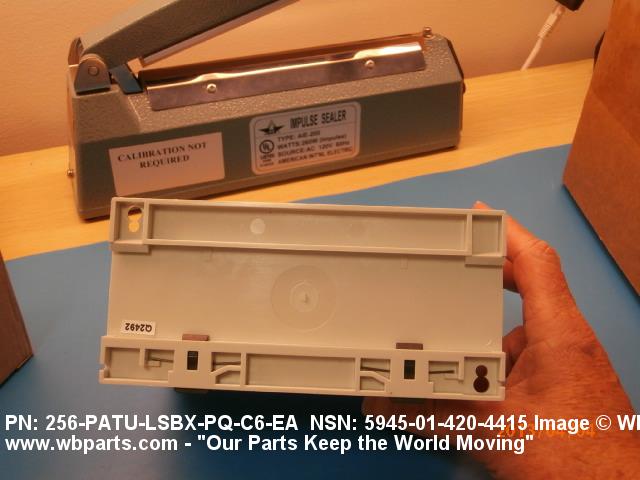

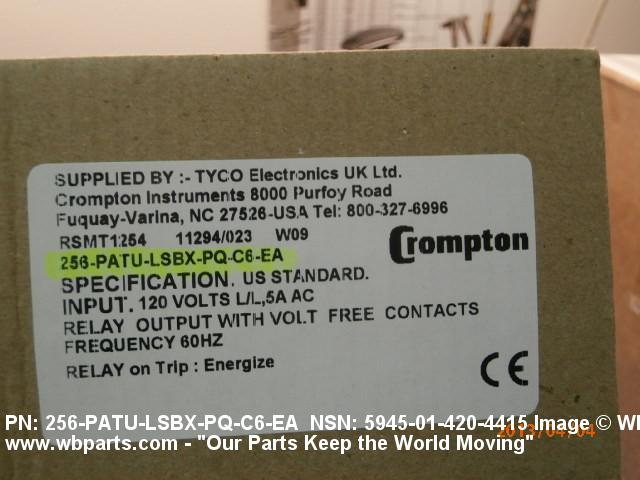

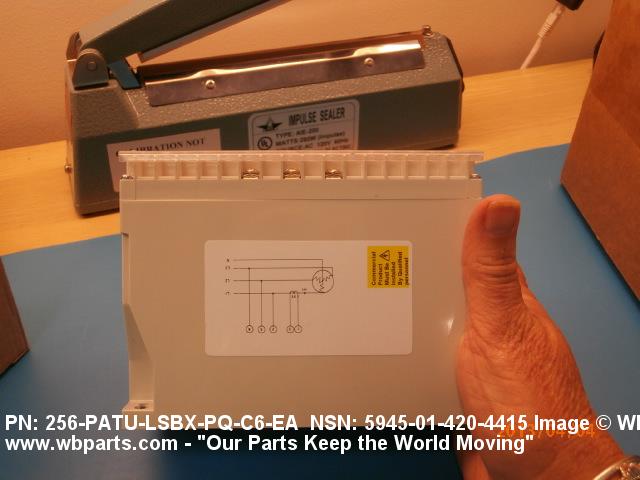

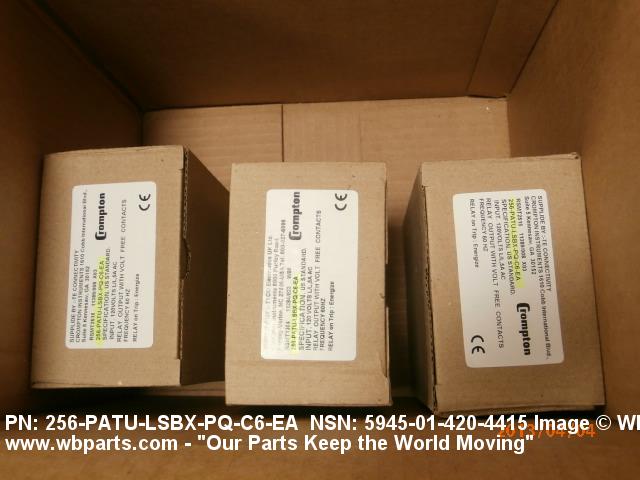

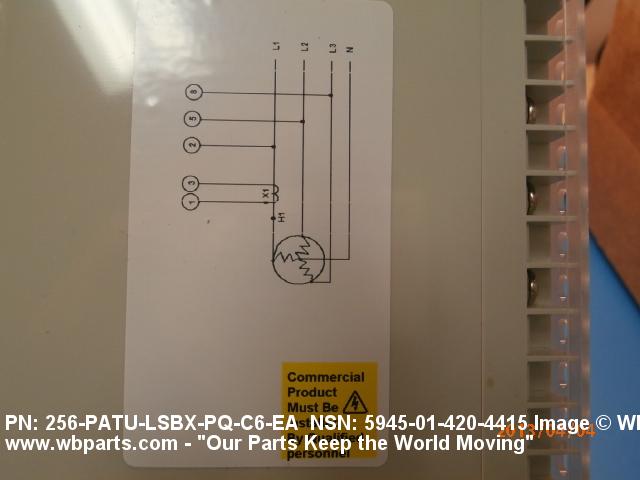

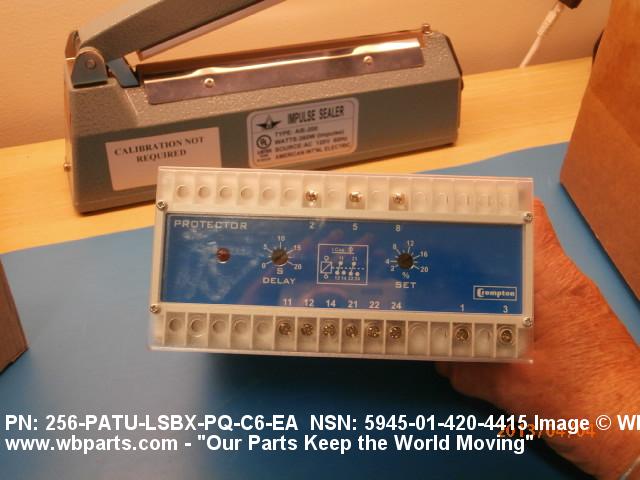

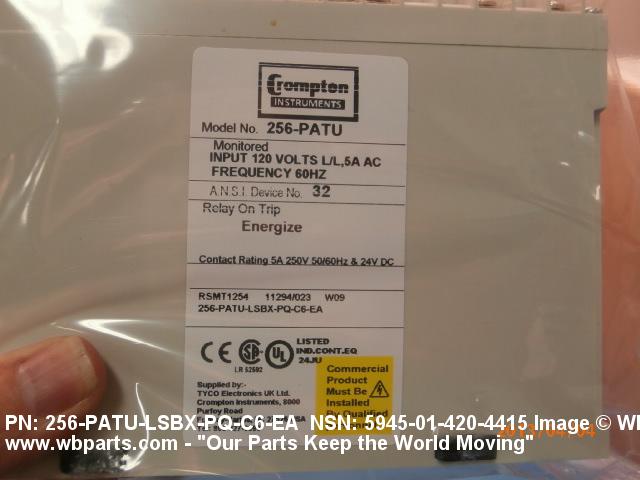

Drawings & Photos | NSN 5945-01-420-4415
Demand History | NSN 5945-01-420-4415
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 256PATULSBXPQC6EA | 2013-04-119 | 2 | US |
| 256PATULSBXPQC6EA | 2013-03-79 | 3 | United States |
Cross Reference | NSN 5945-01-420-4415
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 256-PATU-LSBX-PQ-C6-EA | 12189 | METERMASTER INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5945-01-420-4415
Technical Data | NSN 5945-01-420-4415
| Characteristic | Specifications |
|---|---|
| VOLTAGE RATING | 120.0 VOLTS NOMINAL OPERATE |
| CURRENT RATING | 5.00 AMPERES NOMINAL INPUT |
| CONTACT ARRANGEMENT | DOUBLE POLE, DOUBLE THROW |
| SPECIAL FEATURES | 3 PHASE 3 WIRE; RELAY CONTACTS VOLTAGE FREE; 60 HERTZ; ENERGIZED ON TRIP |
Restrictions/Controls & Freight Information | NSN 5945-01-420-4415
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
