Product Details | HYBRID RELAY

5945-01-272-6192 A self-contained device that performs the function of opening or closing an electrical circuit in response to electrical changes in an external circuit. It consists of a combination of semiconductor and passive circuit devices, which in turn control an integral electro-magnetic relay. Excludes relays which employ diodes, rectifiers or other passive devices to achieve contact protection or coil modification. Excludes RELAY, SOLID STATE.

Part Alternates: GR835VB1, 231B233DQP1, 352250041724, 6521, 652-1, 6522W, 652-2W, 5945-01-272-6192, 01-272-6192, 5945012726192, 012726192

Electrical and Electronic Equipment Components | Relays and Solenoids

Supply Group (FSG) NSN Assign. NIIN
59 11 FEB 1988 01-272-6192

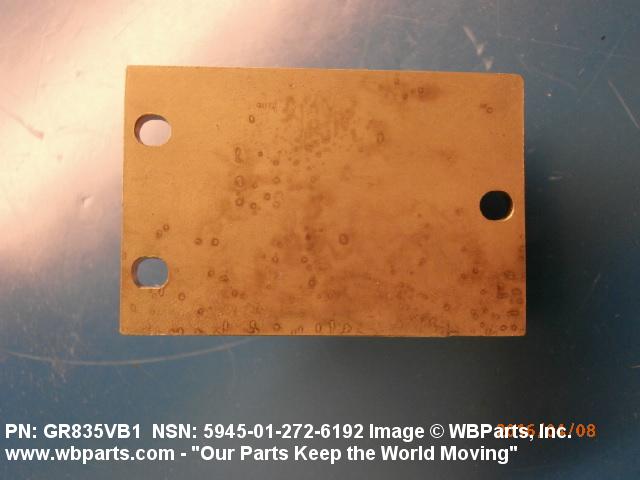

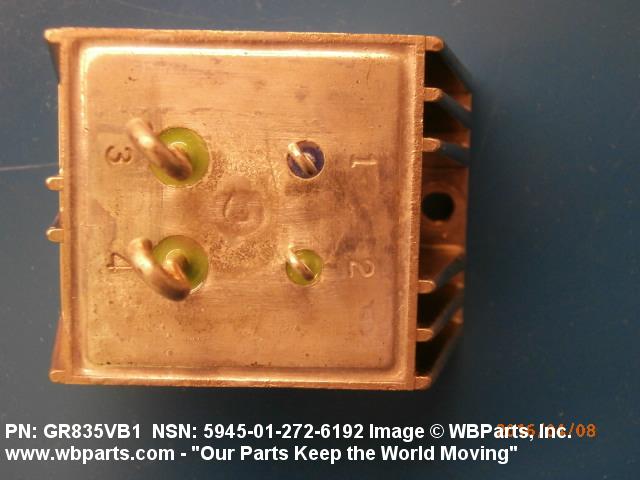

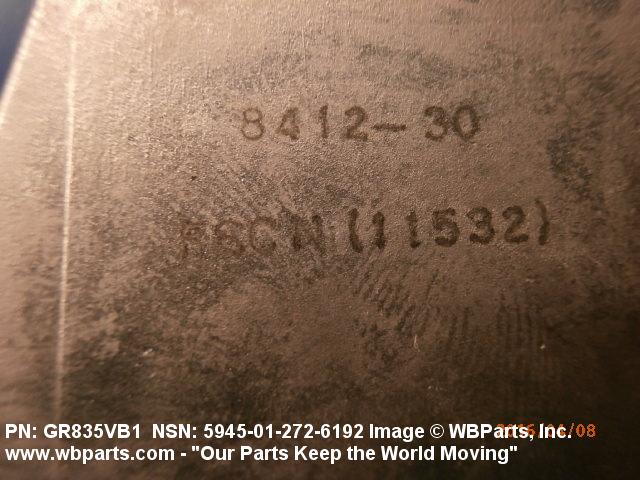

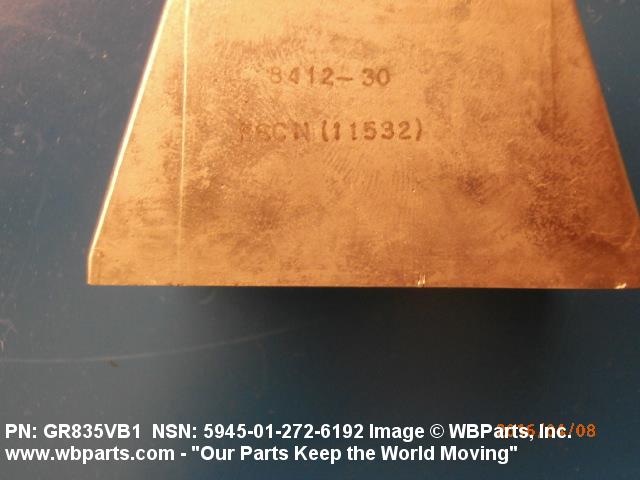

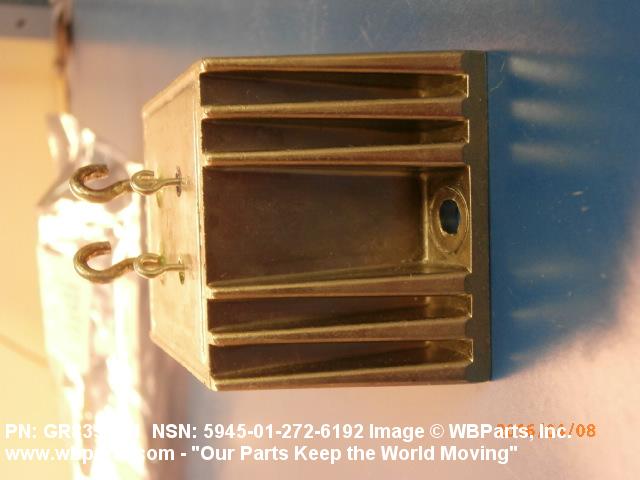

Drawings & Photos | NSN 5945-01-272-6192


Demand History | NSN 5945-01-272-6192

Part Number Request Date QTY Origin
5945-01-272-6192 2016-03-91 1 United States
5945-01-272-6192 2015-09-272 1 United States
5945-01-272-6192 2015-09-271 1 United States

Cross Reference | NSN 5945-01-272-6192

Part Number Cage Code Manufacturer
231B233DQP1 02989 GENERAL ELECTRIC CO GE DRIVE SYSTEMS
352250041724 H0203 THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
652-1 11532 TELEDYNE REYNOLDS, INC. DBA TELEDYNE RELAYS
652-1 98571 TELEDYNE TECHNOLOGIES INC DBA TELEDYNE CONTROLS
652-2W 11532 TELEDYNE REYNOLDS, INC. DBA TELEDYNE RELAYS
GR835VB1 26512 NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5945-01-272-6192

Restrictions/Controls & Freight Information | NSN 5945-01-272-6192

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Category Code Description
NMF Description 061300 CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 658 unknown
Originating Activity Code TX Defense Supply Center Columbus
Columbus, OH 43218
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5945-01-272-6192

Category Code Description
Cognizance Codes9NNavy-owned stocks of defense electronic material
Naval Inventory Control Point, Mechanicsburg
Source of SupplyS9EDefense Supply Center Columbus
Columbus, OH 43218
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
