NSN 5945-01-169-4232 M83726/30-1001P, M83726301001P, MIL-PRF-83726/30
Product Details | HYBRID RELAY
5945-01-169-4232 A self-contained device that performs the function of opening or closing an electrical circuit in response to electrical changes in an external circuit. It consists of a combination of semiconductor and passive circuit devices, which in turn control an integral electro-magnetic relay. Excludes relays which employ diodes, rectifiers or other passive devices to achieve contact protection or coil modification. Excludes RELAY, SOLID STATE.
Part Alternates: M83726/30-1001P, M83726301001P, MIL-PRF-83726/30, MILPRF8372630, MIL-R-83726/30, MILR8372630, 5945-01-169-4232, 01-169-4232, 5945011694232, 011694232
Electrical and Electronic Equipment Components | Relays and Solenoids
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 JAN 1984 | 01-169-4232 | 31445 ( RELAY, HYBRID ) |

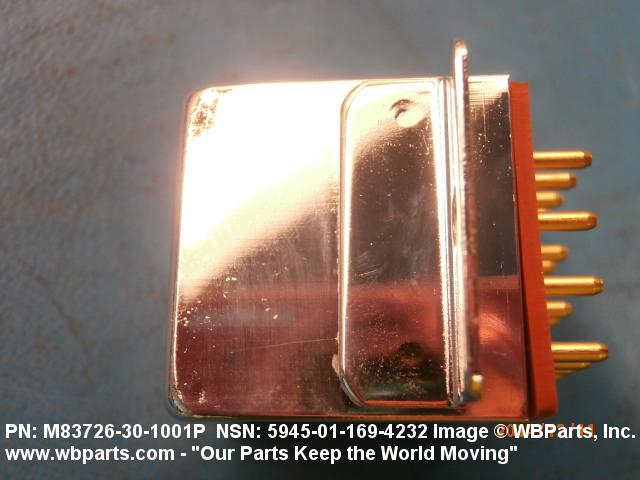

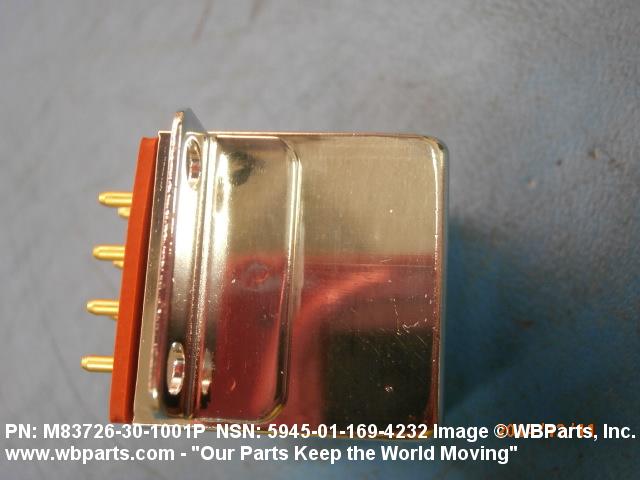

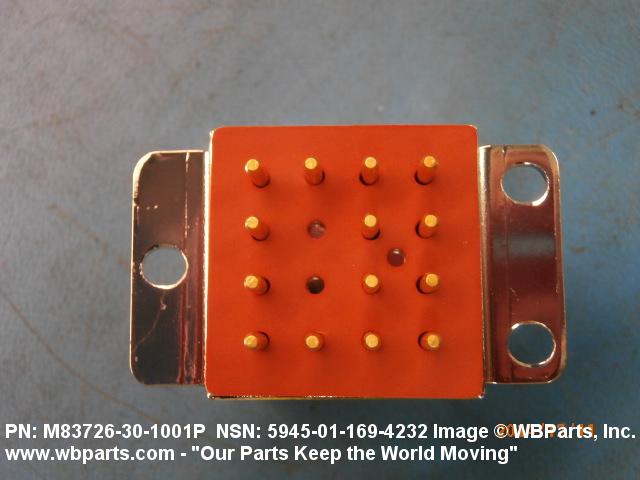

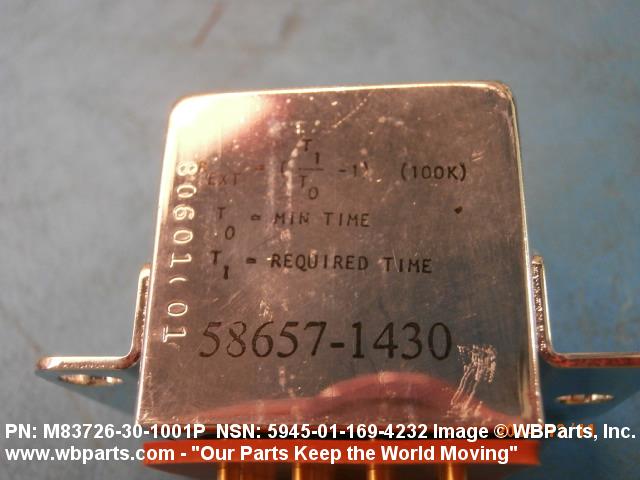

Drawings & Photos | NSN 5945-01-169-4232
Demand History | NSN 5945-01-169-4232
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5945-01-169-4232 | 2020-06-182 | 13 | DIBBS |
| M83726301001P | 2014-11-323 | 2 | Ecuador |
| 5945-01-169-4232 | 2013-07-212 | 39 | DIBBS |
| 5945-01-169-4232 | 2013-04-106 | 7 | DIBBS |
| 5945-01-169-4232 | 2011-12-362 | 15 | DIBBS |
| 5945-01-169-4232 | 2009-02-41 | 4 | DIBBS |
| 5945-01-169-4232 | 2009-01-02 | 9 | DIBBS |
| 5945-01-169-4232 | 2006-03-66 | 18 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5945-01-169-4232
Related Products | NSN 5945-01-169-4232
Technical Data | NSN 5945-01-169-4232
| Characteristic | Specifications |
|---|---|
| CONTACT ARRANGEMENT | DOUBLE POLE, DOUBLE THROW |
| FEATURES PROVIDED | HERMETICALLY SEALED |
| PRECIOUS MATERIAL AND LOCATION | TERMINAL SURFACES GOLD |

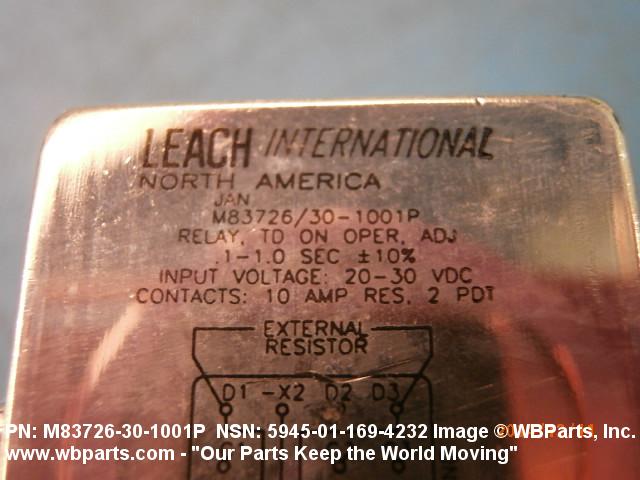

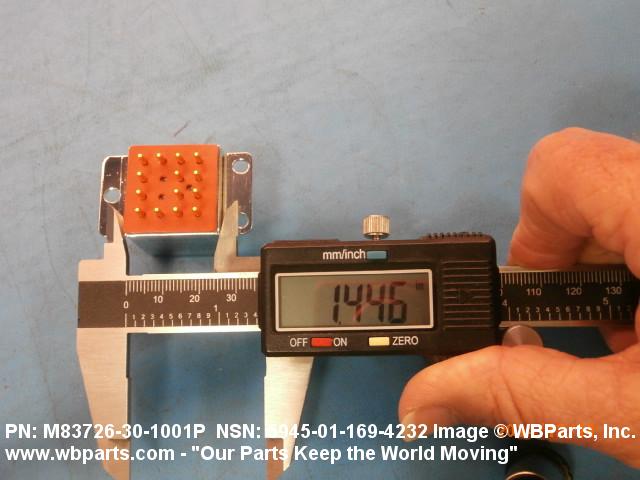

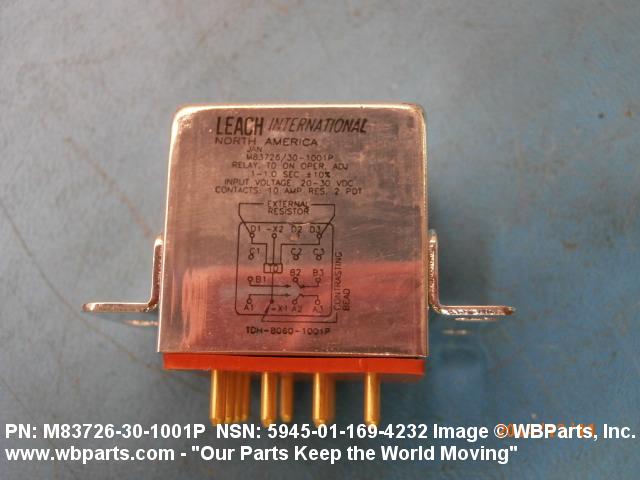

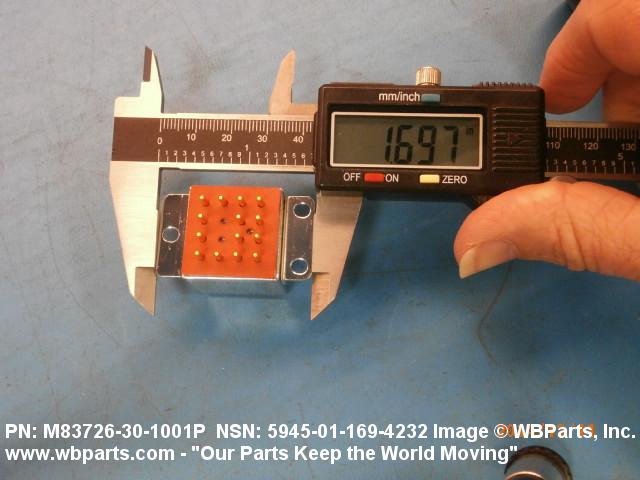

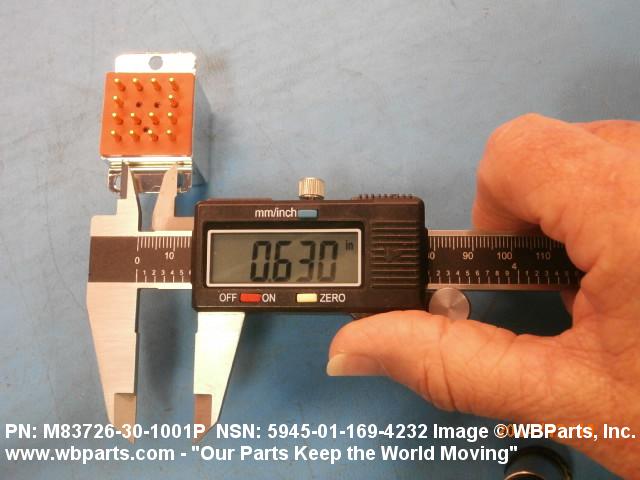

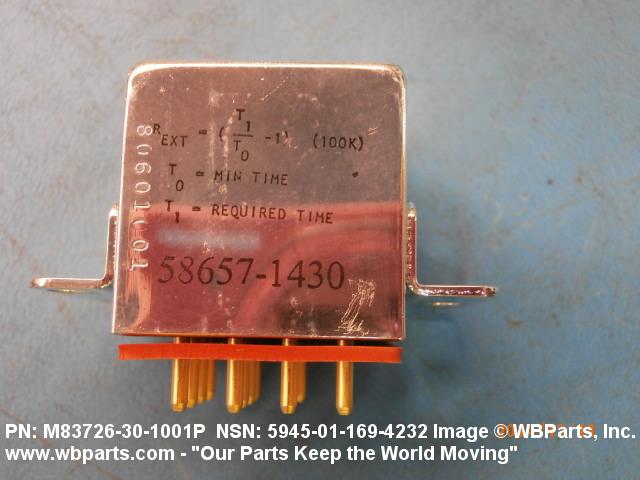

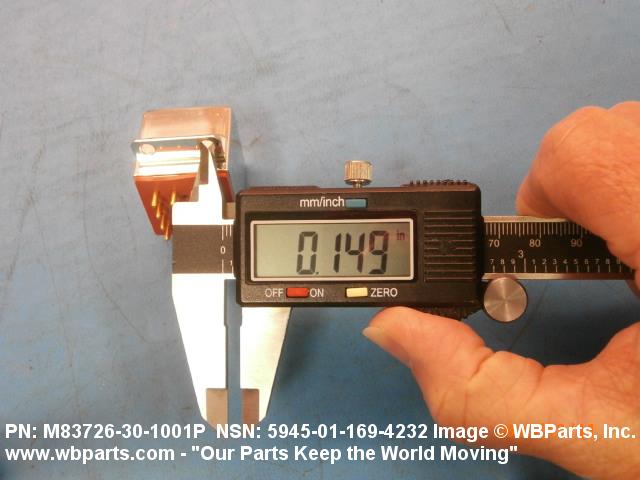

| SPECIAL FEATURES | THREE 0.150 IN. W MTG SLOTS SPACED ON CORNERS OF TRIANGLE SPACED 1.446 IN. LG X 0.625 IN. W;1.718 IN. MAX LG;1.025 IN. MAX W;1.025 IN. MAX H;10 AMPS;28 VDC INPUT;PIN TERMINALS;0.1 TO 1 SEC TIME DELAY;LEVEL W QUALITY |
| SPECIFICATION/STANDARD DATA | 81349-MIL-R-83726/30 GOVERNMENT SPECIFICATION |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-83726/30 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M83726/30-1001P |
