NSN 5935-01-073-2616 5790560001, 57905600-01, 01-073-2616
Product Details | ELECTRICAL CONNECTOR GUIDE
5935-01-073-2616 An aligning device specifically designed to insure proper mating of electrical connectors. Its mating end is unthreaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, RECEPTACLE, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. Its mounting facilities may include threads, press fit, or the like.
Part Alternates: 5790560001, 57905600-01, 5935-01-073-2616, 01-073-2616, 5935010732616, 010732616
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 MAR 1979 | 01-073-2616 | 36341 ( GUIDE, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-073-2616
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-073-2616
Technical Data | NSN 5935-01-073-2616
| Characteristic | Specifications |
|---|---|

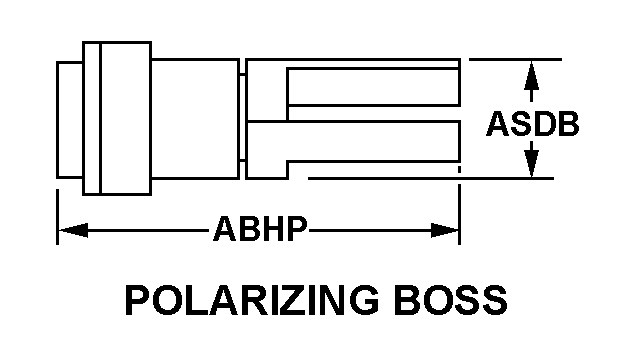

| STYLE DESIGNATOR | 9L POLARIZING BOSS |
| OVERALL LENGTH | 0.893 INCHES MINIMUM AND 0.903 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.436 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
| MATERIAL | BERYLLIUM COPPER |
| SURFACE TREATMENT | ANY ACCEPTABLE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.365 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 48 |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.175 INCHES |
