NSN 5935-01-565-6662 74A8001622001, 74A800162-2001, 01-565-6662
Product Details | ELECTRICAL CONNECTOR GUIDE
5935-01-565-6662 An aligning device specifically designed to insure proper mating of electrical connectors. Its mating end is unthreaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, RECEPTACLE, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. Its mounting facilities may include threads, press fit, or the like.
Part Alternates: 74A8001622001, 74A800162-2001, 5935-01-565-6662, 01-565-6662, 5935015656662, 015656662
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 AUG 2008 | 01-565-6662 | 36341 ( GUIDE, ELECTRICAL CONNECTOR ) |

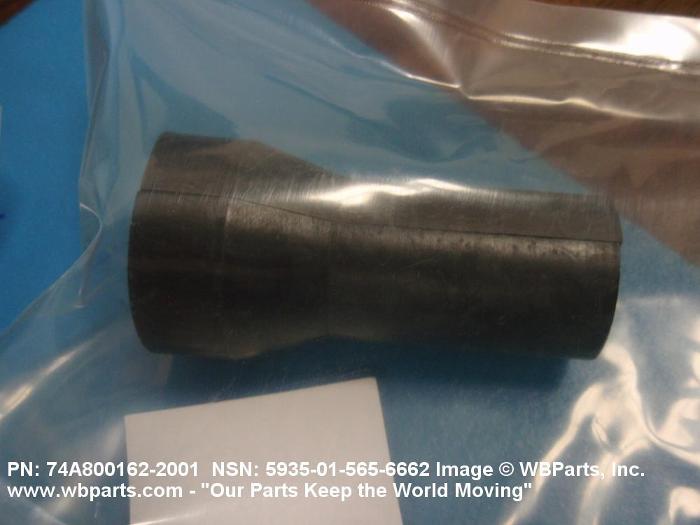

Drawings & Photos | NSN 5935-01-565-6662
Demand History | NSN 5935-01-565-6662
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-565-6662 | 2013-08-213 | 207 | DIBBS |
| 5935-01-565-6662 | 2013-02-58 | 107 | DIBBS |
| 5935-01-565-6662 | 2012-11-334 | 36 | DIBBS |
| 5935-01-565-6662 | 2012-11-310 | 36 | DIBBS |
| 5935-01-565-6662 | 2012-10-293 | 52 | DIBBS |
| 5935-01-565-6662 | 2012-09-254 | 17 | DIBBS |
| 5935-01-565-6662 | 2012-08-235 | 24 | DIBBS |
| 5935-01-565-6662 | 2012-06-174 | 100 | DIBBS |
| 5935-01-565-6662 | 2012-06-161 | 1 | DIBBS |
| 5935-01-565-6662 | 2012-04-118 | 5 | US |
| 74A8001622001 | 2011-03-88 | 4 | Canada |
Cross Reference | NSN 5935-01-565-6662
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 74A800162-2001 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-565-6662
Technical Data | NSN 5935-01-565-6662
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | LOWER HELMET VEHICLE INTERFACE CABLE ASSEMBLY |
Restrictions/Controls & Freight Information | NSN 5935-01-565-6662
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | ZA | Australia ZB ZC |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-565-6662
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
