NSN 5935-01-566-8101 AAP1901, AAP190-1, 101169
Product Details | ELECTRICAL CONNECTOR GUIDE
5935-01-566-8101 An aligning device specifically designed to insure proper mating of electrical connectors. Its mating end is unthreaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, RECEPTACLE, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. Its mounting facilities may include threads, press fit, or the like.
Part Alternates: AAP1901, AAP190-1, 101169, 10718101, 10718-101, 5935-01-566-8101, 01-566-8101, 5935015668101, 015668101
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 SEP 2008 | 01-566-8101 | 36341 ( GUIDE, ELECTRICAL CONNECTOR ) |

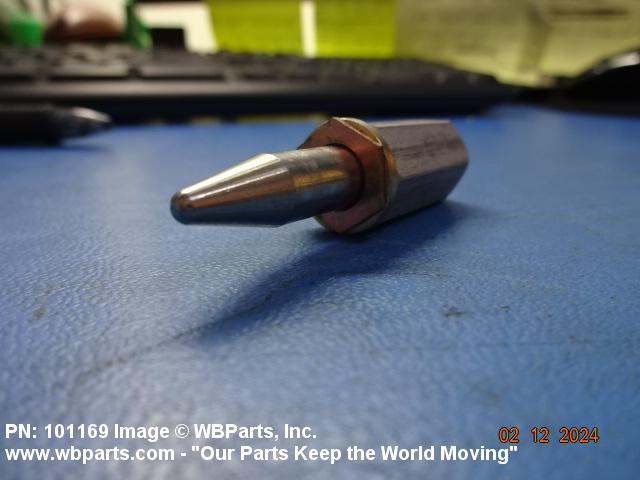

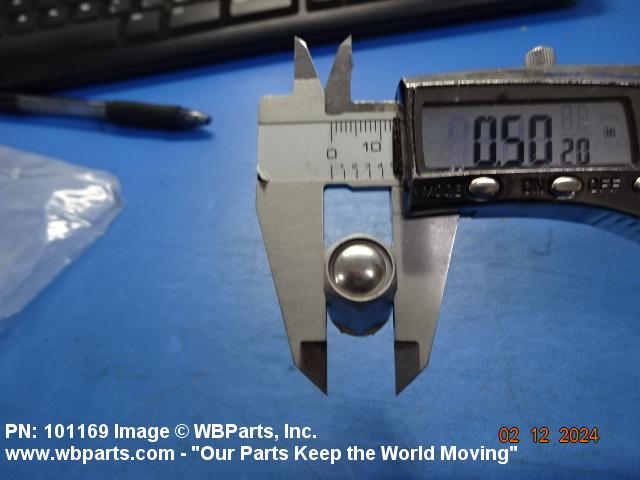

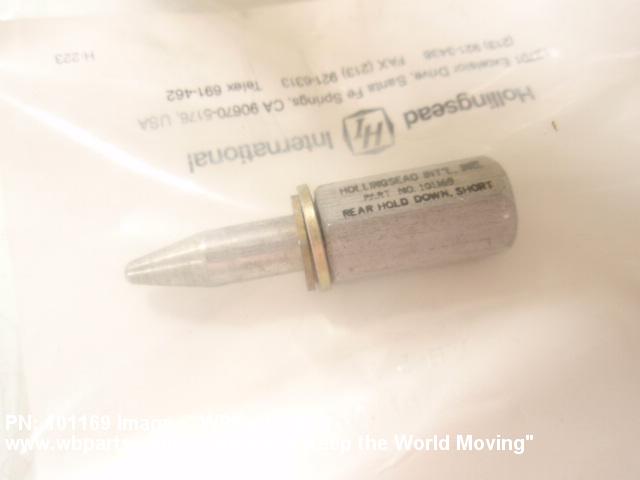

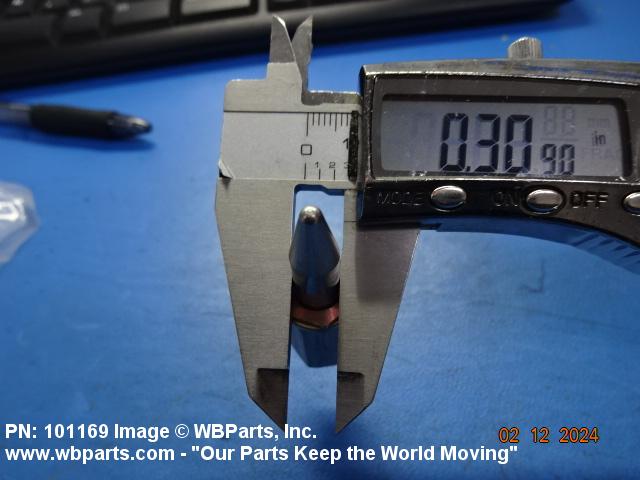

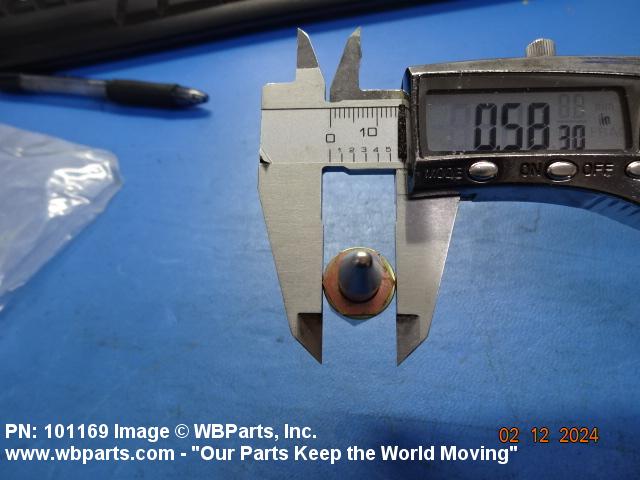

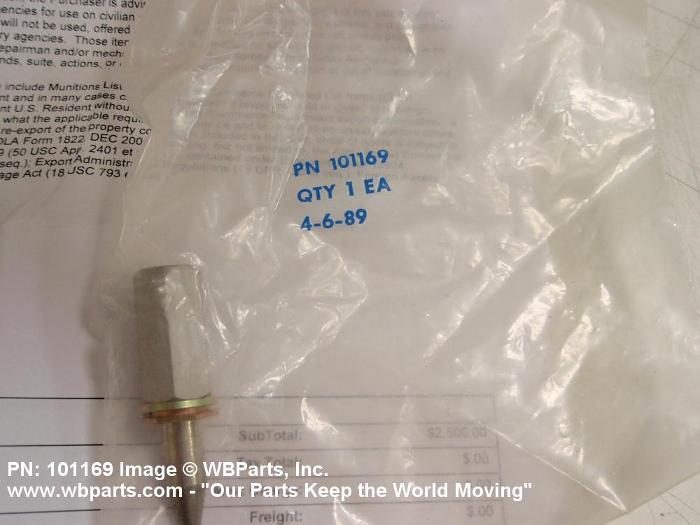

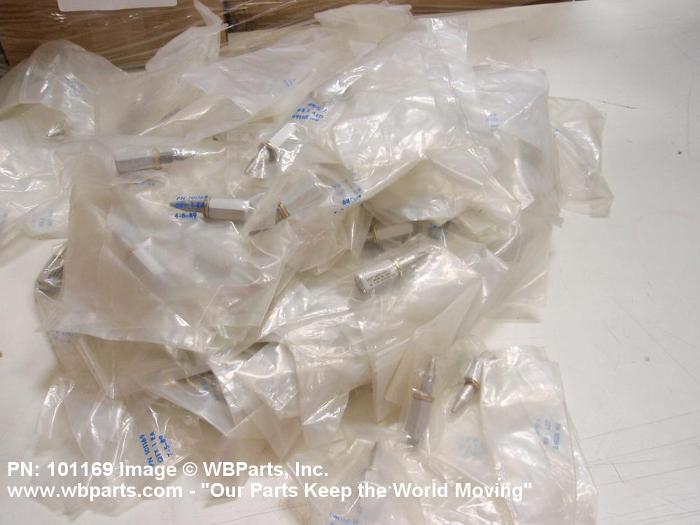

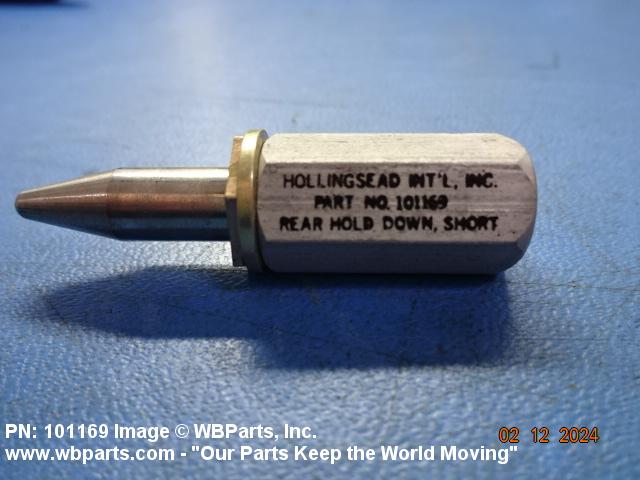

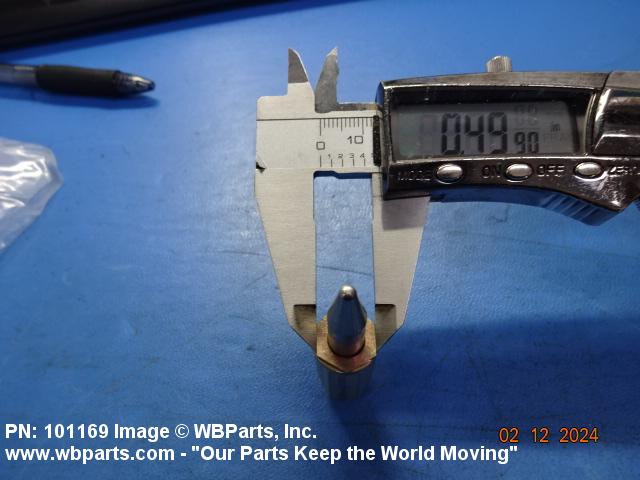

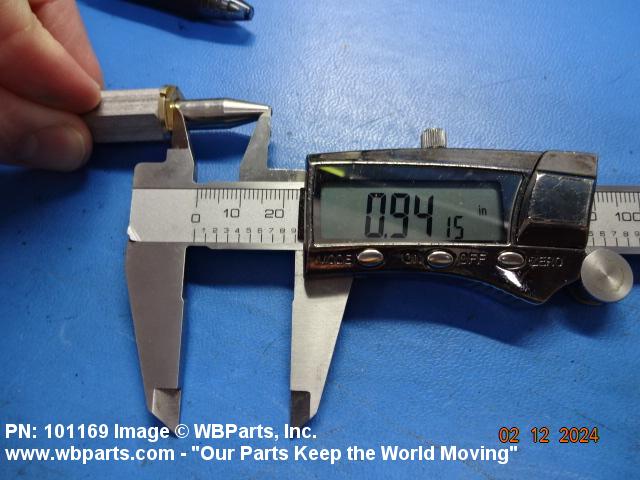

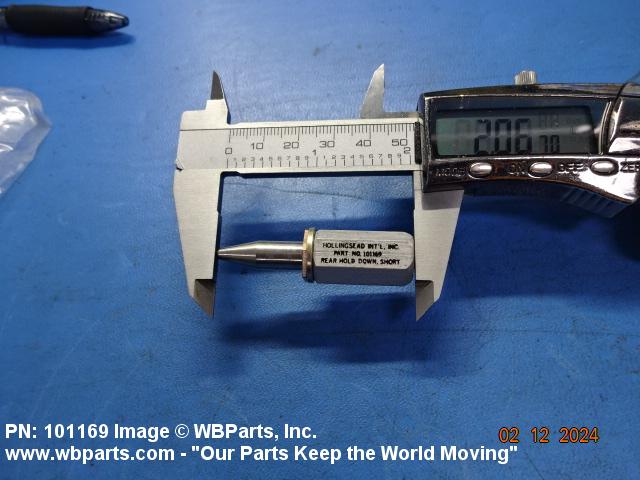

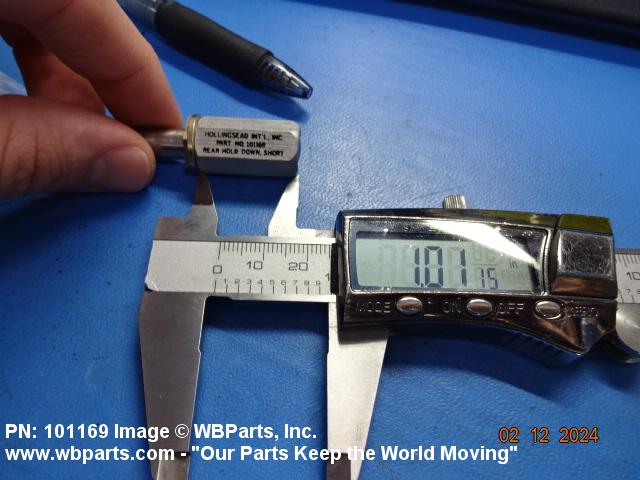

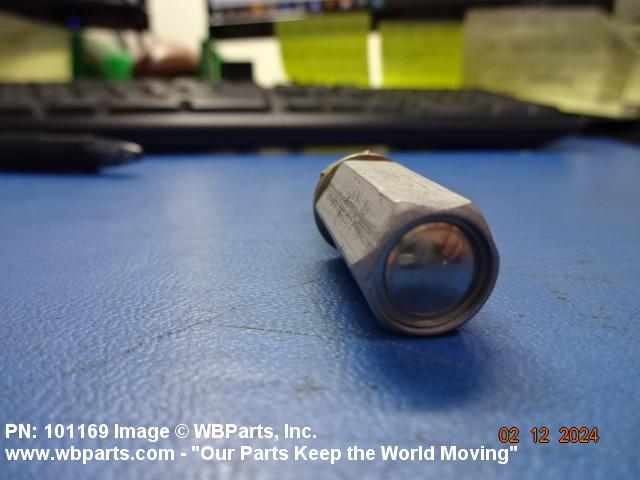

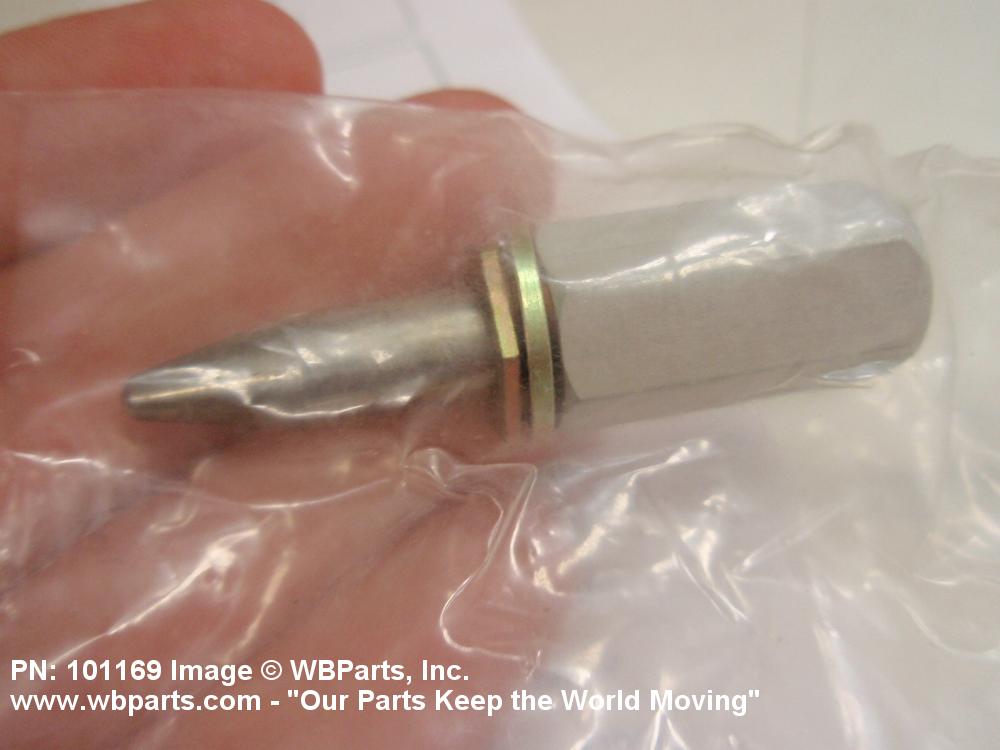

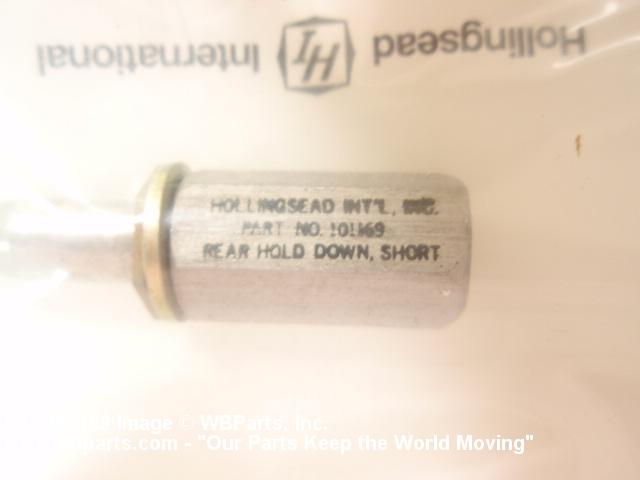

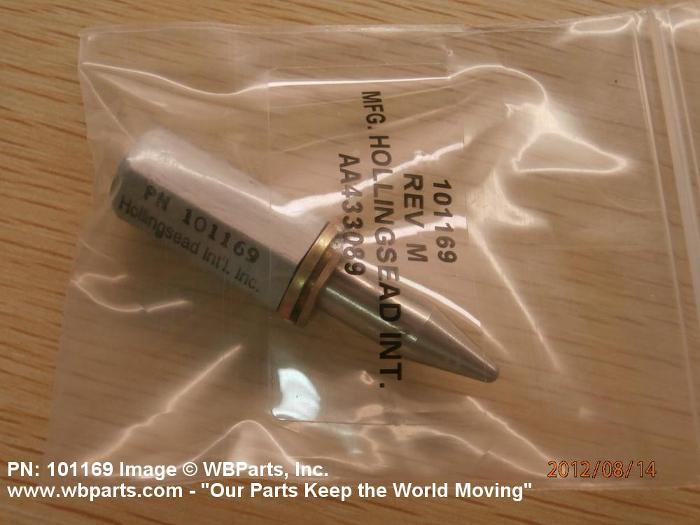

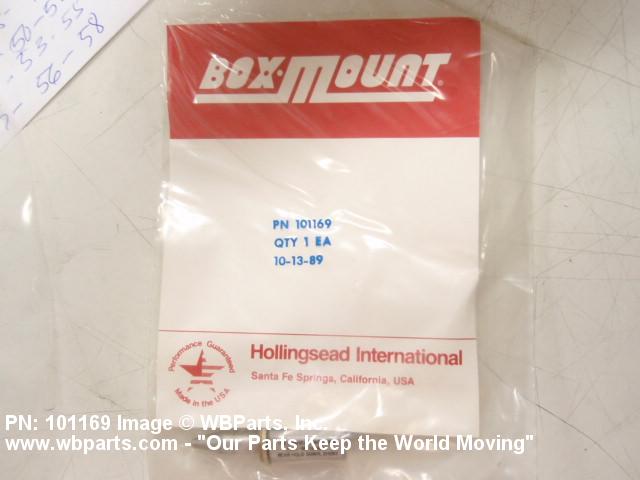

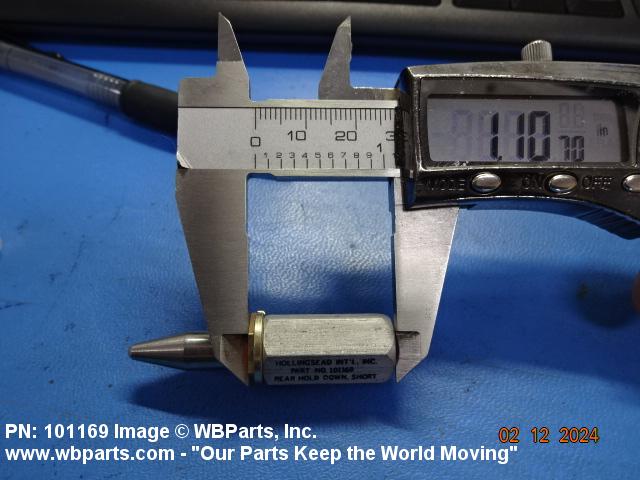

Drawings & Photos | NSN 5935-01-566-8101
Demand History | NSN 5935-01-566-8101
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 101169 | 2024-02-38 | 31 | United States |
| 101169 | 2023-10-293 | 20 | United States |
| 101169 | 2020-06-175 | 25 | US |
| 10718101 | 2020-02-53 | 4 | US |
| 101169 | 2019-05-121 | 30 | United States |
| 101169 | 2017-12-341 | 18 | United States |
| 101169 | 2012-08-226 | 1 | United States |
| 101169 | 2012-08-226 | 20 | United States |
| 101169 | 2012-04-121 | 220 | United States |
| 5935-01-566-8101 | 2010-10-279 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-566-8101
Restrictions/Controls & Freight Information | NSN 5935-01-566-8101
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
