NSN 5935-01-055-4514 0070056891, 007-0056-891, 516-0035-00
Product Details | ELECTRICAL CONNECTOR GUIDE
5935-01-055-4514 An aligning device specifically designed to insure proper mating of electrical connectors. Its mating end is unthreaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, RECEPTACLE, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. Its mounting facilities may include threads, press fit, or the like.
Part Alternates: 0070056891, 007-0056-891, 516-0035-00, 5160035000, 516-0035-000 , 581R848H04, 5935-01-055-4514, 01-055-4514, 5935010554514, 516003500, 010554514
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 FEB 1978 | 01-055-4514 | 36341 ( GUIDE, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-055-4514
Demand History | NSN 5935-01-055-4514
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5160035000 | 2019-06-177 | 100 | US |
| 5935-01-055-4514 | 2017-11-306 | 230 | DIBBS |
| 5935-01-055-4514 | 2015-09-256 | 121 | DIBBS |
| 5160035000 | 2013-10-292 | 350 | US |
| 5160035000 | 2013-10-292 | 350 | United States |
| 5935-01-055-4514 | 2013-01-09 | 161 | DIBBS |
| 5935-01-055-4514 | 2012-09-249 | 81 | DIBBS |
| 5935-01-055-4514 | 2012-05-137 | 49 | DIBBS |
| 5160035000 | 2012-05-124 | 50 | United States |
| 5160035000 | 2012-05-124 | 190 | United States |
| 5160035000 | 2012-05-124 | 50 | United States |
| 5160035000 | 2012-05-124 | 190 | United States |
| 5935-01-055-4514 | 2012-03-79 | 49 | DIBBS |
| 5935-01-055-4514 | 2010-01-19 | 38 | DIBBS |
Cross Reference | NSN 5935-01-055-4514
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 007-0056-891 | 05041 | DCX-CHOL ENTERPRISES, INC. DBA MASTERITE DIVISION |
| 516-0035-00 | 31413 | AMPHENOL CORPORATION DBA AMPHENOL TCS |
| 516-0035-000 | 55KX1 | AMPHENOL CORPORATION DBA AMPHENOL BACKPLANE SYSTEMS |
| 581R848H04 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-055-4514
Related Products | NSN 5935-01-055-4514
Technical Data | NSN 5935-01-055-4514
| Characteristic | Specifications |
|---|---|

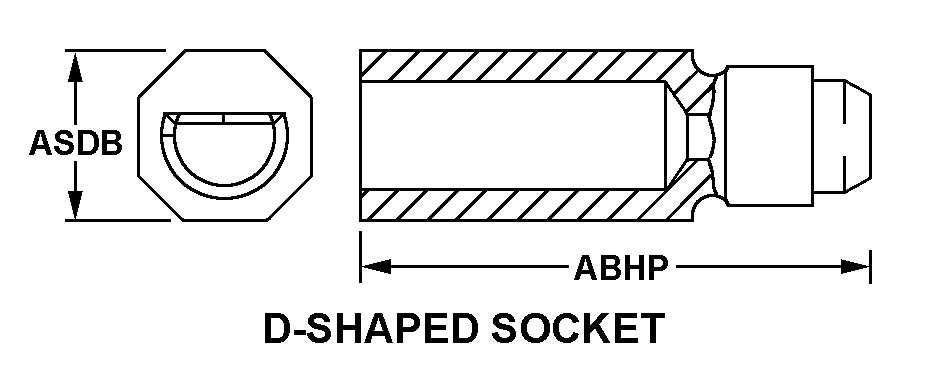

| STYLE DESIGNATOR | 16L D-SHAPED SOCKET |
