NSN 5935-01-009-4709 423R961H01, 01-009-4709, 010094709
Product Details | ELECTRICAL CONNECTOR GUIDE
5935-01-009-4709 An aligning device specifically designed to insure proper mating of electrical connectors. Its mating end is unthreaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, RECEPTACLE, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. Its mounting facilities may include threads, press fit, or the like.
Part Alternates: 423R961H01, 5935-01-009-4709, 01-009-4709, 5935010094709, 010094709
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 SEP 1975 | 01-009-4709 | 36341 ( GUIDE, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-009-4709
Cross Reference | NSN 5935-01-009-4709
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 423R961H01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-009-4709
Technical Data | NSN 5935-01-009-4709
| Characteristic | Specifications |
|---|---|

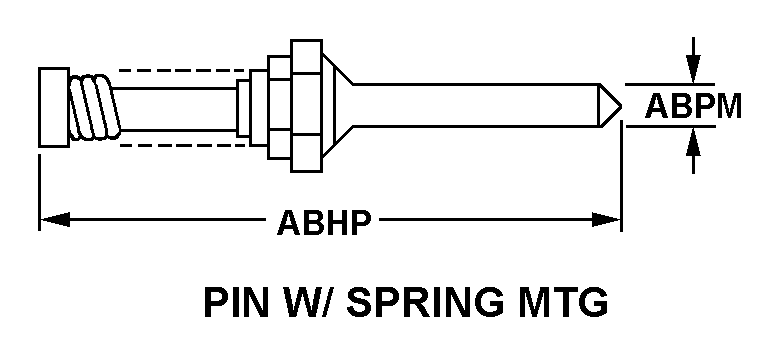

| STYLE DESIGNATOR | 10L PIN W/SPRING MTG |
