NSN 5935-00-539-5934 M641/15-2, M641152, A321750A

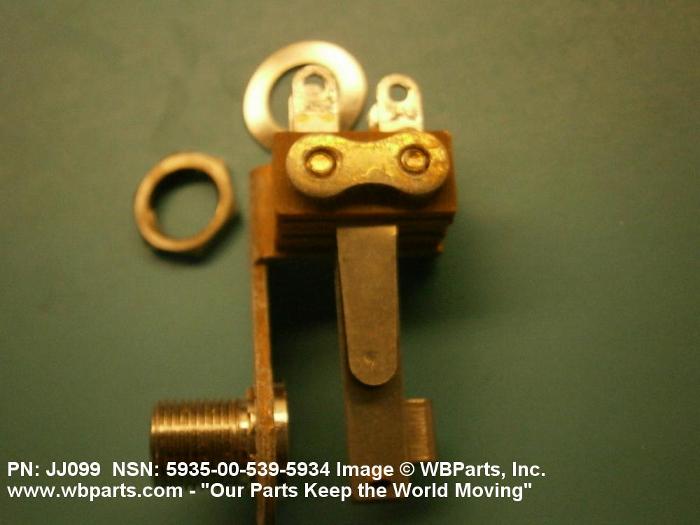

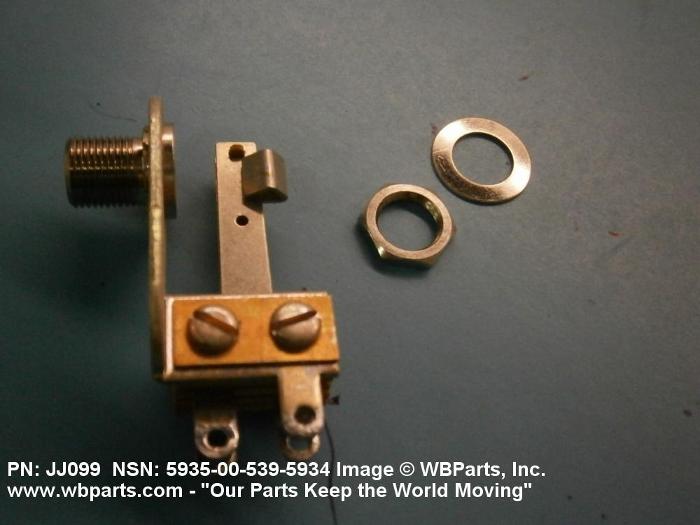

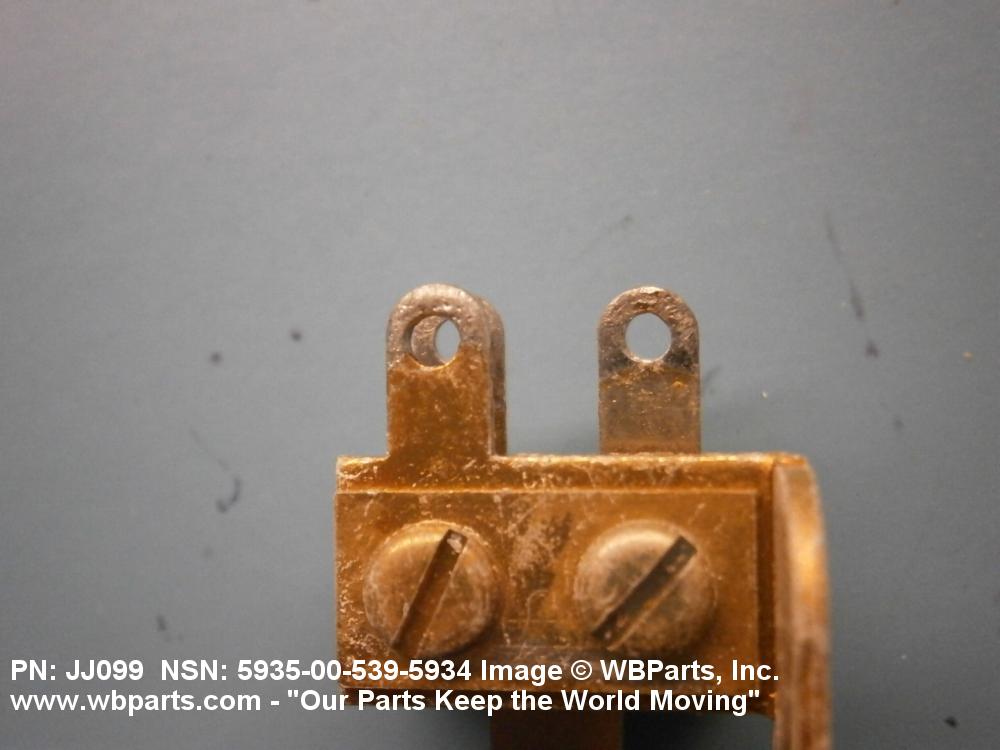

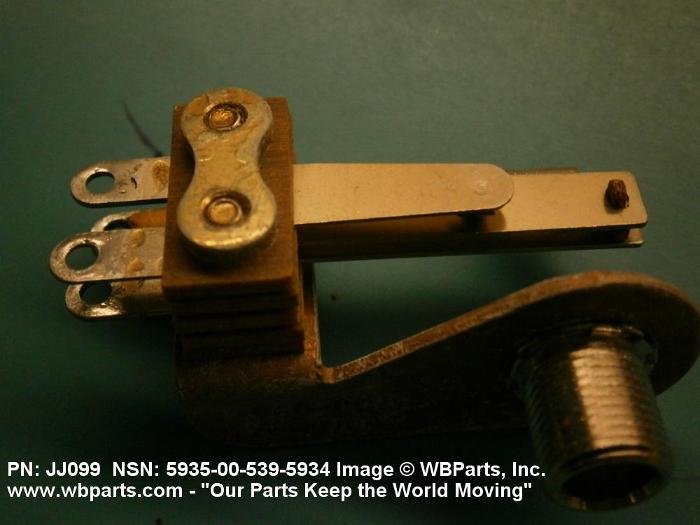

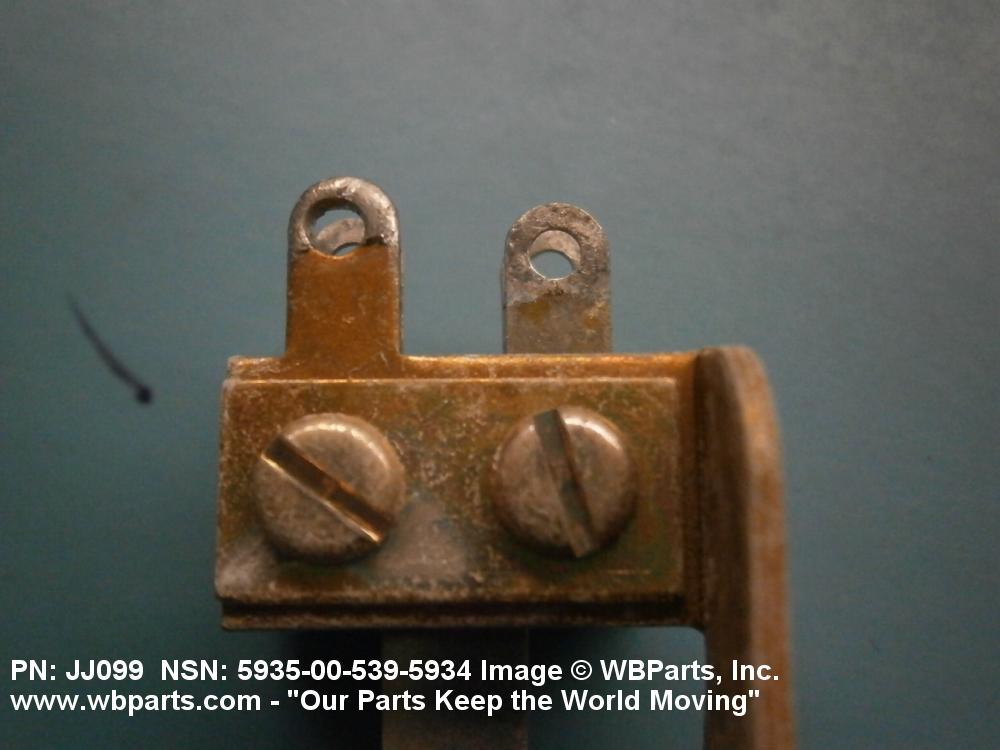

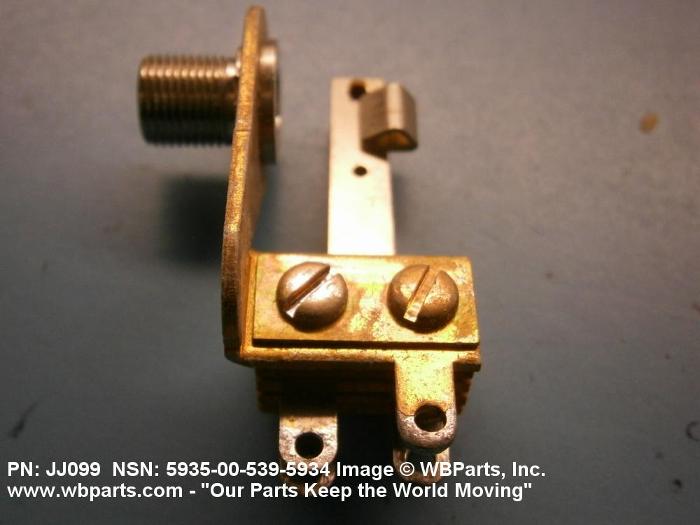

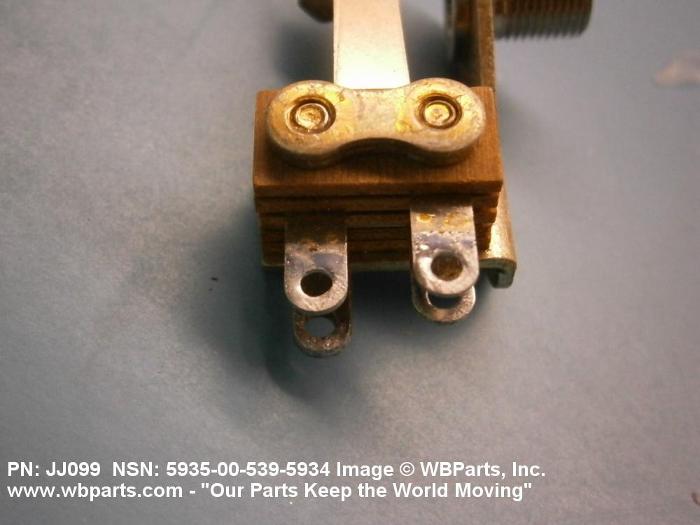

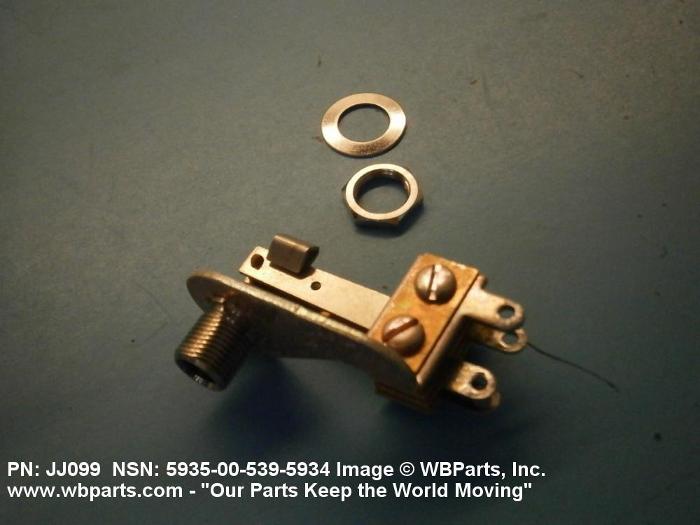

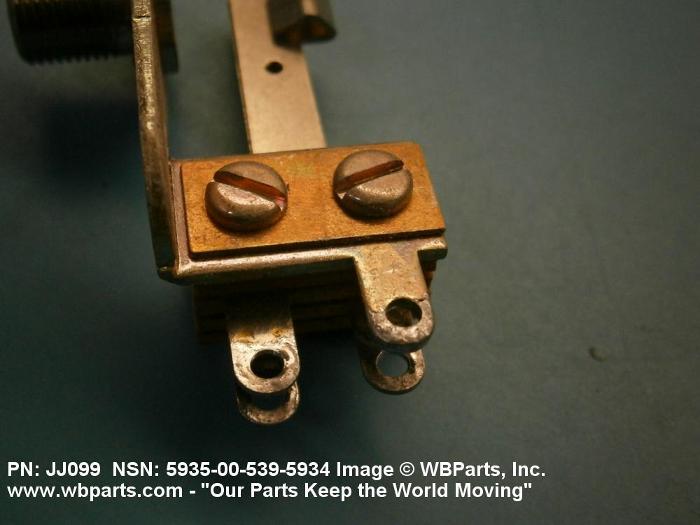

Product Details | TELEPHONE JACK
5935-00-539-5934 A contact spring type electrical fitting of two or more conductors, which is arranged for the insertion of a PLUG, TELEPHONE. One conductor may be grounded. Does not include separable telephone jacks which are termed, JACK ASSEMBLY, TELEPHONE. Excludes JACK, TIP.
Part Alternates: M641/15-2, M641152, A321750A, A32-1750A, JJ099, MILJ64115, MILJ641-15, PA153, 5935-00-539-5934, 00-539-5934, 5935005395934, 005395934
Electrical and Electronic Equipment Components | Connectors, Electrical
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 01 JAN 1963 | 00-539-5934 | 00124 ( JACK, TELEPHONE ) |
Demand History | NSN 5935-00-539-5934
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5935-00-539-5934 | 2022-03-83 | 54 | IL |
M641152 | 2018-08-228 | 25 | IN |
5935-00-539-5934 | 2012-05-138 | 3 | United States |
5935-00-539-5934 | 2011-12-340 | 5 | United States |
Cross Reference | NSN 5935-00-539-5934
Part Number | Cage Code | Manufacturer |
---|---|---|
A32-1750A | 20950 | ESPEY MFG. & ELECTRONICS CORP. |
JJ099 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
M641/15-2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
MILJ641-15 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
PA153 | 30040 | TELECTRO SYSTEMS CORP |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-539-5934
Related Products | NSN 5935-00-539-5934
Technical Data | NSN 5935-00-539-5934
Characteristic | Specifications |
---|---|
ACCOMMODATED FINGER TYPE | TWO CONDUCTOR, ROUND TIP SINGLE FINGER |
FINGER ACCOMMODATION DIAMETER | 0.252 INCHES NOMINAL SINGLE FINGER |
FINGER ACCOMMODATION LENGTH | 1.015 INCHES NOMINAL SINGLE FINGER |

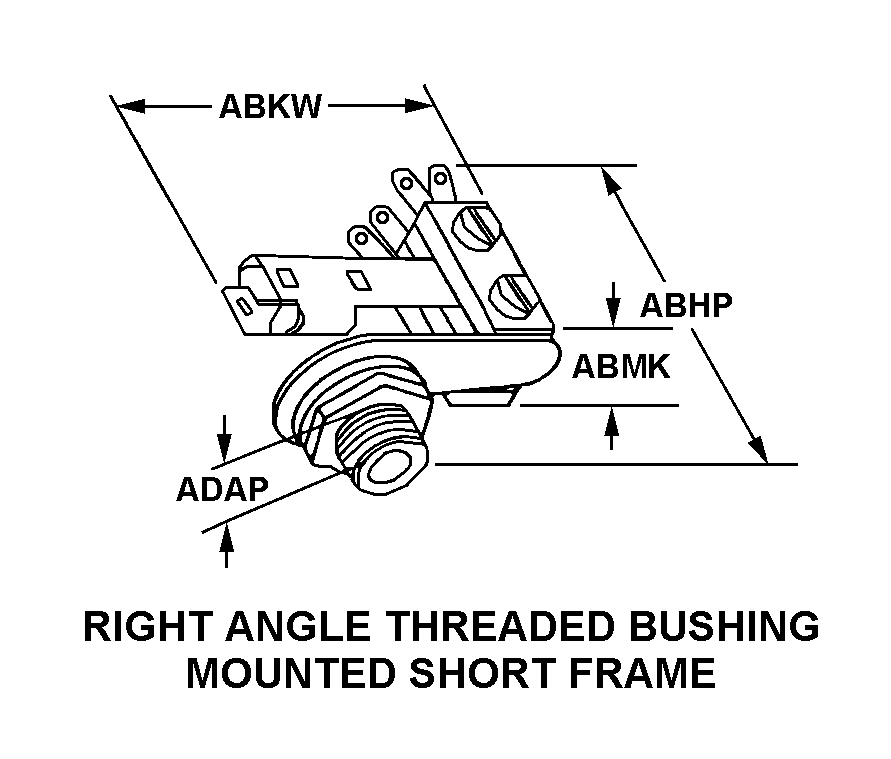

BODY STYLE | 33 RIGHT ANGLE THREADED BUSHING MOUNTED SHORT FRAME |
OVERALL LENGTH | 1.250 INCHES NOMINAL |
OVERALL HEIGHT | 1.938 INCHES NOMINAL |
OVERALL WIDTH | 0.750 INCHES NOMINAL |
MOUNTING BUSHING LENGTH | 0.375 INCHES NOMINAL |
JACK CONTACT ARRANGEMENT DESIGNATOR | J1-1A |
MOUNTING FACILITY TYPE AND QUANTITY | 1 BUSHING |
THREAD SERIES DESIGNATOR | UNEF |
NOMINAL THREAD SIZE | 0.375 INCHES |
THREAD CLASS | 2A |
THREAD QUANTITY PER INCH | 32 |
THREAD DIRECTION | RIGHT-HAND |
BUSHING ACCOMMODATION HOLE SHAPE | ROUND |
BUSHING THRU-HOLE ACCOMMODATION DIAMETER | 0.375 INCHES NOMINAL |
ELECTRICAL INSULATION FEATURE | INSULATED COMPLETELY |
MATERIAL | ANY ACCEPTABLE BODY ANY ACCEPTABLE BUSHING ANY ACCEPTABLE CONTACT ANY ACCEPTABLE INSULATOR ANY ACCEPTABLE SPRING ANY ACCEPTABLE TERMINAL |
SURFACE TREATMENT | ANY ACCEPTABLE CONTACT ANY ACCEPTABLE SPRING TIN TERMINAL |
TERMINAL TYPE | TAB, SOLDER LUG |
MAXIMUM VOLTAGE RATING IN VOLTS | NOT RATED |
CURRENT RATING IN AMPS | NOT RATED |
TEST DATA DOCUMENT | 81349-MIL-J-641 SPECIFICATION |
SPECIFICATION/STANDARD DATA | 81349-MIL-J-641 GOVERNMENT SPECIFICATION |
MANUFACTURERS CODE | 81349 |
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILJ641-15 |
MANUFACTURERS CODE | 81349 |
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M641/15-2 |
