NSN 5935-00-539-5944 SMC453350, SM-C-453350, XA1837
Product Details | TELEPHONE JACK
5935-00-539-5944 A contact spring type electrical fitting of two or more conductors, which is arranged for the insertion of a PLUG, TELEPHONE. One conductor may be grounded. Does not include separable telephone jacks which are termed, JACK ASSEMBLY, TELEPHONE. Excludes JACK, TIP.
Part Alternates: SMC453350, SM-C-453350, XA1837, 2J1327, 3580007000, 358-0007-000, SC2B, 5935-00-539-5944, 00-539-5944, 5935005395944, 005395944
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-539-5944 | 00124 ( JACK, TELEPHONE ) |
Drawings & Photos | NSN 5935-00-539-5944
Demand History | NSN 5935-00-539-5944
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SC2B | 2014-04-113 | 10 | US |
Cross Reference | NSN 5935-00-539-5944
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2J1327 | 82389 | SWITCHCRAFT INC. |
| 358-0007-000 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| SC2B | 37942 | YOSEMITE INVESTMENT INC DBA NORTH AMERICAN CAPACITOR CO |
| SM-C-453350 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| XA1837 | 82389 | SWITCHCRAFT INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-539-5944
Related Products | NSN 5935-00-539-5944
Technical Data | NSN 5935-00-539-5944
| Characteristic | Specifications |
|---|---|
| ACCOMMODATED FINGER TYPE | THREE CONDUCTOR, SLENDER SPHERICAL TIP SINGLE FINGER |
| FINGER ACCOMMODATION DIAMETER | 0.250 INCHES NOMINAL SINGLE FINGER |
| FINGER ACCOMMODATION LENGTH | ANY ACCEPTABLE SINGLE FINGER |

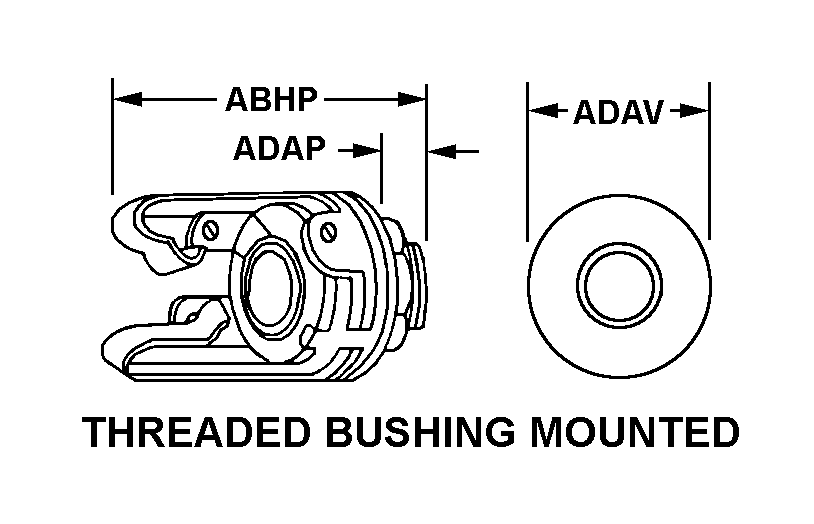

| BODY STYLE | 26 THREADED BUSHING MOUNTED |
| OVERALL LENGTH | 1.328 INCHES NOMINAL |
| MOUNTING BUSHING LENGTH | 0.281 INCHES NOMINAL |
| OVERALL DIAMETER | 0.781 INCHES MAXIMUM |
| JACK CONTACT ARRANGEMENT DESIGNATOR | J2 |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BUSHING |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND |
| BUSHING THRU-HOLE ACCOMMODATION DIAMETER | ANY ACCEPTABLE |
| ELECTRICAL INSULATION FEATURE | UNINSULATED |
| MATERIAL | ANY ACCEPTABLE BODY ANY ACCEPTABLE BUSHING ANY ACCEPTABLE CONTACT ANY ACCEPTABLE INSULATOR ANY ACCEPTABLE SPRING ANY ACCEPTABLE TERMINAL |
| SURFACE TREATMENT | ANY ACCEPTABLE CONTACT ANY ACCEPTABLE SPRING ANY ACCEPTABLE TERMINAL |
| TERMINAL TYPE | TAB, SOLDER LUG |
| MAXIMUM VOLTAGE RATING IN VOLTS | NOT RATED |
| CURRENT RATING IN AMPS | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5935-00-539-5944
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063300 | TELEPHONE TELEPHONE PART ARTICLE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-539-5944
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
