NSN 5935-00-817-6065 120, 289, 00-817-6065
Product Details | TELEPHONE JACK
5935-00-817-6065 A contact spring type electrical fitting of two or more conductors, which is arranged for the insertion of a PLUG, TELEPHONE. One conductor may be grounded. Does not include separable telephone jacks which are termed, JACK ASSEMBLY, TELEPHONE. Excludes JACK, TIP.
Part Alternates: 120, 289, 5935-00-817-6065, 00-817-6065, 5935008176065, 008176065
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-817-6065 | 00124 ( JACK, TELEPHONE ) |
Drawings & Photos | NSN 5935-00-817-6065
Demand History | NSN 5935-00-817-6065
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 120 | 2020-03-91 | 3 | US |
| 289 | 2017-02-48 | 2 | |
| 289 | 2013-02-46 | 4 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-00-817-6065
Related Products | NSN 5935-00-817-6065
Technical Data | NSN 5935-00-817-6065
| Characteristic | Specifications |
|---|---|
| ACCOMMODATED FINGER TYPE | TWO CONDUCTOR, TURRET TIP SINGLE FINGER |
| FINGER ACCOMMODATION DIAMETER | 0.250 INCHES NOMINAL SINGLE FINGER |
| FINGER ACCOMMODATION LENGTH | 1.187 INCHES NOMINAL SINGLE FINGER |

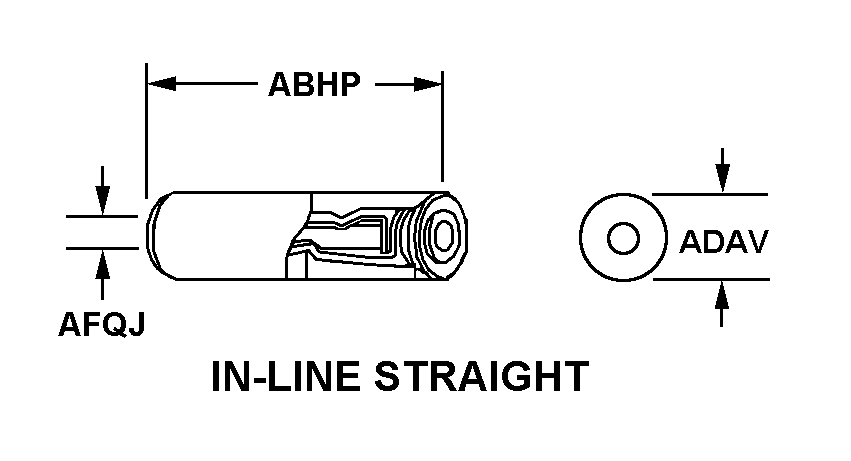

| BODY STYLE | 12 IN-LINE STRAIGHT |
| OVERALL LENGTH | 2.187 INCHES NOMINAL |
| OVERALL DIAMETER | 0.750 INCHES NOMINAL |
| CABLE ENTRANCE DIAMETER | 0.687 INCHES NOMINAL |
| JACK CONTACT ARRANGEMENT DESIGNATOR | J1 |
| ELECTRICAL INSULATION FEATURE | INSULATED COMPLETELY |
| MATERIAL | BRASS BODY PLASTIC, PHENOLIC INSULATOR NICKEL SPRING |
| SURFACE TREATMENT | NICKEL BODY SILVER SPRING |
| TERMINAL TYPE | SCREW |
| MAXIMUM VOLTAGE RATING IN VOLTS | NOT RATED |
| CURRENT RATING IN AMPS | 10.0 |
| MANUFACTURERS CODE | 91967 |
| DESIGN CONTROL REFERENCE | 289 |
Restrictions/Controls & Freight Information | NSN 5935-00-817-6065
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063300 | TELEPHONE TELEPHONE PART ARTICLE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-00-817-6065
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
