NSN 5935-00-539-5942 CBP47060, CBP47-060 , CE0845921
Product Details | ELECTRICAL PLUG CONNECTOR
5935-00-539-5942 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: CBP47060, CBP47-060 , CE0845921 , TRU0255, TRU-0255, UG532A/U, UG532AU, 1831277040, 183-1277-040 , 5250832, 5250-832 , 600D476F075DG5 , 600D476G075DG5, 5935-00-539-5942, 00-539-5942, 5935005395942, 005395942
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-539-5942 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-00-539-5942
Demand History | NSN 5935-00-539-5942
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-00-539-5942 | 2016-07-186 | 1 | DIBBS |
Cross Reference | NSN 5935-00-539-5942
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TRU-0255 | 92180 | TRU CORPORATION DBA TRU-CONNECTOR |
| UG532A/U | 00795 | DELTA ELECTRONICS MFG CORP |
| UG532A/U | 91836 | WINCHESTER ELECTRONICS CORPORATION DBA KINGS ELECTRONICS |
| UG532A/U | 92180 | TRU CORPORATION DBA TRU-CONNECTOR |
| UG532A/U | 94375 | AUTOMATIC CONNECTOR |
| UG532AU | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-00-539-5942
Technical Data | NSN 5935-00-539-5942
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 5D STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 3.094 INCHES NOMINAL |
| OVERALL DIAMETER | 1.656 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING NUT |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 1.250 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 18 |
| THREAD DIRECTION | RIGHT-HAND |
| CONNECTOR CABLE STRAIN RELIEF METHOD | COMPRESSION NUT |
| CABLE ENTRANCE DIAMETER | 0.750 INCHES MAXIMUM |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | COPPER ALLOY |
| SHELL SURFACE TREATMENT | SILVER |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-S-365 FED SPEC SINGLE TREATMENT RESPONSE |
| MATING END QUANTITY | 1 |

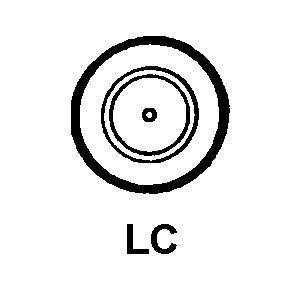

| CONTACT POSITION ARRANGEMENT STYLE | ABBT LC SINGLE MATING END |
| INSERT MATERIAL | PLASTIC SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS | 50.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | SILVER SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-S-365 FED SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.105 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT AND SHELL SURFACES SILVER |
