NSN 5905-00-927-8506 21000947, 2100-0947, 00-927-8506
Product Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-00-927-8506 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: 21000947, 2100-0947, 5905-00-927-8506, 00-927-8506, 5905009278506, 009278506
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 AUG 1966 | 00-927-8506 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |
Drawings & Photos | NSN 5905-00-927-8506
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-927-8506
Technical Data | NSN 5905-00-927-8506
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 3 |
| ELECTRICAL RESISTANCE PER SECTION | 125.0 OHMS ALL SECTIONS |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -30.0 TO 30.0 ALL SECTIONS |
| STANDARD TAPER CURVE PER SECTION | A ALL SECTIONS |
| TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS | -25000.0 TO 25000.0 ALL SECTIONS |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 0.25 FREE AIR ALL SECTIONS |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 70.0 ALL SECTIONS |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 120.0 ALL SECTIONS |

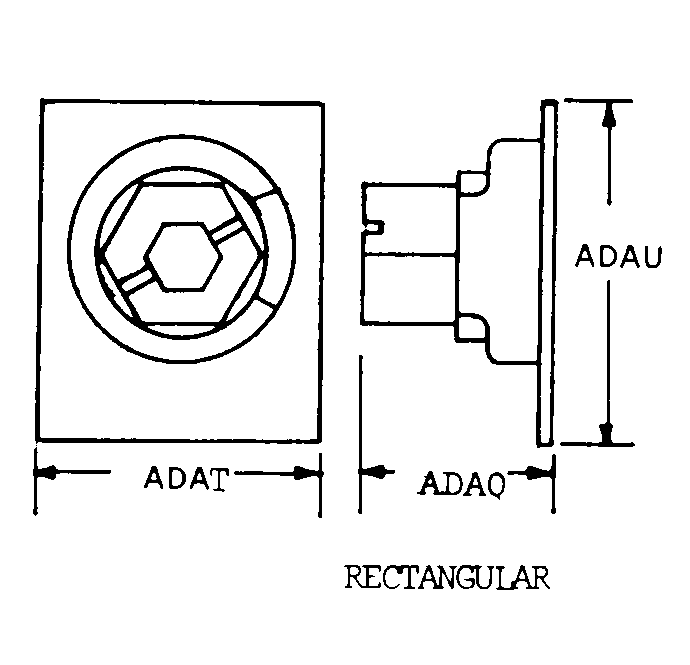

| BODY STYLE | 49B RECTANGULAR |
| BODY LENGTH | 0.350 INCHES NOMINAL |
| BODY WIDTH | 1.734 INCHES NOMINAL |
| BODY HEIGHT | 0.790 INCHES NOMINAL |
| ACTUATOR TYPE | INTEGRAL KNOB |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 290.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | STOPS |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 250.0 NOMINAL |
| MOUNTING METHOD | TERMINAL |
| TERMINAL TYPE AND QUANTITY | 9 PIN |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.344 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN CENTER TERMINAL AND OUTSIDE TERMINAL | 0.172 INCHES NOMINAL |
| TERMINAL LENGTH | 0.318 INCHES NOMINAL |
| TERMINAL LOCATION | REAR END |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
