NSN 5905-01-302-0413 BG75673, 1018898001, 1018898-001
Product Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-01-302-0413 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: BG75673, 1018898001, 1018898-001, 5905-01-302-0413, 01-302-0413, 5905013020413, 013020413
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 JUN 1989 | 01-302-0413 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |

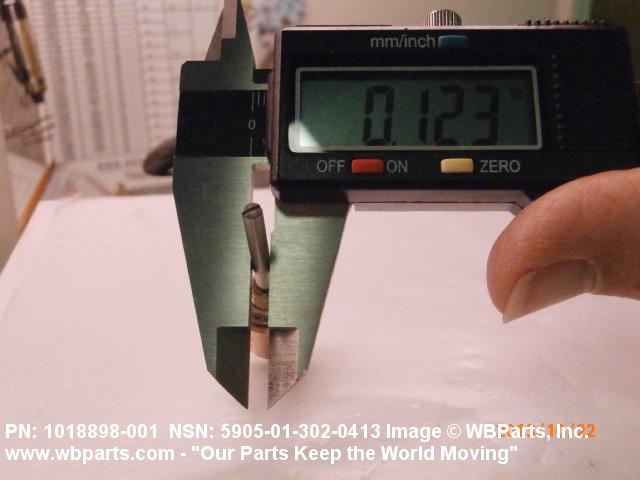

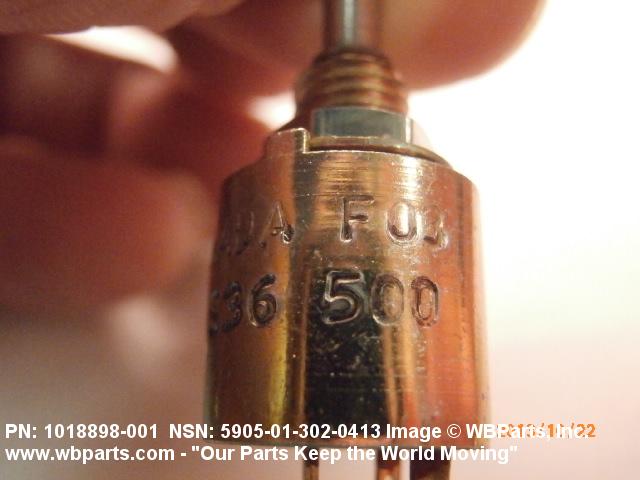

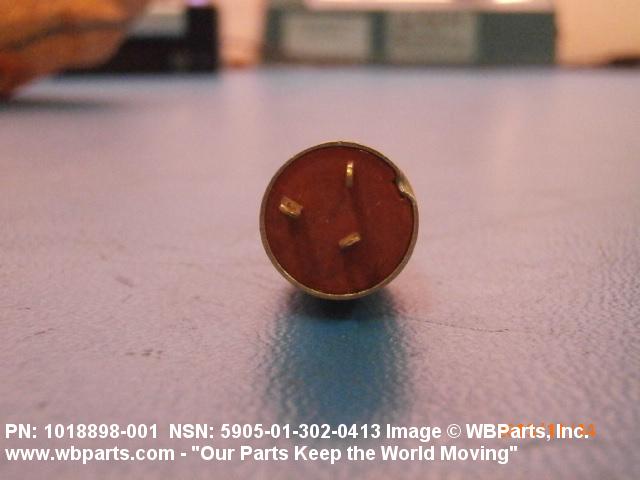

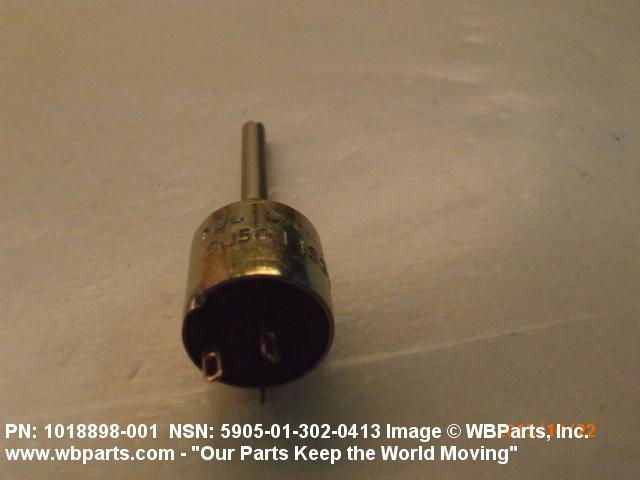

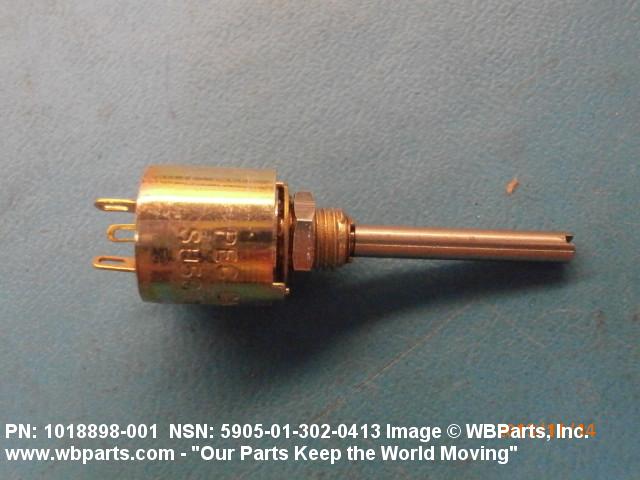

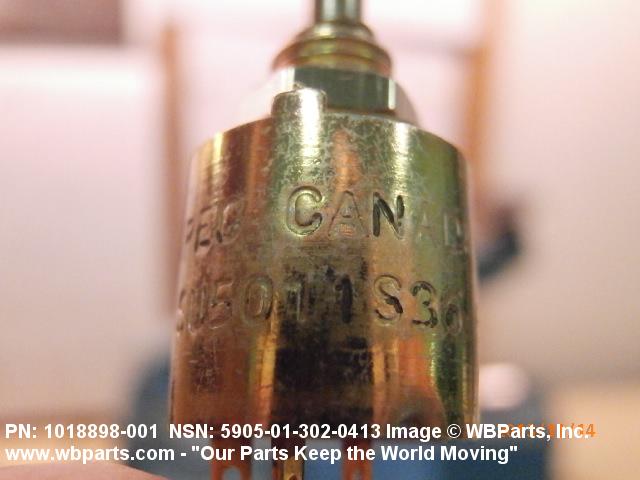

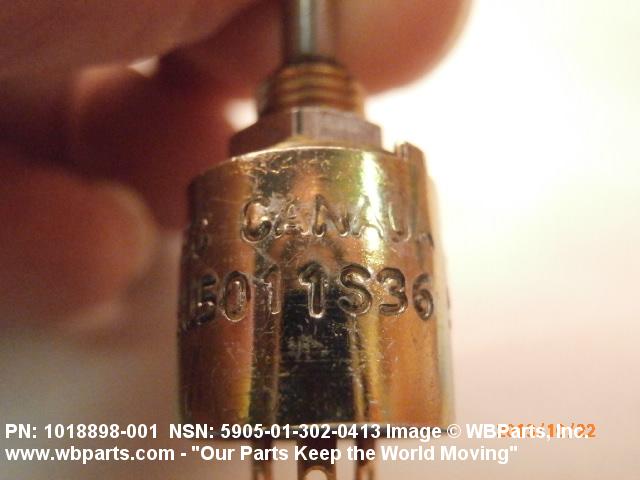

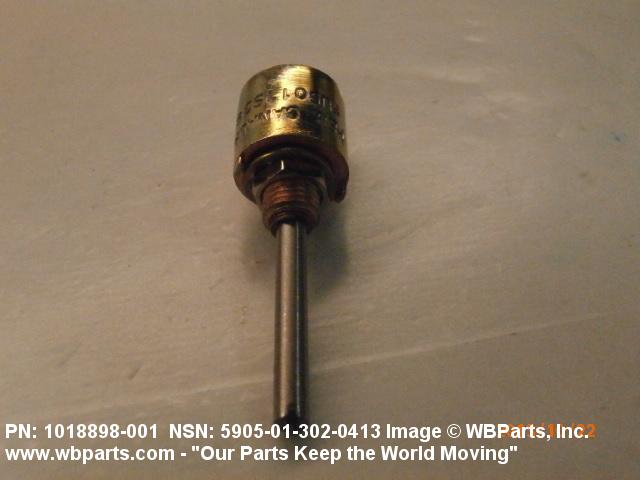

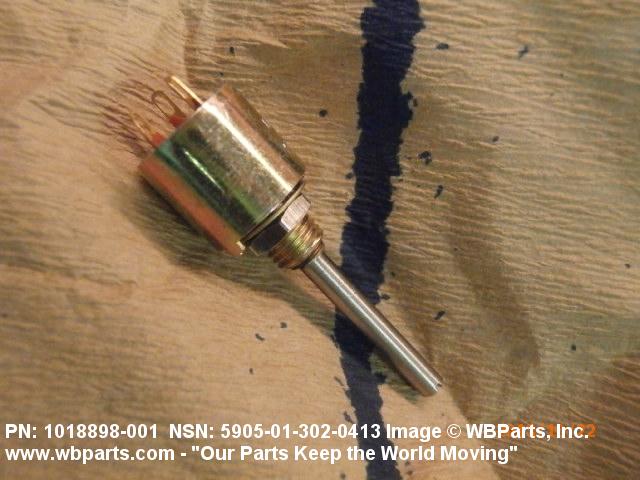

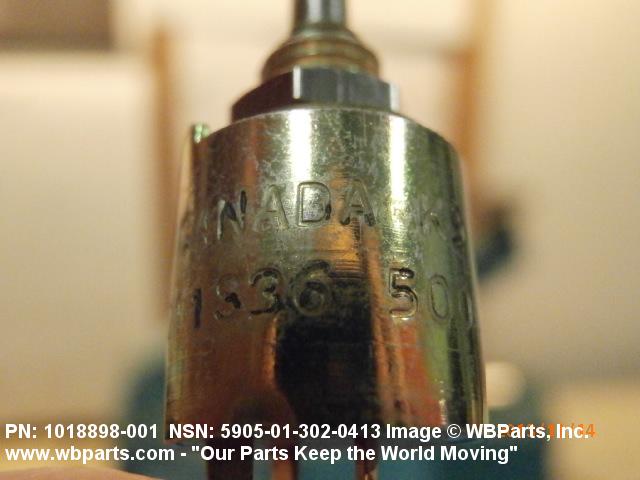

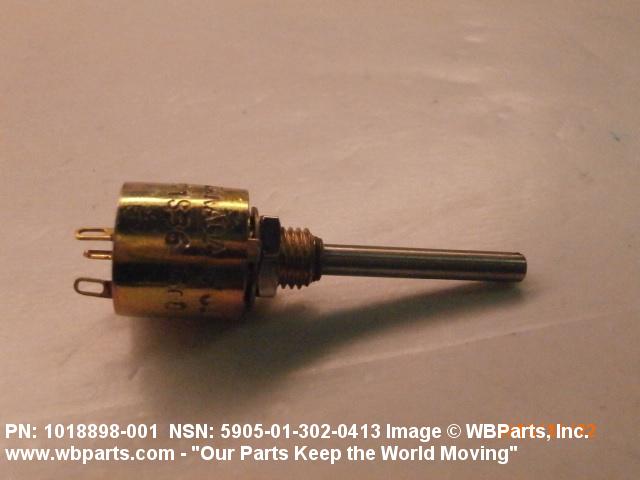

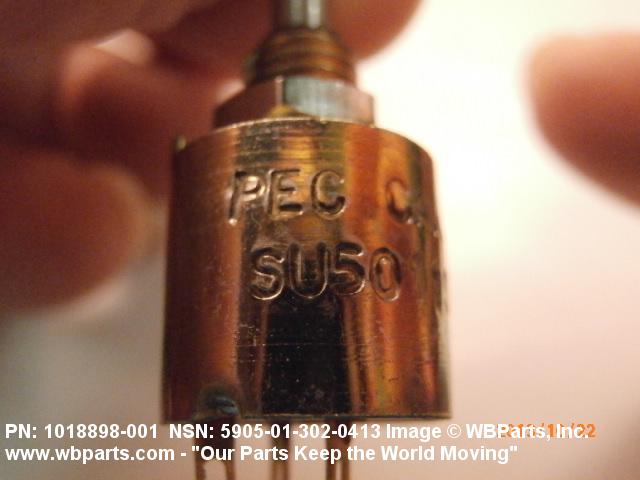

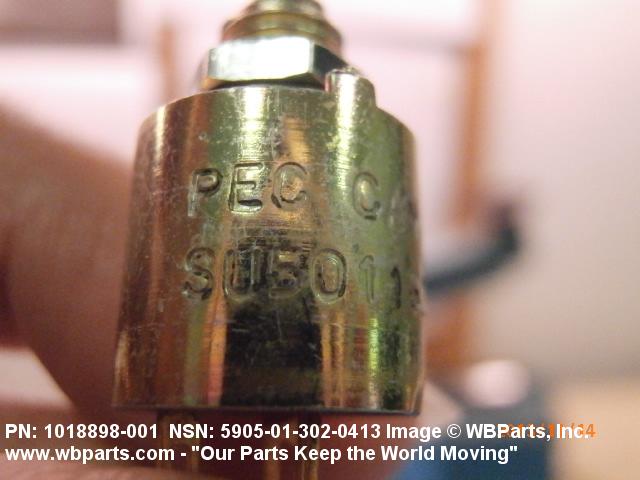

Drawings & Photos | NSN 5905-01-302-0413
Demand History | NSN 5905-01-302-0413
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1018898001 | 2013-12-353 | 5 | United States |
| 1018898001 | 2013-11-311 | 1 | United States |
| 5905-01-302-0413 | 2013-09-267 | 8 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-01-302-0413
Technical Data | NSN 5905-01-302-0413
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 300.0 OHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -10.0 TO 10.0 SINGLE SECTION |
| STANDARD TAPER CURVE PER SECTION | A SINGLE SECTION |
| SHAFT BEARING TYPE | SLEEVE |
| MAXIMUM STOP TORQUE | 48.00 INCH-OUNCES |
| MAXIMUM STARTING TORQUE | 6.00 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 6.00 INCH-OUNCES |
| TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS | -250.0 TO 250.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 0.5 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 125.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 175.0 SINGLE SECTION |

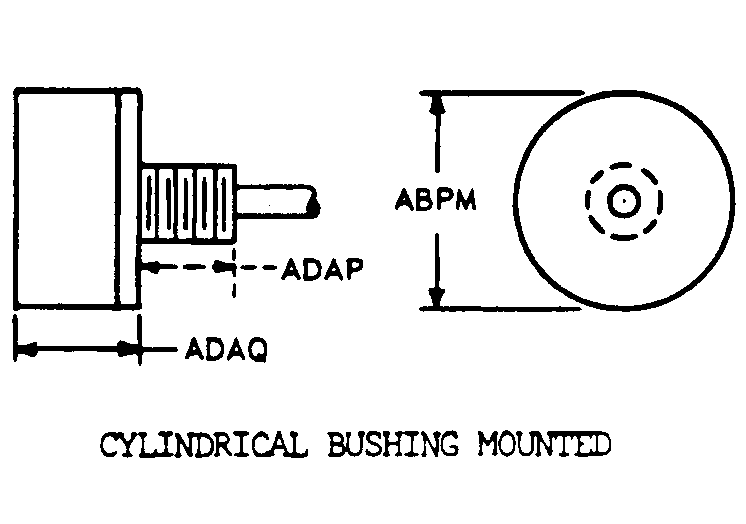

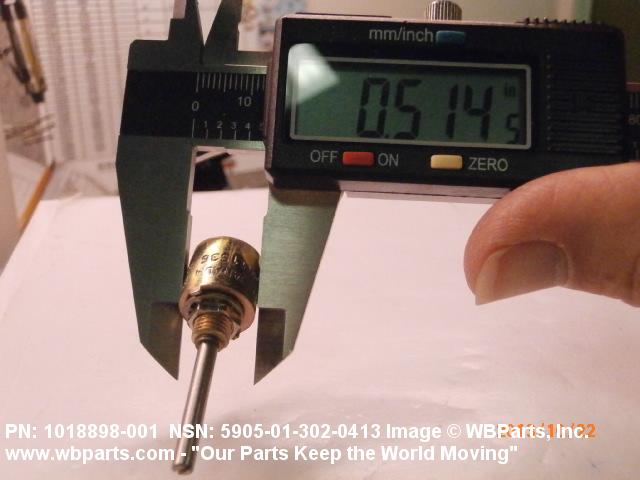

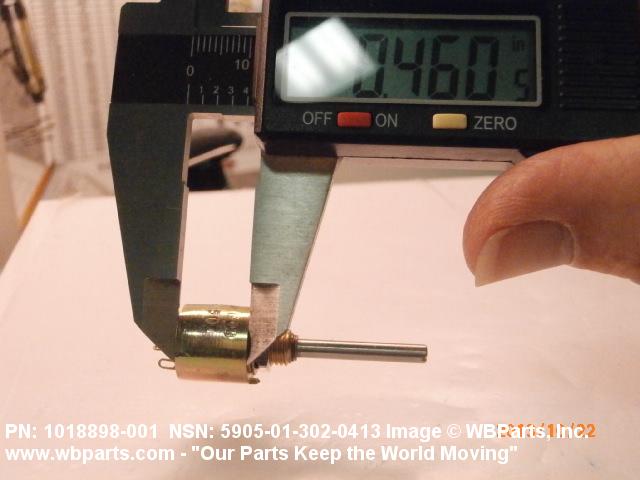

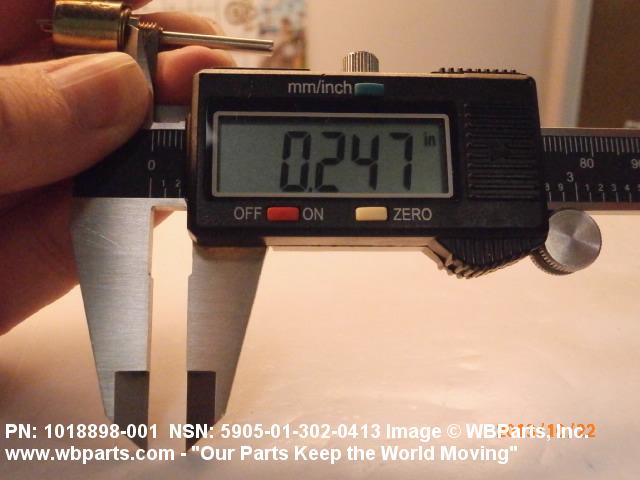

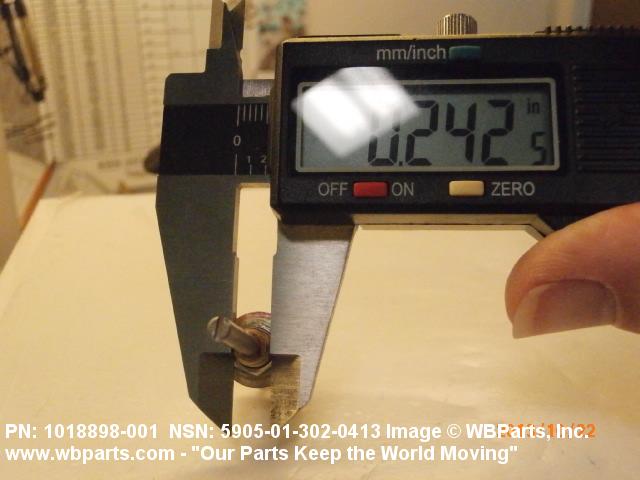

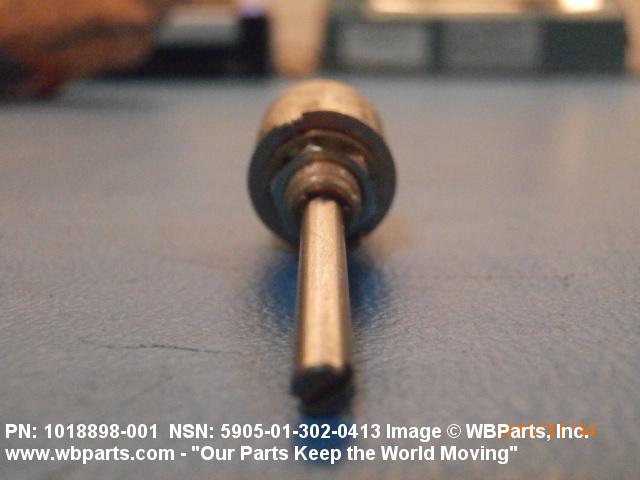

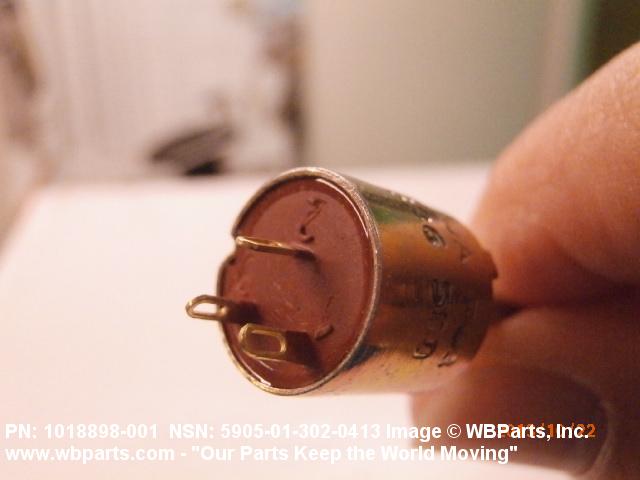

| BODY STYLE | 1B CYLINDRICAL BUSHING MOUNTED |
| BODY DIAMETER | 0.484 INCHES MINIMUM AND 0.516 INCHES MAXIMUM |
| BODY LENGTH | 0.415 INCHES MINIMUM AND 0.469 INCHES MAXIMUM |
| MOUNTING BUSHING LENGTH | 0.234 INCHES MINIMUM AND 0.266 INCHES MAXIMUM |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | 3C ROUND, SLOTTED |
| SHAFT DIAMETER | 0.124 INCHES MINIMUM AND 0.126 INCHES MAXIMUM |
| SHAFT LENGTH | 0.344 INCHES MINIMUM AND 0.406 INCHES MAXIMUM |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 292.0 MINIMUM AND 298.0 MAXIMUM |
| ACTUATOR TRAVEL CONTROL FEATURE | STOPS |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 292.0 MINIMUM AND 298.0 MAXIMUM |
| NONTURN DEVICE LOCATION | AT 5:00 OCLOCK AND AT 11:00 OCLOCK |
| NONTURN DEVICE RADIUS | 0.240 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| MOUNTING METHOD | STANDARD BUSHING |
| SCREW THREAD SERIES DESIGNATOR | UNEF |
| SCREW THREAD DIAMETER | 0.234 INCHES MINIMUM AND 0.266 INCHES MAXIMUM |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| FEATURES PROVIDED | HUMIDITY PROOF |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| TERMINAL LOCATION | REAR END |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III END ITEM IDENTIFICATION | SPEC PROJ ERA |
| III UNPACKAGED UNIT WEIGHT | 25.0 GRAMS |
| III CUBIC MEASURE | 0.098 CUBIC INCHES |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
