NSN 5905-00-723-3694 AQ7676, CM13033, D37WS475K20K
Product Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-00-723-3694 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: AQ7676, CM13033, D37WS475K20K, D37WS4-75K-20K, FW19433, 1226, 4129451, 412945-1, 733020, 733020REVC, 5905-00-723-3694, 00-723-3694, 5905007233694, 007233694
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-723-3694 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |
Drawings & Photos | NSN 5905-00-723-3694
Demand History | NSN 5905-00-723-3694
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905-00-723-3694 | 2012-05-142 | 1 | MANUAL |
| CM13033 | 2012-05-142 | 1 | Turkey |
Cross Reference | NSN 5905-00-723-3694
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1226 | 35627 | PRECISION ELECTRONICS CORPORATION |
| 412945-1 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 733020 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 733020 | 77068 | ALLIED-SIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO |
| 733020REVC | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| AQ7676 | 71450 | CTS CORP |
| CM13033 | 12697 | CLAROSTAT SENSORS AND CONTROLS |
| D37WS4-75K-20K | 12697 | CLAROSTAT SENSORS AND CONTROLS |
| FW19433 | 71450 | CTS CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-00-723-3694
Related Products | NSN 5905-00-723-3694
Technical Data | NSN 5905-00-723-3694
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 2 |
| ELECTRICAL RESISTANCE PER SECTION | 75.0 KILOHMS 1ST SECTION 20.0 KILOHMS 2ND SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -20.0 TO 20.0 ALL SECTIONS |
| STANDARD TAPER CURVE PER SECTION | A ALL SECTIONS |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 0.5 FREE AIR ALL SECTIONS |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 40.0 ALL SECTIONS |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 85.0 ALL SECTIONS |
| BODY STYLE | 1B CYLINDRICAL BUSHING MOUNTED |
| BODY DIAMETER | 1.125 INCHES NOMINAL |
| BODY LENGTH | 1.468 INCHES NOMINAL |
| MOUNTING BUSHING LENGTH | 0.375 INCHES NOMINAL |
| ACTUATOR TYPE | DUAL CONCENTRIC |

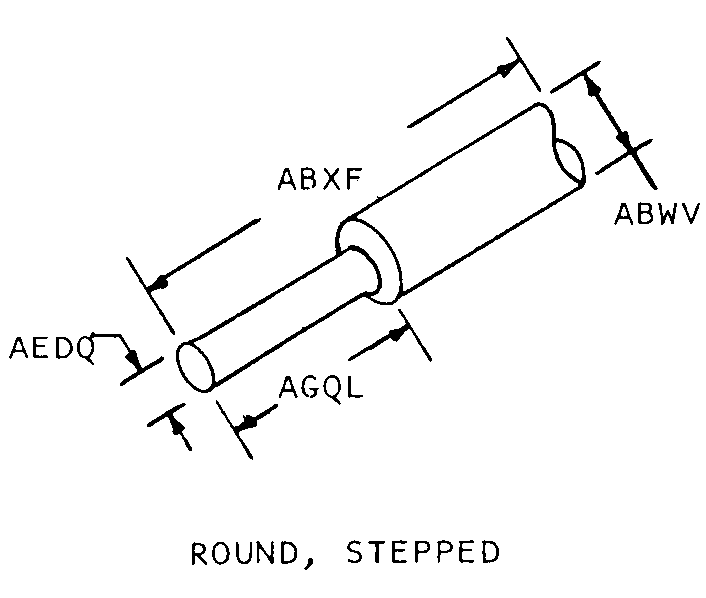

| SHAFT STYLE | 17C ROUND, STEPPED |
| SHAFT DIAMETER | 0.266 INCHES MAXIMUM |
| SHAFT LENGTH | 1.250 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.186 INCHES NOMINAL |
| UNDERCUT LENGTH | 0.438 INCHES NOMINAL |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 300.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | STOPS |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 300.0 NOMINAL |
| NONTURN DEVICE LOCATION | AT 9 OCLOCK |
| NONTURN DEVICE RADIUS | 0.531 INCHES NOMINAL |
| MOUNTING METHOD | STANDARD BUSHING |
| SCREW THREAD SERIES DESIGNATOR | UNEF |
| SCREW THREAD DIAMETER | 0.375 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| FEATURES PROVIDED | SWITCH |
| SWITCH TYPE | ROTARY |
| SWITCH OPERATING POSITION | START OF ROTATION |
| SWITCH CONTACT ARRANGEMENT | SINGLE POLE, SINGLE THROW, NORMALLY OPEN, BOTH POSITIONS MAINTAINED |
| SWITCH CURRENT TYPE AND RATING IN AMPS | 1.000 AC AND 3.000 DC |
| SWITCH VOLTAGE RATING IN VOLTS | 250.0 AND 120.0 |
| TERMINAL TYPE AND QUANTITY | 8 TAB, SOLDER LUG |
| TERMINAL LOCATION | REAR-BOTTOM |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TEST DATA DOCUMENT | 06840-733020BD DRAWING |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
Restrictions/Controls & Freight Information | NSN 5905-00-723-3694
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
