NSN 5905-00-873-5721 GR816GW4, 789103, 789-103
Product Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-00-873-5721 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: GR816GW4, 789103, 789-103, 96282075514, 96282-07-5-514, 128C935, 18050, 18-050, 282299-103, 3099P1103, 3099P1-103, 3410838, 5905-00-873-5721, 00-873-5721, 5905008735721, 282299103, 008735721
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 APR 1972 | 00-873-5721 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |
Drawings & Photos | NSN 5905-00-873-5721
Demand History | NSN 5905-00-873-5721
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 18050 | 2017-08-234 | 1 | United States |
| 3099P1103 | 2008-08-214 | 3 | United States |
Cross Reference | NSN 5905-00-873-5721
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 128C935 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 18-050 | 00816 | PALOMAR PRODUCTS, INC. |
| 282299-103 | 96795 | GOULD INSTRUMENT SYSTEMS INC |
| 3099P1-103 | 80294 | BOURNS INSTRUMENTS INC |
| 3410838 | 21340 | ITT TELECOM PRODUCTS CORP NETWORK SYSTEMS DIV |
| 789-103 | 91637 | VISHAY DALE ELECTRONICS, INC. DIV VISHAY ANGSTROHM & DALE |
| 96282-07-5-514 | 35181 | CAE INC |
| GR816GW4 | 35503 | MAHAFFY MATERIALS HANDLING LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-00-873-5721
Related Products | NSN 5905-00-873-5721
Technical Data | NSN 5905-00-873-5721
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 10.0 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -10.0 TO 10.0 SINGLE SECTION |
| MAXIMUM STARTING TORQUE | 5.00 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 5.00 INCH-OUNCES |
| TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS | -100.0 TO 100.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 1.0 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 70.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 150.0 SINGLE SECTION |

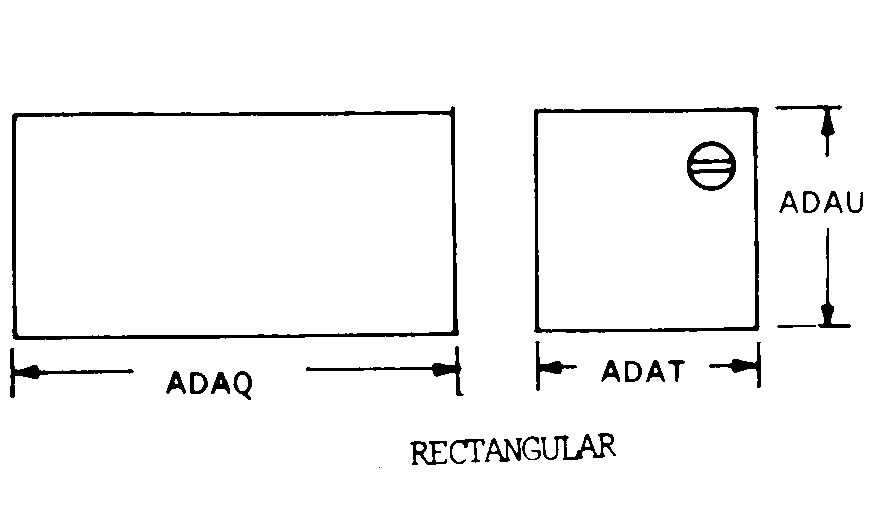

| BODY STYLE | 45B RECTANGULAR |
