Product Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-00-873-6642 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: C3026, 806951, 8-06951, 5905-00-873-6642, 00-873-6642, 5905008736642, 008736642
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-873-6642 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |
Drawings & Photos | NSN 5905-00-873-6642
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-873-6642
Technical Data | NSN 5905-00-873-6642
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 130.0 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -1.0 TO 1.0 SINGLE SECTION |
| STANDARD TAPER CURVE PER SECTION | A SINGLE SECTION |
| TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS | -25.0 TO 25.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 2.0 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 55.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 125.0 SINGLE SECTION |

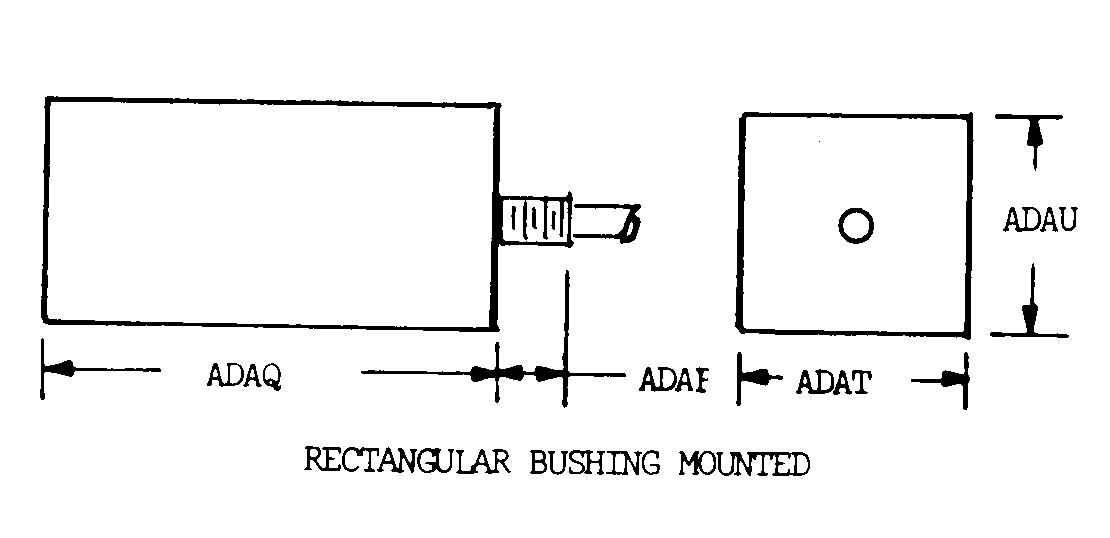

| BODY STYLE | 57B RECTANGULAR BUSHING MOUNTED |
| BODY LENGTH | 4.750 INCHES NOMINAL |
| BODY WIDTH | 0.990 INCHES NOMINAL |
| BODY HEIGHT | 1.125 INCHES NOMINAL |
| MOUNTING BUSHING LENGTH | 0.125 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | 8C ROUND, THREADED |
| THREAD LENGTH | 0.250 INCHES NOMINAL |
| SHAFT DIAMETER | 2.207 INCHES NOMINAL |
| SHAFT LENGTH | 1.000 INCHES NOMINAL |
| LONGITUDINAL ACTUATOR TRAVEL | 3.1 INCHES NOMINAL |
| LONGITUDINAL ACTUATOR EFFECTIVE ELECTRICAL STROKE LENGTH | 7.550 INCHES MAXIMUM |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 1 |
| MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| FEATURES PROVIDED | NONMETALLIC SHAFT |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| TERMINAL LOCATION | FRONT END |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TEST DATA DOCUMENT | 14170-8-06951 DRAWING |
| III OVERALL LENGTH | 6.820 INCHES NOMINAL |
| III OVERALL HEIGHT | 1.125 INCHES NOMINAL |
| III OVERALL WIDTH | 0.990 INCHES NOMINAL |
