NSN 5905-00-873-0810 3049L1102, 3049L1-102, 859989
Product Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-00-873-0810 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: 3049L1102, 3049L1-102, 859989, 5905-00-873-0810, 00-873-0810, 5905008730810, 008730810
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 APR 1972 | 00-873-0810 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |
Drawings & Photos | NSN 5905-00-873-0810
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-873-0810
Technical Data | NSN 5905-00-873-0810
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 1.0 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -10.0 TO 10.0 SINGLE SECTION |
| STANDARD TAPER CURVE PER SECTION | A SINGLE SECTION |
| TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS | -100.0 TO 100.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 1.0 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 70.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 175.0 SINGLE SECTION |

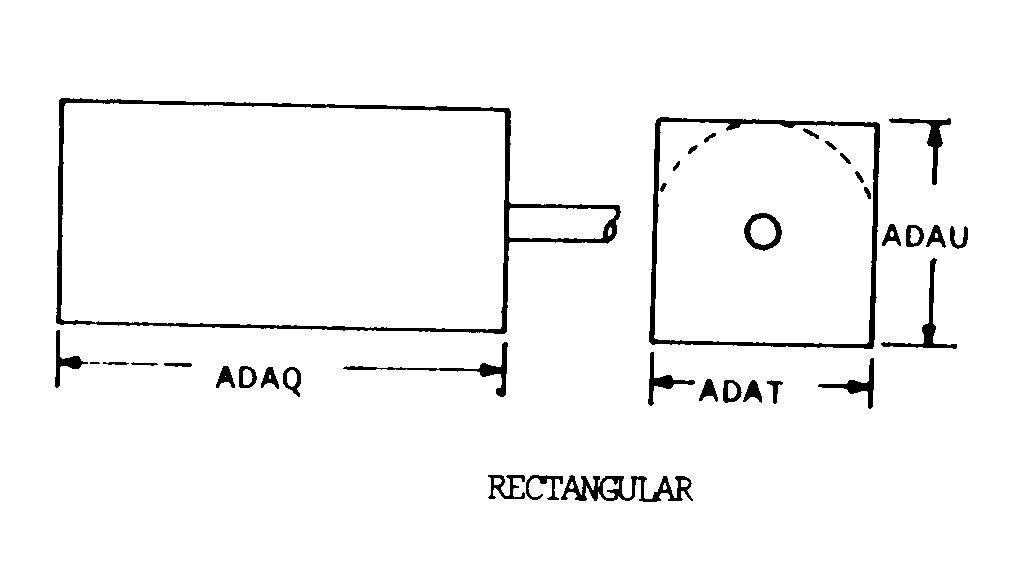

| BODY STYLE | 56B RECTANGULAR |
| BODY LENGTH | 1.250 INCHES NOMINAL |
| BODY WIDTH | 0.190 INCHES NOMINAL |
| BODY HEIGHT | 0.320 INCHES NOMINAL |
| ACTUATOR TYPE | DOUBLE ENDED SHAFT |
| SHAFT STYLE | 1C ROUND |
| SHAFT DIAMETER | 0.093 INCHES NOMINAL |
| SHAFT LENGTH | 0.600 INCHES NOMINAL |
| LONGITUDINAL ACTUATOR TRAVEL | 0.6 INCHES NOMINAL |
| LONGITUDINAL ACTUATOR EFFECTIVE ELECTRICAL STROKE LENGTH | 0.490 INCHES NOMINAL |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 2 |
| MOUNTING HOLE DIAMETER | 0.088 INCHES MINIMUM |
| FEATURES PROVIDED | NONMETALLIC SHAFT |
| TERMINAL TYPE AND QUANTITY | 3 WIRE LEAD |
| TERMINAL LOCATION | REAR END |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| SPECIAL FEATURES | MECHANICAL OVERTRAVEL 0.010 IN. MIN |
| III OVERALL WIDTH | 0.190 INCHES NOMINAL |
