Product Details | WEAPON SYSTEM RESILIENT MOUNT

5342-01-540-5607 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads.

Part Alternates: 12387888, 12387888-1, 5342-01-540-5607, 01-540-5607, 5342015405607, 015405607, 123878881

Hardware and Abrasives | Hardware, Weapon System

Supply Group (FSG) NSN Assign. NIIN
53 24 MAY 2006 01-540-5607

Drawings & Photos | NSN 5342-01-540-5607


Demand History | NSN 5342-01-540-5607

Part Number Request Date QTY Origin
5342-01-540-5607 2021-02-48 270 DIBBS
5342-01-540-5607 2019-02-50 224 DIBBS
5342-01-540-5607 2018-06-156 179 DIBBS
5342-01-540-5607 2016-05-136 70 DIBBS
5342-01-540-5607 2015-09-253 85 DIBBS
5342-01-540-5607 2015-07-200 27 DIBBS
5342-01-540-5607 2015-05-126 25 DIBBS
5342-01-540-5607 2015-02-35 18 DIBBS
5342-01-540-5607 2014-12-352 18 DIBBS
5342-01-540-5607 2014-07-190 24 DIBBS
5342-01-540-5607 2014-02-35 26 DIBBS
5342-01-540-5607 2014-01-01 7 DIBBS
5342-01-540-5607 2013-12-350 1 DIBBS
5342-01-540-5607 2013-12-342 1 DIBBS
5342-01-540-5607 2013-11-330 4 DIBBS
5342-01-540-5607 2013-11-330 8 DIBBS
5342-01-540-5607 2013-11-322 4 DIBBS
5342-01-540-5607 2013-11-322 8 DIBBS
5342-01-540-5607 2013-09-251 23 DIBBS
5342-01-540-5607 2013-07-206 4 DIBBS
5342-01-540-5607 2011-10-298 4 DIBBS

Cross Reference | NSN 5342-01-540-5607

Part Number Cage Code Manufacturer
12387888 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
12387888-1 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5342-01-540-5607

Technical Data | NSN 5342-01-540-5607

Characteristic Specifications
MATERIAL RUBBER AND STEEL OVERALL

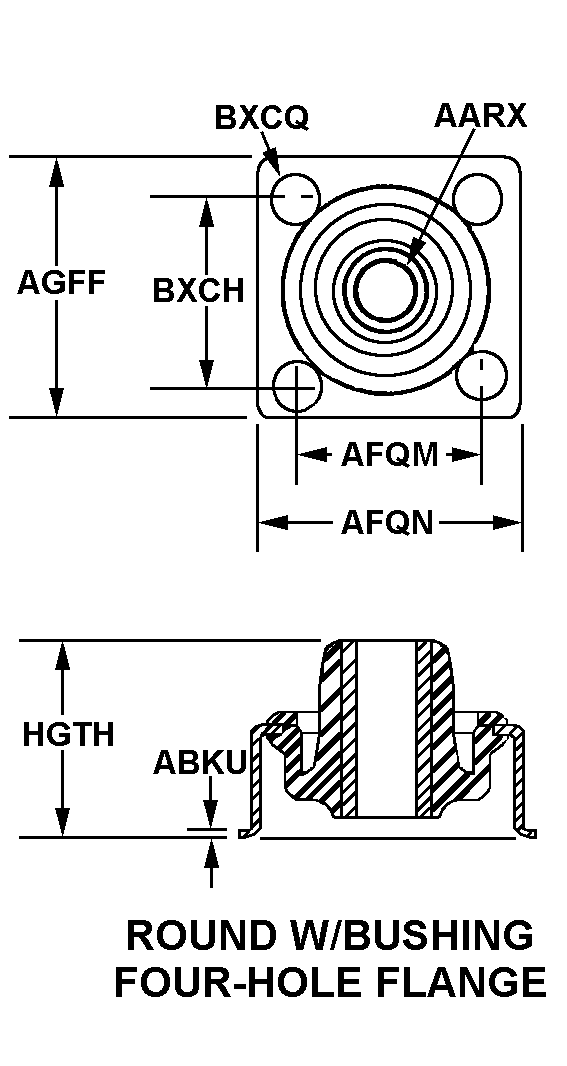

STYLE DESIGNATOR 40 ROUND W/BUSHING FOUR-HOLE FLANGE
INSIDE DIAMETER 0.250 INCHES NOMINAL
FLANGE THICKNESS 0.060 INCHES NOMINAL
DISTANCE BETWEEN MOUNTING HOLE CENTERS 1.938 INCHES NOMINAL
FLANGE LENGTH 2.380 INCHES NOMINAL
FLANGE WIDTH 2.380 INCHES NOMINAL
SHORTEST DISTANCE BETWEEN MOUNTING HOLE CENTERS 1.938 INCHES NOMINAL
FLANGE MOUNTING HOLE DIAMETER 0.196 INCHES NOMINAL
HEIGHT 1.090 INCHES MINIMUM AND 1.180 INCHES MAXIMUM
MAXIMUM LOAD RATING 40.0 POUNDS
SPECIAL FEATURES VENDOR ITEM DRAWING
PART NAME ASSIGNED BY CONTROLLING AGENCY ISOLATOR,SHOCK
