NSN 5342-01-540-7932 3M9754C2070, 3M975-4C2-070, 01-540-7932
Product Details | QUICK RELEASE PIN RECEPTACLE
5342-01-540-7932 An item, usually cylindrical and spring loaded, furnished with a mounting flange used to secure a PIN, QUICK RELEASE by engaging the ball detents of the PIN, QUICK RELEASE, and securing it by means of its spring action.
Part Alternates: 3M9754C2070, 3M975-4C2-070, 5342-01-540-7932, 01-540-7932, 5342015407932, 015407932
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 JUN 2006 | 01-540-7932 | 61432 ( RECEPTACLE, QUICK RELEASE PIN ) |

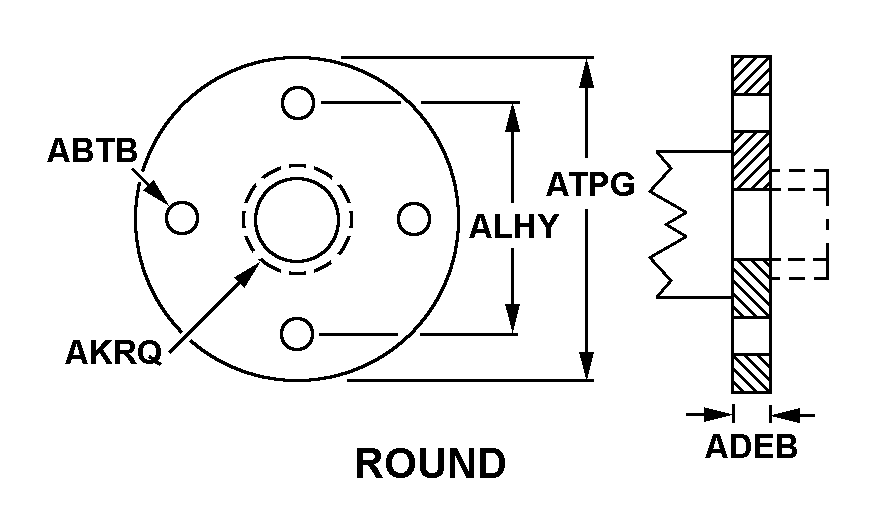

Drawings & Photos | NSN 5342-01-540-7932
Cross Reference | NSN 5342-01-540-7932
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3M975-4C2-070 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-01-540-7932
Related Products | NSN 5342-01-540-7932
Technical Data | NSN 5342-01-540-7932
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | -AMS-5643 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| BODY LENGTH | 1.250 INCHES NOMINAL |
| PLATE DIAMETER | 1.281 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.128 INCHES MINIMUM AND 0.133 INCHES MAXIMUM |
| BODY DIAMETER | 0.375 INCHES NOMINAL |
| MOUNTING PLATE STYLE | 4 ROUND |
| MOUNTING HOLE CIRCLE DIAMETER | 1.000 INCHES NOMINAL |
| PIN ACCOMMODATION DIAMETER | 0.250 INCHES MINIMUM AND 0.253 INCHES MAXIMUM |
| PLATE THICKNESS | 0.163 INCHES NOMINAL |
| MATERIAL ACCOMMODATED THICKNESS | 0.070 INCHES NOMINAL |
| MOUNTING PLATE TYPE | FLUSH |
Restrictions/Controls & Freight Information | NSN 5342-01-540-7932
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
