Product Details | WEAPON SYSTEM RESILIENT MOUNT
5342-00-200-7612 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads.
Part Alternates: A630760G2, AC33B54522, AC33B5452-2, AN8008, AN8008F2, 6600551227, 6600-551227, 100P2, 100PL2, 10221F2, 1022-1F2, 142021, 2574034, 257-4034, 2Z84025, 2Z8402-5, 5342-00-200-7612, 00-200-7612, 5342002007612, 002007612
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-200-7612 | 53589 ( MOUNT, RESILIENT, WEAPON SYSTEM ) |

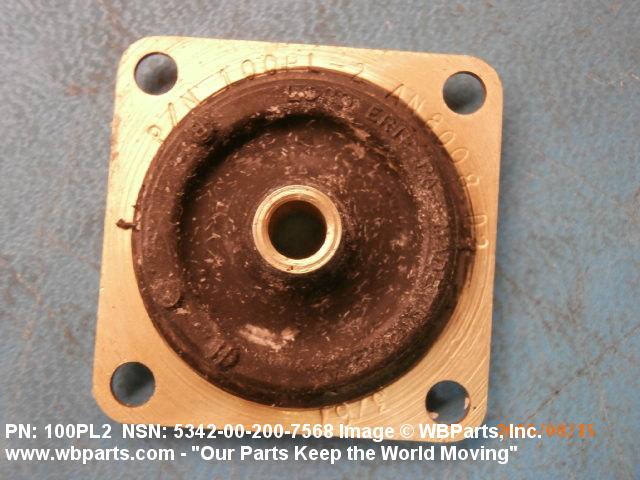

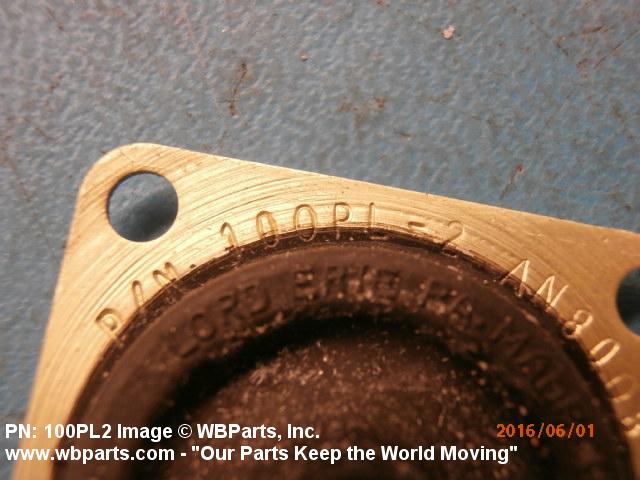

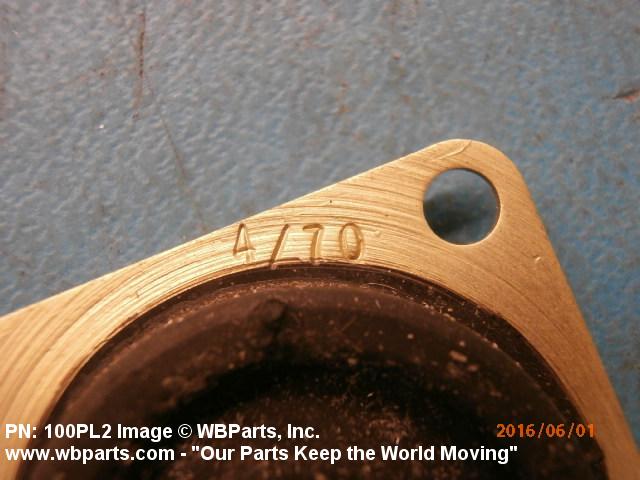

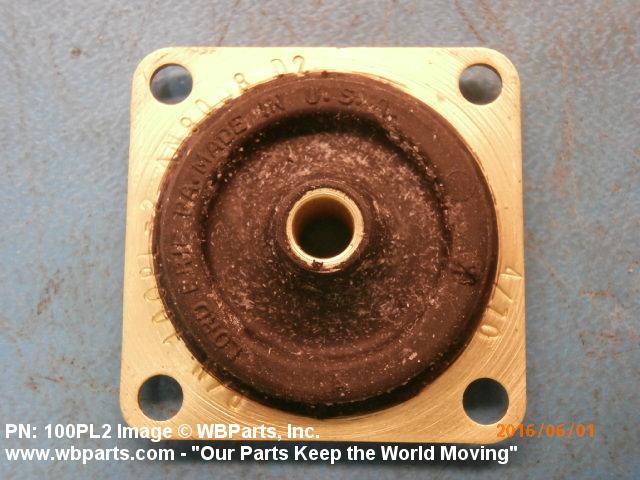

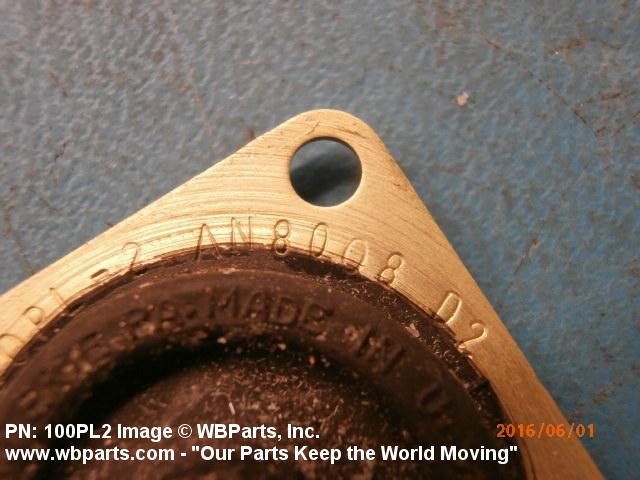

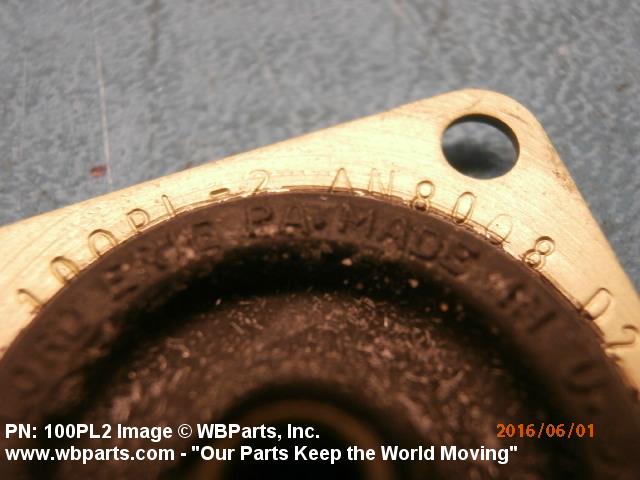

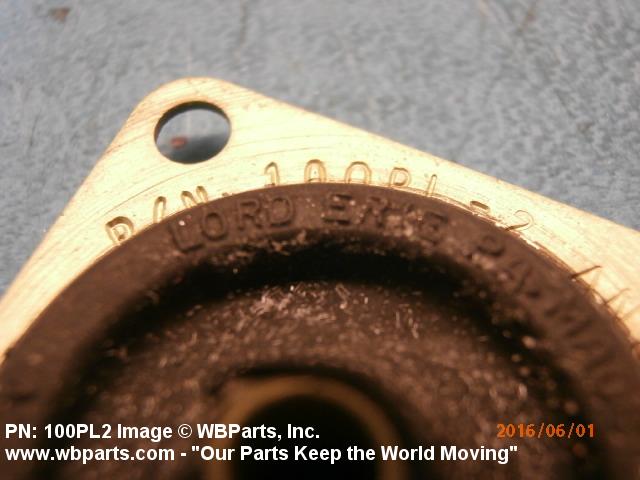

Drawings & Photos | NSN 5342-00-200-7612
Demand History | NSN 5342-00-200-7612
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 100PL2 | 2020-12-14 | 81 | DIBBS |
| AN8008F2 | 2020-12-14 | 81 | DIBBS |
| 5342-00-200-7612 | 2017-12-22 | 83 | DIBBS |
| 5342-00-200-7612 | 2017-12-21 | 83 | DIBBS |
| 5342-00-200-7612 | 2015-03-23 | 84 | DIBBS |
| 5342-00-200-7612 | 2011-09-06 | 167 | DIBBS |
| 5342-00-200-7612 | 2011-08-16 | 176 | DIBBS |
| 5342-00-200-7612 | 2011-05-19 | 34 | DIBBS |
| AN8008 | 2010-11-08 | 1 | Saudi Arabia |
| 100P2 | 2010-03-18 | 50 | US |
| 5342-00-200-7612 | 2009-06-01 | 306 | DIBBS |
Cross Reference | NSN 5342-00-200-7612
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100P2 | 76005 | LORD CORPORATION DBA AEROSPACE DIVISION |
| 100PL2 | 76005 | LORD CORPORATION DBA AEROSPACE DIVISION |
| 1022-1F2 | 27387 | TENNECO INC. DBA TENNECO |
| 142021 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 257-4034 | 11530 | LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN INFORMATION |
| 2Z8402-5 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| 6600-551227 | 97151 | AIR FORCE LOGISTICS COMMAND 88 0SS OSE |
| A630760G2 | 37695 | RAYTHEON COMPANY DBA RAYTHEON |
| AC33B5452-2 | 80049 | DEPARTMENT OF THE AIR FORCE |
| AN8008 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| AN8008F2 | 6K404 | BASIC RUBBER AND PLASTICS CO. |
| AN8008F2 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5342-00-200-7612
Related Products | NSN 5342-00-200-7612
5342-00-200-7623, 5342-00-200-7624, 5342-00-200-7625, 5342-00-200-7698, 5342-00-200-7700
Technical Data | NSN 5342-00-200-7612
| Characteristic | Specifications |
|---|---|
| RESILIENT MEMBER MATERIAL | RUBBER |
| NONMETALLIC HARDNESS RATING | NOT RATED |
| RIGID MEMBER MATERIAL AND LOCATION | STEEL OVERALL |
| RIGID MEMBER SURFACE TREATMENT AND LOCATION | CADMIUM OVERALL |

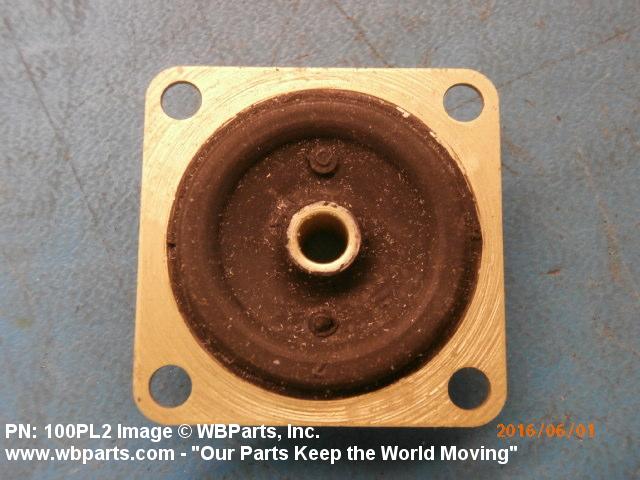

| STYLE DESIGNATOR | C31 ROUND W/BUSHING FOUR-HOLE FLANGE |

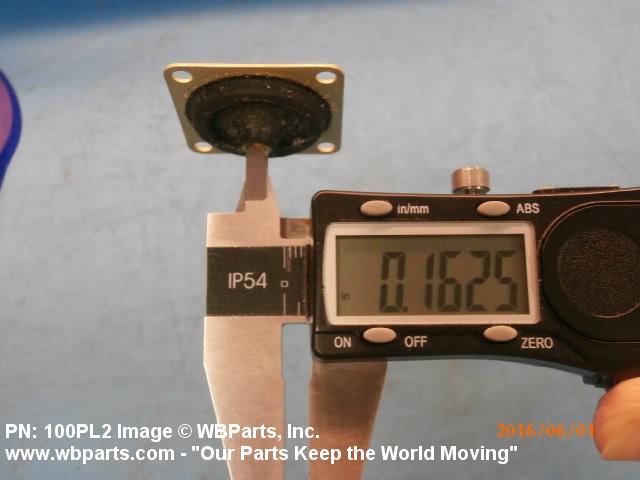

| INSIDE DIAMETER | 0.166 INCHES NOMINAL |

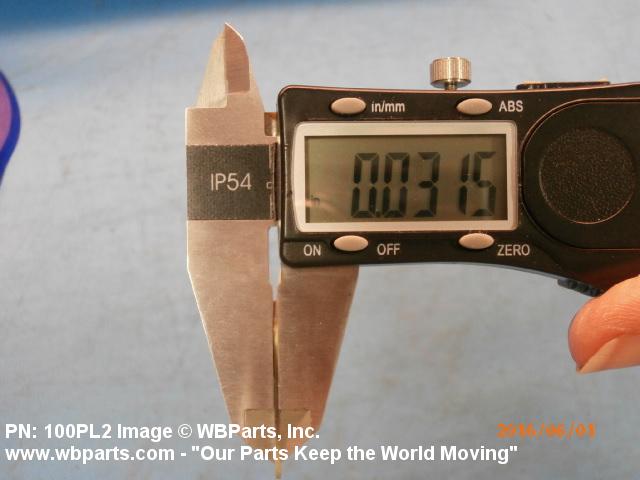

| FLANGE THICKNESS | 0.035 INCHES NOMINAL |

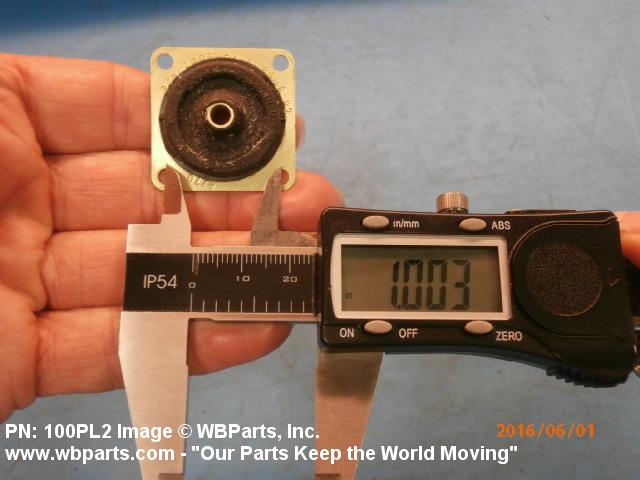

| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.000 INCHES NOMINAL |

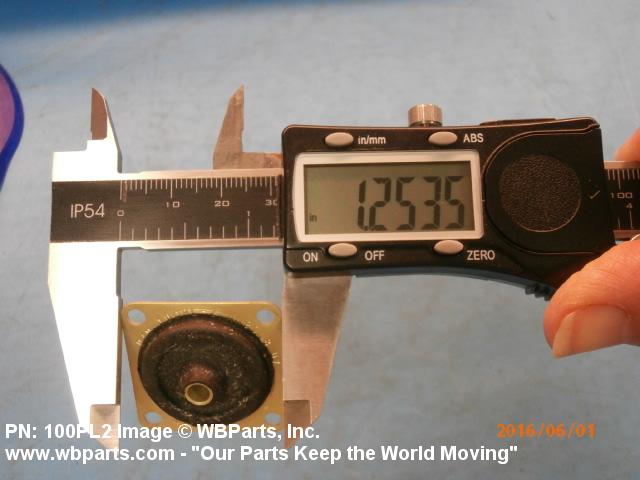

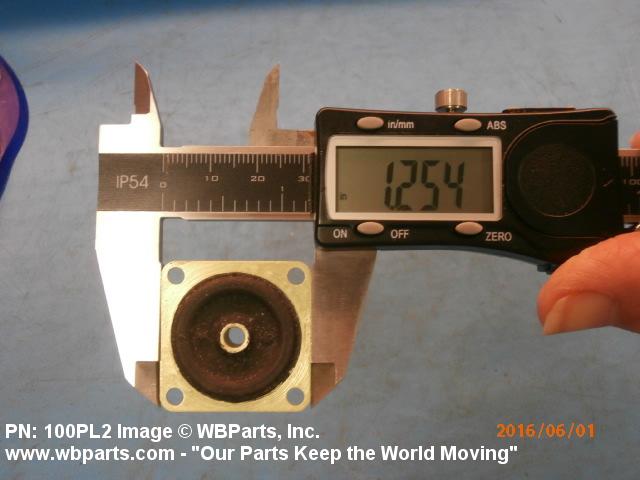

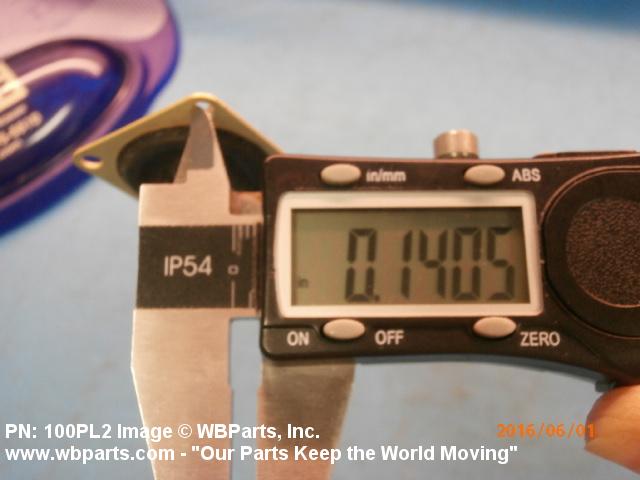

| FLANGE LENGTH | 1.250 INCHES NOMINAL |
| FLANGE WIDTH | 1.250 INCHES NOMINAL |
| DISTANCE FROM FLANGE TO END | 0.235 INCHES NOMINAL |
| SHORTEST DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.000 INCHES NOMINAL |
| FLANGE MOUNTING HOLE DIAMETER | 0.141 INCHES NOMINAL |

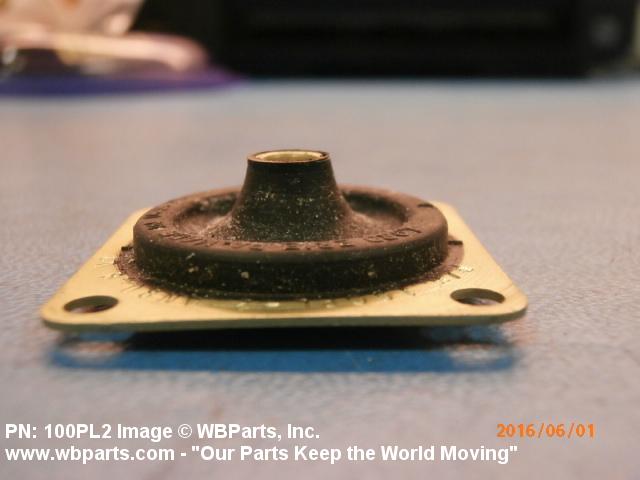

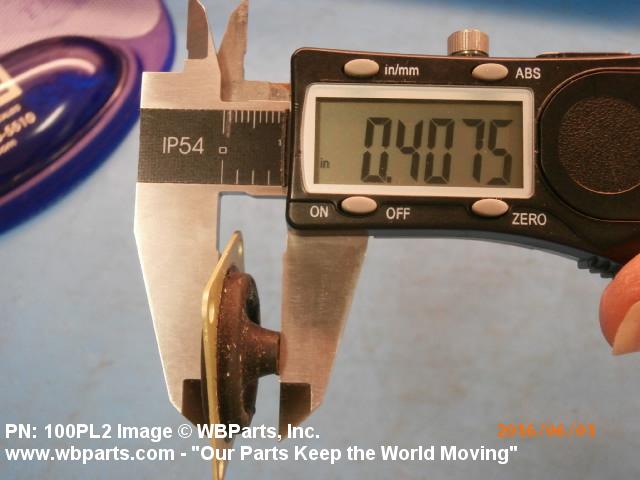

| HEIGHT | 0.406 INCHES NOMINAL |
| STATIC LOAD RATING AT SPECIFIED DEFLECTION | 2 LB LOAD AT 1/16 IN. DEFLECTION |
| LOAD/FREQUENCY RANGE | RATING NOT SPECIFIED |
| MAXIMUM LOAD RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5342-00-200-7612
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Q | 36 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093600 | BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
