NSN 5342-00-200-7568 A630760G10, AN8008, AN8008D2

Product Details | WEAPON SYSTEM RESILIENT MOUNT

5342-00-200-7568 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads.

Part Alternates: A630760G10, AN8008, AN8008D2, D100S2, 575R144H01, 10060, 100PL, 100PL2, 100PLN2, 101712, 1017-1-2, 10221D2, 1022-1D2, 5342-00-200-7568, 00-200-7568, 5342002007568, 002007568

Hardware and Abrasives | Hardware, Weapon System

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-200-7568	53589 ( MOUNT, RESILIENT, WEAPON SYSTEM )

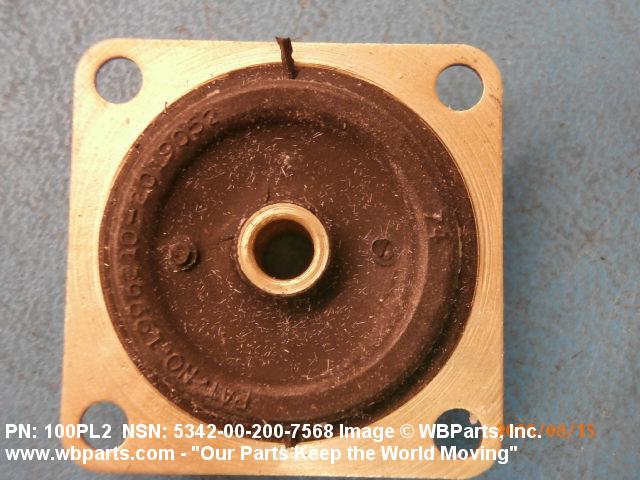

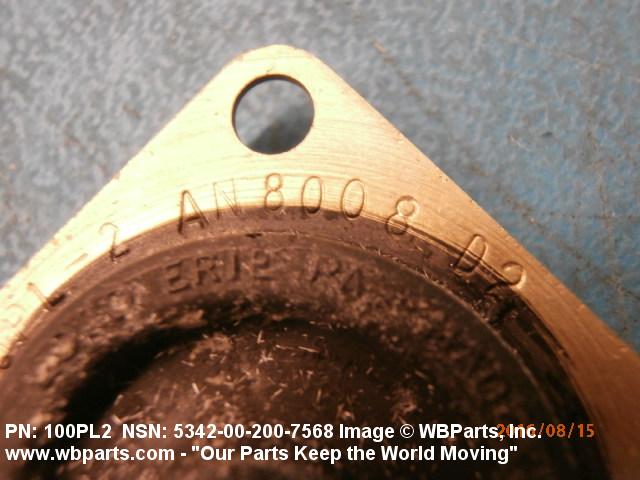

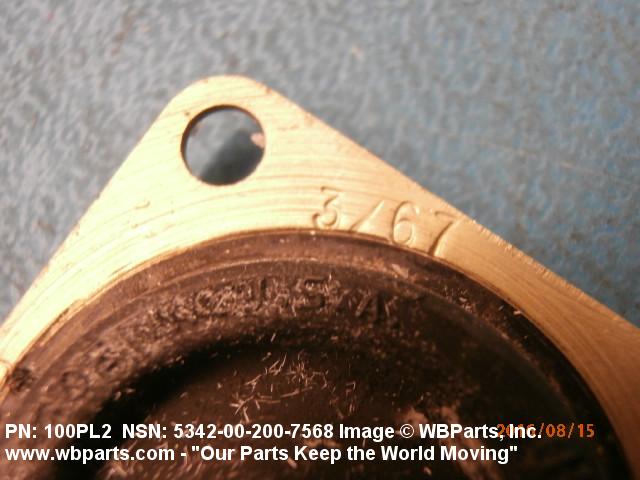

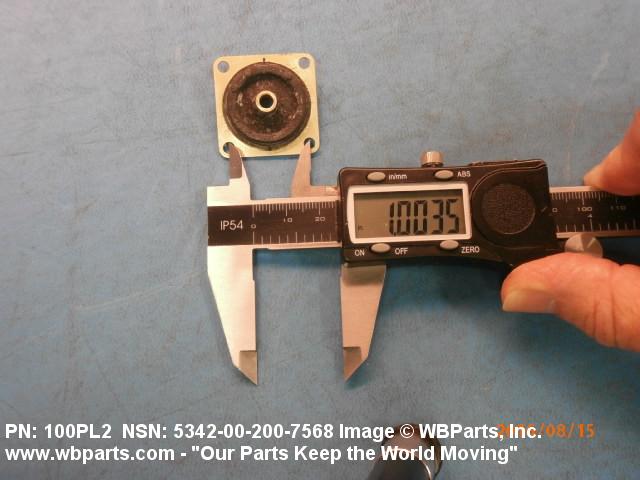

Drawings & Photos | NSN 5342-00-200-7568

Part Number	Request Date	QTY	Origin
5342-00-200-7568	2024-10-288	40	SA
5342-00-200-7568	2024-03-73	20	Malaysia
5342-00-200-7568	2024-03-72	20	Malaysia
5342-00-200-7568	2023-11-306	5	US
5342-00-200-7568	2022-11-324	193	DIBBS
5342-00-200-7568	2022-08-226	94	DIBBS
5342-00-200-7568	2022-04-91	160	Malaysia
5342-00-200-7568	2022-03-82	424	DIBBS
100PLN2	2022-02-34	100	US
5342-00-200-7568	2021-12-356	28	Malaysia
5342-00-200-7568	2021-11-312	700	Malaysia
5342-00-200-7568	2021-11-306	20	MY
5342-00-200-7568	2021-10-303	28	Malaysia
5342-00-200-7568	2021-10-298	28	Malaysia
5342-00-200-7568	2021-09-269	28	Malaysia
5342-00-200-7568	2018-09-264	12	US
5342-00-200-7568	2017-10-299	1	DIBBS-RFPs
100PLN2	2016-11-328	200	Turkey
5342-00-200-7568	2016-07-202	8	United States
5342-00-200-7568	2016-05-138	8	United States
5342-00-200-7568	2016-05-138	8	United States
5342-00-200-7568	2016-04-92	8	United States
5342-00-200-7568	2016-03-91	16	United States
5342-00-200-7568	2015-11-317	4	us
5342-00-200-7568	2015-04-106	8	United States
5342-00-200-7568	2015-02-35	56	Hong Kong
5342-00-200-7568	2013-09-260	561	DIBBS
5342-00-200-7568	2013-06-156	656	DIBBS
AN8008	2010-11-312	1	Saudi Arabia
5342-00-200-7568	2008-03-86	436	DIBBS
5342-00-200-7568	2008-01-25	1344	DIBBS

Cross Reference | NSN 5342-00-200-7568

Part Number	Cage Code	Manufacturer
10060	76005	LORD CORPORATION DBA AEROSPACE DIVISION
100PL	76005	LORD CORPORATION DBA AEROSPACE DIVISION
100PL2	76005	LORD CORPORATION DBA AEROSPACE DIVISION
100PLN2	76005	LORD CORPORATION DBA AEROSPACE DIVISION
1017-1-2	27387	TENNECO INC. DBA TENNECO
1022-1D2	27387	TENNECO INC. DBA TENNECO
575R144H01	79500	WESTINGHOUSE ELECTRIC CORP
575R144H01	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
A630760G10	37695	RAYTHEON COMPANY DBA RAYTHEON
AN8008	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
AN8008D2	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
D100S2	73808	CONTINENTAL TIRE THE AMERICAS, LLC DBA CONTINENTAL TIRES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5342-00-200-7568

Compare

Related Products | NSN 5342-00-200-7568

5342-00-200-7570, 5342-00-200-7572, 5342-00-200-7575, 5342-00-200-7576, 5342-00-200-7577

Technical Data | NSN 5342-00-200-7568

Characteristic	Specifications
RESILIENT MEMBER MATERIAL	RUBBER
NONMETALLIC HARDNESS RATING	NOT RATED
RIGID MEMBER MATERIAL AND LOCATION	ALUMINUM ALLOY OVERALL
RIGID MEMBER SURFACE TREATMENT AND LOCATION	ANODIZED OVERALL
STYLE DESIGNATOR	C31 ROUND W/BUSHING FOUR-HOLE FLANGE

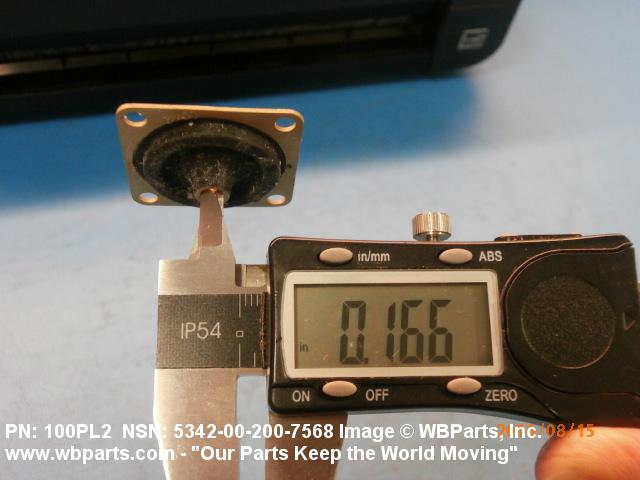

INSIDE DIAMETER	0.166 INCHES NOMINAL

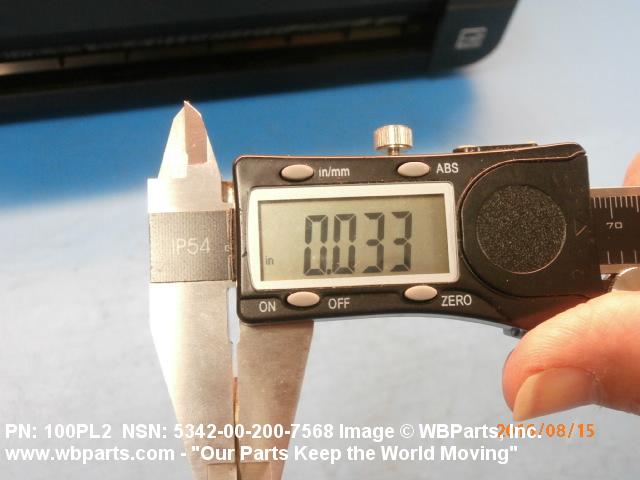

FLANGE THICKNESS	0.035 INCHES NOMINAL
DISTANCE BETWEEN MOUNTING HOLE CENTERS	1.000 INCHES NOMINAL

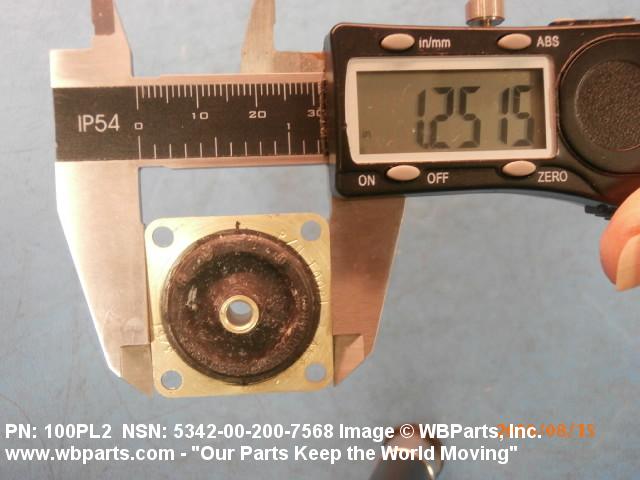

FLANGE LENGTH	1.250 INCHES NOMINAL

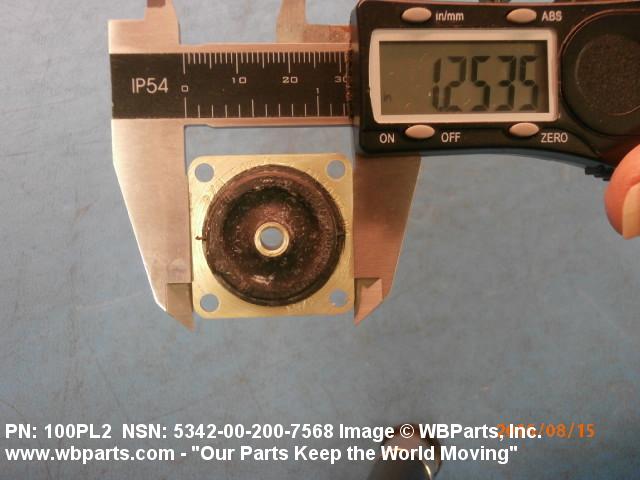

FLANGE WIDTH	1.250 INCHES NOMINAL
DISTANCE FROM FLANGE TO END	0.235 INCHES NOMINAL
SHORTEST DISTANCE BETWEEN MOUNTING HOLE CENTERS	1.000 INCHES NOMINAL

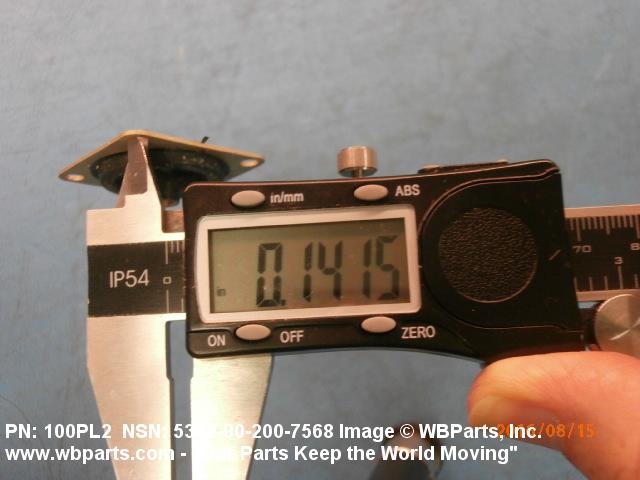

FLANGE MOUNTING HOLE DIAMETER	0.141 INCHES NOMINAL
HEIGHT	0.406 INCHES NOMINAL
STATIC LOAD RATING AT SPECIFIED DEFLECTION	2 LB LOAD RATING AT 1/16 IN. DEFLECTION
LOAD/FREQUENCY RANGE	RATING NOT SPECIFIED
MAXIMUM LOAD RATING	NOT RATED
MANUFACTURERS CODE	88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN8008D2

Restrictions/Controls & Freight Information | NSN 5342-00-200-7568

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	Q	36 months
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	013120	ALUMINUM ARTICLE NOI SUB 6
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5342-00-200-7568

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Q	36 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Q	36 months
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	Q	36 months
Purchasing	QTY UOM	1 EA : Each
