NSN 5342-00-687-5684 NE2030, J757650, J7576-50
Product Details | WEAPON SYSTEM RESILIENT MOUNT
5342-00-687-5684 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads.
Part Alternates: NE2030, J757650, J7576-50, MILM19379, MIL-M-19379, 10M50, 311111, 31111-1, 31111-1/12 , 31111112, 5486661 ITEM 84, 5486661ITEM84, 6394540 FIND 5, 6394540FIND5, 8031385824TYPE10M50, 803-1385824TYPE10M50, 5342-00-687-5684, 00-687-5684, 5342006875684, 006875684
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 JUL 1971 | 00-687-5684 | 53589 ( MOUNT, RESILIENT, WEAPON SYSTEM ) |

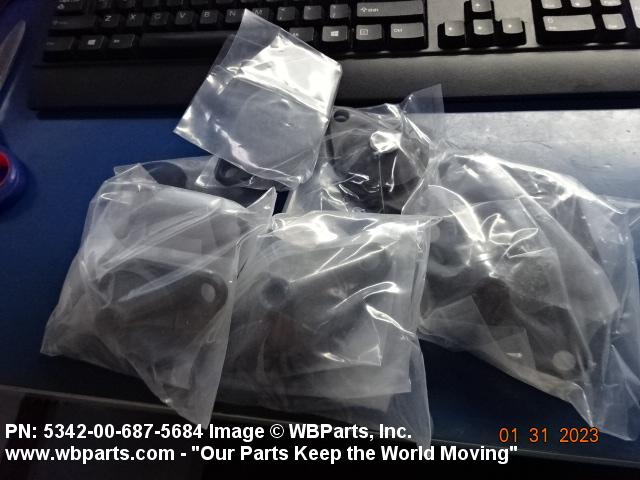

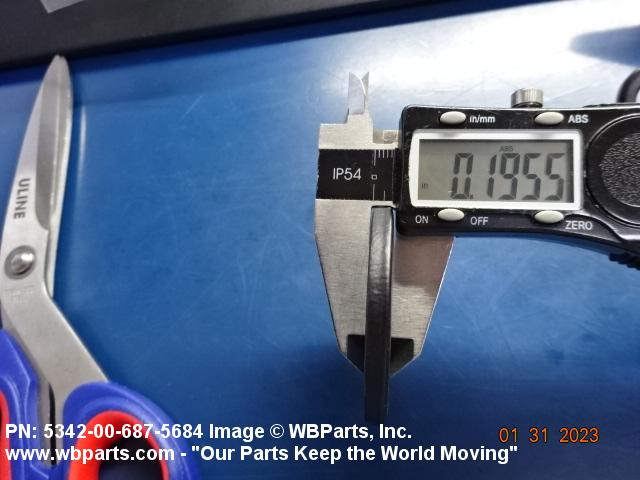

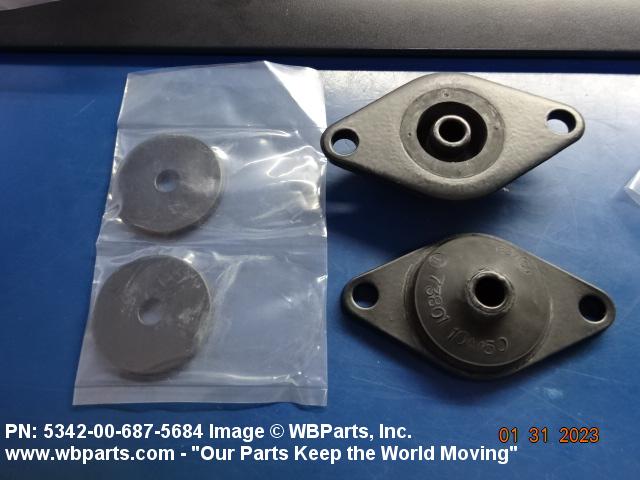

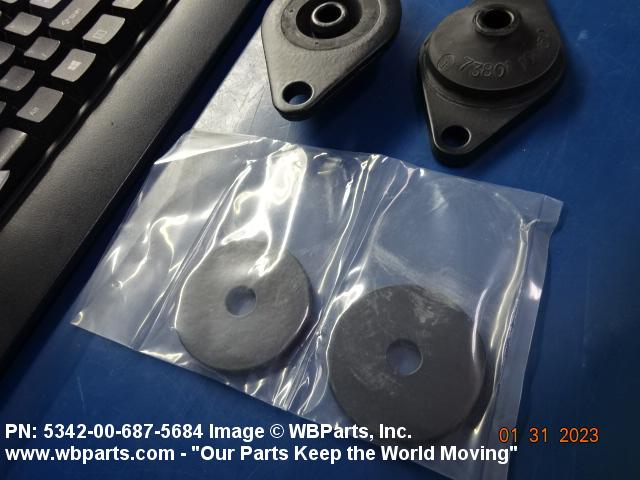

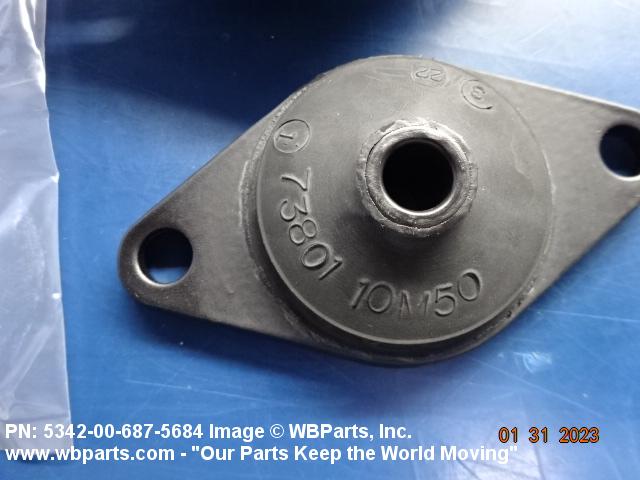

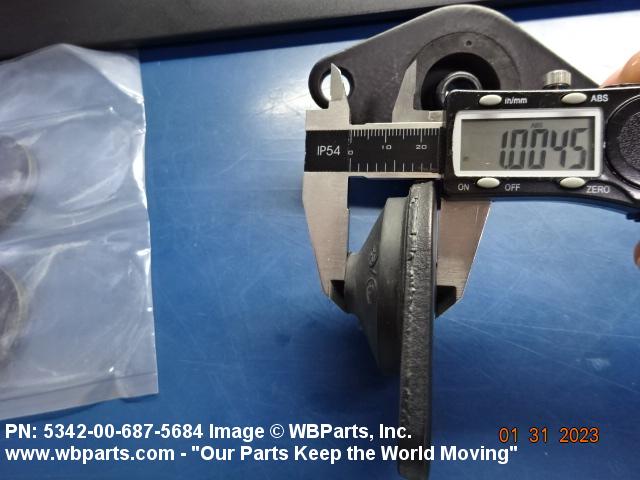

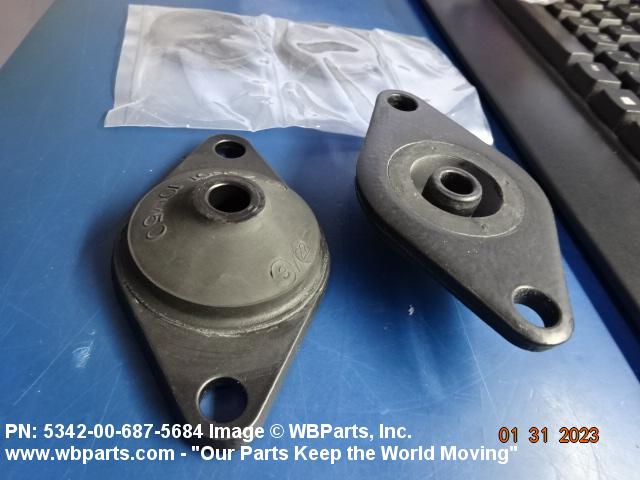

Drawings & Photos | NSN 5342-00-687-5684
Demand History | NSN 5342-00-687-5684
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-00-687-5684 | 2024-09-249 | 12 | United States |
| 5342-00-687-5684 | 2024-09-249 | 8 | United States |
| 5342-00-687-5684 | 2024-09-248 | 4 | US |
| 5342-00-687-5684 | 2024-09-248 | 4 | United States |
| 5342-00-687-5684 | 2023-10-299 | 8 | US |
| 10M50 | 2023-03-69 | 4 | UM |
| 5342-00-687-5684 | 2023-01-17 | 4 | United States |
| 5342-00-687-5684 | 2021-09-266 | 4 | GU |
| 5342-00-687-5684 | 2021-03-81 | 4 | US |
| 5342-00-687-5684 | 2020-04-98 | 40 | US |
| 5342-00-687-5684 | 2018-09-269 | 100 | us |
| 5342-00-687-5684 | 2018-03-87 | 1458 | DIBBS |
| 5342-00-687-5684 | 2018-02-52 | 1064 | DIBBS |
| 5342-00-687-5684 | 2018-01-24 | 1 | DIBBS-RFPs |
| 5342-00-687-5684 | 2017-12-348 | 12 | United States |
| 5342-00-687-5684 | 2017-11-332 | 1446 | DIBBS |
| 10M50 | 2017-11-319 | 8 | us |
| 5342-00-687-5684 | 2017-08-233 | 1694 | DIBBS |
| 10M50 | 2017-04-116 | 193 | US |
| 5342-00-687-5684 | 2013-10-290 | 1 | DIBBS-RFPs |
| 5342-00-687-5684 | 2011-09-244 | 13 | US |
| 5342-00-687-5684 | 2011-02-55 | 2000 | DIBBS |
| 5342-00-687-5684 | 2011-02-48 | 2000 | DIBBS |
| 5342-00-687-5684 | 2010-11-319 | 2800 | DIBBS |
| 5342-00-687-5684 | 2010-11-309 | 4000 | DIBBS |
| 5342-00-687-5684 | 2010-10-295 | 4000 | DIBBS |
| 5342-00-687-5684 | 2010-10-292 | 1900 | DIBBS |
| 5342-00-687-5684 | 2010-09-251 | 20 | DIBBS |
| 5342-00-687-5684 | 2010-07-182 | 3500 | DIBBS |
| 5342-00-687-5684 | 2010-06-167 | 1250 | DIBBS |
| 5342-00-687-5684 | 2010-06-153 | 1250 | DIBBS |
| 5342-00-687-5684 | 2010-05-137 | 2500 | DIBBS |
| 5342-00-687-5684 | 2010-05-133 | 2500 | DIBBS |
| 5342-00-687-5684 | 2009-11-316 | 2428 | DIBBS |
| 5342-00-687-5684 | 2009-10-281 | 1047 | DIBBS |
| 5342-00-687-5684 | 2009-01-21 | 12 | United States |
| 5342-00-687-5684 | 2008-12-344 | 1028 | DIBBS |
| 5342-00-687-5684 | 2008-10-296 | 257 | DIBBS |
| 5342-00-687-5684 | 2008-10-284 | 1032 | DIBBS |
| 5342-00-687-5684 | 2008-09-261 | 2210 | DIBBS |
| 5342-00-687-5684 | 2008-07-189 | 492 | DIBBS |
| 5342-00-687-5684 | 2008-04-106 | 584 | DIBBS |
| 5342-00-687-5684 | 2008-01-15 | 430 | DIBBS |
Cross Reference | NSN 5342-00-687-5684
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10M50 | 18444 | OIL STATES INDUSTRIES, INC DBA SPECIAL PRODUCTS DIV |
| 10M50 | 73801 | GREENE RUBBER COMPANY, INC. |
| 10M50 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 10M50 | 81860 | BARRY WRIGHT CORPORATION DBA BARRY CONTROLS |
| 31111-1 | 81860 | BARRY WRIGHT CORPORATION DBA BARRY CONTROLS |
| 31111-1/12 | 81860 | BARRY WRIGHT CORPORATION DBA BARRY CONTROLS |
| 5486661 ITEM 84 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 6394540 FIND 5 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 803-1385824TYPE10M50 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| J7576-50 | 25472 | BFGOODRICH CO THE |
| J7576-50 | 76005 | LORD CORPORATION DBA AEROSPACE DIVISION |
| MIL-M-19379 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NE2030 | 24664 | JONAL LABORATORIES INCORPORATED |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-00-687-5684
Related Products | NSN 5342-00-687-5684
Technical Data | NSN 5342-00-687-5684
| Characteristic | Specifications |
|---|---|
| RESILIENT MEMBER MATERIAL | RUBBER, SYNTHETIC |
| NONMETALLIC HARDNESS RATING | NOT RATED |
| RIGID MEMBER MATERIAL AND LOCATION | STEEL MOUNTING FLANGE PLATE STEEL CENTER PLATE STEEL CORE |
| STYLE DESIGNATOR | C45 ROUND W/FLANGED BUSHING TWO-HOLE FLANGE |

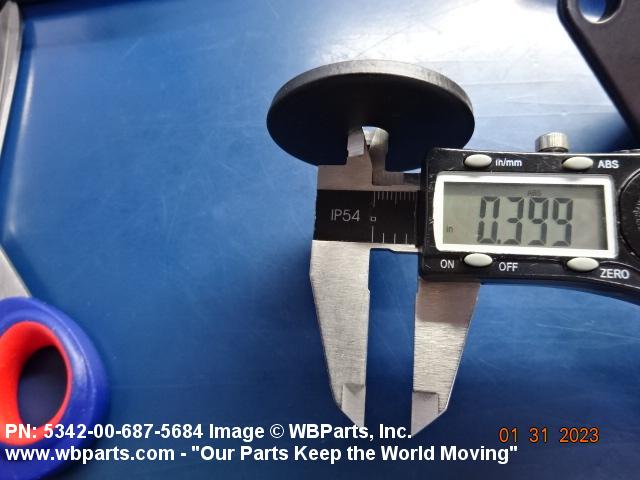

| INSIDE DIAMETER | 0.391 INCHES NOMINAL |

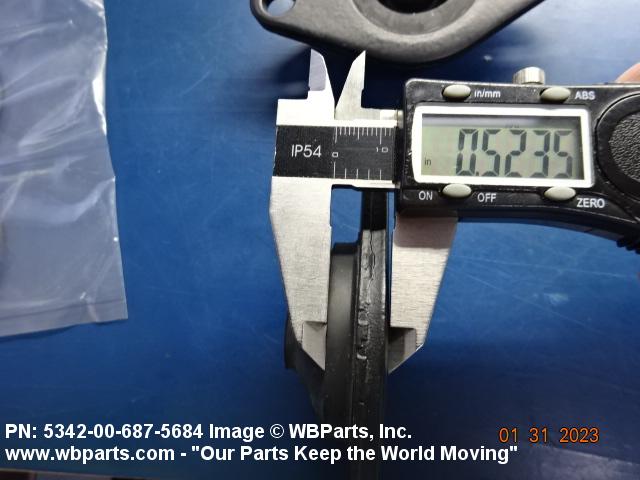

| FLANGE THICKNESS | 0.500 INCHES NOMINAL |

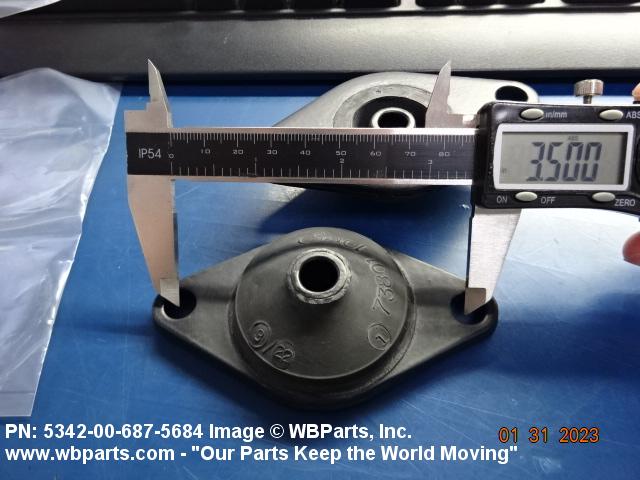

| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 3.500 INCHES NOMINAL |

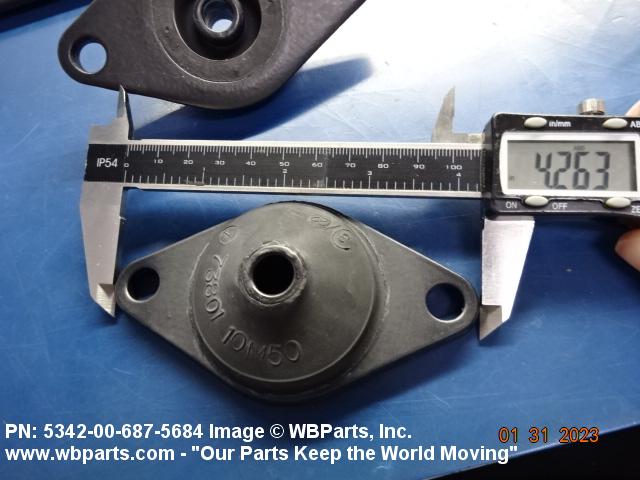

| FLANGE LENGTH | 4.250 INCHES NOMINAL |

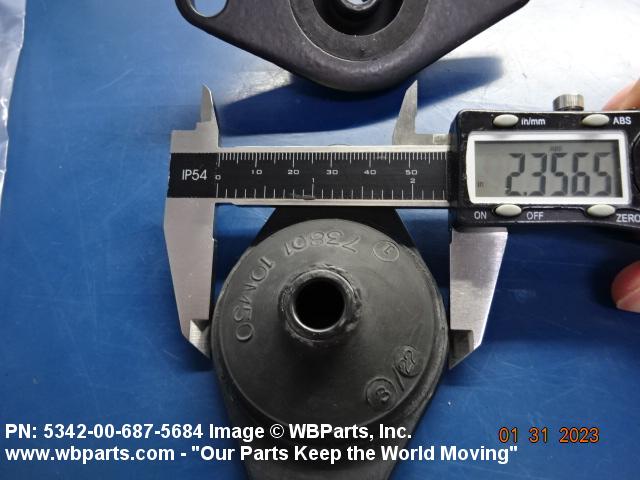

| FLANGE WIDTH | 2.375 INCHES NOMINAL |
| DISTANCE FROM FLANGE TO END | 1.435 INCHES NOMINAL |

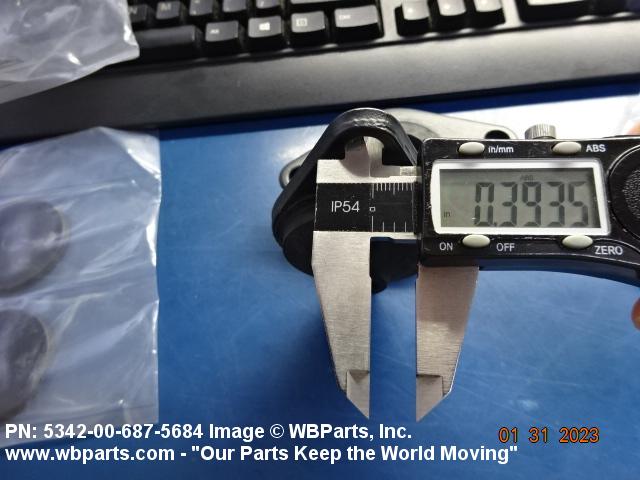

| FLANGE MOUNTING HOLE DIAMETER | 0.391 INCHES NOMINAL |
| HEIGHT | 2.375 INCHES NOMINAL |
| LOAD/FREQUENCY RANGE | 50 LB LOAD FOR 10 HERTZ |
| MAXIMUM LOAD RATING | 50.0 POUNDS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-M-19379 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | 10M50 |
Restrictions/Controls & Freight Information | NSN 5342-00-687-5684
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | T | 84 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-00-687-5684
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | T | 84 months |
| Purchasing | QTY UOM |
1 EA : Each |
