NSN 5342-00-687-5762 42731157S, 4273-1157S, 99303-1157
Product Details | GROOVED CLAMP COUPLING
5342-00-687-5762 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.
Part Alternates: 42731157S, 4273-1157S, 99303-1157, 5342-00-687-5762, 00-687-5762, 5342006875762, 006875762, 993031157
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-687-5762 | 20319 ( COUPLING, CLAMP, GROOVED ) |
Drawings & Photos | NSN 5342-00-687-5762
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-00-687-5762
Related Products | NSN 5342-00-687-5762
Technical Data | NSN 5342-00-687-5762
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | 1 GROOVED RETAINER |
| RETAINER THICKNESS | 0.032 INCHES NOMINAL |
| RETAINER WIDTH | 0.500 INCHES NOMINAL |
| ROOT WIDTH | 0.156 INCHES NOMINAL |
| BAND THICKNESS | 0.025 INCHES NOMINAL |
| BAND WIDTH | 0.625 INCHES NOMINAL |
| HEIGHT | 0.218 INCHES NOMINAL |
| INCLUDED ANGLE IN DEG | 40.0 |
| MATERIAL AND LOCATION | STEEL NUT STEEL MIL-S-8695 BOLT STEEL, MIL-S-5059, TYPE 301, 1/4 HARD BAND STEEL, MIL-S-5059, TYPE 301, 1/4 HARD SEGMENT |
| SHAPE | ROUND |
| INSIDE DIAMETER | 11.570 INCHES NOMINAL |

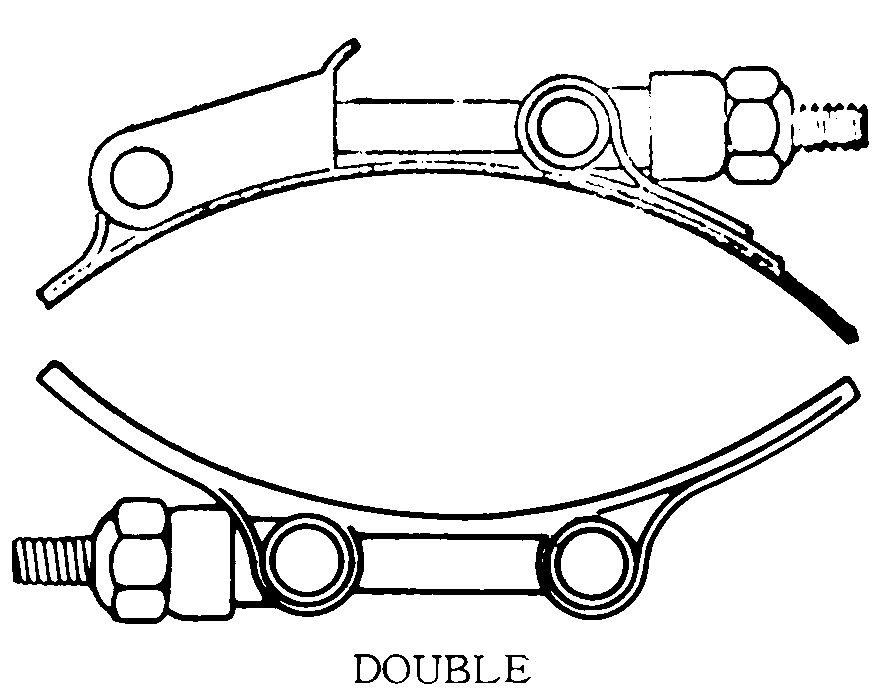

| LATCH STYLE | 56 DOUBLE |
| DRILLED LOCKWIRE HOLE | NOT INCLUDED |
| SEGMENT QUANTITY | 4 |
| SEALING INNER LINER | NOT INCLUDED |
| TEMP RATING | NOT RATED |
| MAXIMUM LOAD RATING | NOT RATED |
| MANUFACTURERS CODE | 00624 |
| DESIGN CONTROL REFERENCE | 4273-1157S |
