NSN 5342-00-688-0213 HT010357, HT01035-7, HT0-7
Product Details | WEAPON SYSTEM RESILIENT MOUNT
5342-00-688-0213 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads.
Part Alternates: HT010357, HT01035-7, HT0-7, GM500N1, HT07, 20884535, 2088453-5, 475838, 9112655, 5342-00-688-0213, 00-688-0213, 5342006880213, 006880213
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-688-0213 | 53589 ( MOUNT, RESILIENT, WEAPON SYSTEM ) |

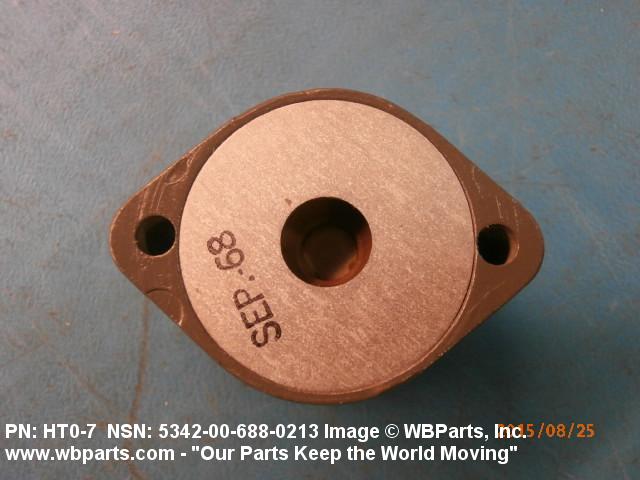

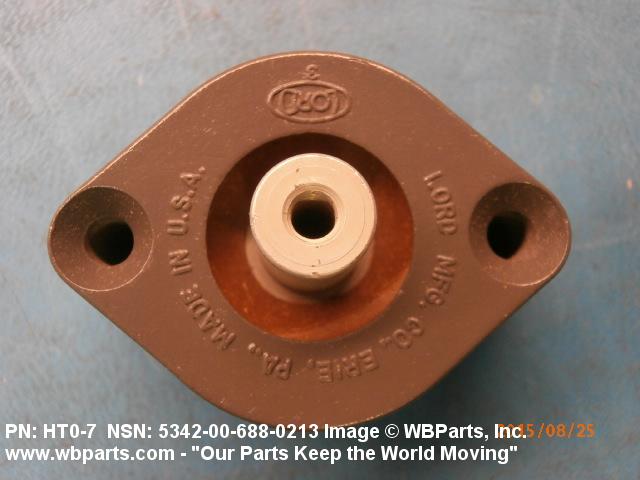

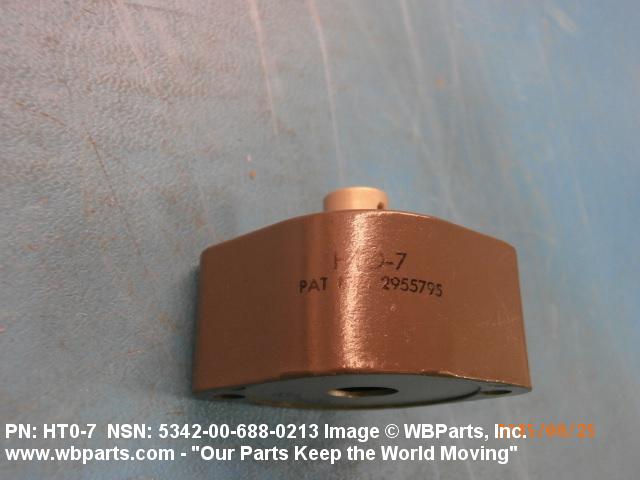

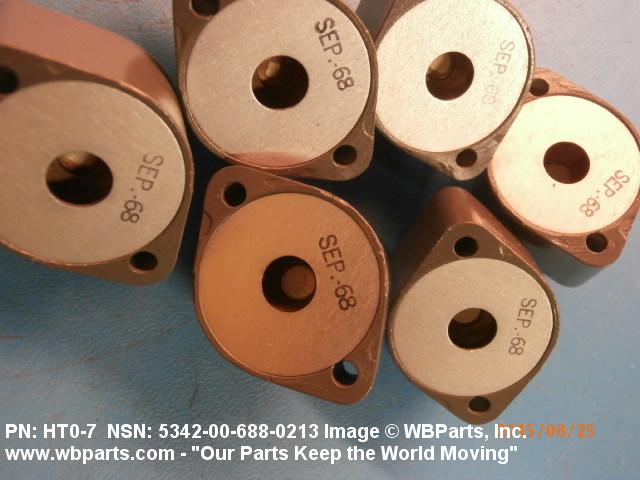

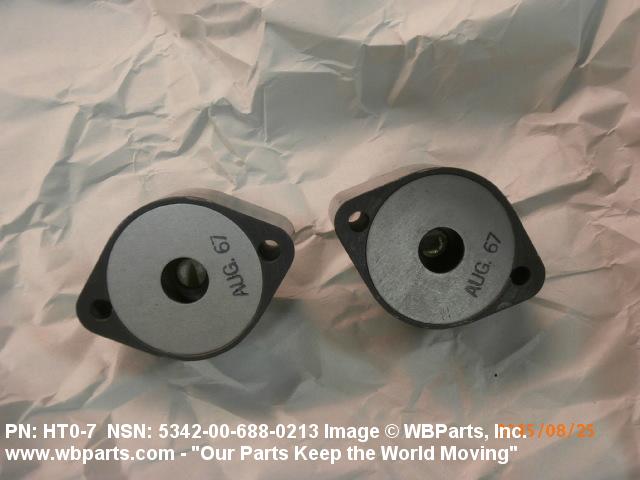

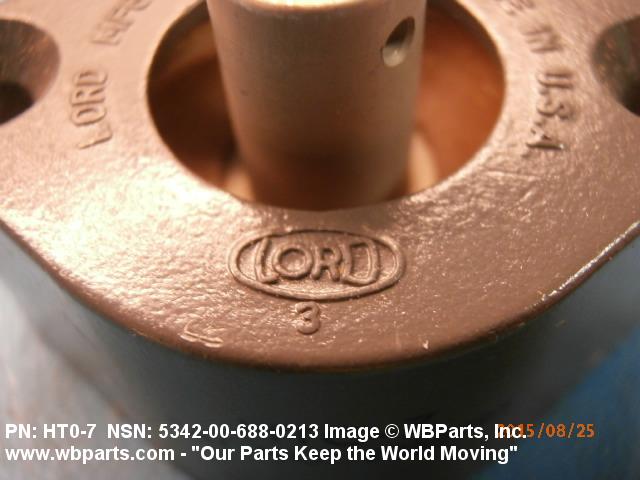

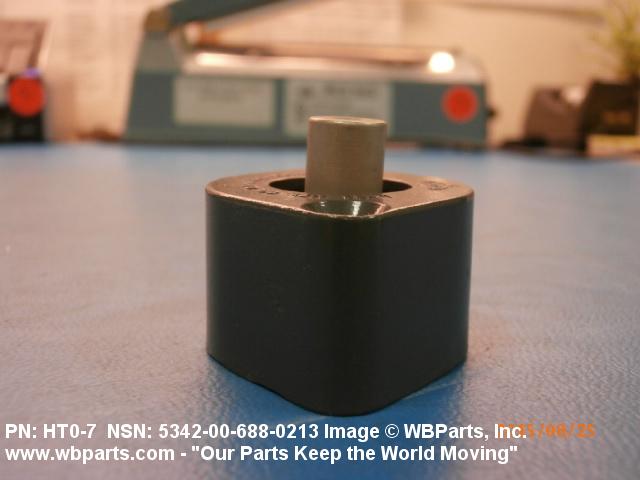

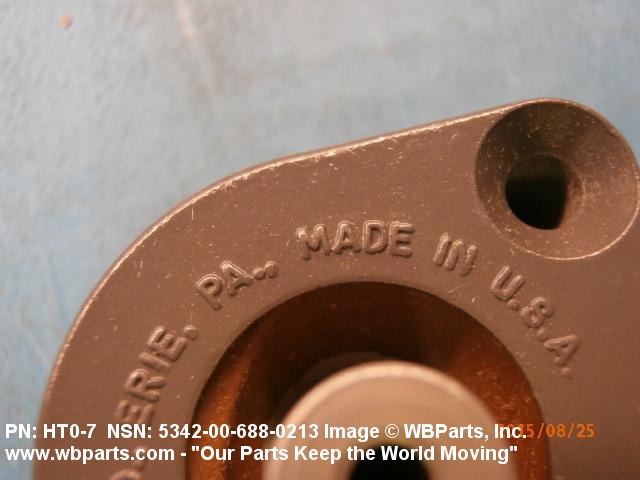

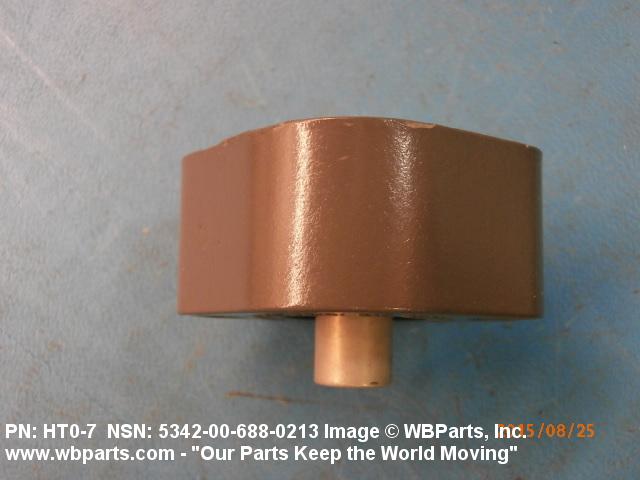

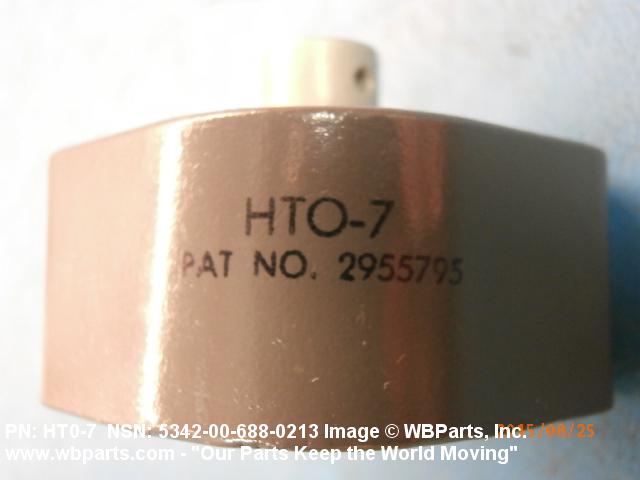

Drawings & Photos | NSN 5342-00-688-0213
Demand History | NSN 5342-00-688-0213
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-00-688-0213 | 2022-06-180 | 50 | DIBBS |
| 5342-00-688-0213 | 2022-06-166 | 50 | DIBBS |
| 5342-00-688-0213 | 2017-01-18 | 53 | DIBBS |
| 5342-00-688-0213 | 2015-10-280 | 48 | DIBBS |
| 5342-00-688-0213 | 2015-09-272 | 48 | DIBBS |
| 5342-00-688-0213 | 2015-08-231 | 1 | United States |
| 5342-00-688-0213 | 2015-08-230 | 8 | United States |
| 5342-00-688-0213 | 2015-06-169 | 8 | United States |
| 5342-00-688-0213 | 2015-05-147 | 106 | DIBBS |
| 5342-00-688-0213 | 2015-05-139 | 106 | DIBBS |
| 5342-00-688-0213 | 2015-05-128 | 74 | DIBBS |
| 5342-00-688-0213 | 2015-04-120 | 74 | DIBBS |
| HT07 | 2015-02-40 | 16 | United States |
| HT07 | 2015-02-40 | 400 | United States |
| 5342-00-688-0213 | 2014-11-307 | 105 | DIBBS |
| 5342-00-688-0213 | 2014-10-287 | 81 | DIBBS |
| 5342-00-688-0213 | 2013-11-332 | 101 | DIBBS |
| 5342-00-688-0213 | 2012-03-75 | 83 | DIBBS |
| 5342-00-688-0213 | 2010-08-221 | 135 | DIBBS |
| 5342-00-688-0213 | 2010-05-140 | 231 | DIBBS |
| 5342-00-688-0213 | 2010-05-125 | 133 | DIBBS |
Cross Reference | NSN 5342-00-688-0213
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2088453-5 | 55901 | DARE ELECTRONICS, INC. |
| 475838 | 94580 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 9112655 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| GM500N1 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |

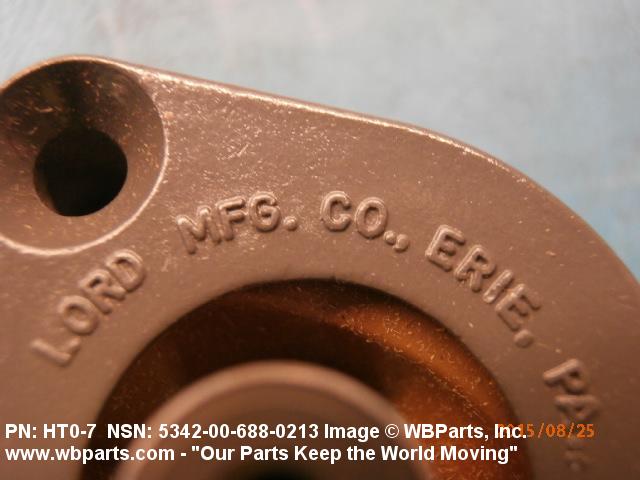

| HT0-7 | 76005 | LORD CORPORATION DBA AEROSPACE DIVISION |
| HT01035-7 | 76005 | LORD CORPORATION DBA AEROSPACE DIVISION |
| HT07 | 76005 | LORD CORPORATION DBA AEROSPACE DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-00-688-0213
Related Products | NSN 5342-00-688-0213
Technical Data | NSN 5342-00-688-0213
| Characteristic | Specifications |
|---|---|
| RESILIENT MEMBER MATERIAL | RUBBER |
| NONMETALLIC HARDNESS RATING | NOT RATED |
| RIGID MEMBER MATERIAL AND LOCATION | ALUMINUM OVERALL |
| RIGID MEMBER SURFACE TREATMENT AND LOCATION | ANODIZED OVERALL |
| STYLE DESIGNATOR | C84 SQUARE W/THREADED STUD TWO-HOLE FLANGE |

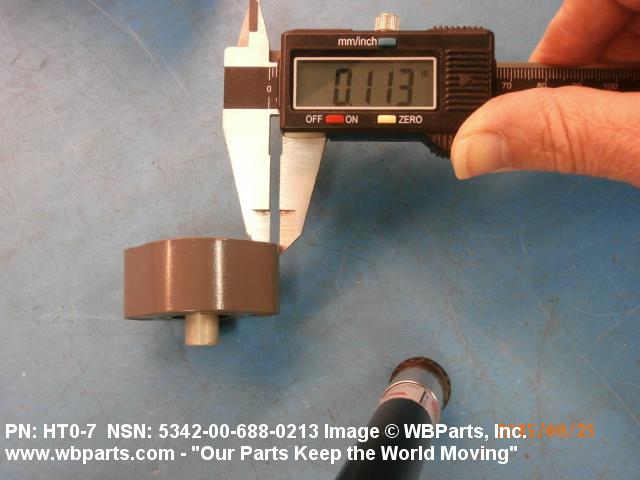

| FLANGE THICKNESS | 0.120 INCHES NOMINAL |

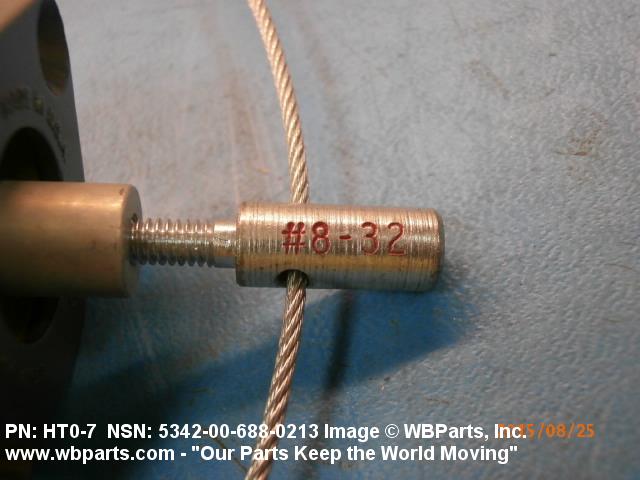

| THREAD SIZE | 8-32 NC 2B |

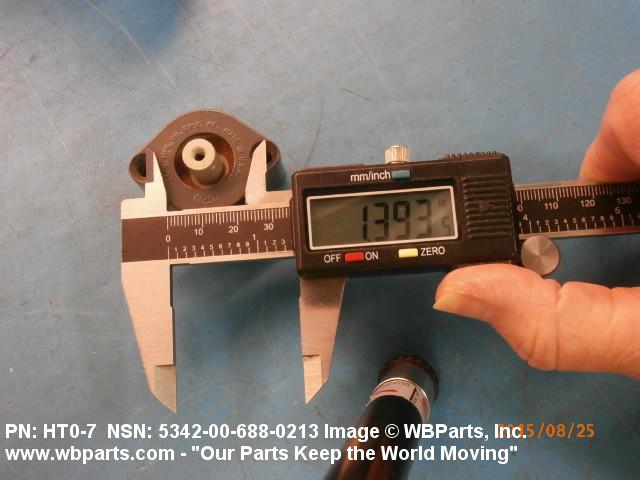

| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.406 INCHES NOMINAL |

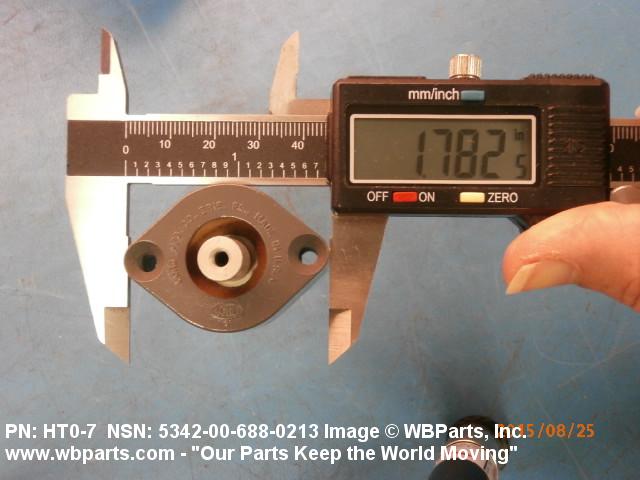

| FLANGE LENGTH | 1.780 INCHES NOMINAL |

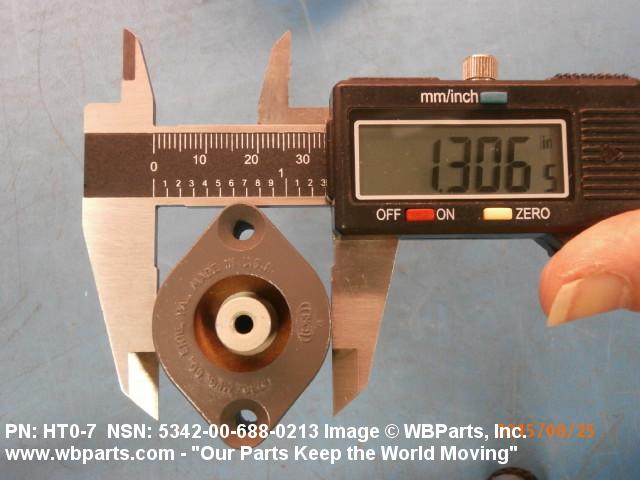

| FLANGE WIDTH | 1.300 INCHES NOMINAL |
| STUD LENGTH | 0.320 INCHES NOMINAL |
| FLANGE MOUNTING HOLE DIAMETER | 0.170 INCHES NOMINAL |
| HEIGHT | 0.800 INCHES NOMINAL |
| LOAD/FREQUENCY RANGE | NOT SPECIFIED |
| MAXIMUM LOAD RATING | 7.0 POUNDS |
Restrictions/Controls & Freight Information | NSN 5342-00-688-0213
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | W | 120 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-00-688-0213
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
1 EA : Each |
