NSN 5342-01-533-0651 J181002, J-18100-2, 01-533-0651
Product Details | WEAPON SYSTEM RESILIENT MOUNT
5342-01-533-0651 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads.
Part Alternates: J181002, J-18100-2, 5342-01-533-0651, 01-533-0651, 5342015330651, 015330651
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 AUG 2005 | 01-533-0651 | 53589 ( MOUNT, RESILIENT, WEAPON SYSTEM ) |
Drawings & Photos | NSN 5342-01-533-0651
Demand History | NSN 5342-01-533-0651
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| J181002 | 2024-08-219 | 130 | United States |
| 5342-01-533-0651 | 2016-11-313 | 229 | DIBBS |
| 5342-01-533-0651 | 2016-09-258 | 65 | DIBBS |
| 5342-01-533-0651 | 2016-08-241 | 80 | DIBBS |
Cross Reference | NSN 5342-01-533-0651
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| J-18100-2 | 76005 | LORD CORPORATION DBA AEROSPACE DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5342-01-533-0651
Technical Data | NSN 5342-01-533-0651
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BASE PLATE STEEL CAP |

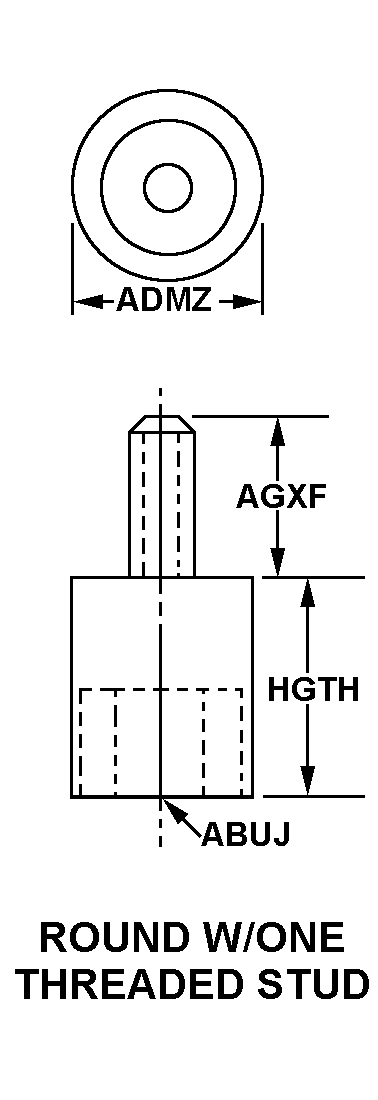

| STYLE DESIGNATOR | 77 ROUND W/ONE THREADED STUD |
