Product Details | WEAPON SYSTEM RESILIENT MOUNT

5342-01-533-2148 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads.

Part Alternates: A3193021002, A3193021-002, VBM1483, VBM-1483, VBM1483002, VBM-1483-002, 5342-01-533-2148, 01-533-2148, 5342015332148, 015332148

Hardware and Abrasives | Hardware, Weapon System

Supply Group (FSG) NSN Assign. NIIN
53 07 SEP 2005 01-533-2148

Drawings & Photos | NSN 5342-01-533-2148


Demand History | NSN 5342-01-533-2148

Part Number Request Date QTY Origin
5342-01-533-2148 2014-08-231 4 DIBBS
5342-01-533-2148 2014-08-223 4 DIBBS
5342-01-533-2148 2013-04-100 4 DIBBS
5342-01-533-2148 2012-05-131 4 DIBBS

Cross Reference | NSN 5342-01-533-2148

Part Number Cage Code Manufacturer
A3193021-002 80063 US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
VBM-1483 76385 MINOR RUBBER CO., INC. DIV MINOR RUBBER CO INC
VBM-1483-002 76385 MINOR RUBBER CO., INC. DIV MINOR RUBBER CO INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5342-01-533-2148

Technical Data | NSN 5342-01-533-2148

Characteristic Specifications
MATERIAL STEEL CORE

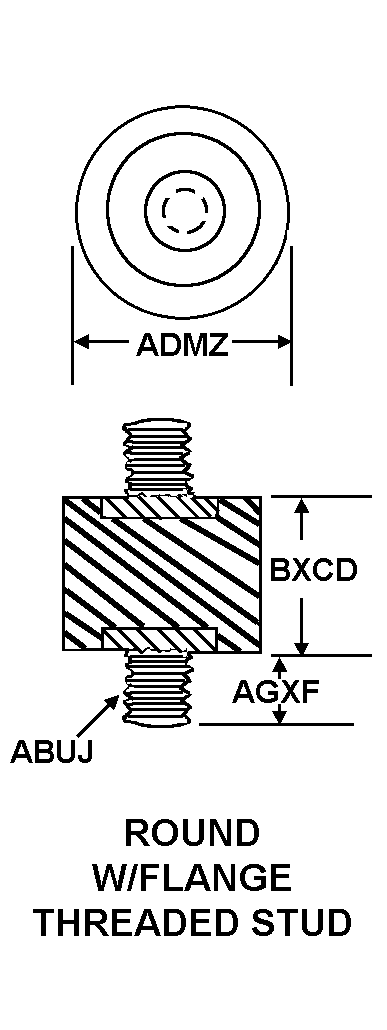

STYLE DESIGNATOR 1 ROUND W/FLANGE THREADED STUD
MAJOR OUTSIDE DIAMETER 0.250 INCHES NOMINAL
DISTANCE FROM FLANGE TO END 0.280 INCHES NOMINAL
STUD LENGTH 0.280 INCHES NOMINAL FIRST THREADED STUD 0.280 INCHES NOMINAL SECOND THREADED STUD
THREAD SIZE 0.112-40UNC-2A ALL THREADED PORTIONS
MAXIMUM LOAD RATING 2.5 POUNDS
SPECIAL FEATURES OVERALL LENGTH 0.840 INCH
END ITEM IDENTIFICATION OT-208 (V)/G TRANSMITTER GROUP
PART NAME ASSIGNED BY CONTROLLING AGENCY INAVY-DAMPNER, FLUTTER
(NON-CORE DATA) RESILIENT MEMBER MATERIAL RUBBER
(NON-CORE DATA) NONMETALLIC HARDNESS RATING 35.0 NOMINAL SHORE DUROMETER A

Restrictions/Controls & Freight Information | NSN 5342-01-533-2148

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 093600 BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC
Less than car load rating
Less than truck load rating Q 70.0
Water commodity Code 713 unknown
Originating Activity Code CX Defense Supply Center Richmond
Richmond, VA 23297-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5342-01-533-2148

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
