Product Details | WEAPON SYSTEM RESILIENT MOUNT
5342-00-725-3547 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads.
Part Alternates: A30131501, A3013150-1 , 260551, 26055-1, 5084321, 508432-1, 5342-00-725-3547, 00-725-3547, 5342007253547, 007253547
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-725-3547 | 53589 ( MOUNT, RESILIENT, WEAPON SYSTEM ) |

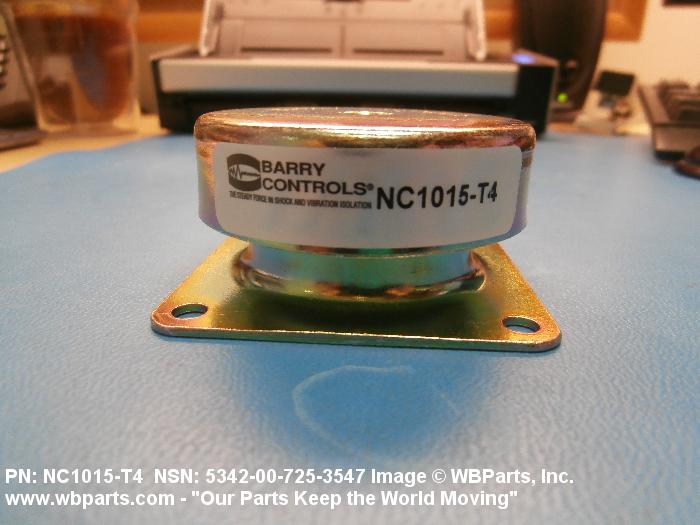

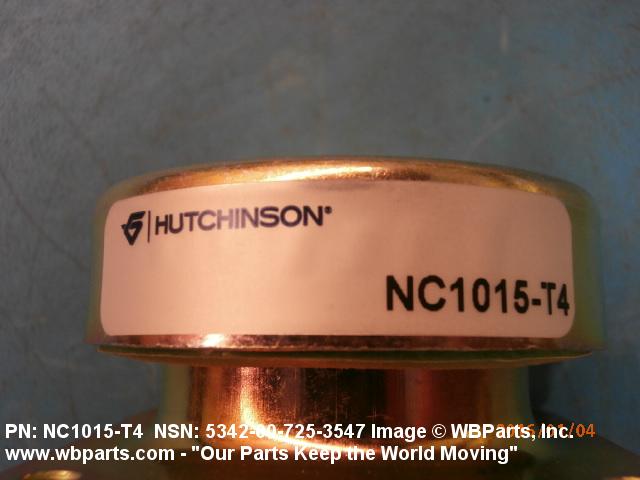

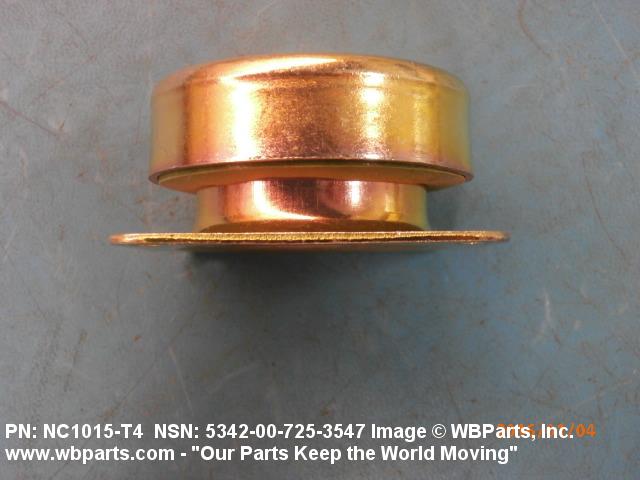

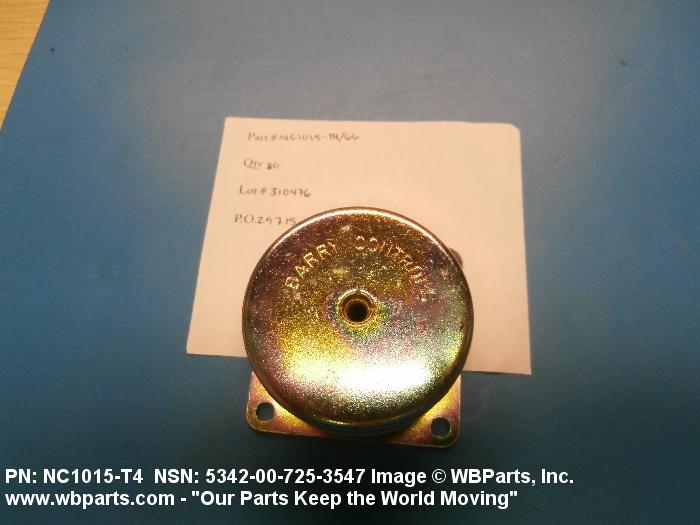

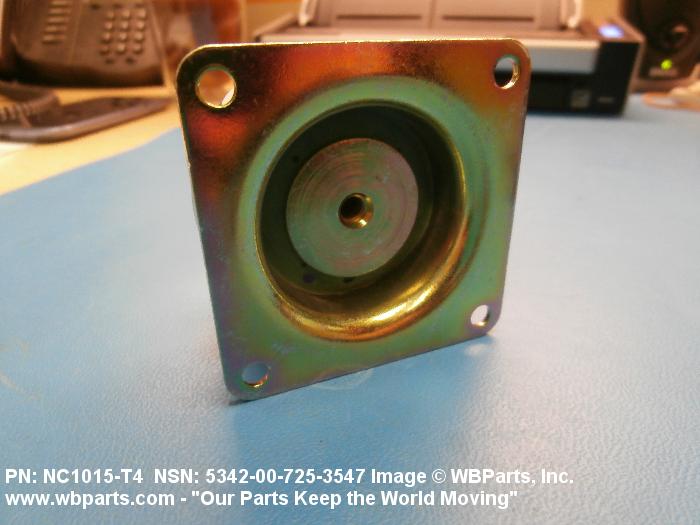

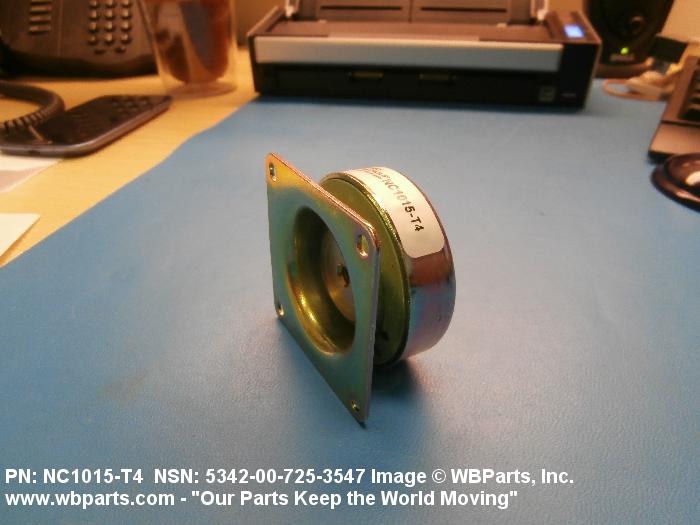

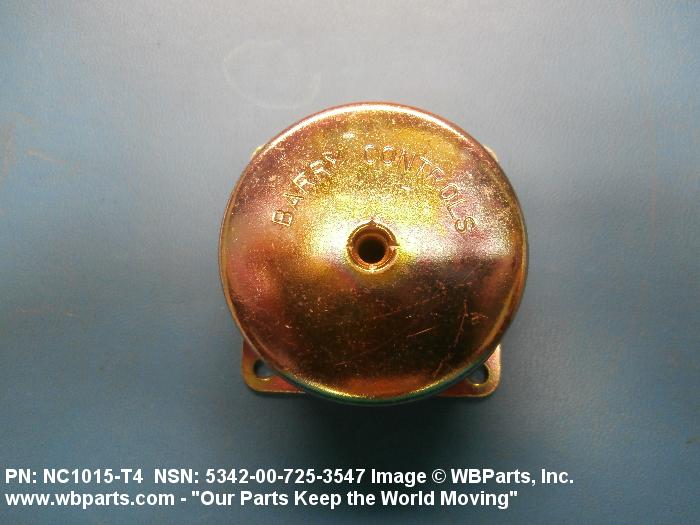

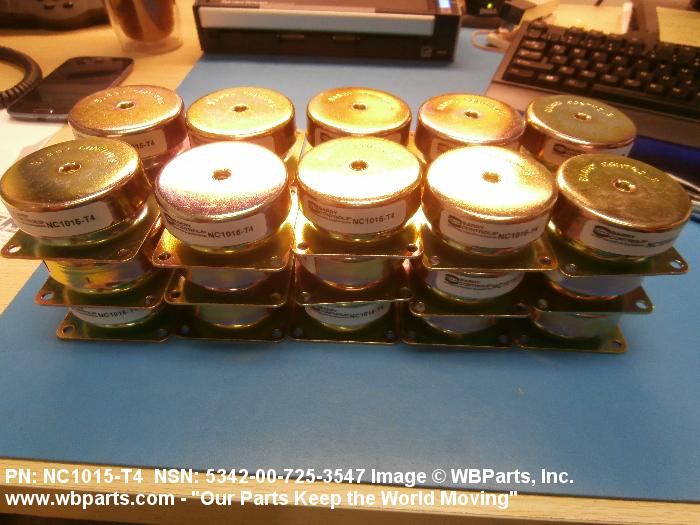

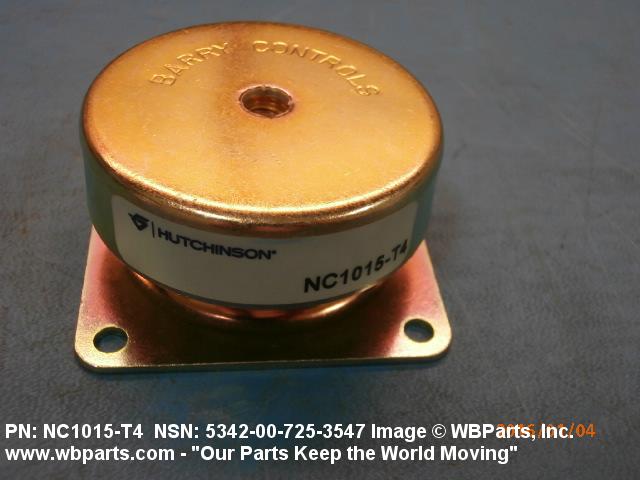

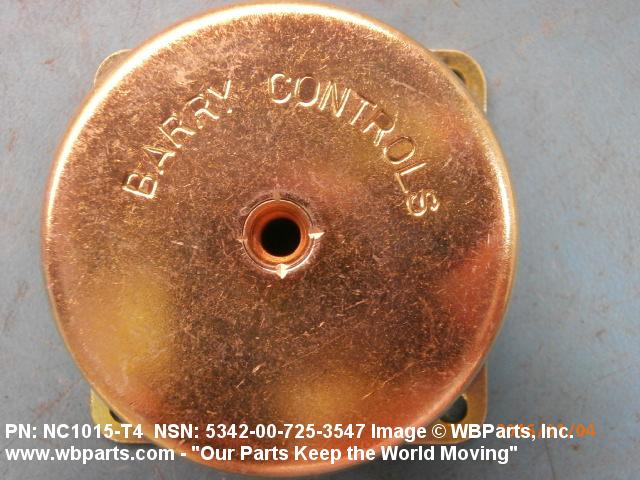

Drawings & Photos | NSN 5342-00-725-3547
Demand History | NSN 5342-00-725-3547
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-00-725-3547 | 2021-10-281 | 8 | US |
| 5342-00-725-3547 | 2021-09-273 | 10 | US |
| 5342-00-725-3547 | 2021-03-63 | 24 | Taiwan |
| 5342-00-725-3547 | 2020-07-197 | 12000 | US |
| 5342-00-725-3547 | 2020-06-182 | 24 | MANUAL |
| 5342-00-725-3547 | 2018-10-274 | 1 | DIBBS-RFPs |
| 5342-00-725-3547 | 2016-09-258 | 40 | Italy |
| 5342-00-725-3547 | 2015-09-272 | 20 | Italy |
| 5342-00-725-3547 | 2015-09-272 | 100 | Italy |
| 5342-00-725-3547 | 2015-09-251 | 60 | Italy |
| 5342-00-725-3547 | 2015-05-148 | 60 | Italy |
| 5084321 | 2014-12-343 | 30 | Italy |
| 5084321 | 2014-01-30 | 16 | Italy |
| A30131501 | 2014-01-30 | 16 | Italy |
| 5342-00-725-3547 | 2013-08-234 | 1 | DIBBS-RFPs |
| 5342-00-725-3547 | 2013-07-193 | 1118 | DIBBS |
| 5342-00-725-3547 | 2013-07-185 | 1118 | DIBBS |
| 5342-00-725-3547 | 2013-06-162 | 147 | DIBBS |
| 5342-00-725-3547 | 2013-06-157 | 285 | United States |
| 5342-00-725-3547 | 2013-05-139 | 285 | DIBBS |
| 5342-00-725-3547 | 2013-05-122 | 197 | DIBBS |
| 5342-00-725-3547 | 2013-03-73 | 259 | DIBBS |
| A30131501 | 2012-11-331 | 50 | Italy |
Cross Reference | NSN 5342-00-725-3547
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 26055-1 | 81860 | BARRY WRIGHT CORPORATION DBA BARRY CONTROLS |
| 508432-1 | 31550 | EXELIS INC. DBA NIGHT VISION & COMMUNICATIONS |
| A3013150-1 | 06TW0 | FTG, INC. |
| A3013150-1 | 15332 | VIBRATION ISOLATION PRODUCTS CORPORATION |
| A3013150-1 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-00-725-3547
Related Products | NSN 5342-00-725-3547
Technical Data | NSN 5342-00-725-3547
| Characteristic | Specifications |
|---|---|
| RESILIENT MEMBER MATERIAL | RUBBER |
| NONMETALLIC HARDNESS RATING | NOT RATED |
| RIGID MEMBER MATERIAL AND LOCATION | STEEL OVERALL |
| RIGID MEMBER SURFACE TREATMENT AND LOCATION | CADMIUM OVERALL |

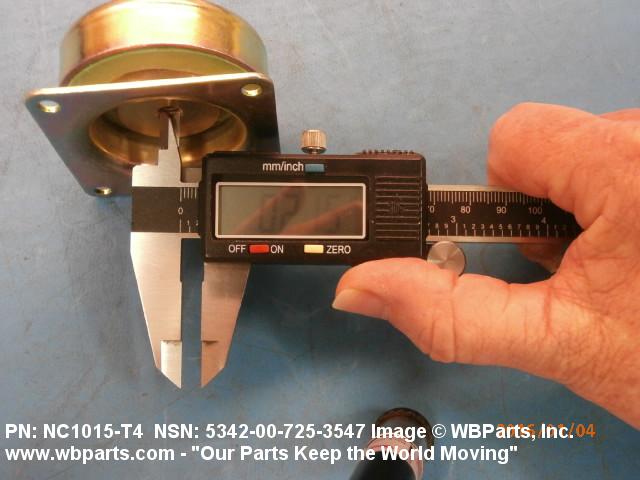

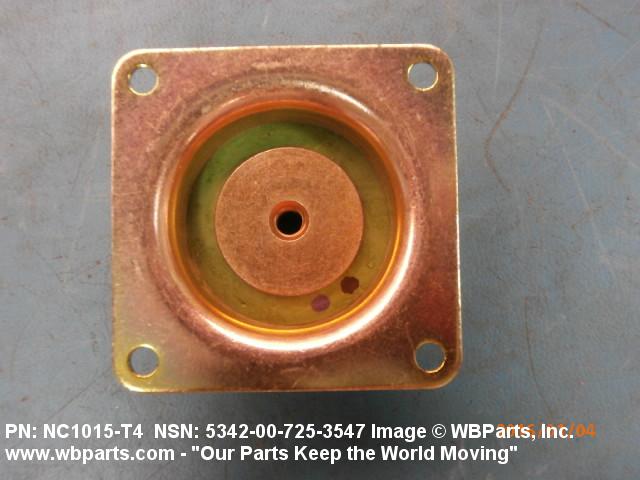

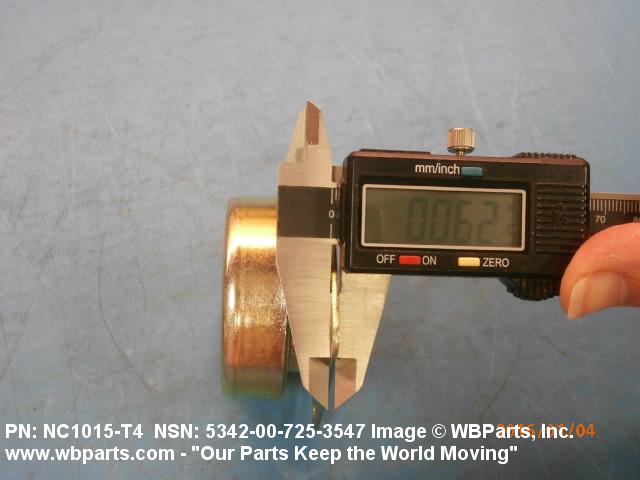

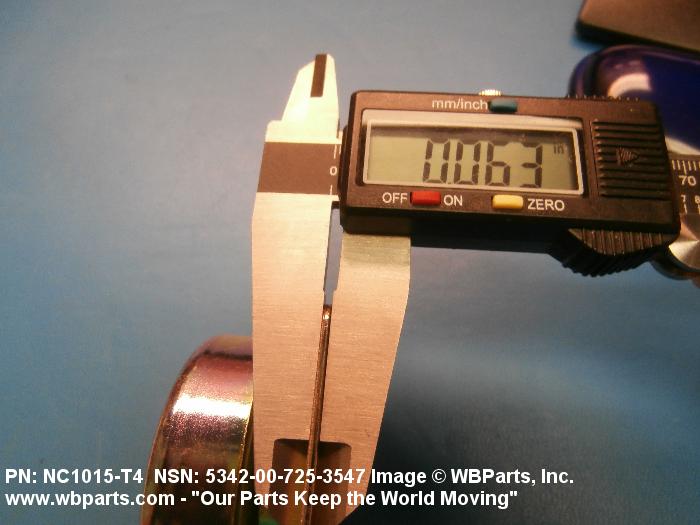

| STYLE DESIGNATOR | C57 ROUND W/FLANGED BUSHING FOUR-HOLE FLANGE |
| FLANGE THICKNESS | 0.063 INCHES NOMINAL |
| THREAD SIZE | 1/4-20 UNC-2B THD SIZE |

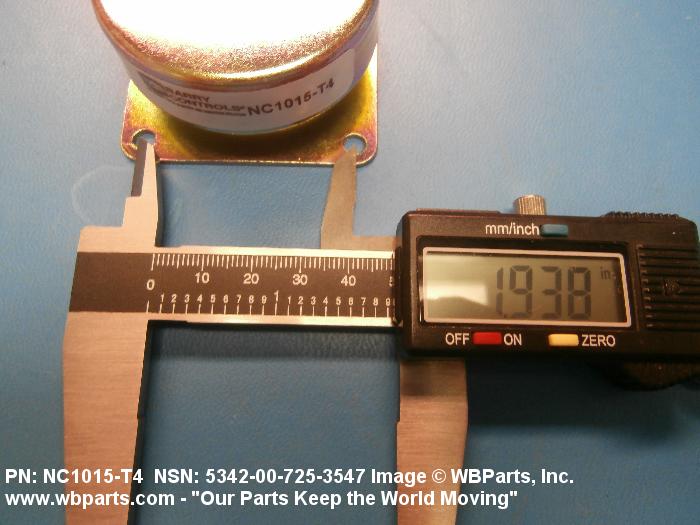

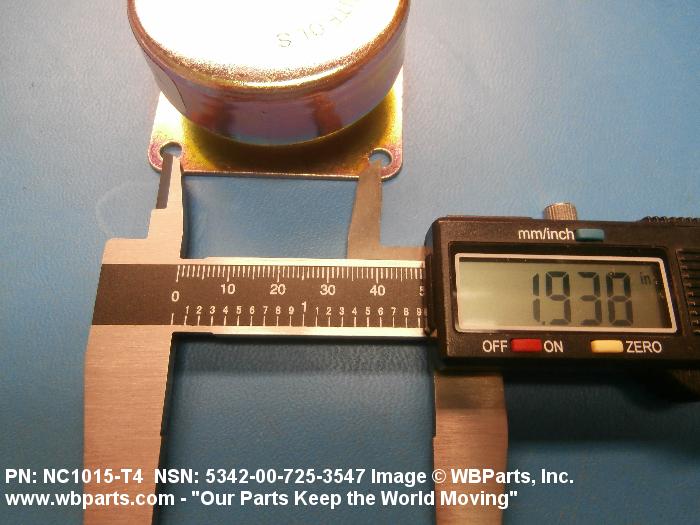

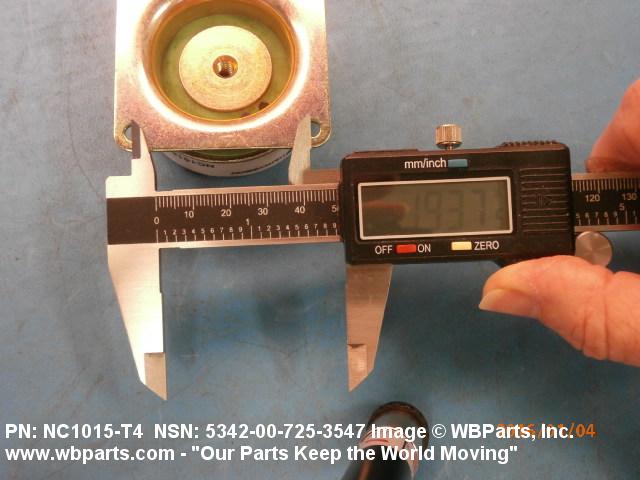

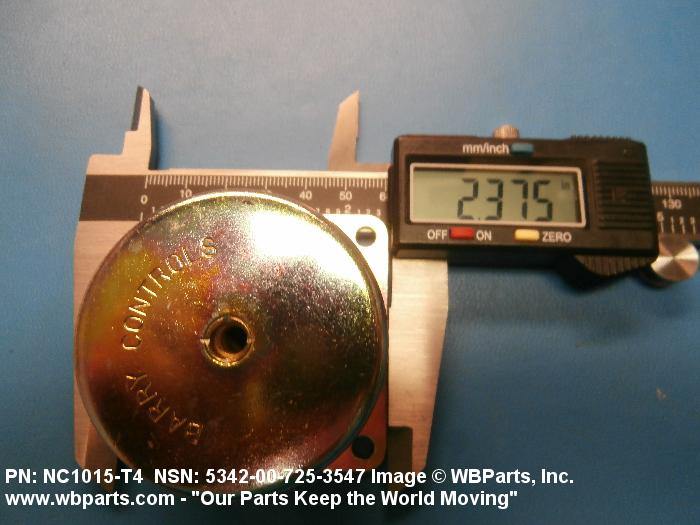

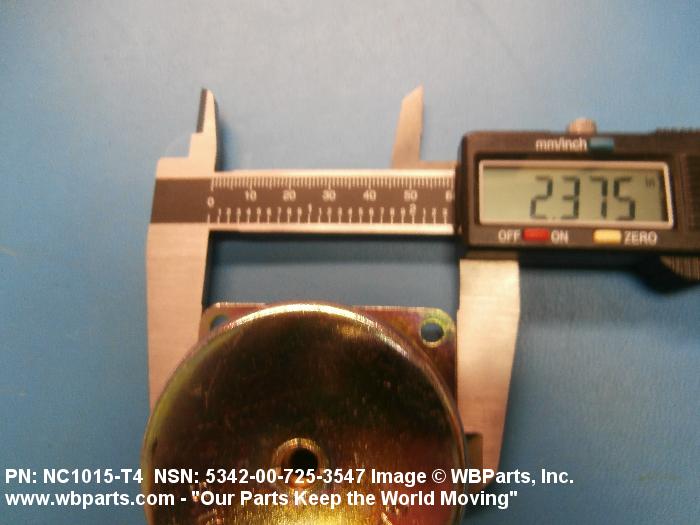

| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.938 INCHES NOMINAL |
| FLANGE LENGTH | 2.375 INCHES NOMINAL |
| FLANGE WIDTH | 2.375 INCHES NOMINAL |
| SHORTEST DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.938 INCHES NOMINAL |
| FLANGE MOUNTING HOLE DIAMETER | 0.196 INCHES NOMINAL |
| HEIGHT | 1.125 INCHES NOMINAL |
| LOAD/FREQUENCY RANGE | RATED AT 65 LB LOAD FOR FOR 20 CPS |
| MAXIMUM LOAD RATING | 65.0 POUNDS |
| MANUFACTURERS CODE | 81860 |
| DESIGN CONTROL REFERENCE | 26055-1 |
