NSN 5342-00-725-3997 MILA18001, MIL-A-18001, MIL-A-18001KCLASS1TYPEZDM0.500
Product Details | CORROSION PREVENTIVE ANODE
5342-00-725-3997 An item which sacrificially corrodes when coupled to a more noble metal in a conducting medium.20253400020Hardware, Commercial53420023Hardware, Weapon System
Part Alternates: MILA18001, MIL-A-18001, MIL-A-18001KCLASS1TYPEZDM0.500, MILA18001KCLASS1TYPEZDM0500, 5342-00-725-3997, 00-725-3997, 5342007253997, 007253997
Hardware and Abrasives | Hardware, Weapon System
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-725-3997 | 13154 ( ANODE, CORROSION PREVENTIVE ) |
Drawings & Photos | NSN 5342-00-725-3997
Demand History | NSN 5342-00-725-3997
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5342-00-725-3997 | 2019-01-22 | 535 | DIBBS |
| 5342-00-725-3997 | 2017-02-52 | 502 | DIBBS |
| 5342-00-725-3997 | 2012-11-319 | 496 | DIBBS |
| 5342-00-725-3997 | 2012-01-26 | 602 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5342-00-725-3997
Related Products | NSN 5342-00-725-3997
Technical Data | NSN 5342-00-725-3997
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ZINC, MIL-A-18001, CLASS 1, TYPE ZDM ANODE AND STEEL CORE |
| CORE SURFACE TREATMENT | CADMIUM AND TIN PLATED AND ZINC |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.216-28 UNF AND 0.216-28 UNF |
| THREAD CLASS | 2A AND 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NOMINAL THREAD LENGTH | 0.340 INCHES AND 0.458 INCHES |

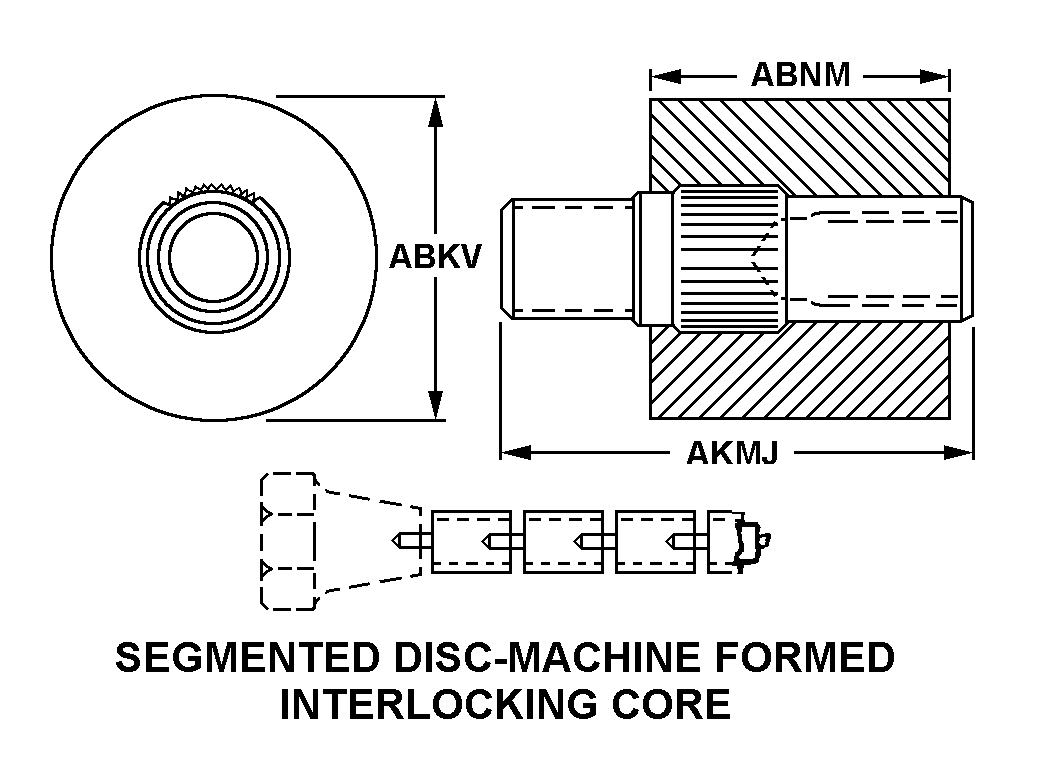

| STYLE DESIGNATOR | 36 SEGMENTED DISC-MACHINE FORMED INTERLOCKING CORE |
| OUTSIDE DIAMETER | 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| THICKNESS | 0.734 INCHES MINIMUM AND 0.766 INCHES MAXIMUM |
| CORE LENGTH | 1.152 INCHES MINIMUM AND 1.162 INCHES MAXIMUM |
| MOUNTING METHOD | THREADED END |
| INSERT QUANTITY | 1 |
| CONSTRUCTION | SOLID |
| WEIGHT | NOT RATED |
| NONDEFINITIVE SPEC/STD DATA | 1 CLASS AND ZDM TYPE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-A-18001 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-A-18001KCLASS1TYPEZDM0.500 |
Restrictions/Controls & Freight Information | NSN 5342-00-725-3997
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 200500 | ZINC:ANODES |
| Less than car load rating | ||
| Less than truck load rating | T | 55.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5342-00-725-3997
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
T EA : Each |
