NSN 5340-01-534-5052 11467809, 01-534-5052, 015345052
Product Details | SPRING TENSION CLIP
5340-01-534-5052 A preformed item of semirigid material designed to retain, position, fasten, or support other items, such as cable(s), access cover(s), by its own inherent spring action. It may be fastened to a structure by bolt(s), clip(s), screw(s), and the like. For items conducting electric current, see CLIP, ELECTRICAL or CLAMP, ELECTRICAL. For items which partially surround an item, see STRAP, RETAINING. For items which entirely surround an item and do not have inherent spring tension, see CLAMP, LOOP. See also CLIP, RETAINING. Do not use if a more specific item name is available.
Part Alternates: 11467809, 5340-01-534-5052, 01-534-5052, 5340015345052, 015345052
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 OCT 2005 | 01-534-5052 | 20815 ( CLIP, SPRING TENSION ) |

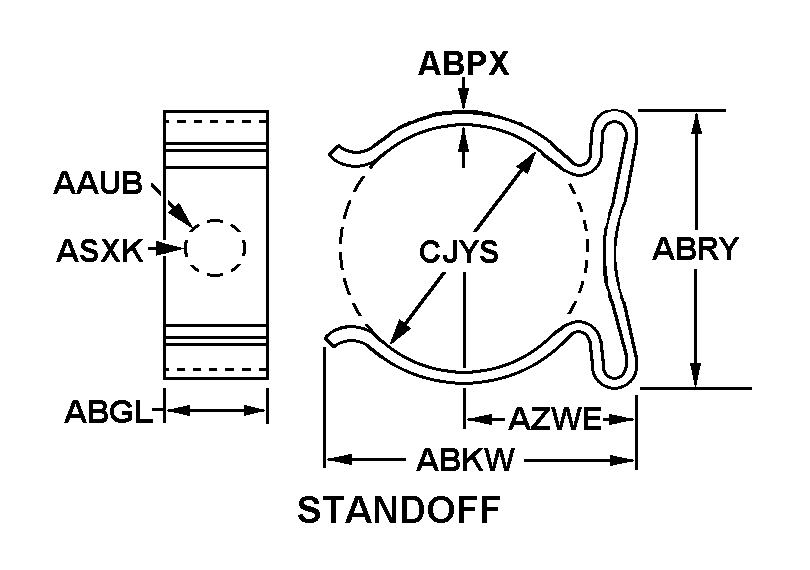

Drawings & Photos | NSN 5340-01-534-5052
Cross Reference | NSN 5340-01-534-5052
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11467809 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-534-5052
Technical Data | NSN 5340-01-534-5052
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 170 AND COPPER ALLOY 172 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B194, T800 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, CLASS 2, TYPE II FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | C31 STANDOFF |
| HOLE DIAMETER | 0.141 INCHES MINIMUM AND 0.147 INCHES MAXIMUM |
| WIDTH | 1.040 INCHES MINIMUM AND 1.080 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.200 INCHES MINIMUM AND 1.240 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.029 INCHES MINIMUM AND 0.035 INCHES MAXIMUM |
| LENGTH | 1.040 INCHES MINIMUM AND 1.080 INCHES MAXIMUM |
| DISTANCE FROM LOOP CENTER TO END | 0.520 INCHES MINIMUM AND 0.540 INCHES MAXIMUM |
| LOOP/HOLDING DIMENSION | 0.920 INCHES MINIMUM AND 0.995 INCHES MAXIMUM |
| HOLE QUANTITY | 3 |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 3 |
| MOUNTING FACILITY DIAMETER | 0.141 INCHES MINIMUM AND 0.147 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5340-01-534-5052
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
