Product Details | ANGLE BRACKET
5340-01-534-5063 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: 11472204004, 11472204-004, 5340-01-534-5063, 01-534-5063, 5340015345063, 015345063
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 OCT 2005 | 01-534-5063 | 16900 ( BRACKET, ANGLE ) |
Drawings & Photos | NSN 5340-01-534-5063
Cross Reference | NSN 5340-01-534-5063
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11472204-004 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-534-5063
Technical Data | NSN 5340-01-534-5063
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5052 |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B209 ASSN STD SINGLE MATERIAL RESPONSE OR QQ-A-250/8 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CHROMATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541, CLASS 1A MIL SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | 6 ANGLE |
| FIRST LEG LENGTH | 2.620 INCHES NOMINAL |
| SECOND LEG LENGTH | 2.620 INCHES NOMINAL |
| FIRST LEG THICKNESS | 0.125 INCHES NOMINAL |
| SECOND LEG THICKNESS | 0.125 INCHES NOMINAL |
| FIRST LEG STYLE | 105 CORNER RADIUS |
| SECOND LEG WIDTH | 1.750 INCHES NOMINAL |
| FIRST LEG HOLE ARRANGEMENT STYLE | 137 THREE HOLES |
| FIRST LEG HOLE DIAMETER | 0.210 INCHES MINIMUM AND 0.216 INCHES MAXIMUM |
| SECOND LEG HOLE DIAMETER | 0.193 INCHES MINIMUM AND 0.199 INCHES MAXIMUM |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 1.250 INCHES NOMINAL |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | 105 CORNER RADIUS |

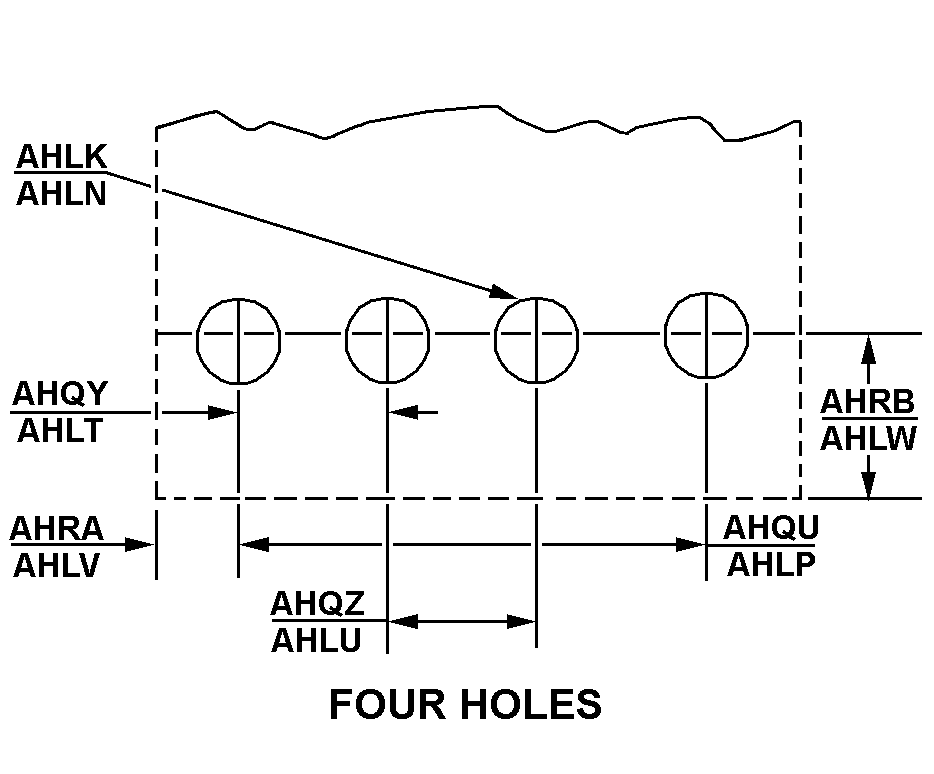

| SECOND LEG HOLE ARRANGEMENT STYLE | 144 FOUR HOLES |
| SPECIAL FEATURES | MOUNTS A RESISTOR |
| III END ITEM IDENTIFICATION | PATRIOT GUIDED MISSILE SYSTEM |
